Electronic Brake Control Module: Locations

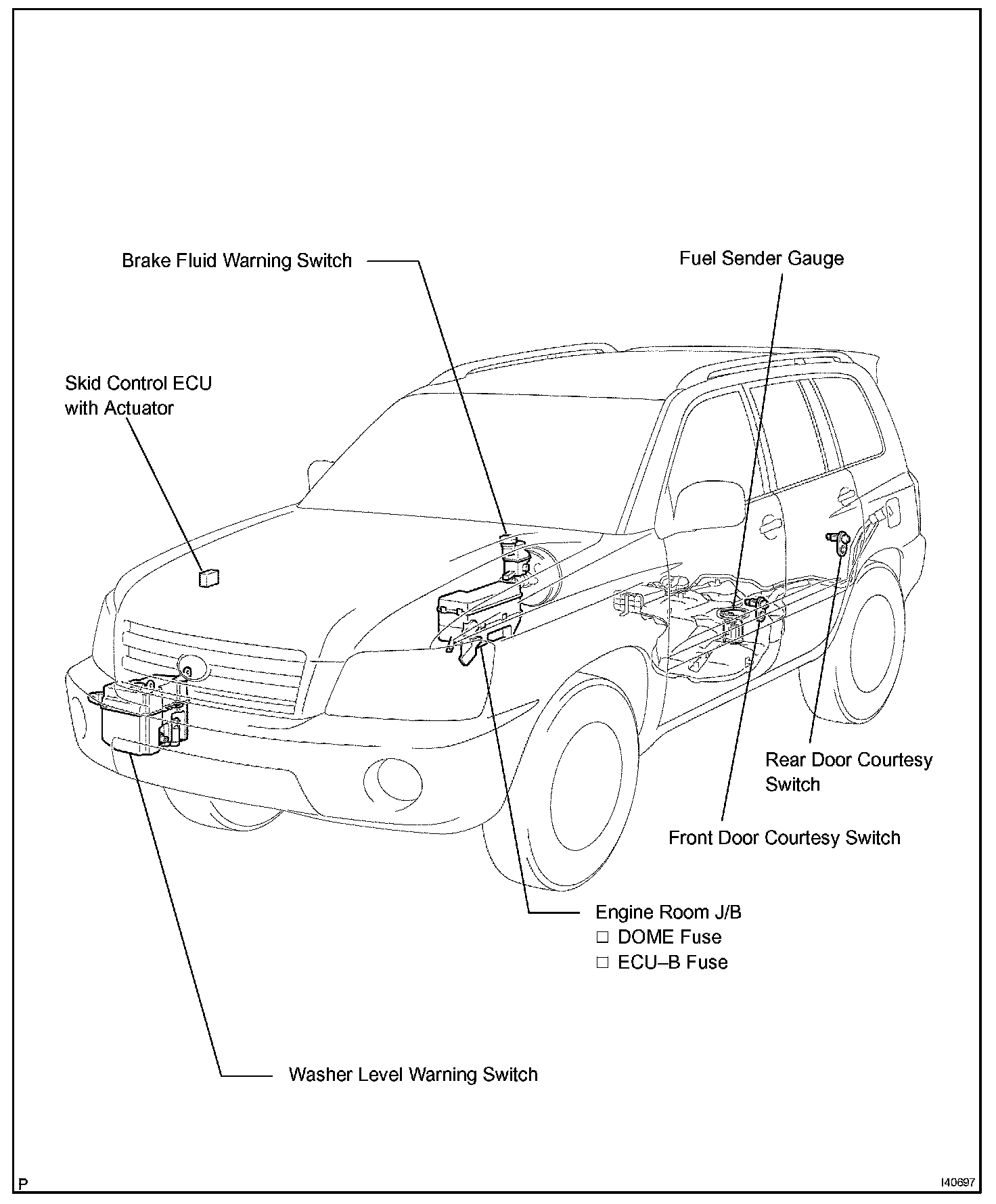

Tire Pressure Warning System:

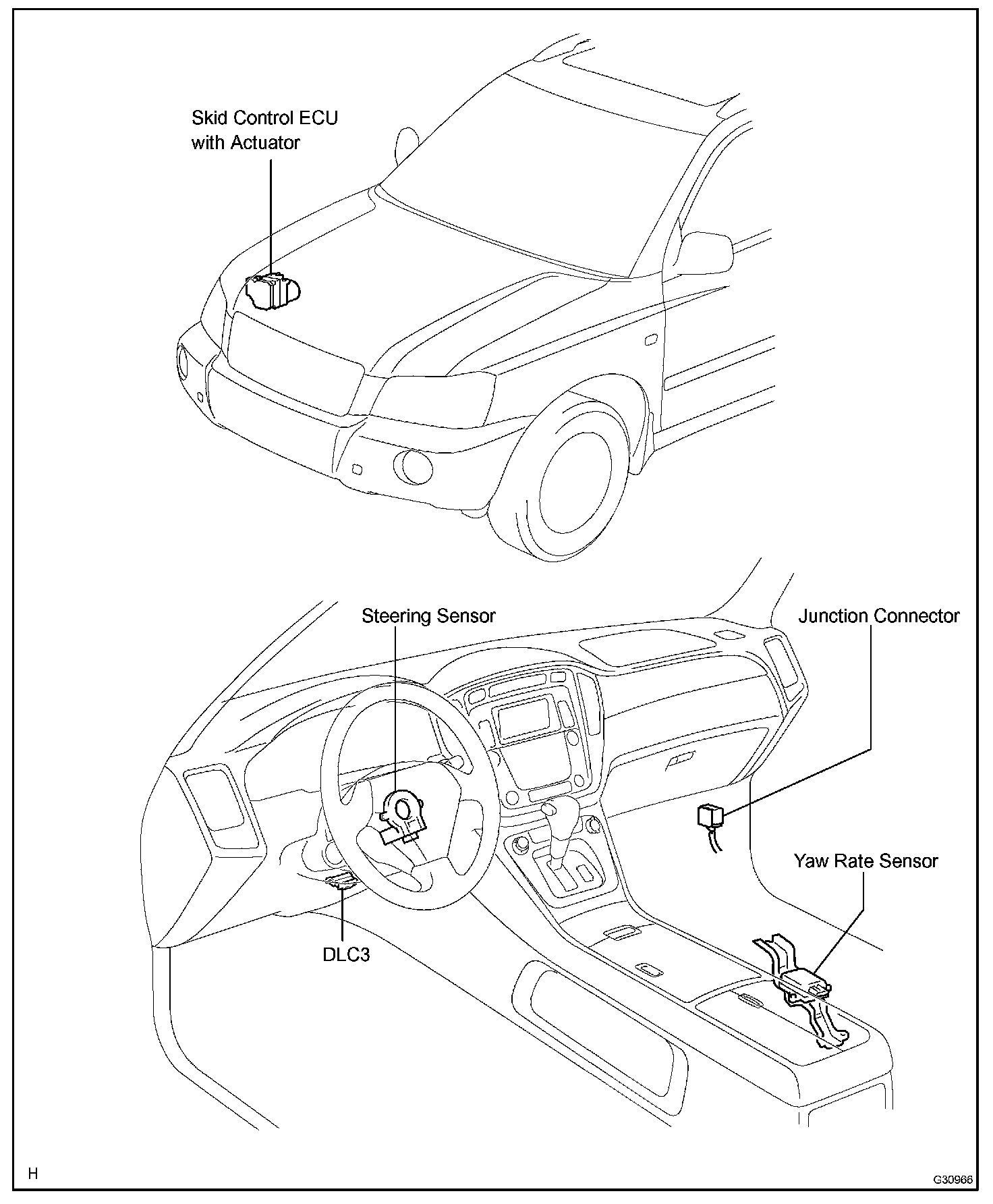

ABS With EBD & BA & TRAC & VSC System:



Combination Meter:



CAN Communication System:



Cruise Control System:



Engine Compartment:



Ig - Wi:
