Engine Immobilizer System
Engine Immobilizer System

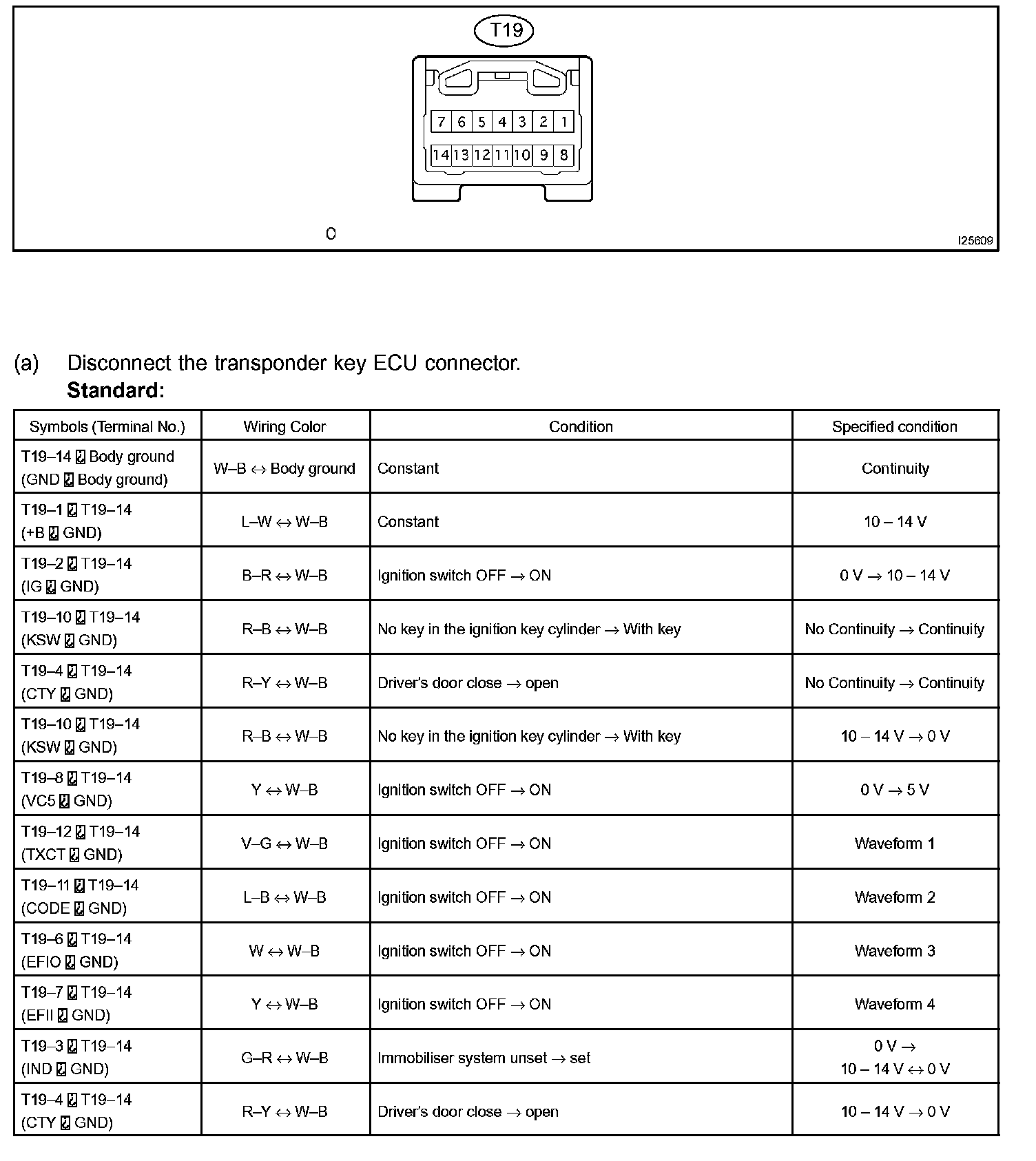

Terminals Of ECM/Pinouts - Transponder Key ECU Part 1:

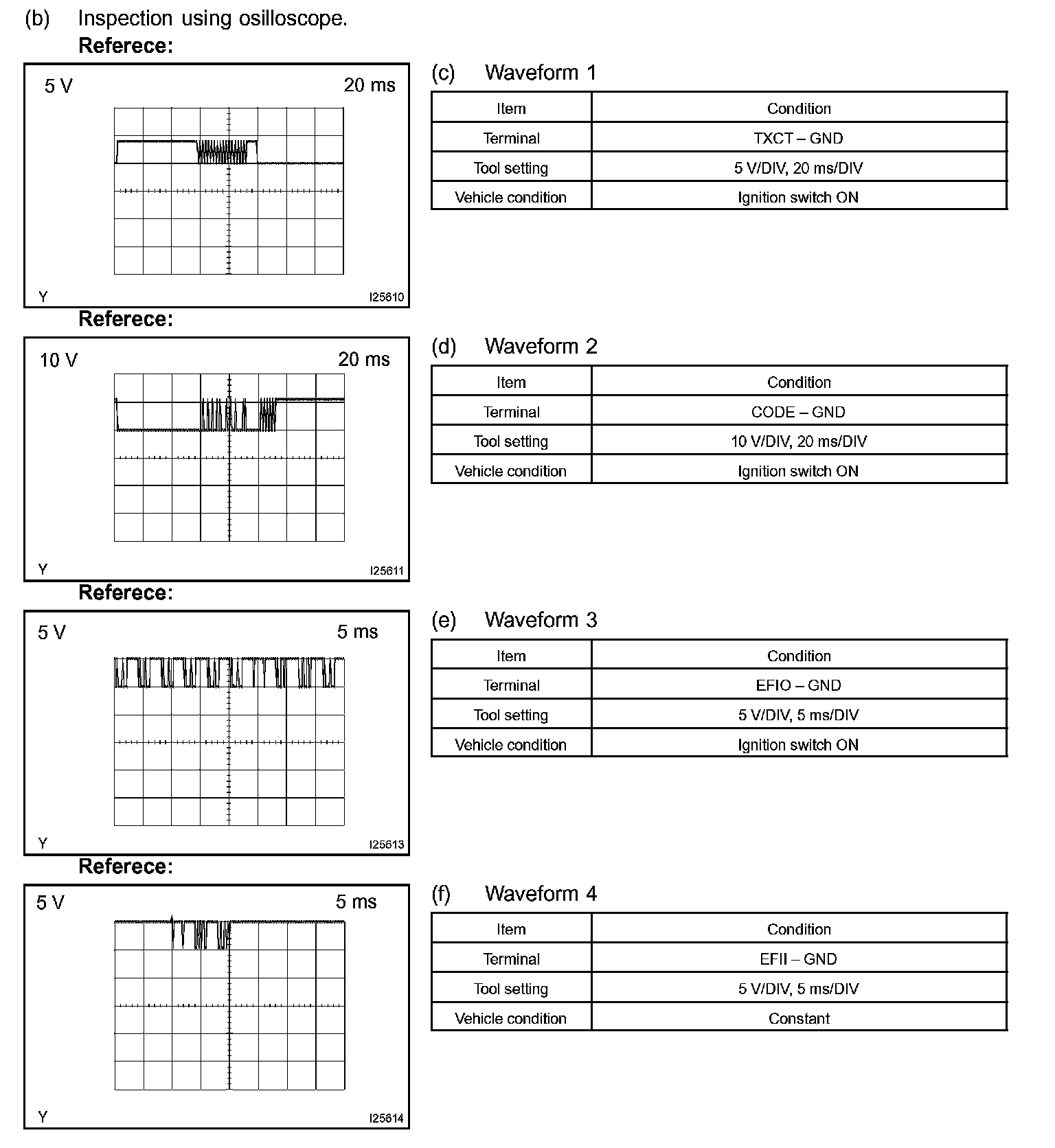

Oscilloscope Waveforms:
Terminals Of ECM/ Pinouts - ECM:

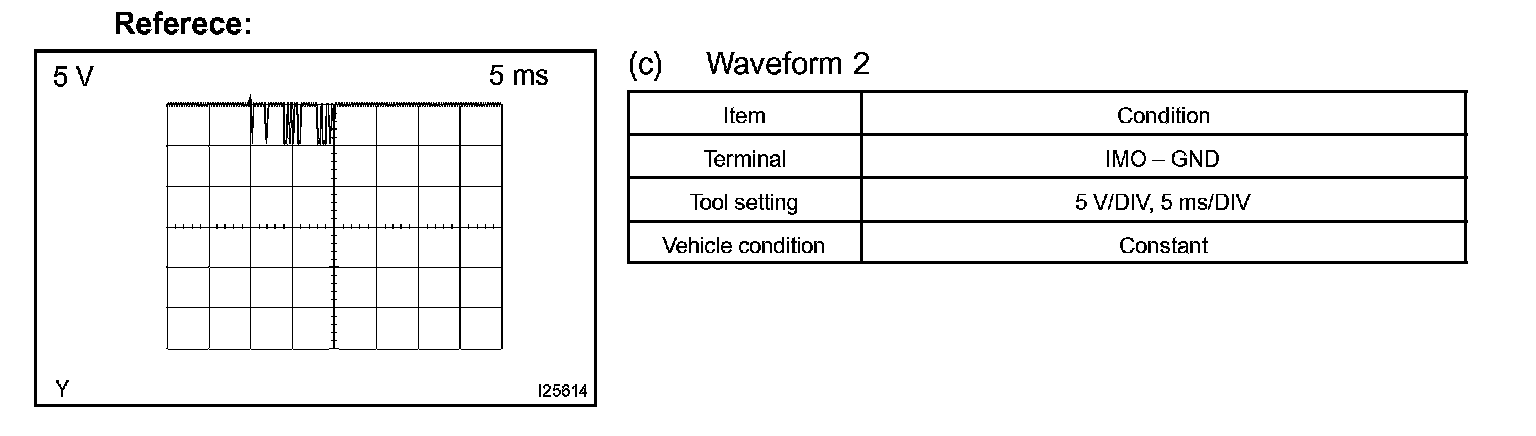

Oscilloscope Waveform:

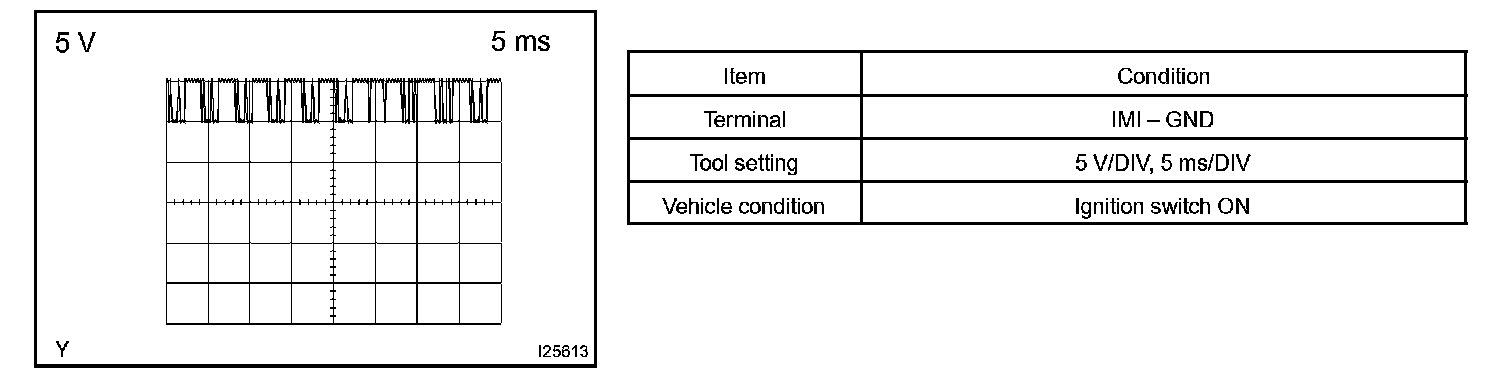

Oscilloscope Waveform:
