Brake Master Cylinder
Brake Master Cylinder
Part 1 Of 2:
Part 2 Of 2:

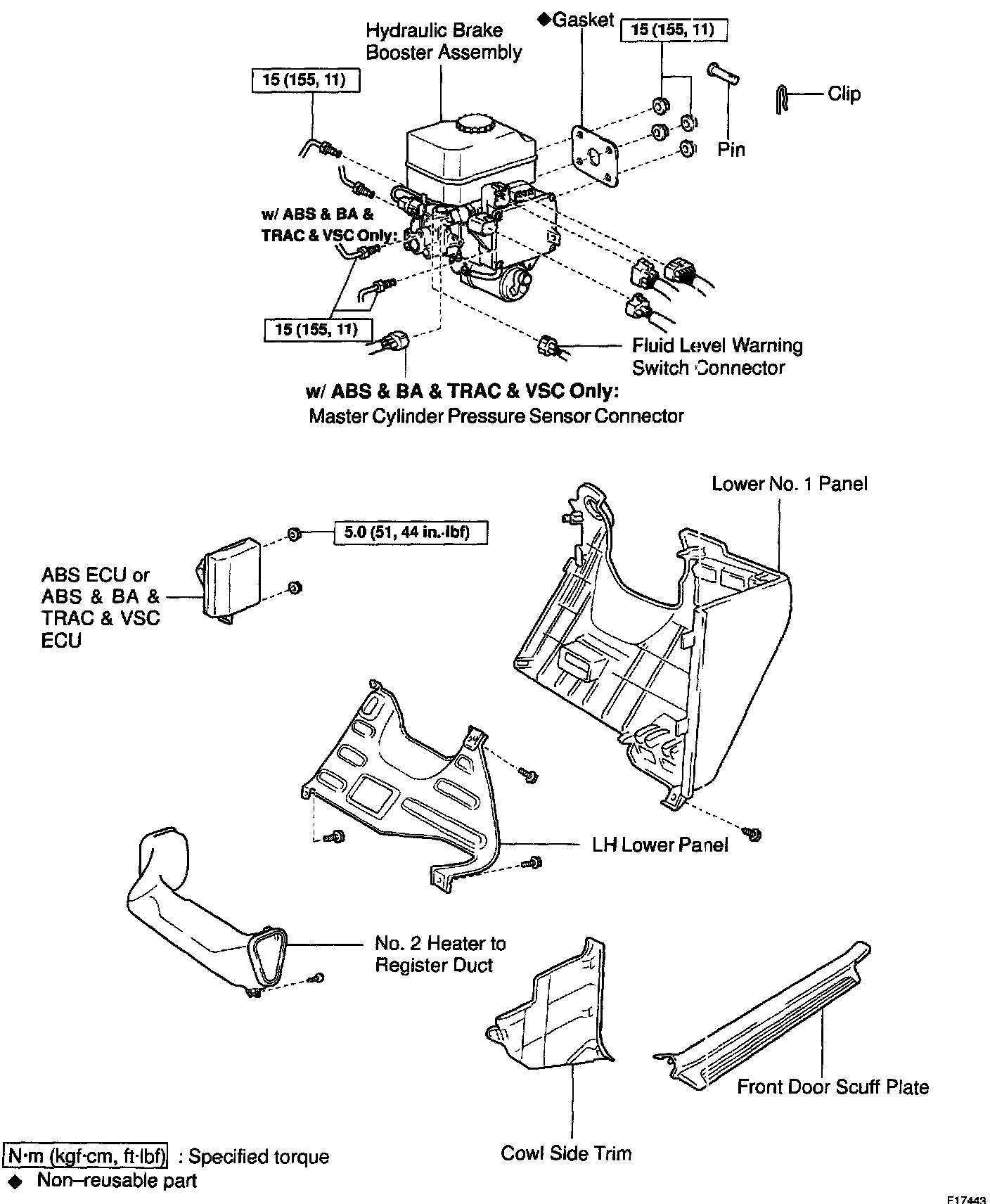

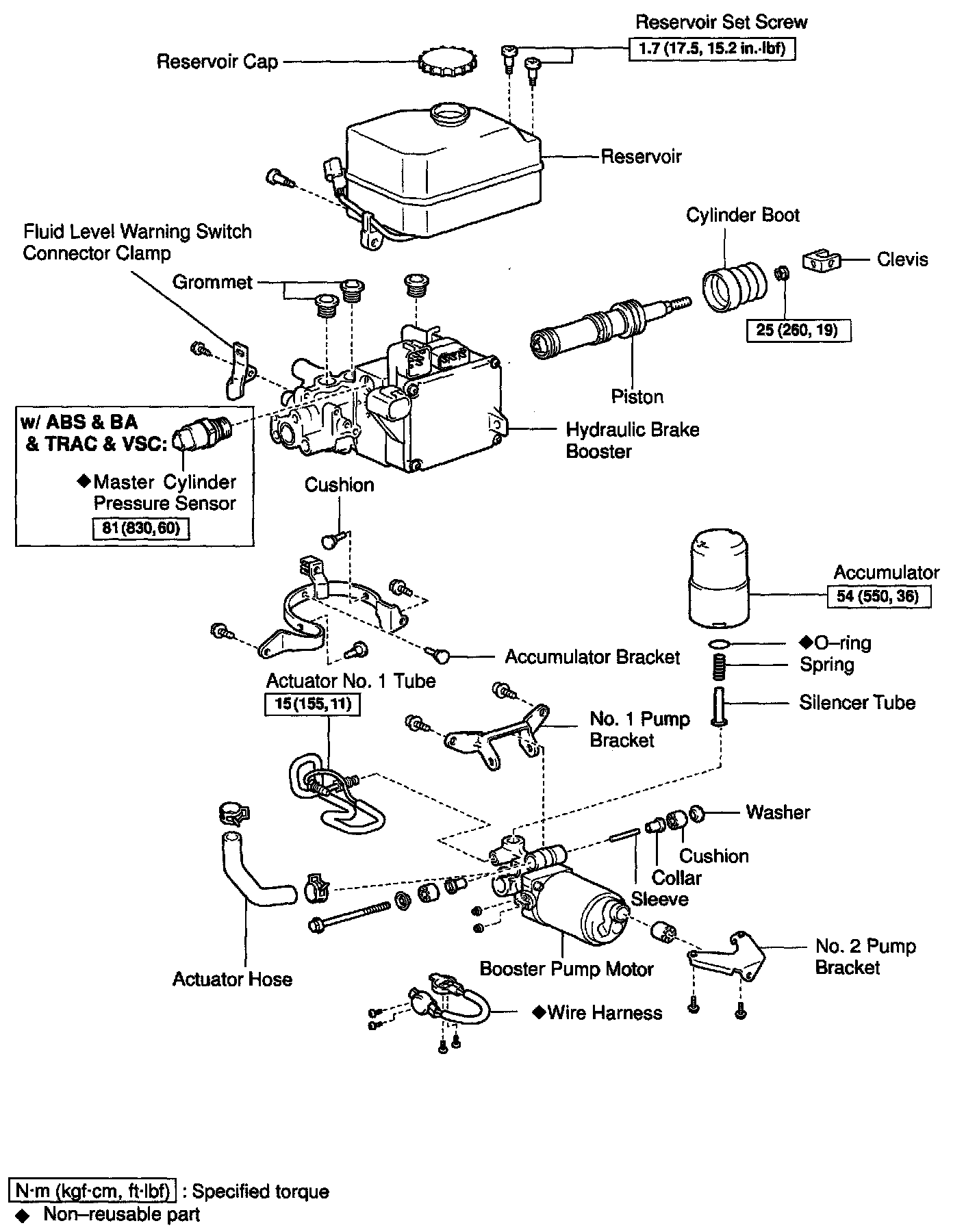

HYDRAULIC BRAKE BOOSTER
REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
