Control Assembly, HVAC
Control Assembly, HVAC

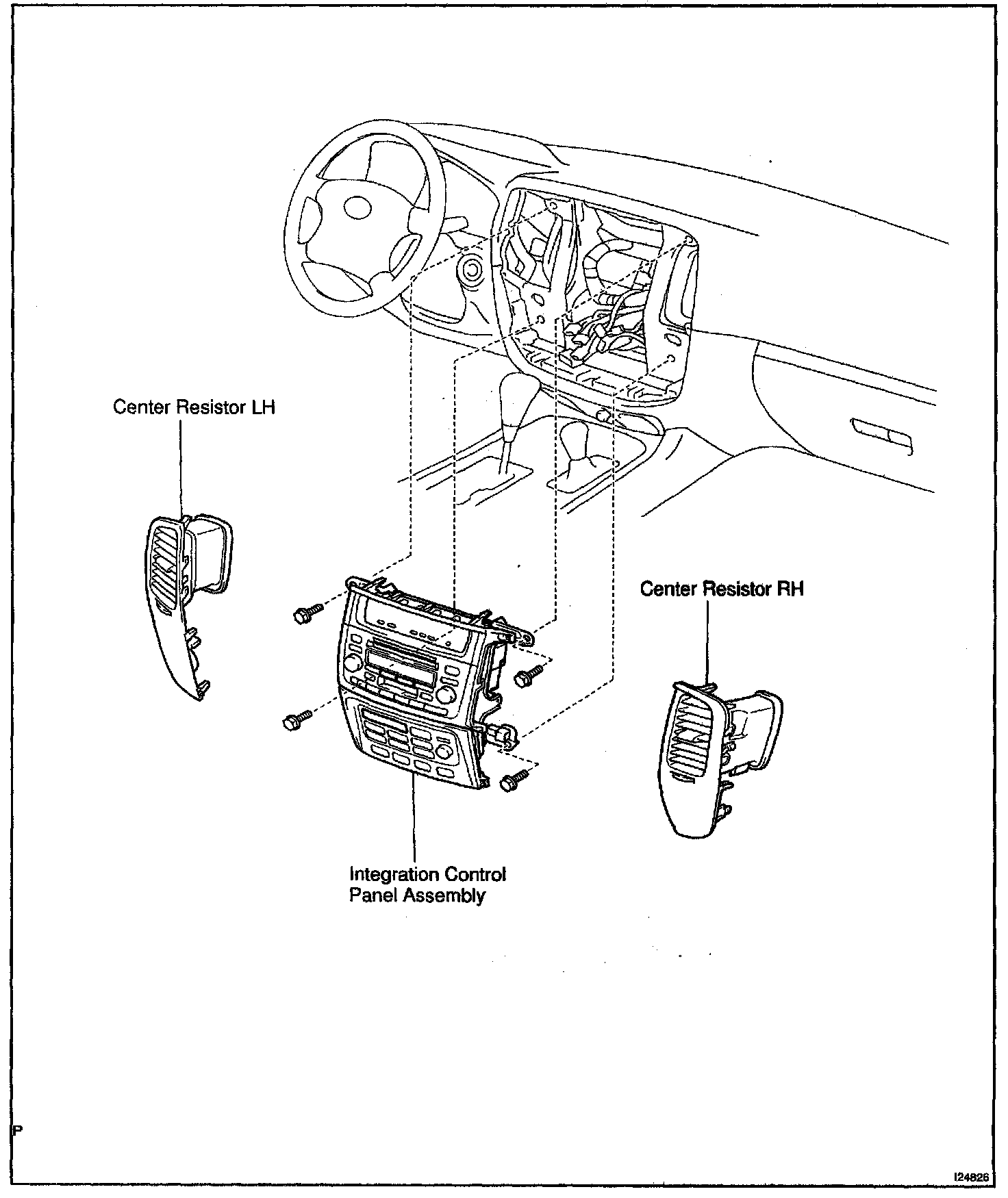

Air Conditioning Control Assembly:

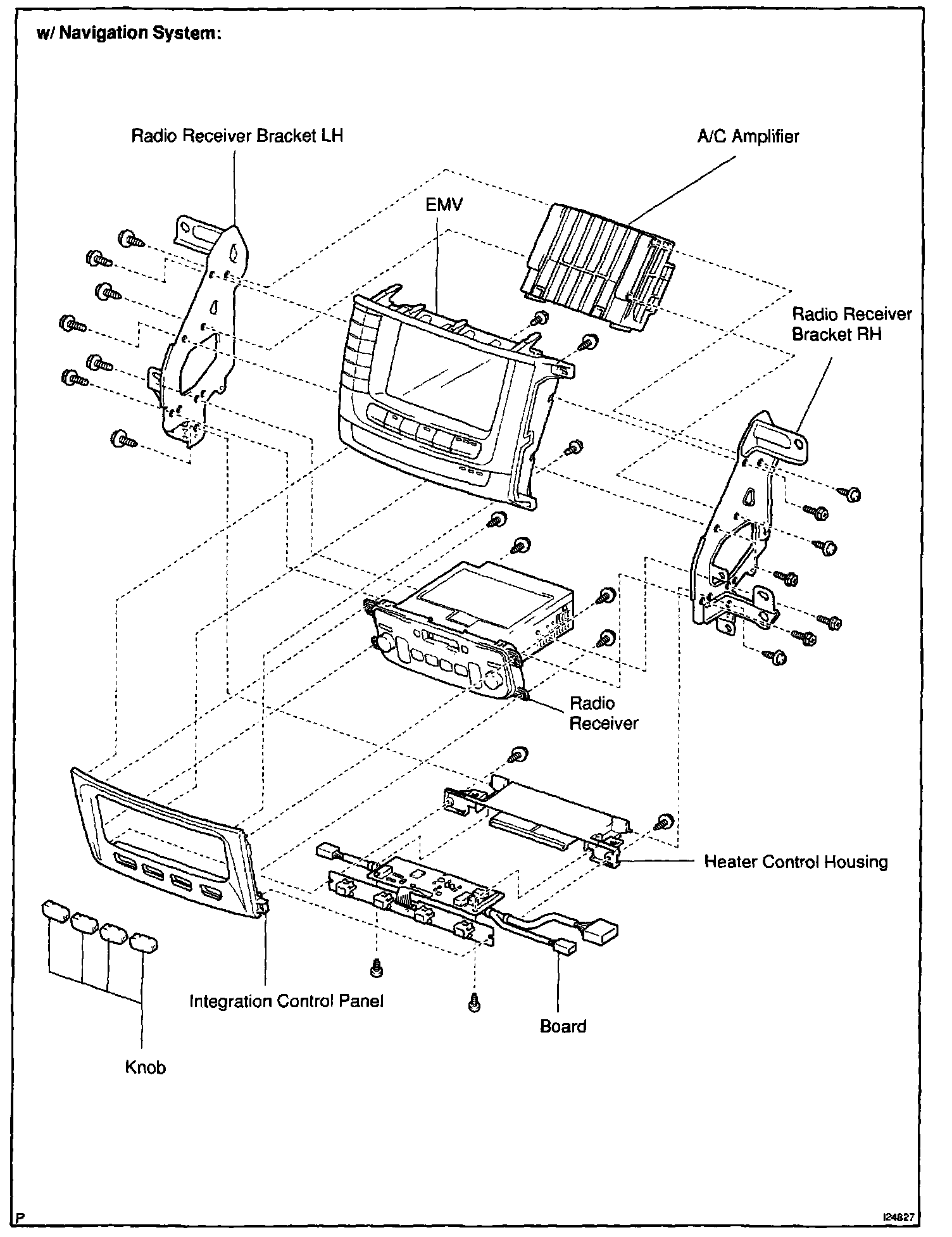

Air Conditioning Control Assembly - W/ Navigation System:

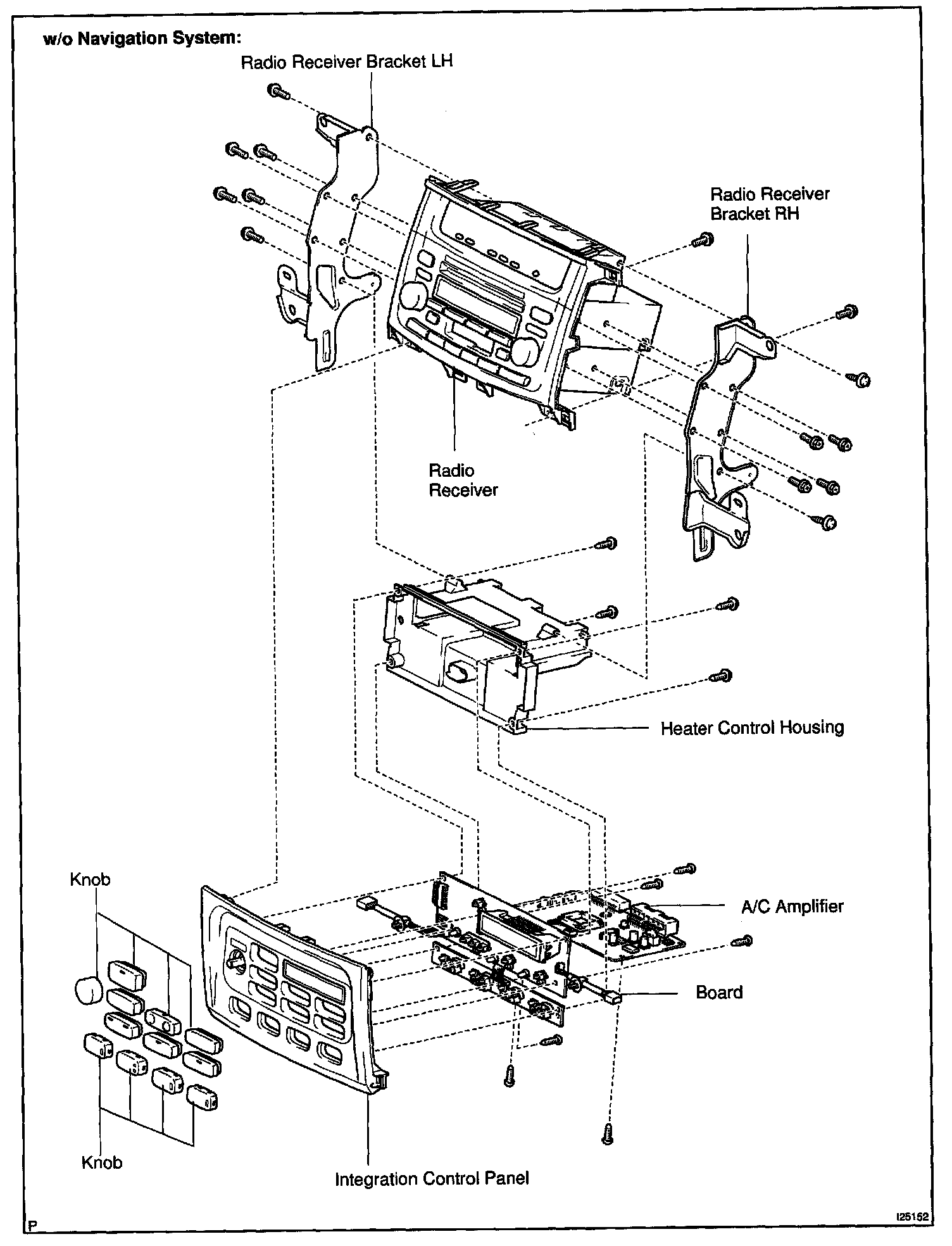

Air Conditioning Control Assembly - W/o Navigation System:
