Heater Core Case
Heater Core Case

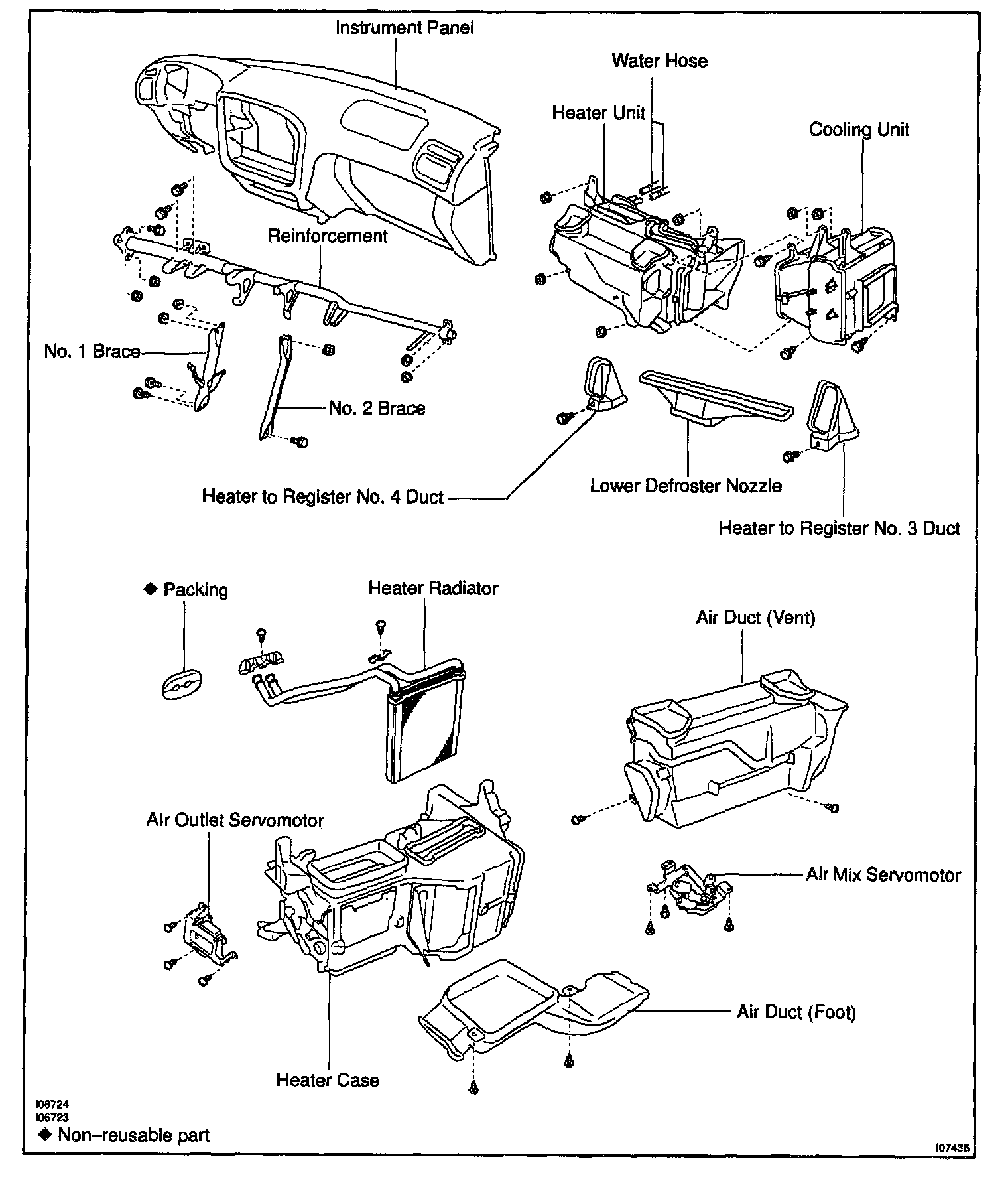

Front Heater Unit:

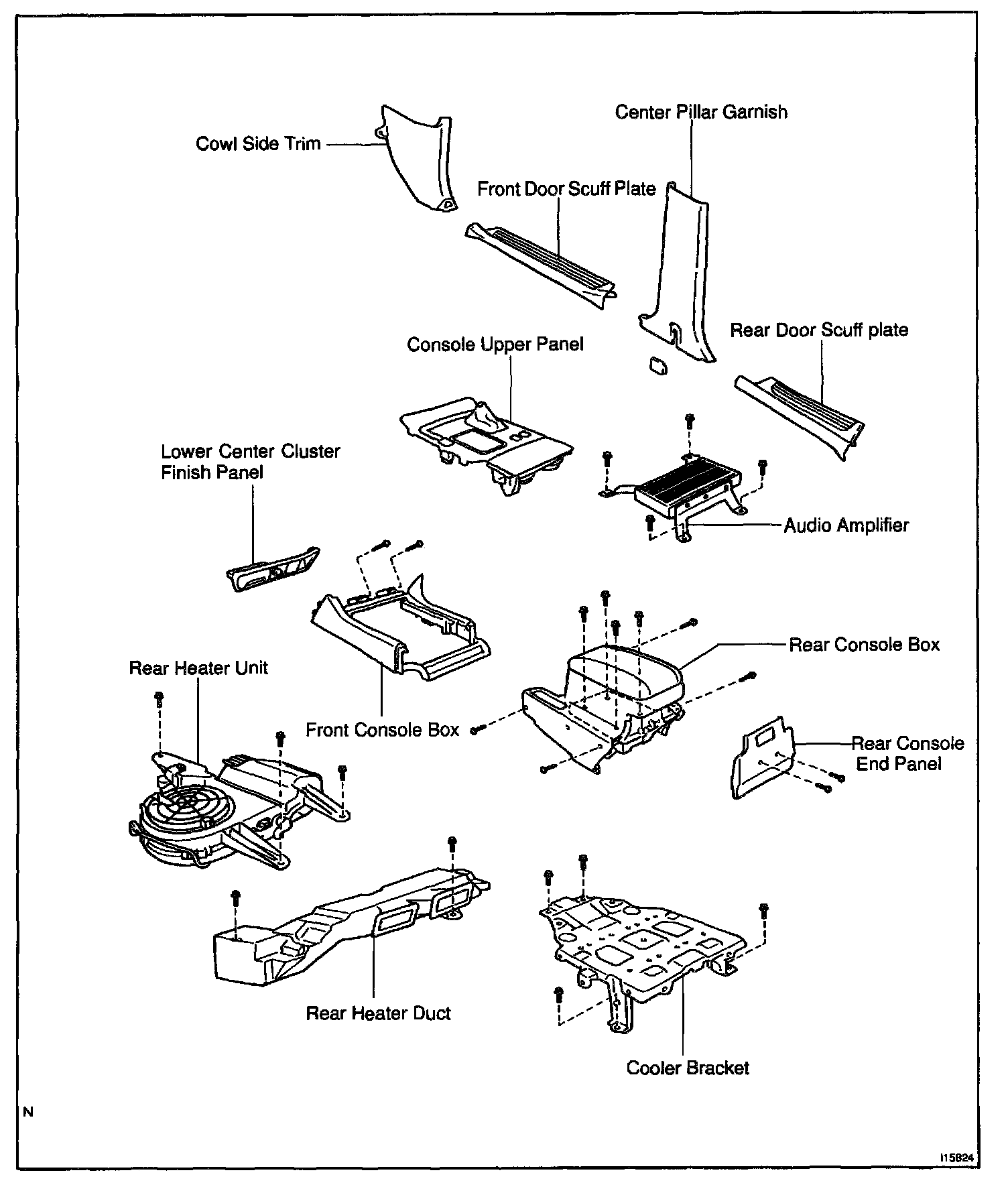

Rear Heater Unit (Part 1):
Rear Heater Unit (Part 2):
