Programming and Relearning

CUSTOMIZE PARAMETER

The followings are the possible items to be customized.

NOTE:
- Among the following contents, the make-indicated(#) items should not be know to users.
- After confirming whether the items of the customer's request is applicable or not for the customized items, perform the customize operation.
- Be sure to record the current value before customizing. (You can use the attached customize check sheet.)
- In case of performing the troubleshooting, pay attention as there is a possibility that the function is OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not OFF by customizing, then perform the troubleshooting.)

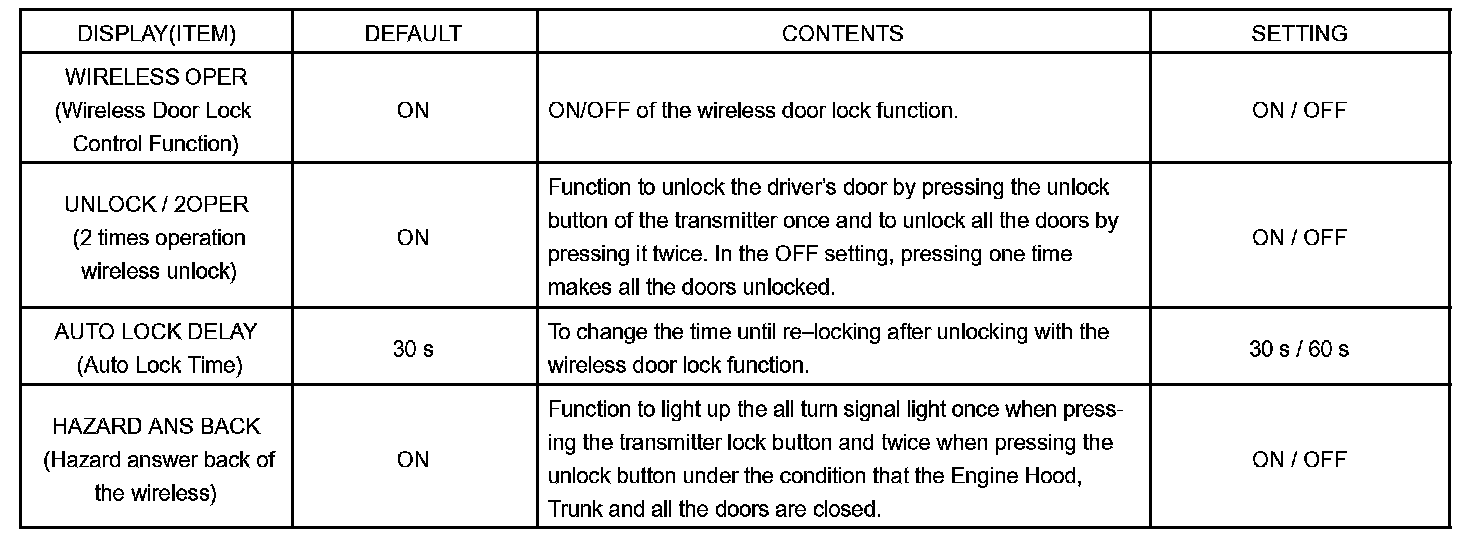

WIRELESS DOOR LOCK

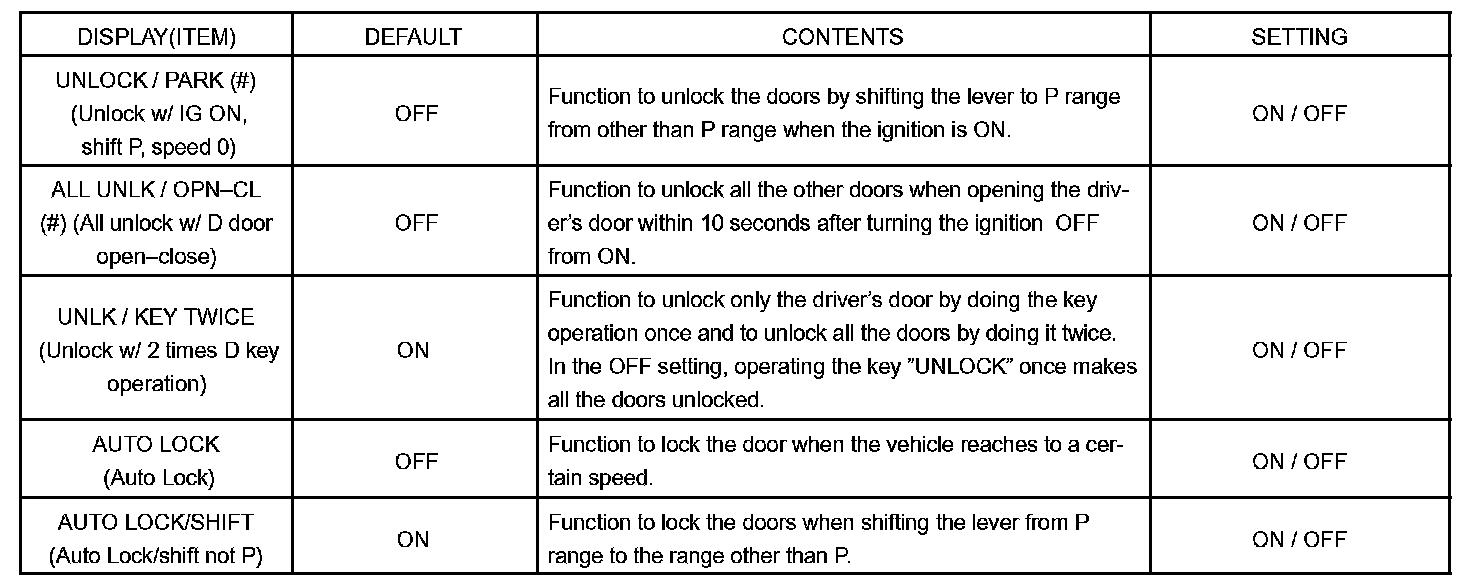

DOOR LOCK

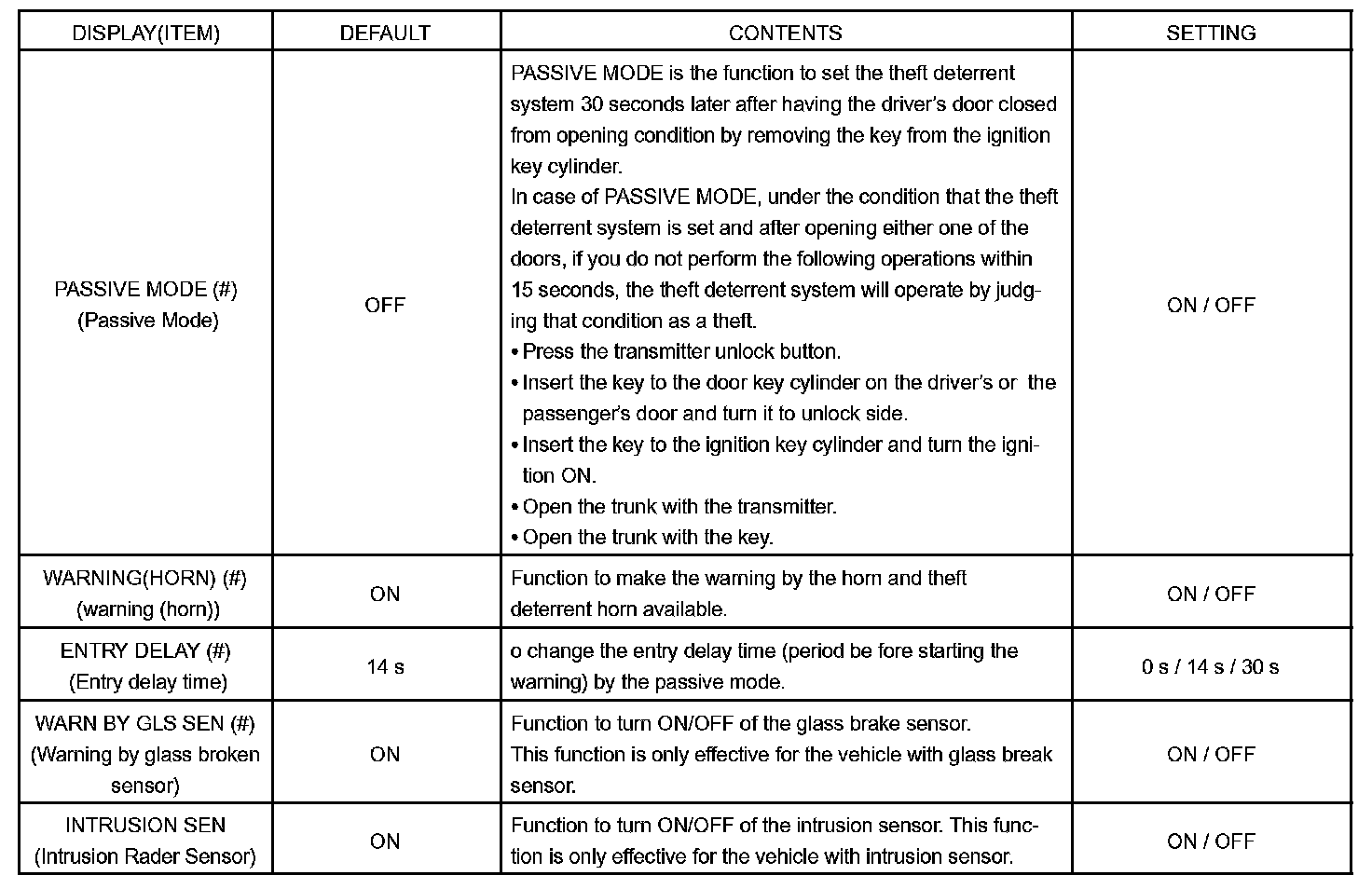

SECURITY

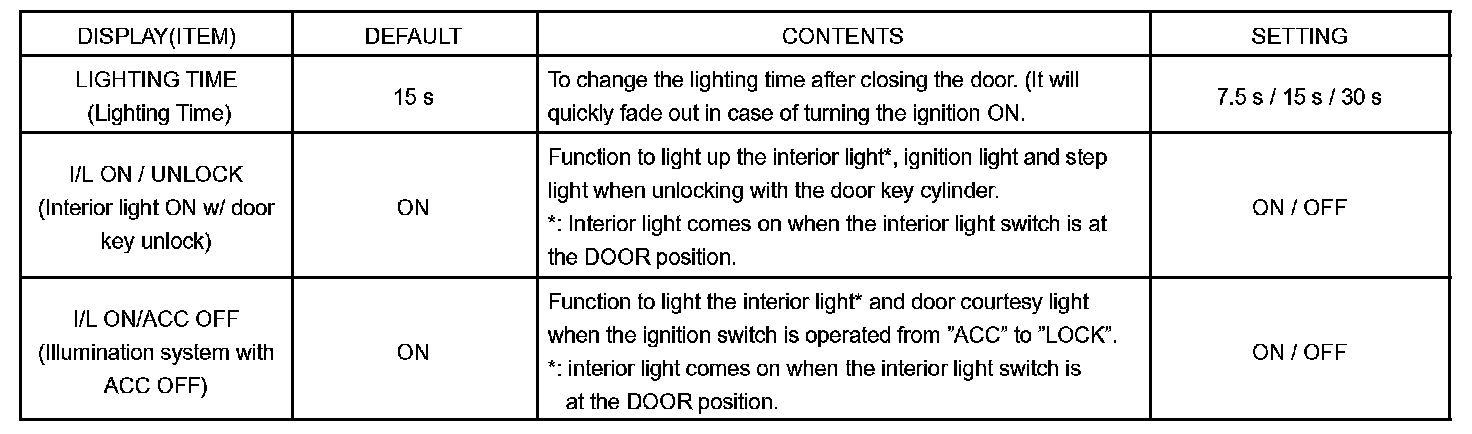

ILLUMINATED ENTRY

Part 1:




Part 2:

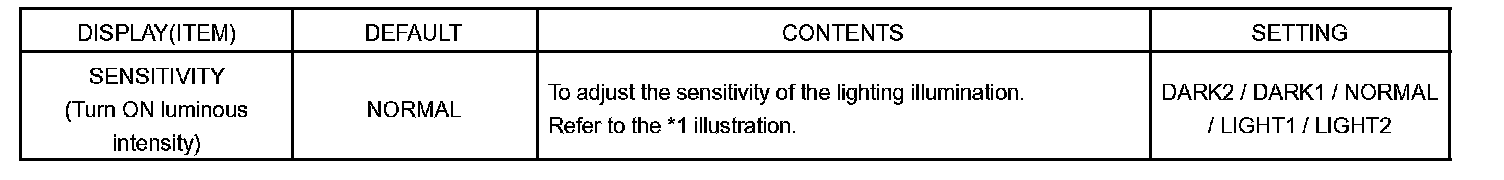

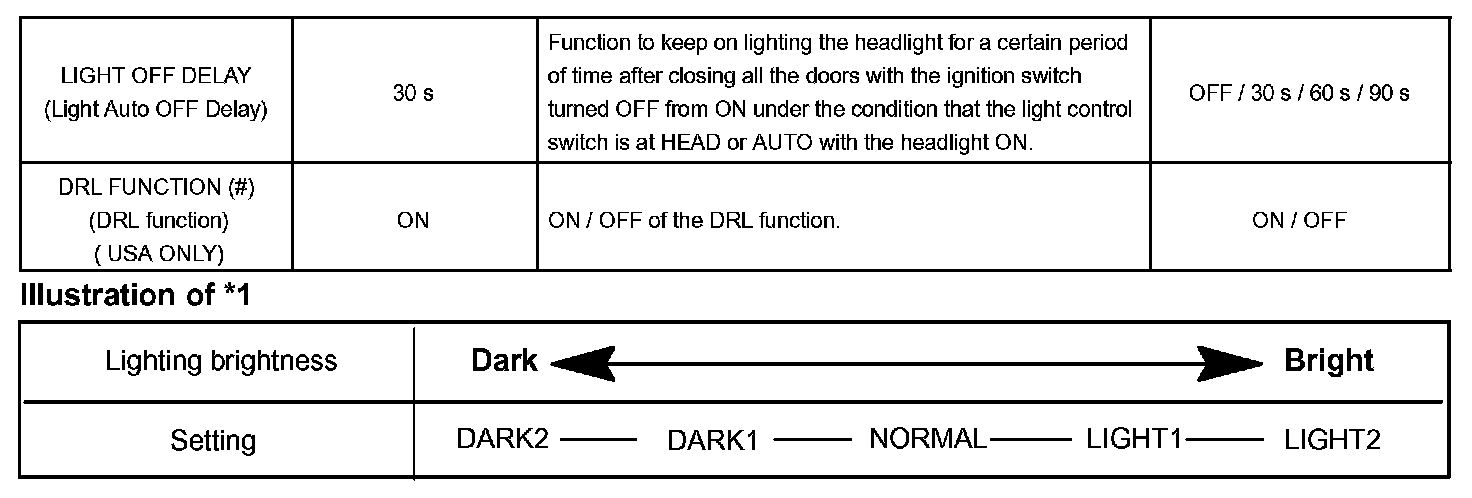

LIGHT CONTROL

HINT: Sensitivity adjustment can hardly be confirmed. Please check by customer's actual driving.

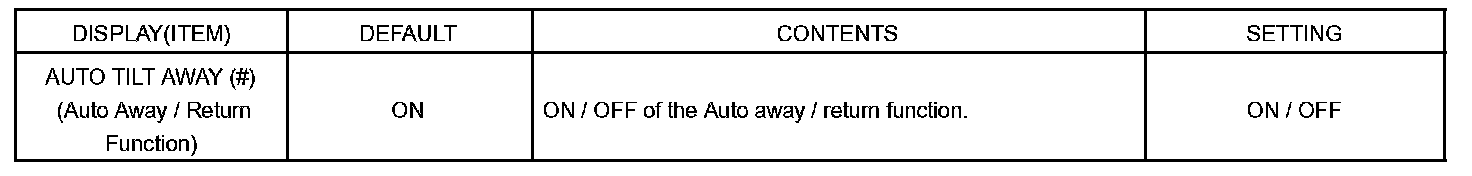

TILT & TELESCO

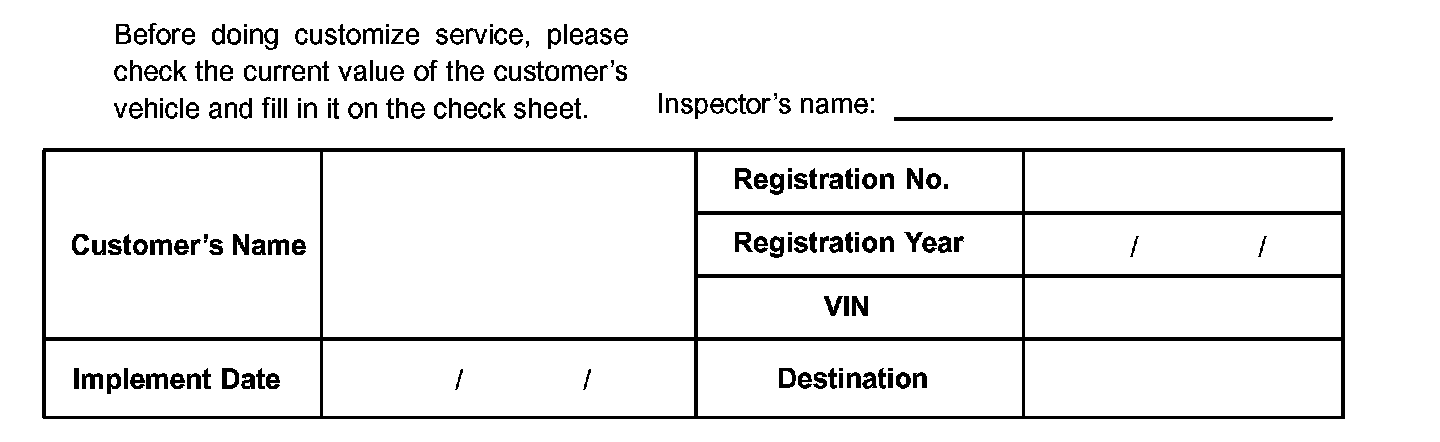

CUSTOMIZE CHECK SHEET

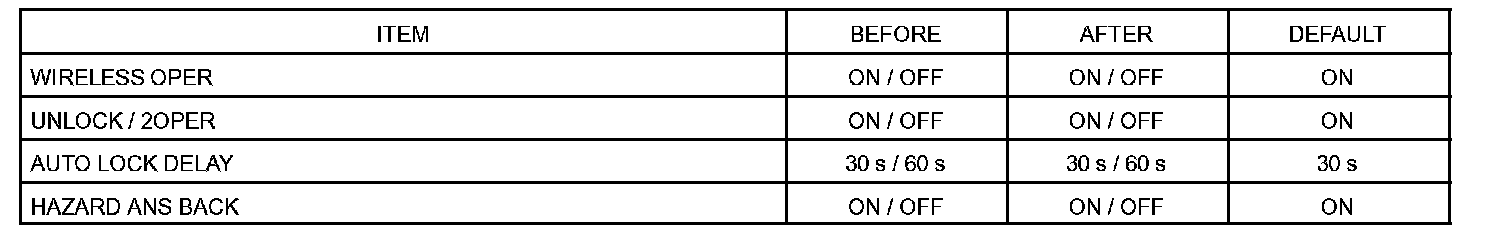

WIRELESS DOOR LOCK

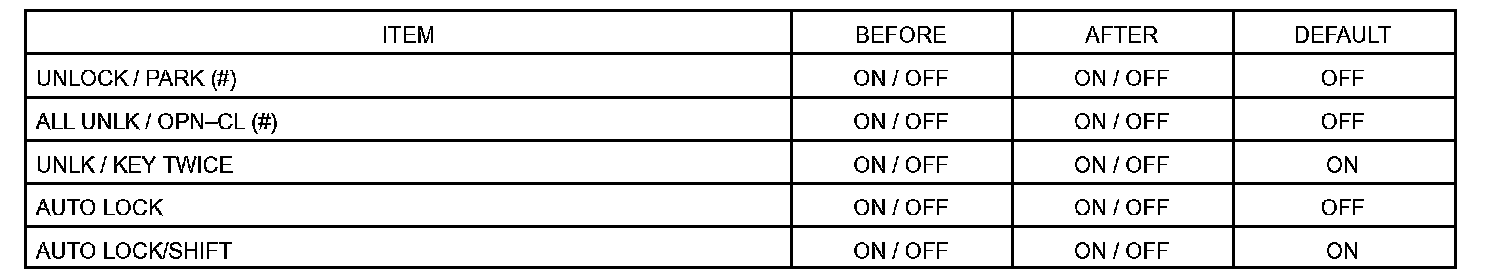

DOOR LOCK

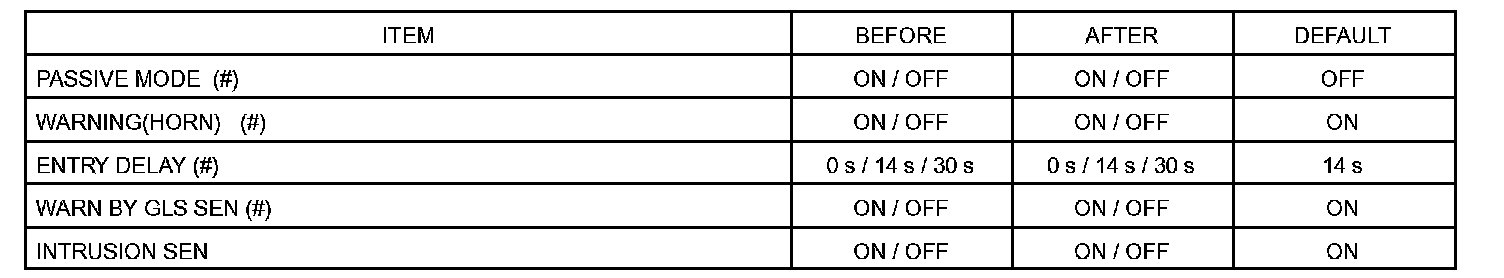

SECURITY

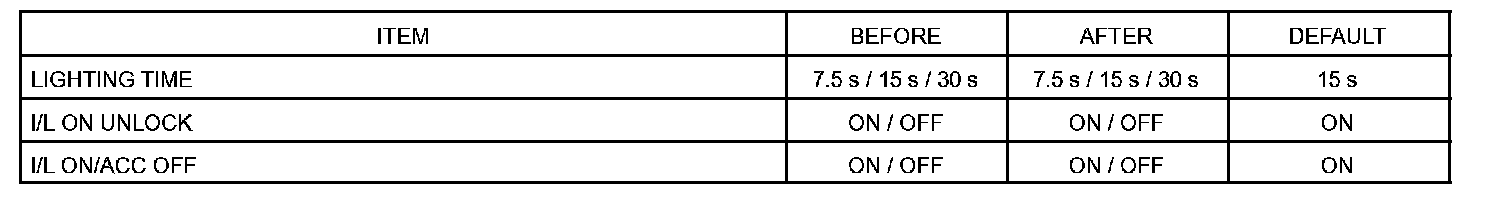

ILLUMINATED ENTRY

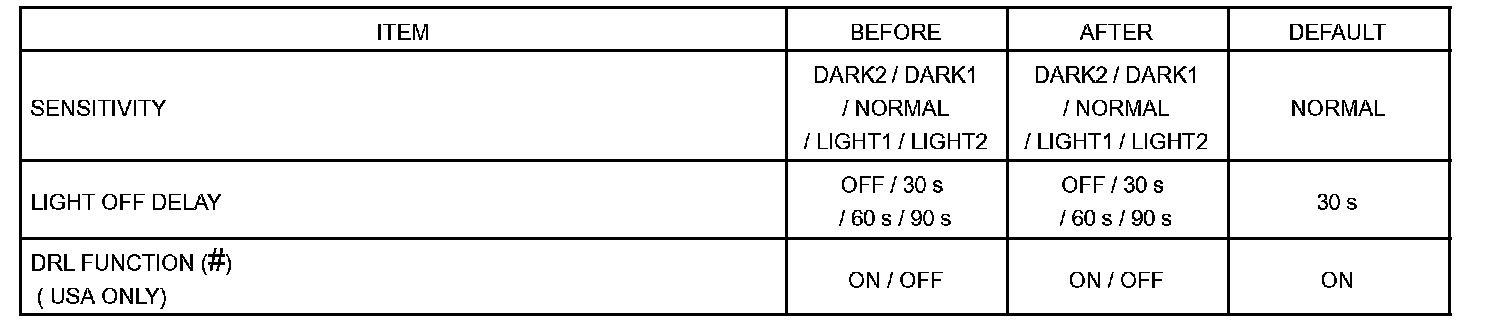

LIGHT CONTROL

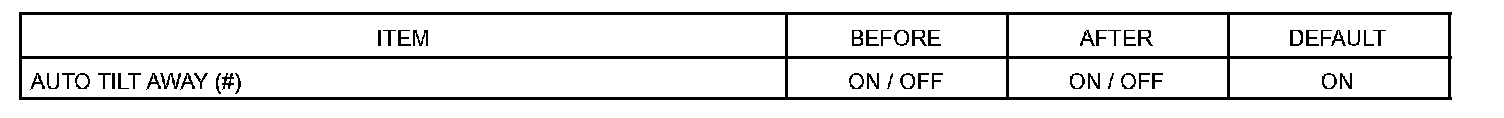

TILT & TELESCO
