Locations
>>
Connector Locations
Connector Locations

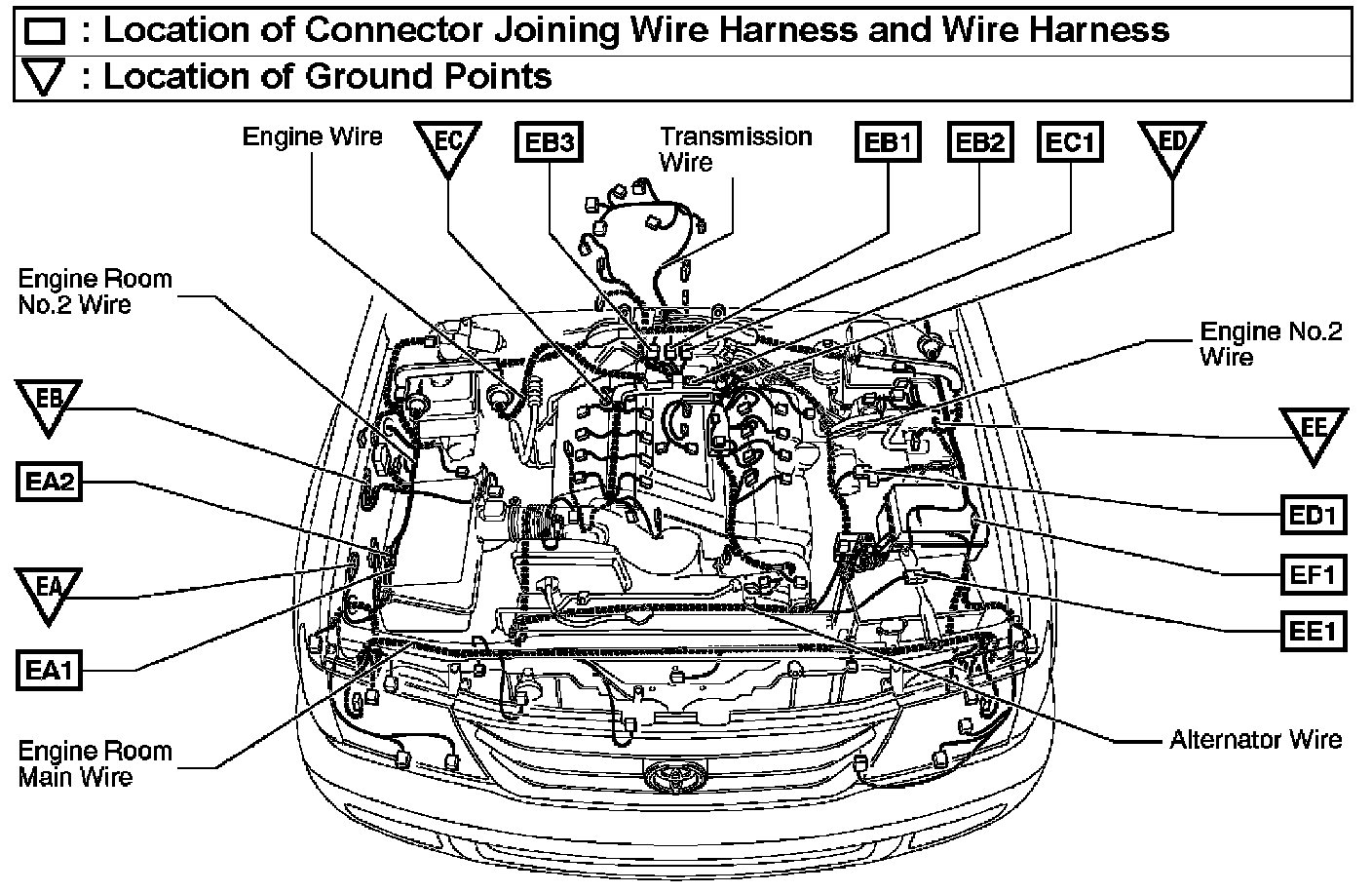

EA1 - EF1, EA - EE:

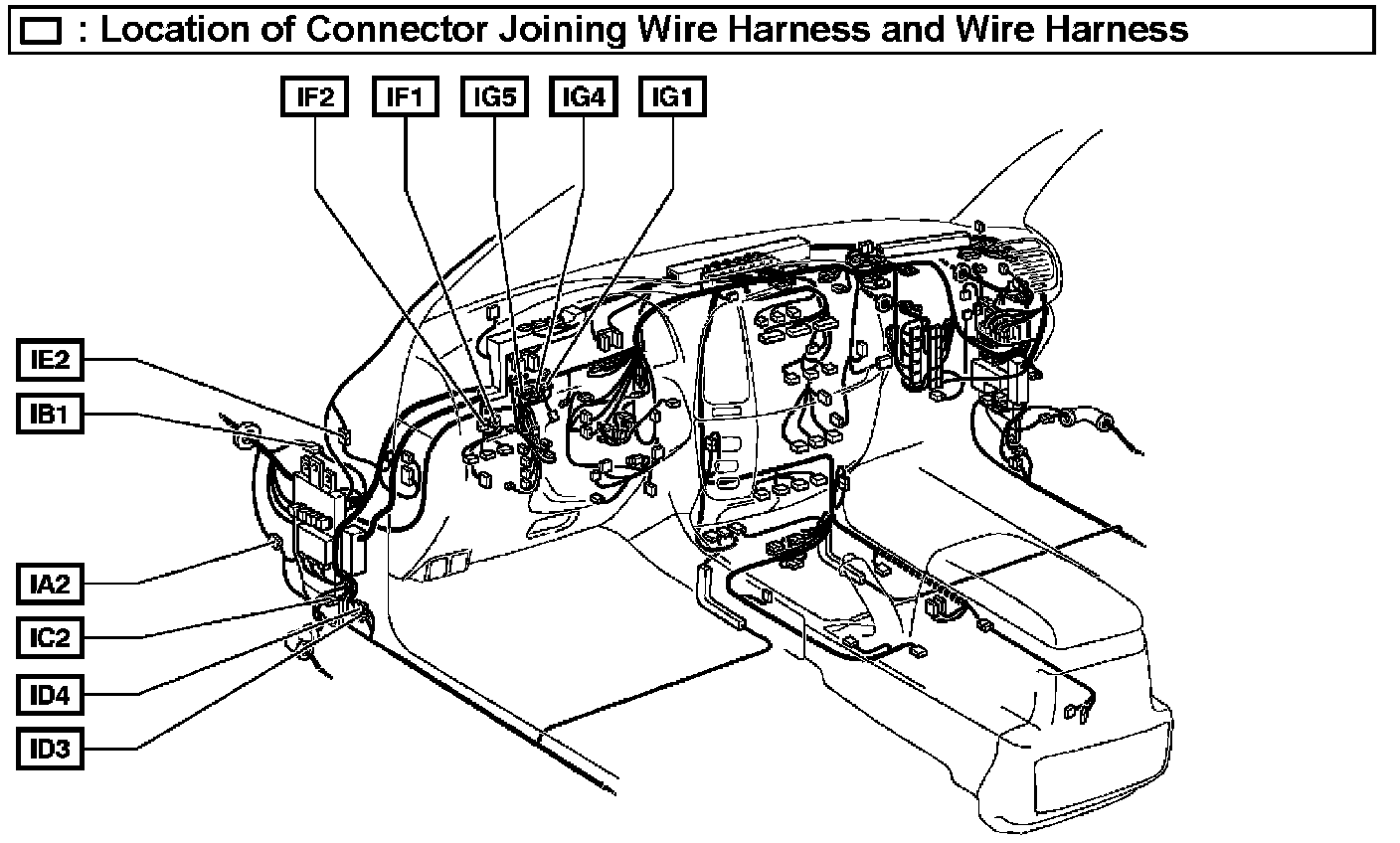

IA2 - IG5:

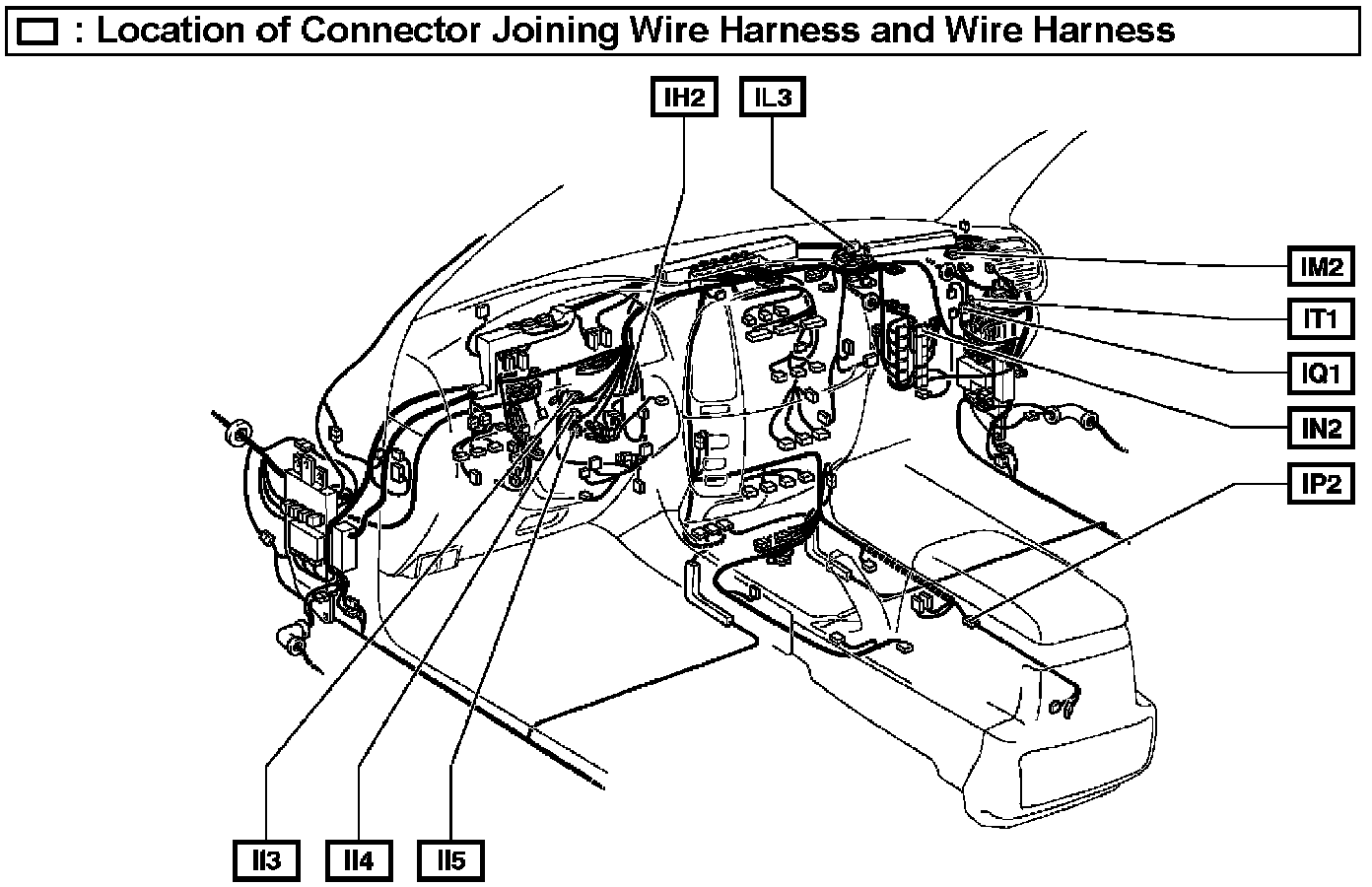

IH2 - IT1:

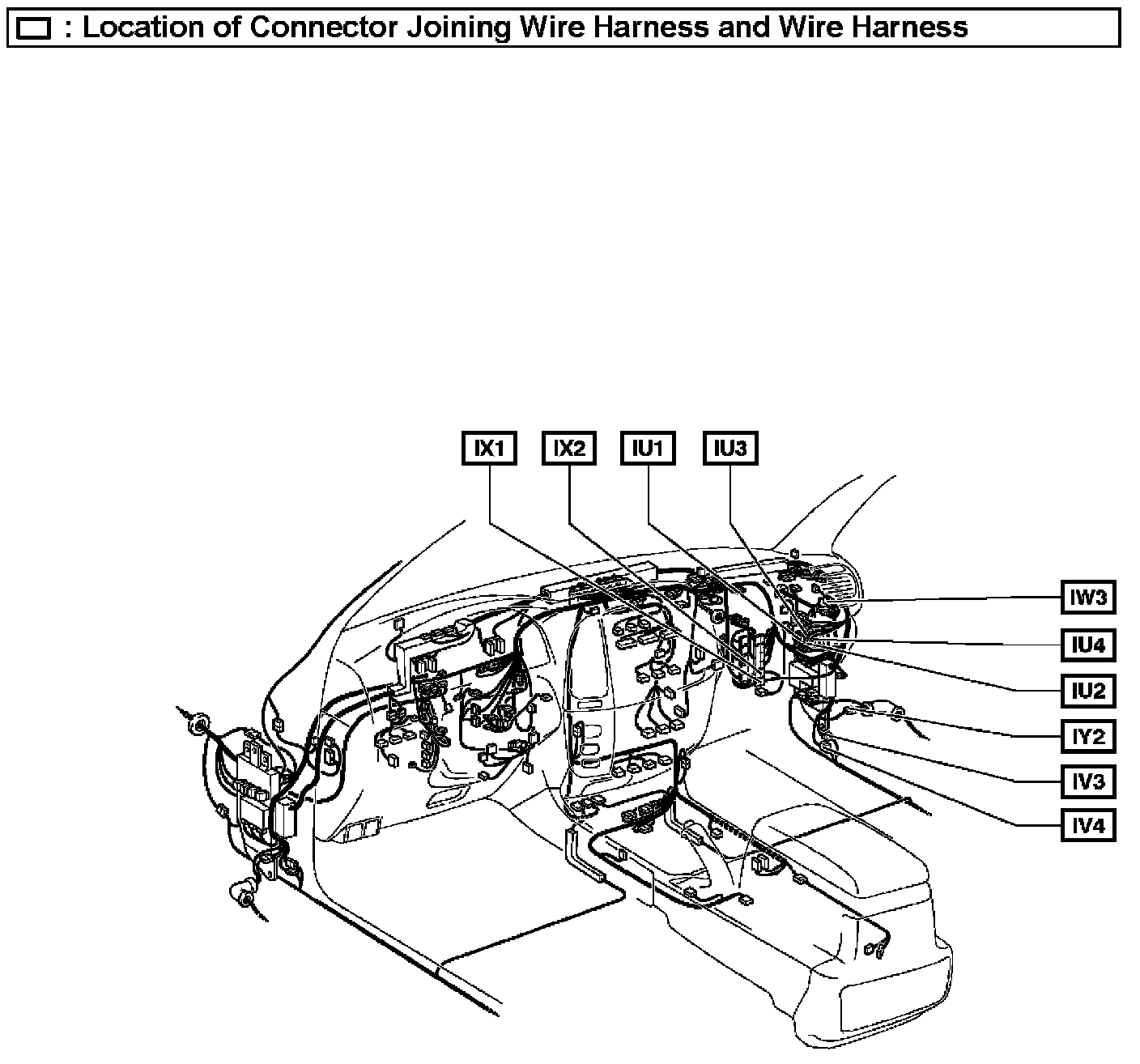

IU1 - IY2:

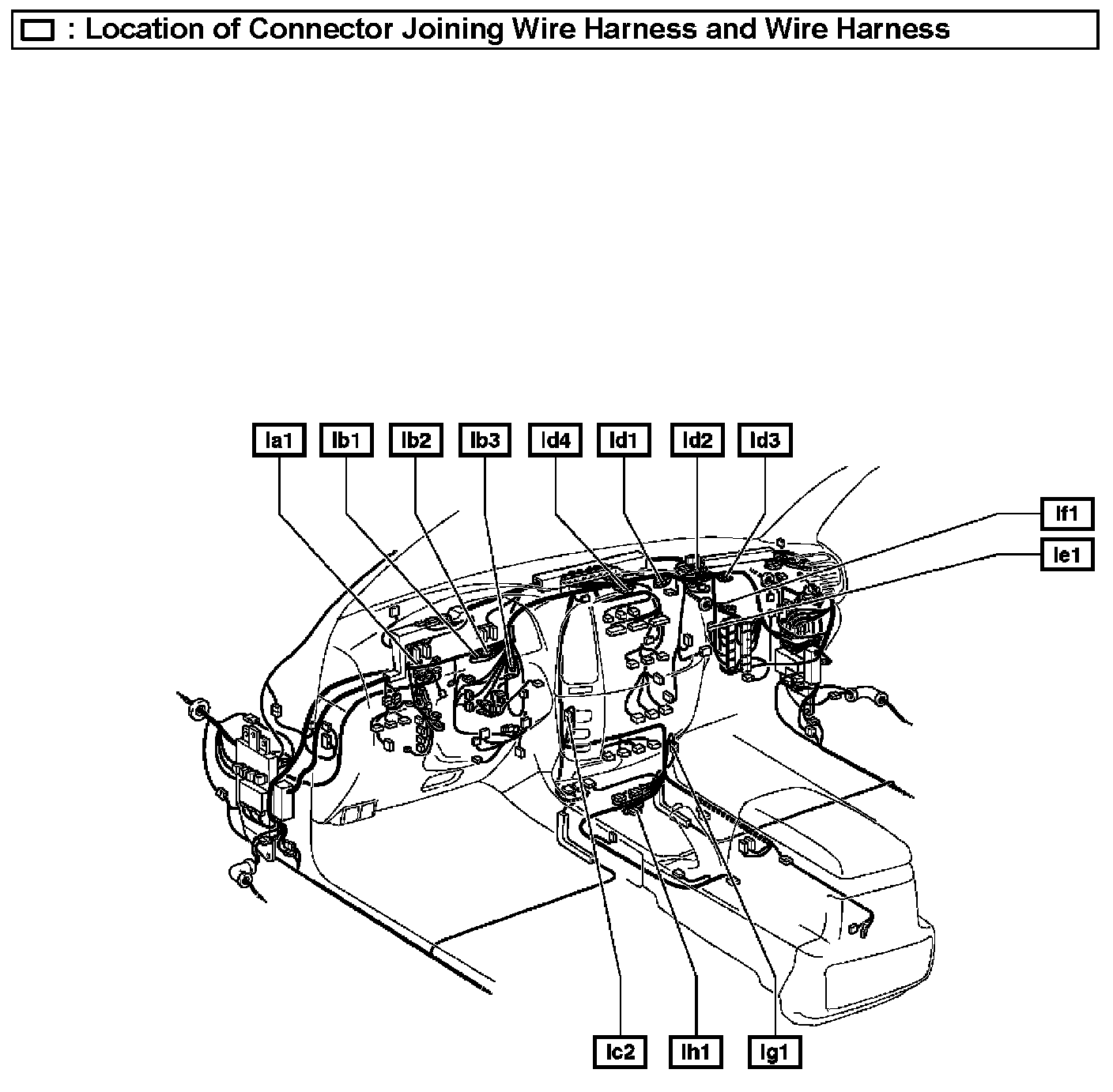

Ia1 - Ih1:

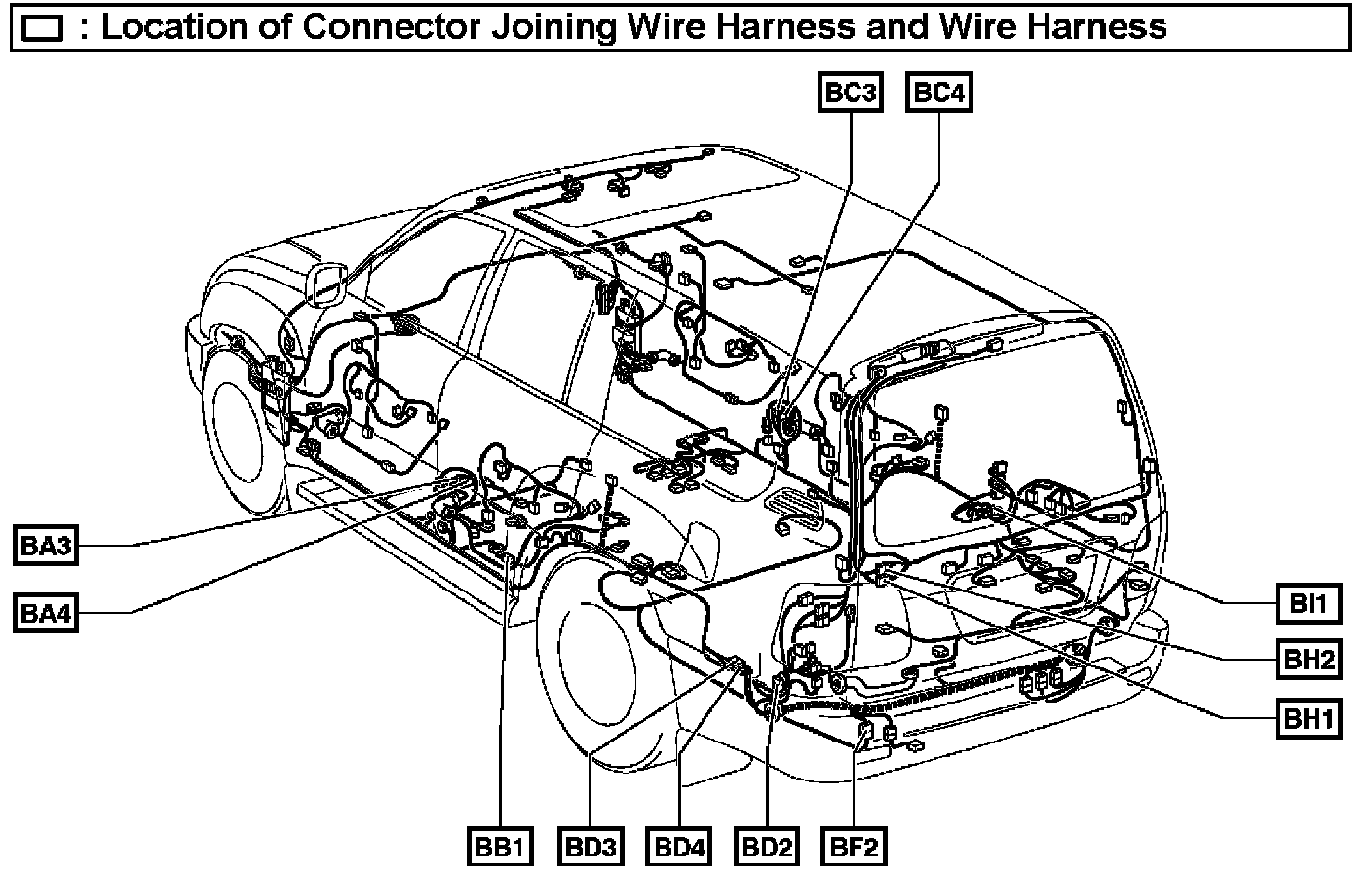

BA3 - BI1:

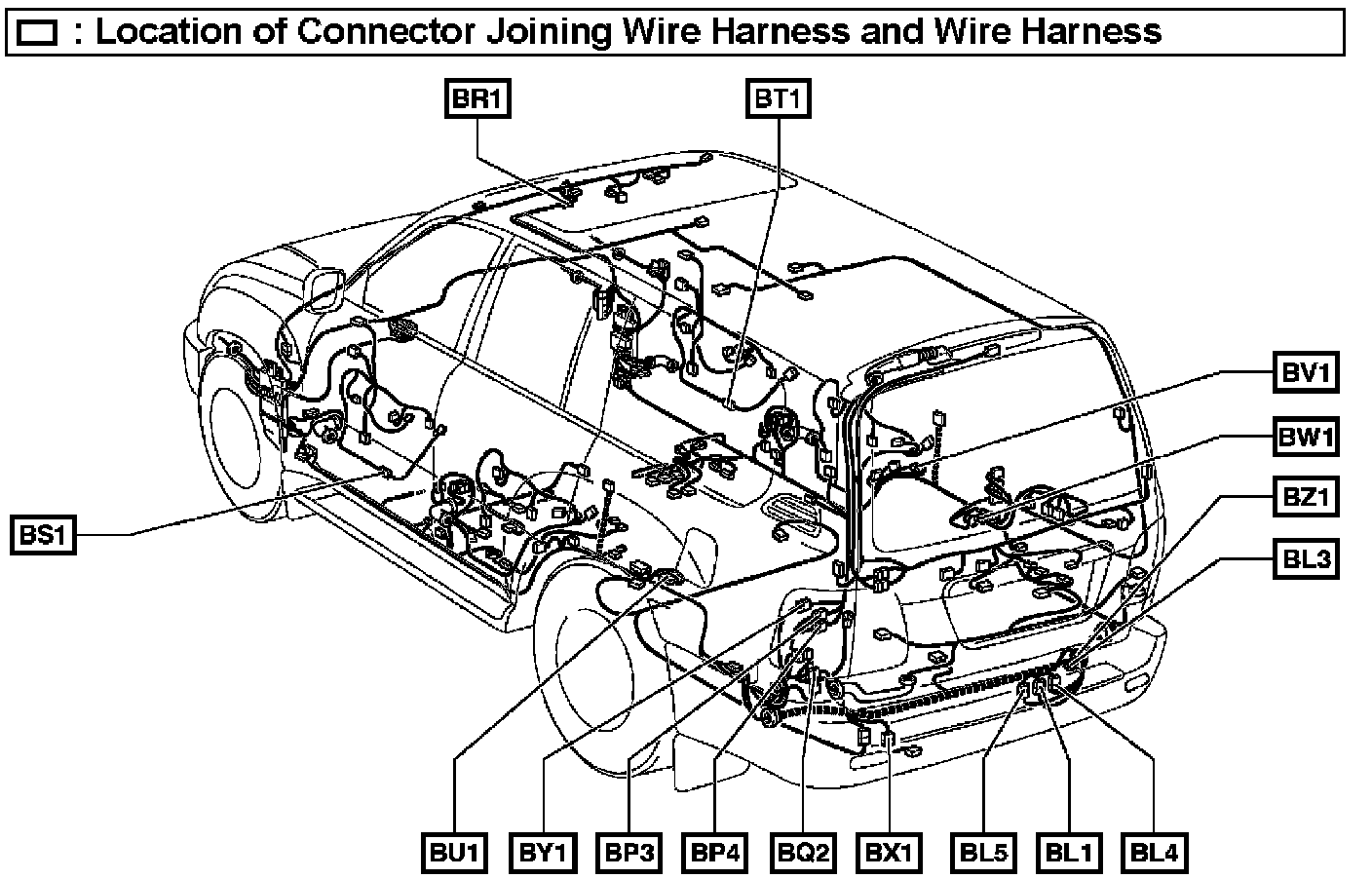

BL1 - BZ1:

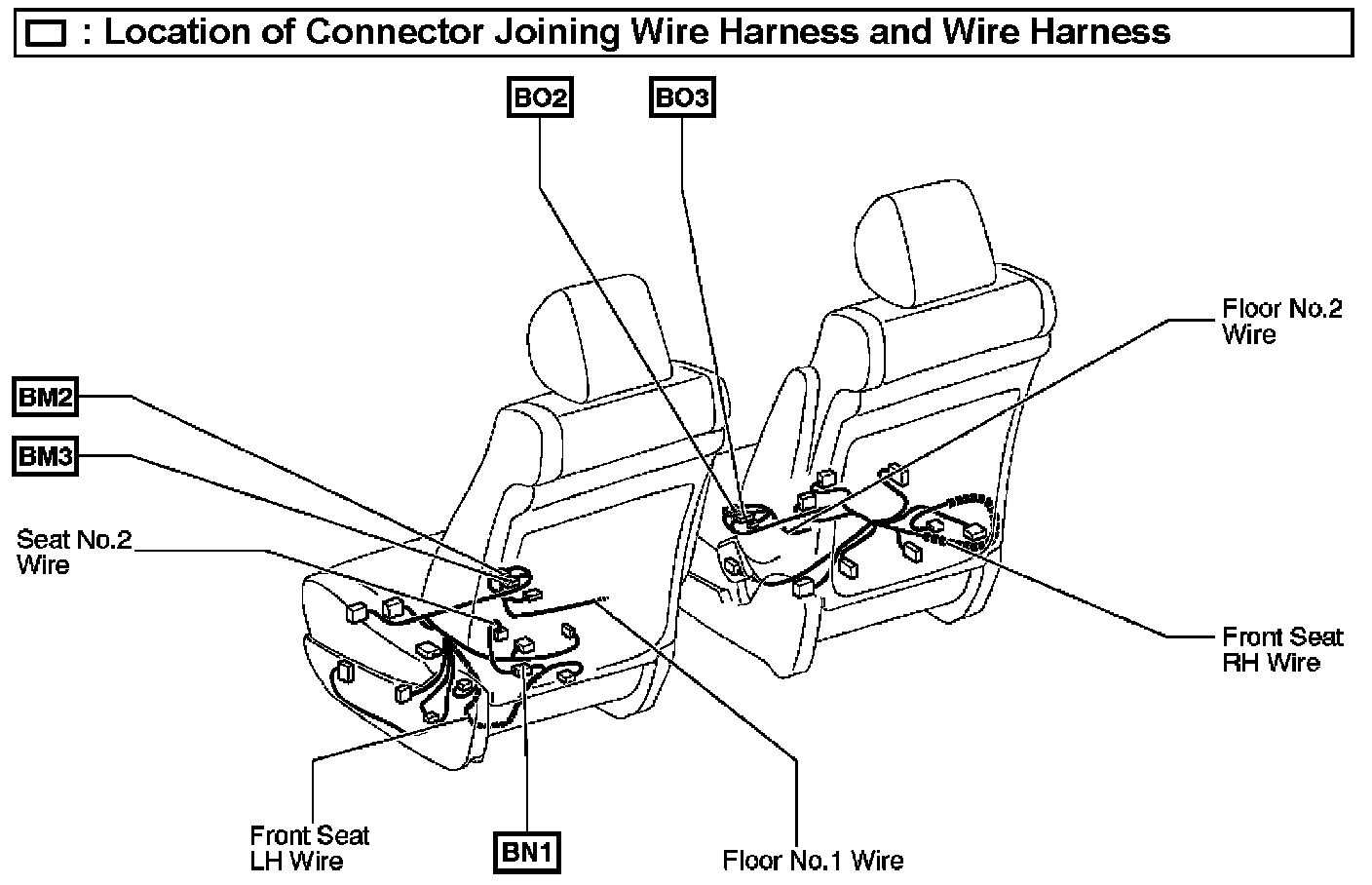

BM2 - BO3:
