Body Control Module: Locations

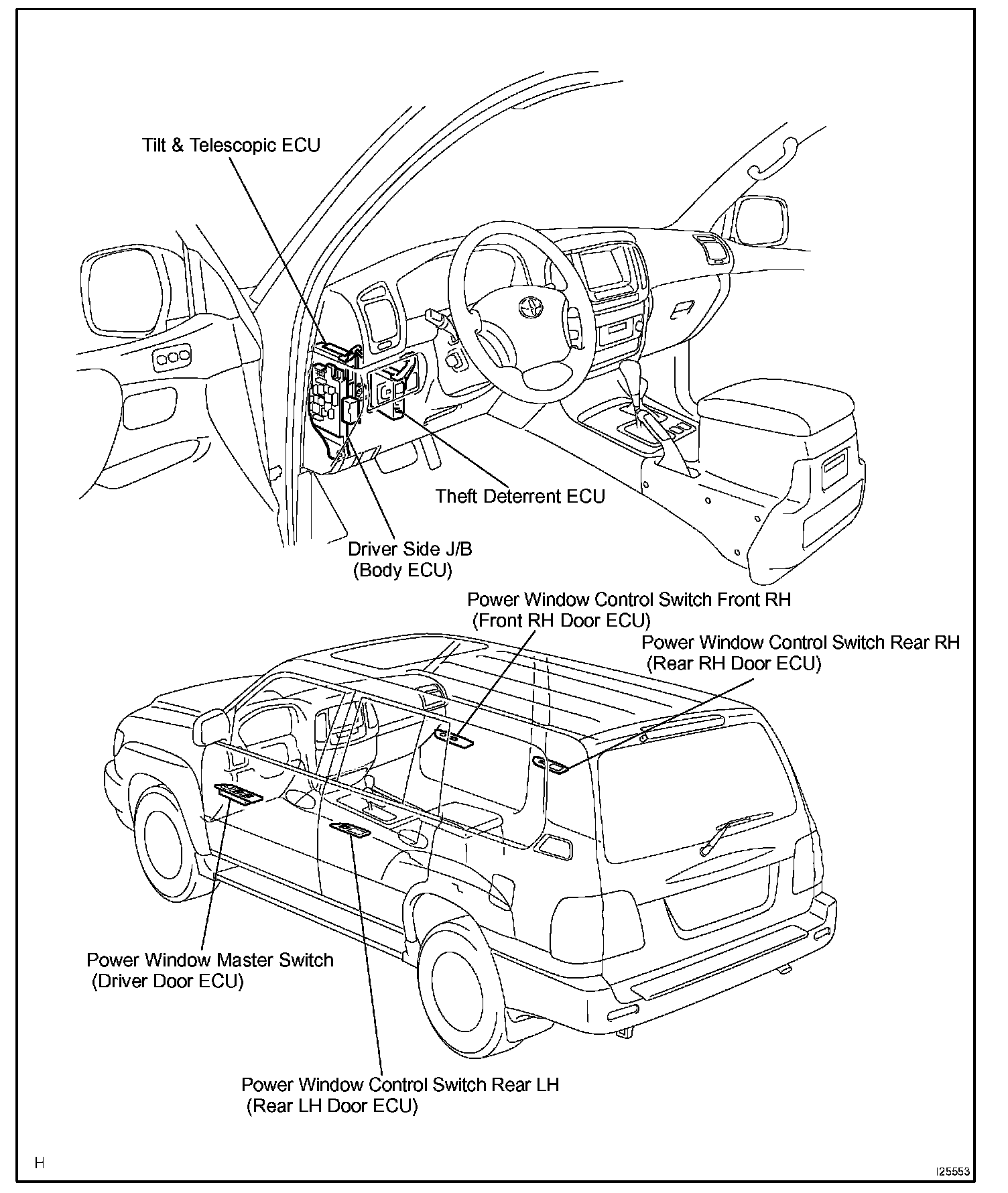

Multiplex Communication System:

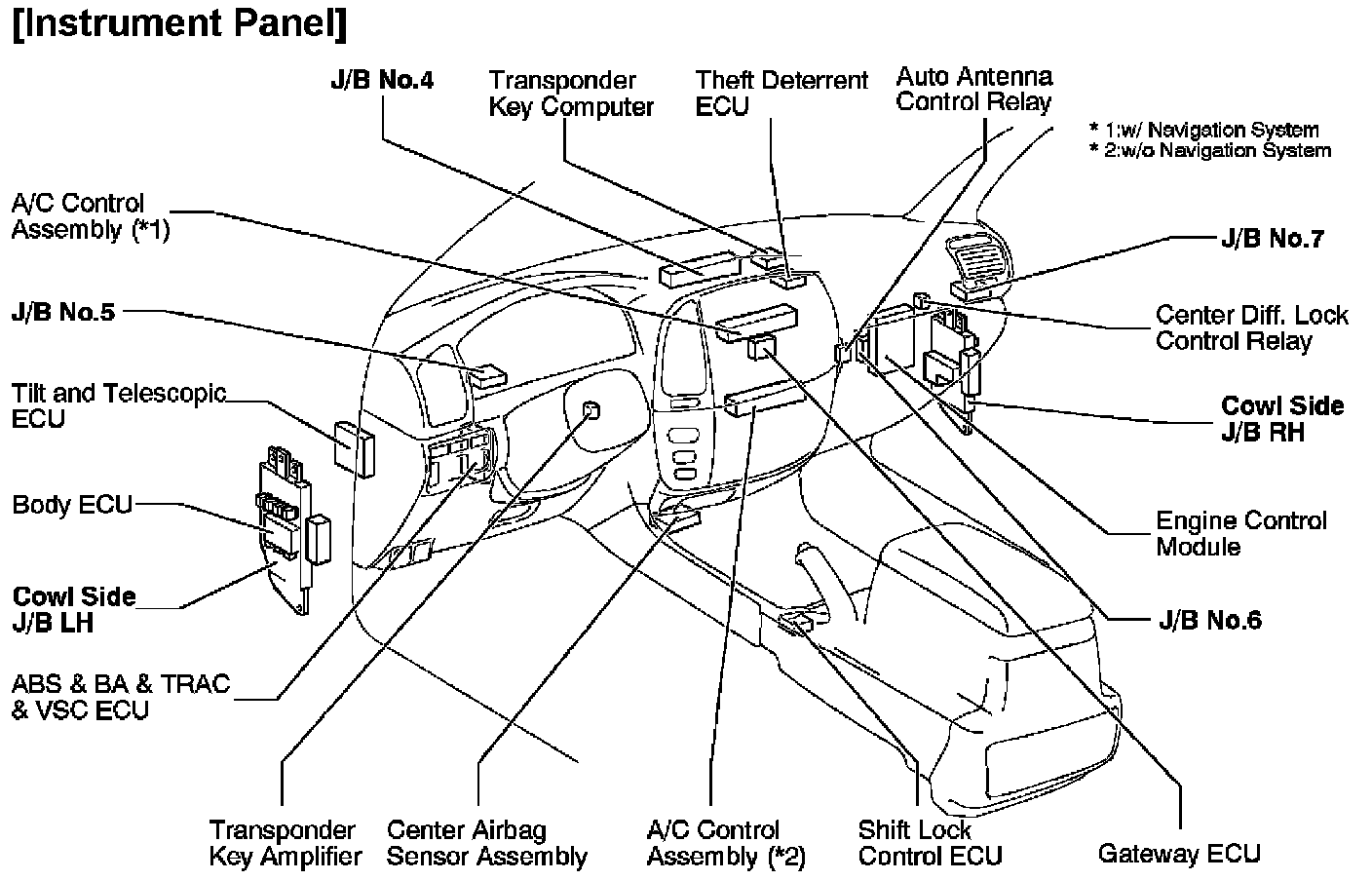

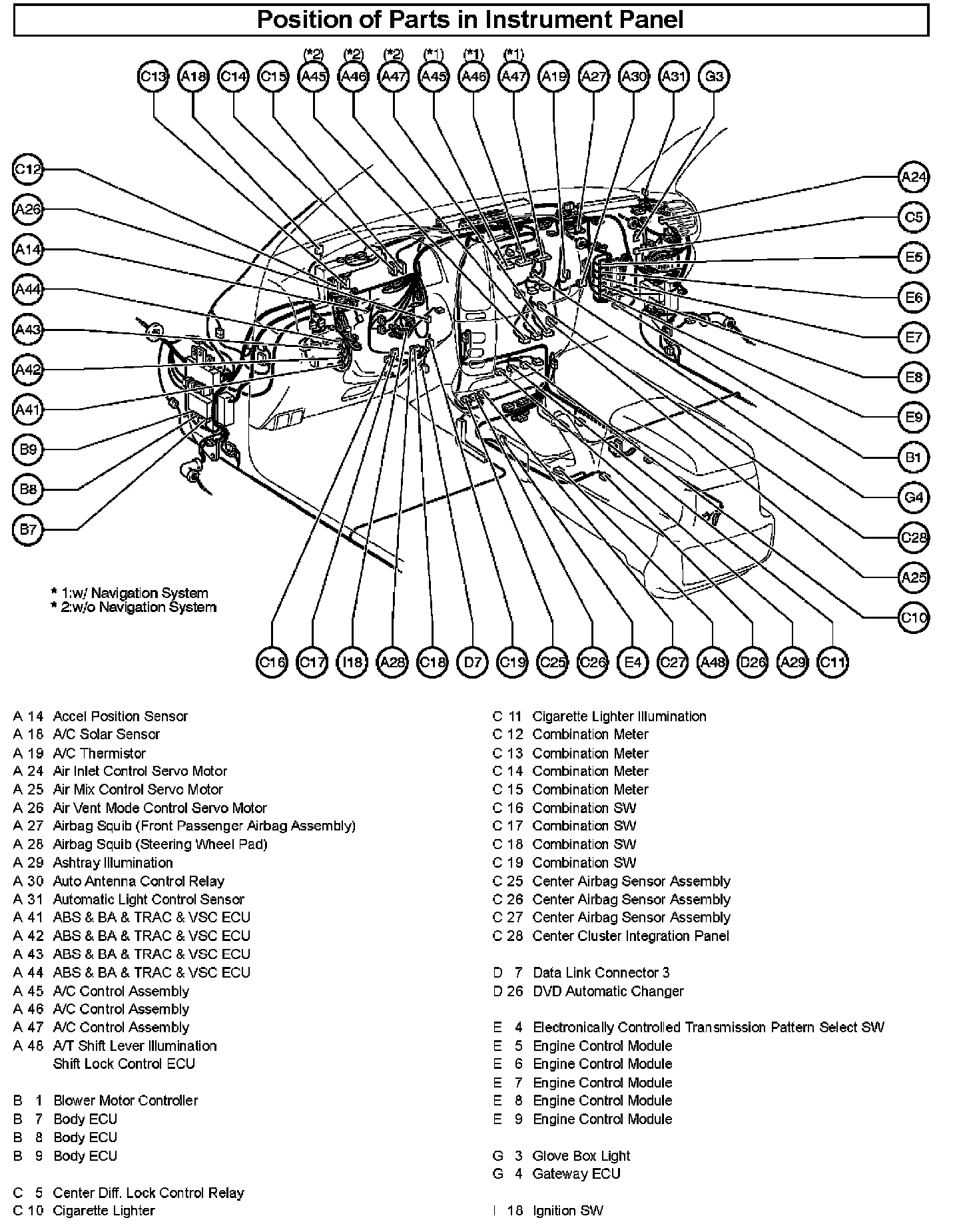

Instrument Panel:

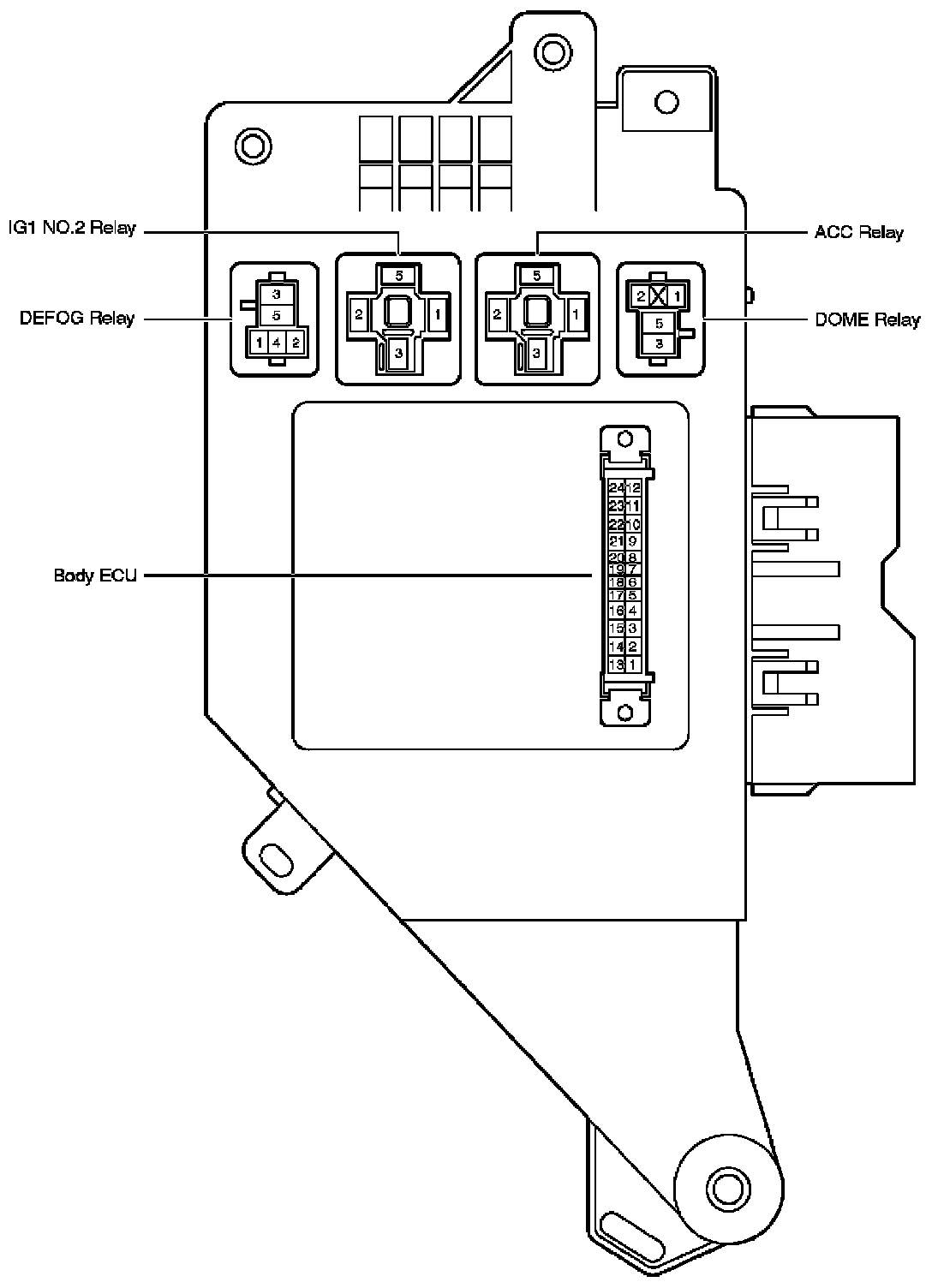

Cowl Side J/B LH - Left Kick Panel:



Ac - Ig:
