Data List

DATA LIST

HINT: According to the DATA LIST displayed by the OBD II scan tool or Hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as a first step of troubleshooting is one method to shorten labor time.

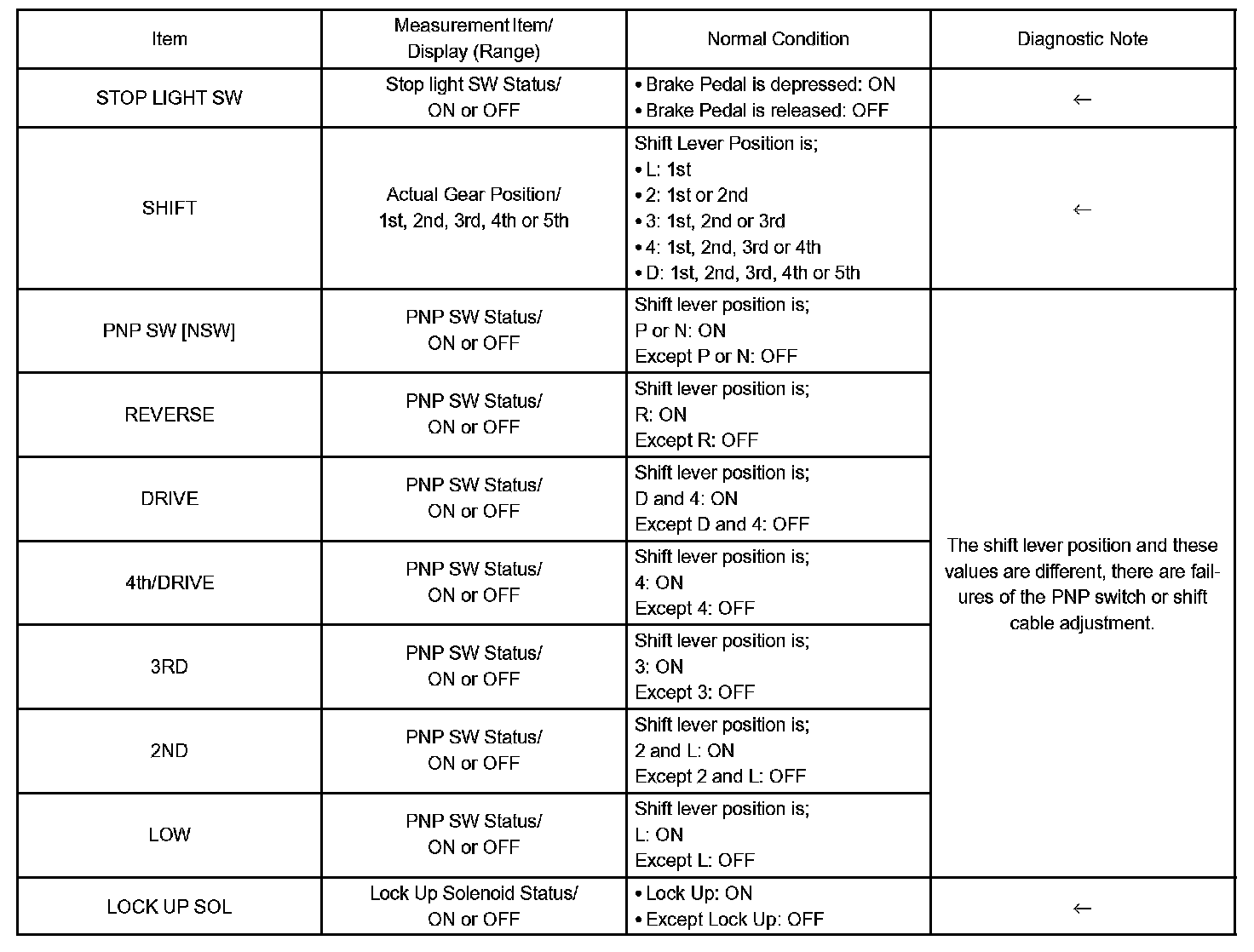

Part 1:

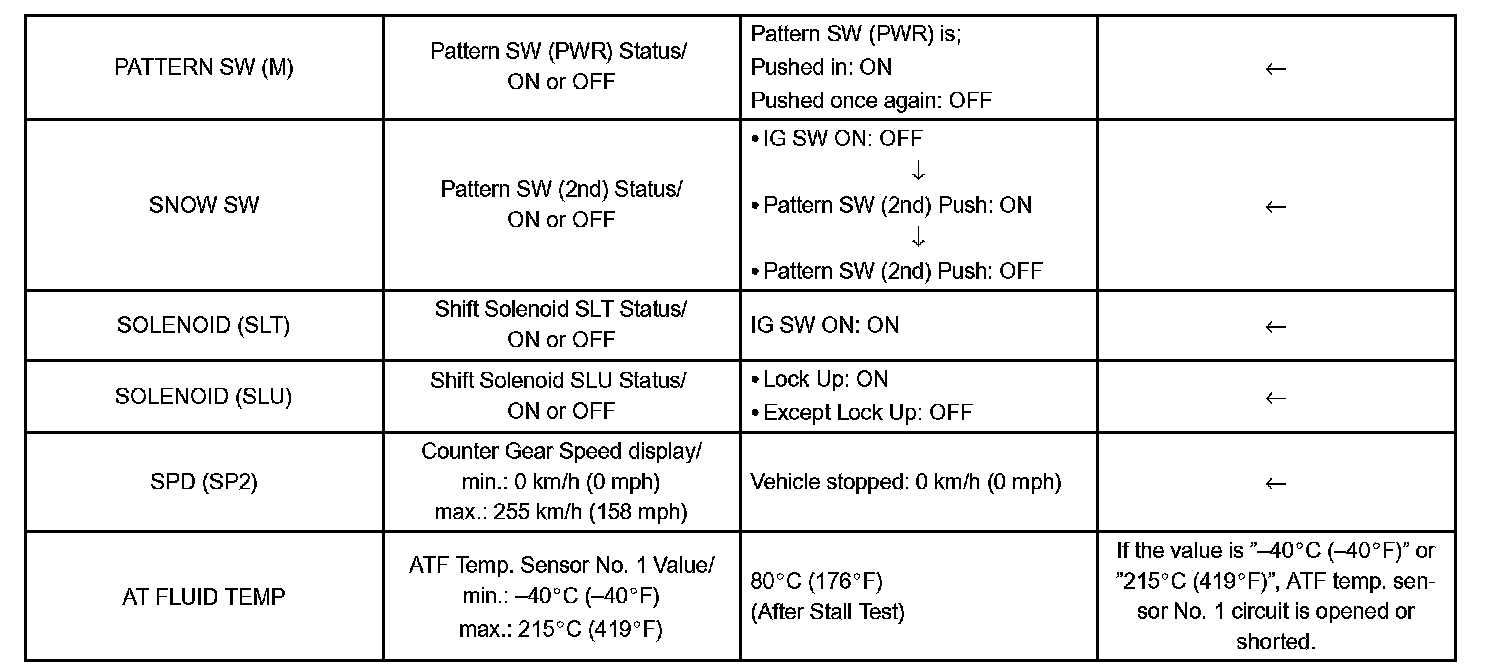

Part 2:

a. Warm up the engine.
b. Turn the ignition switch OFF.
c. Connect the OBD II scan tool or Hand-held tester to the DLC3.
d. Turn the ignition switch ON.
e. Push the "ON" button of OBD II scan tool or Hand-held tester.
f. Select the item "/DIAGNOSIS/ENHANCED OBD II/DATA LIST/ALL (or ATM)".
g. According to the display on tester, read the "DATA LIST".
