Control Module Pinout Values

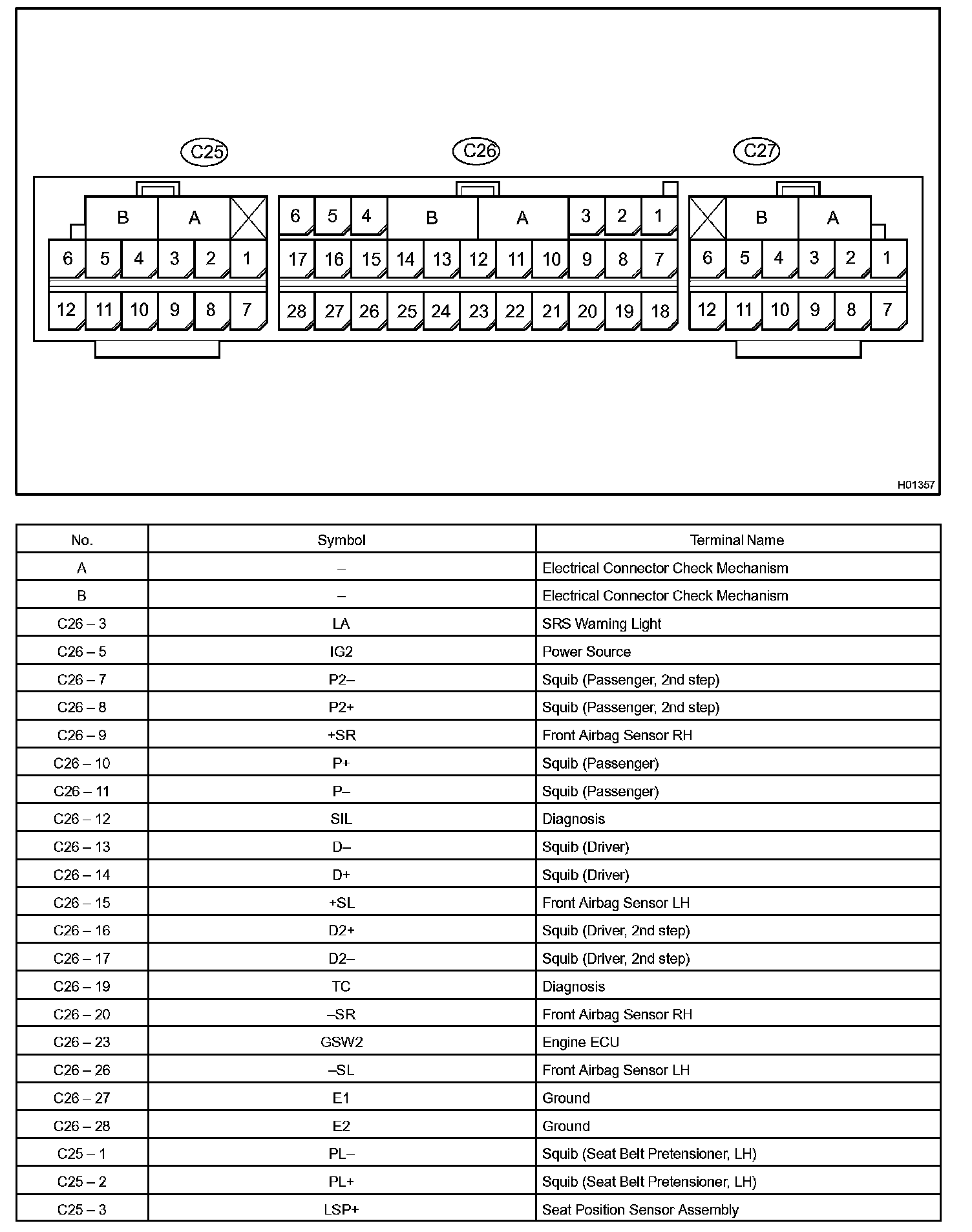

Terminals Of ECU/ Pinouts - W/o Side Airbag Part 1:

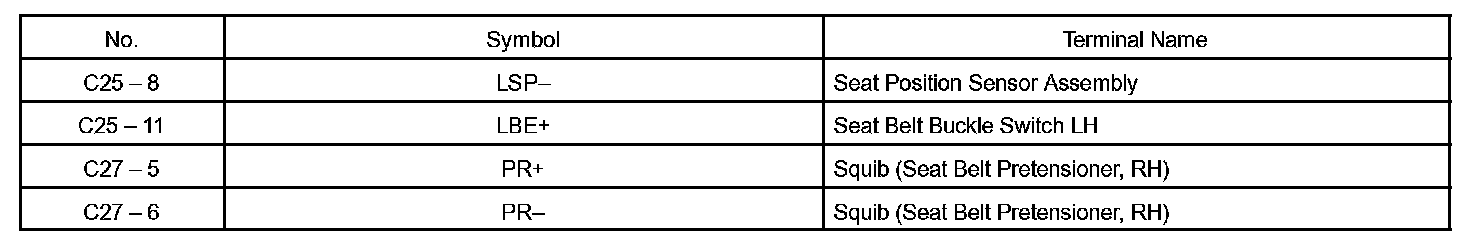

Terminals Of ECU/ Pinouts - W/o Side Airbag Part 2:

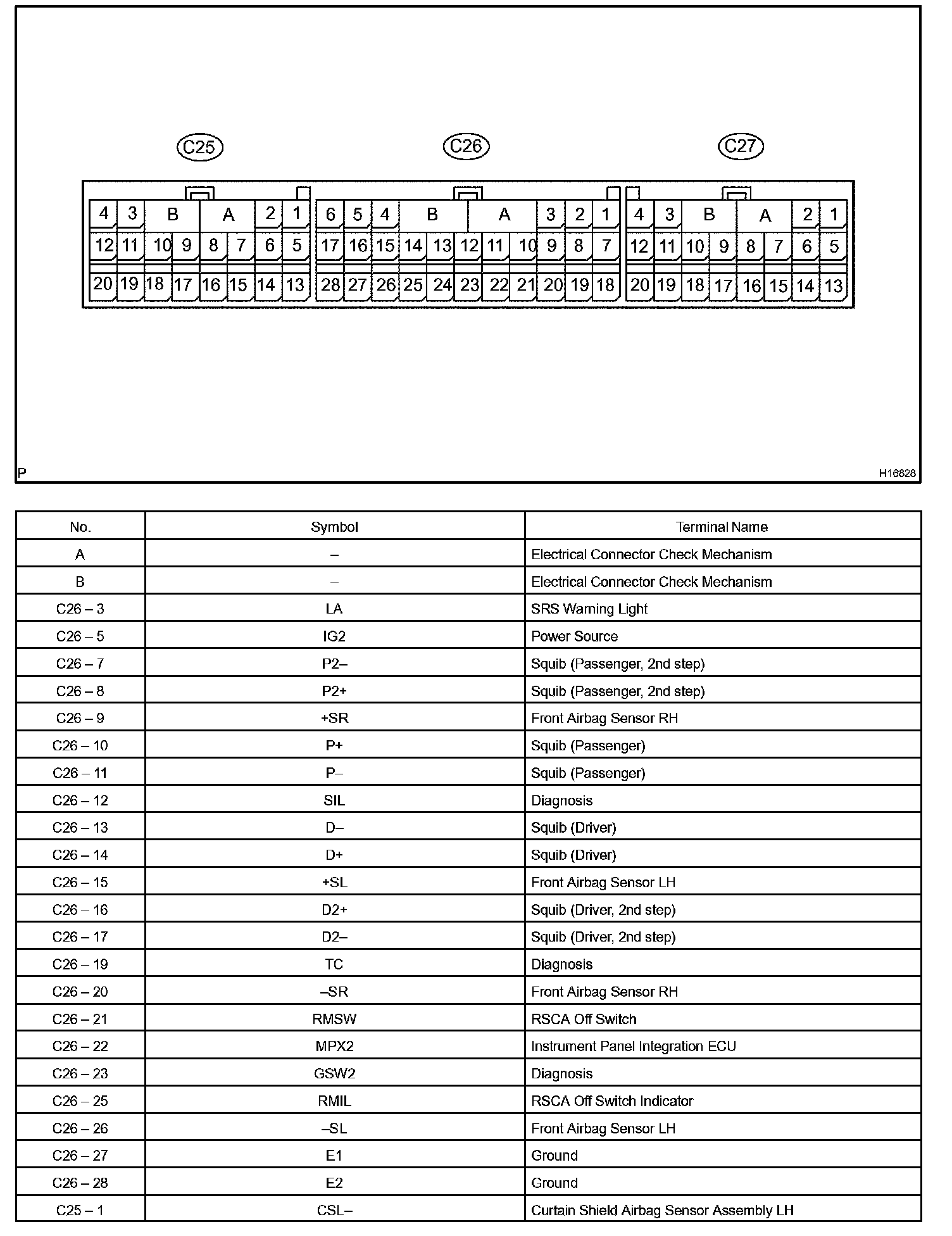

Terminals Of ECU/ Pinouts - W/ Side Airbag Part 1:

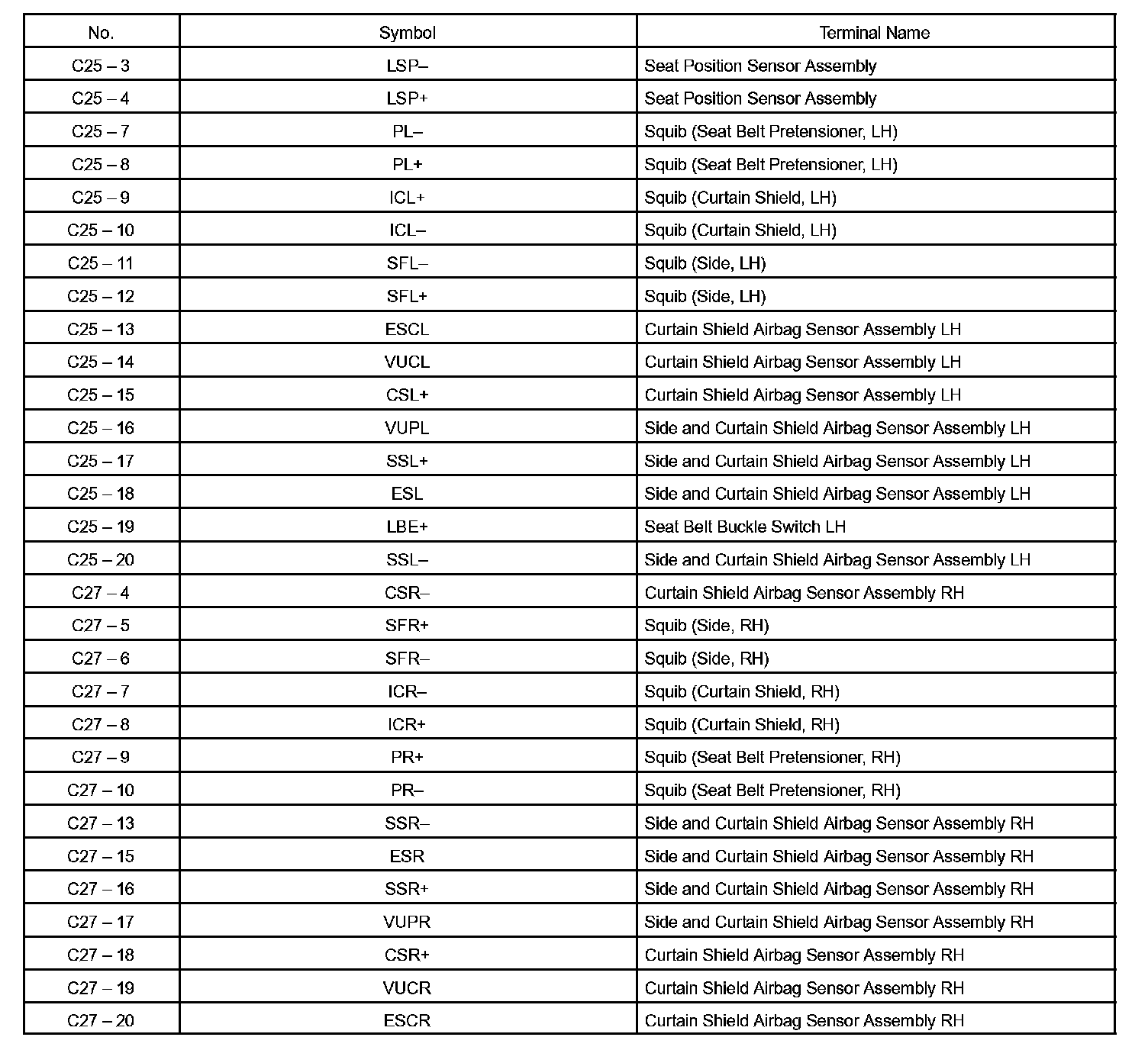

Terminals Of ECU/ Pinouts - W/ Side Airbag Part 2:
