Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
MR2 Spyder L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
Shift Cable, M/T
Shift Cable, M/T

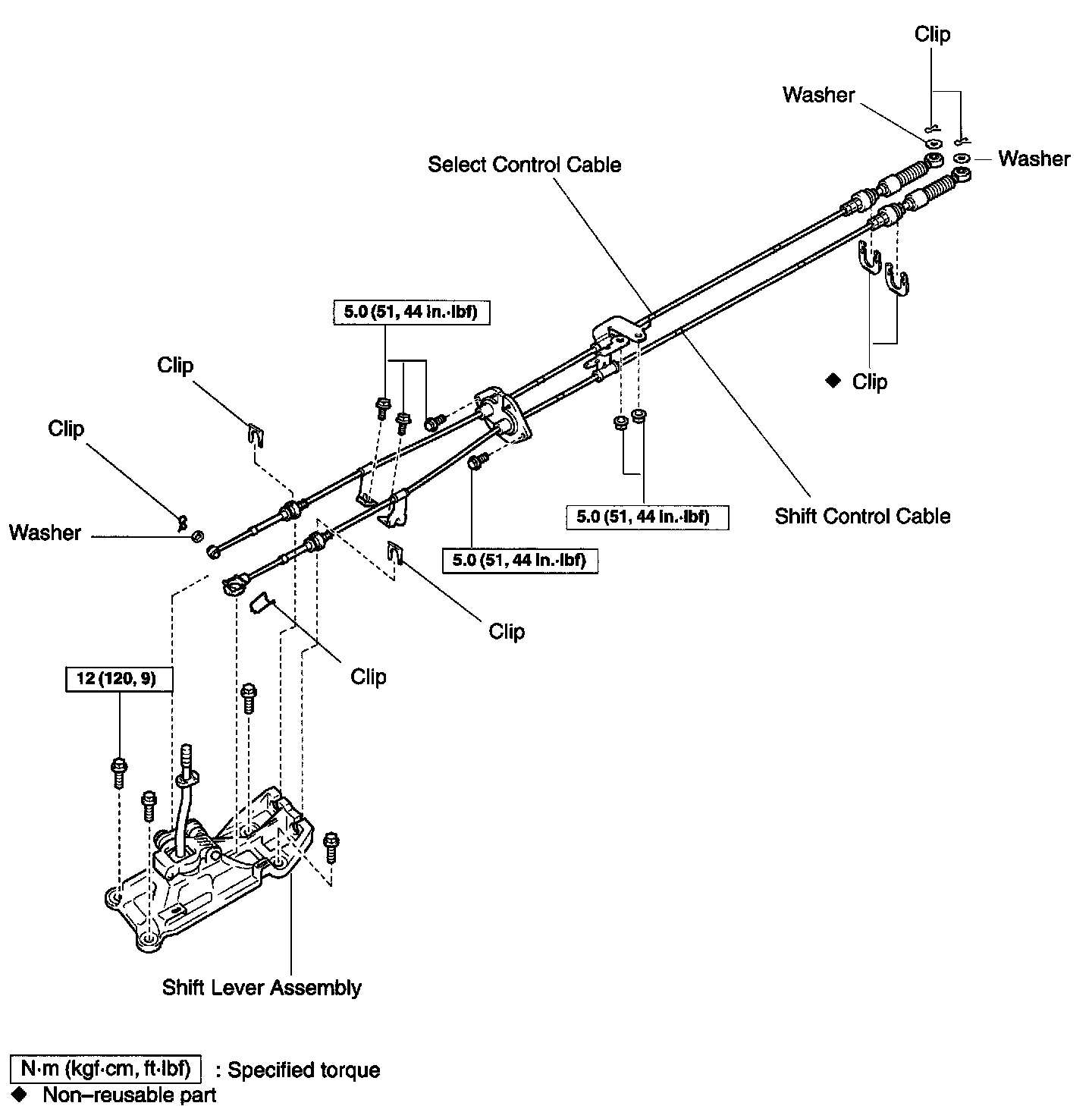

SHIFT LEVER AND CONTROL CABLE
