Specifications
>>
Hybrid Control System
Hybrid Control System

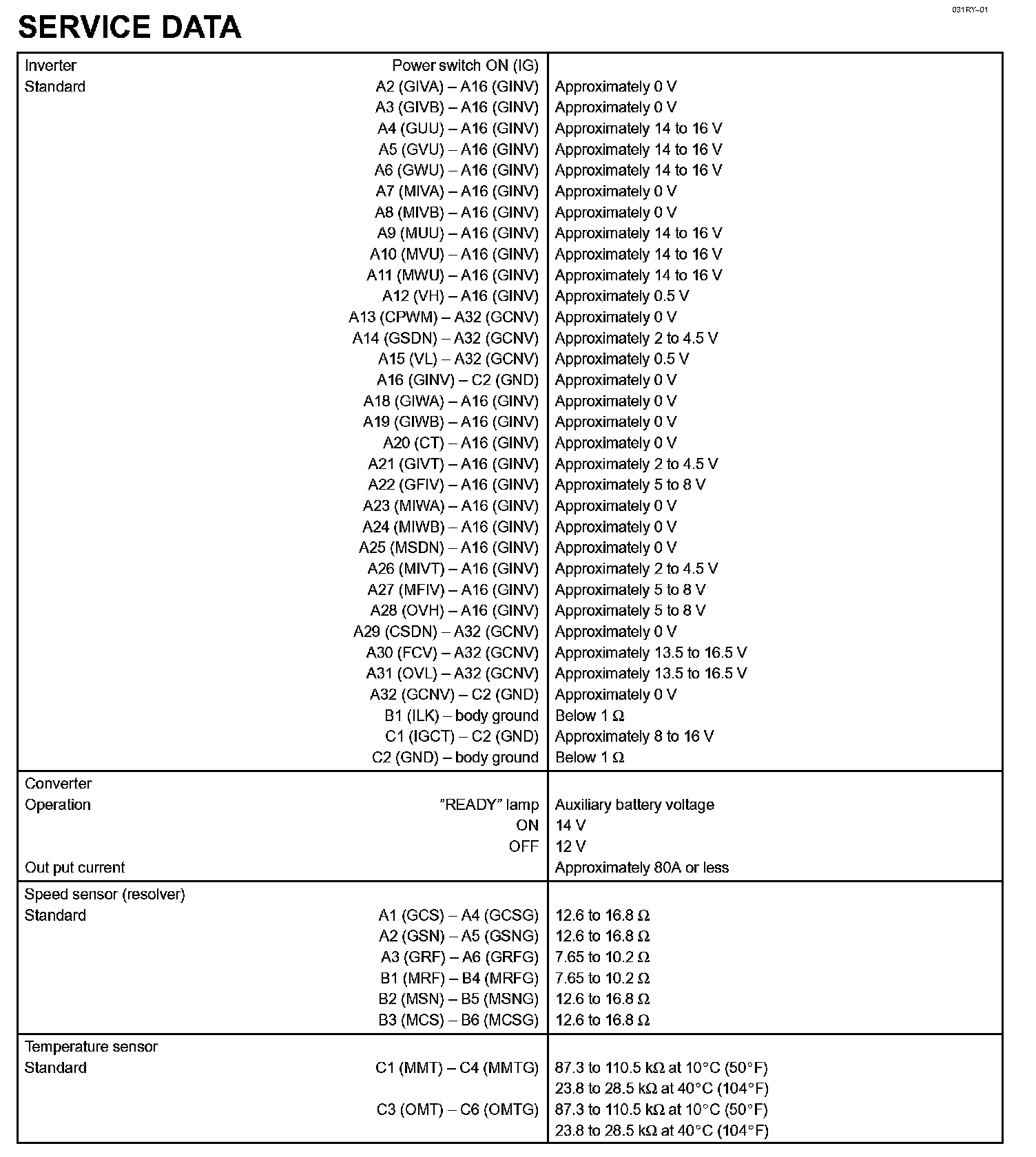

Hybrid Control System - Service Data Part 1:

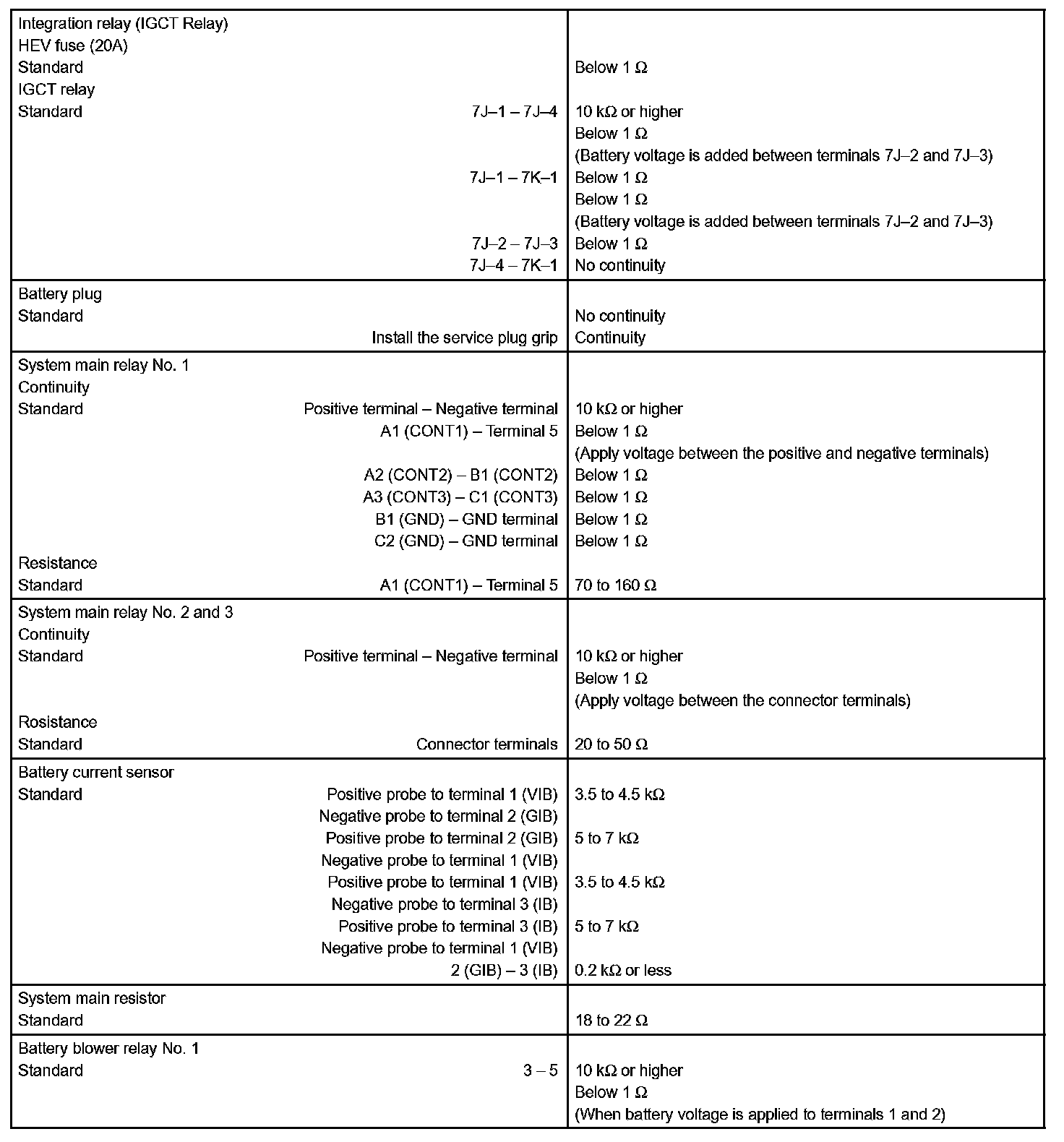

Hybrid Control System - Service Data Part 2:
Hybrid Control System - Torque Specification:
