Knock Sensor: Locations

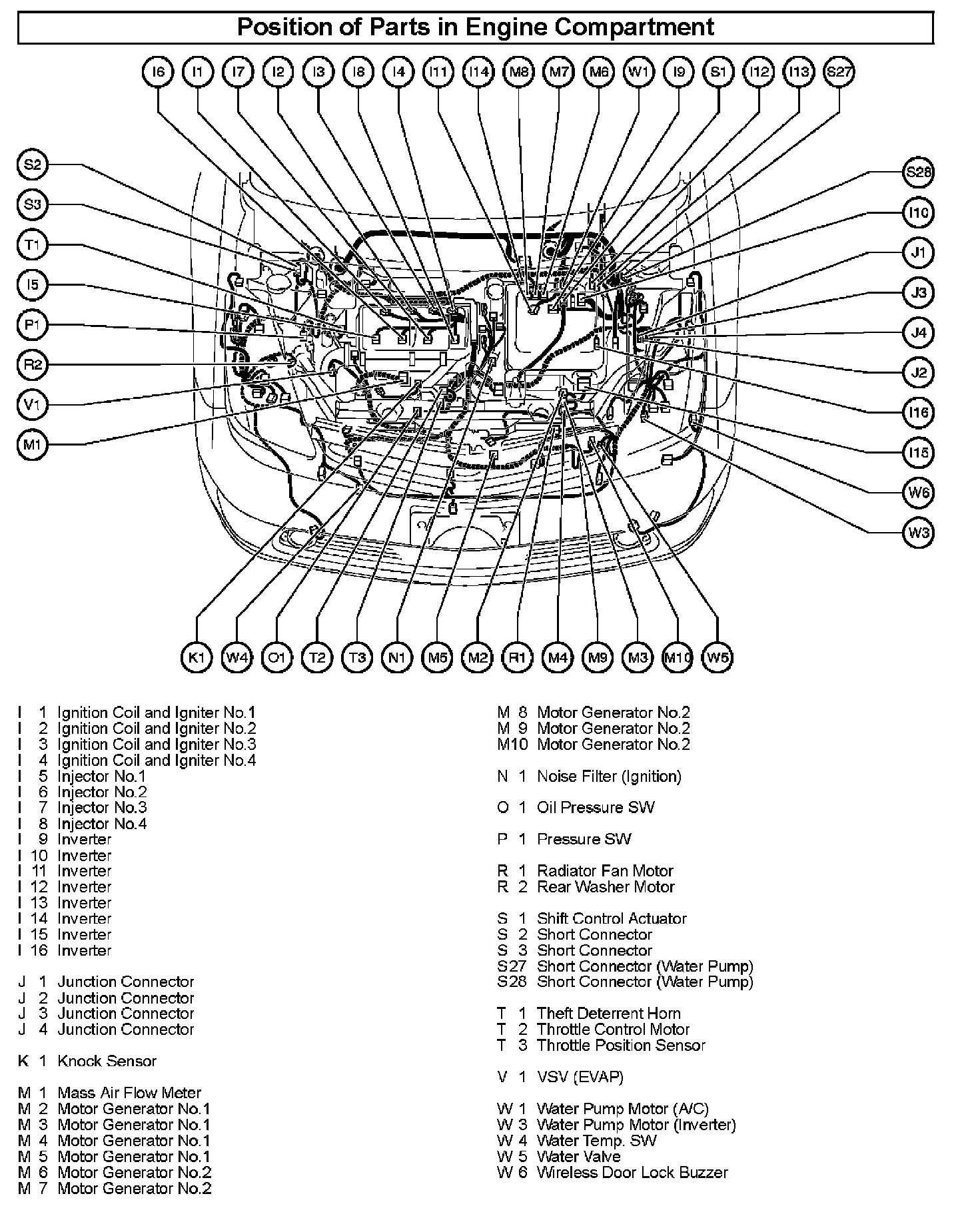

Ig - Wi:



SFI System:



Engine Control System:

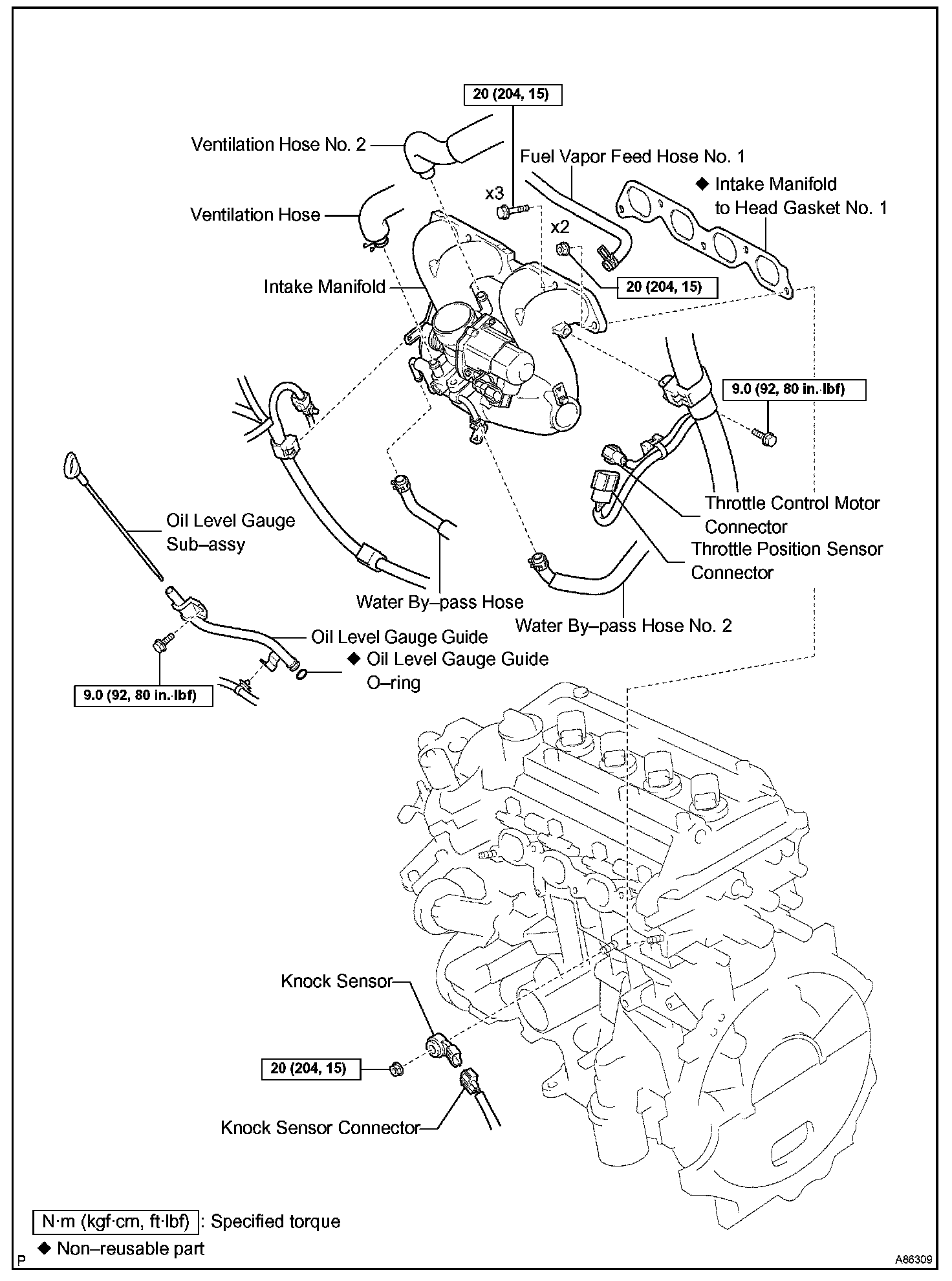

Engine Control System - Knock Sensor:

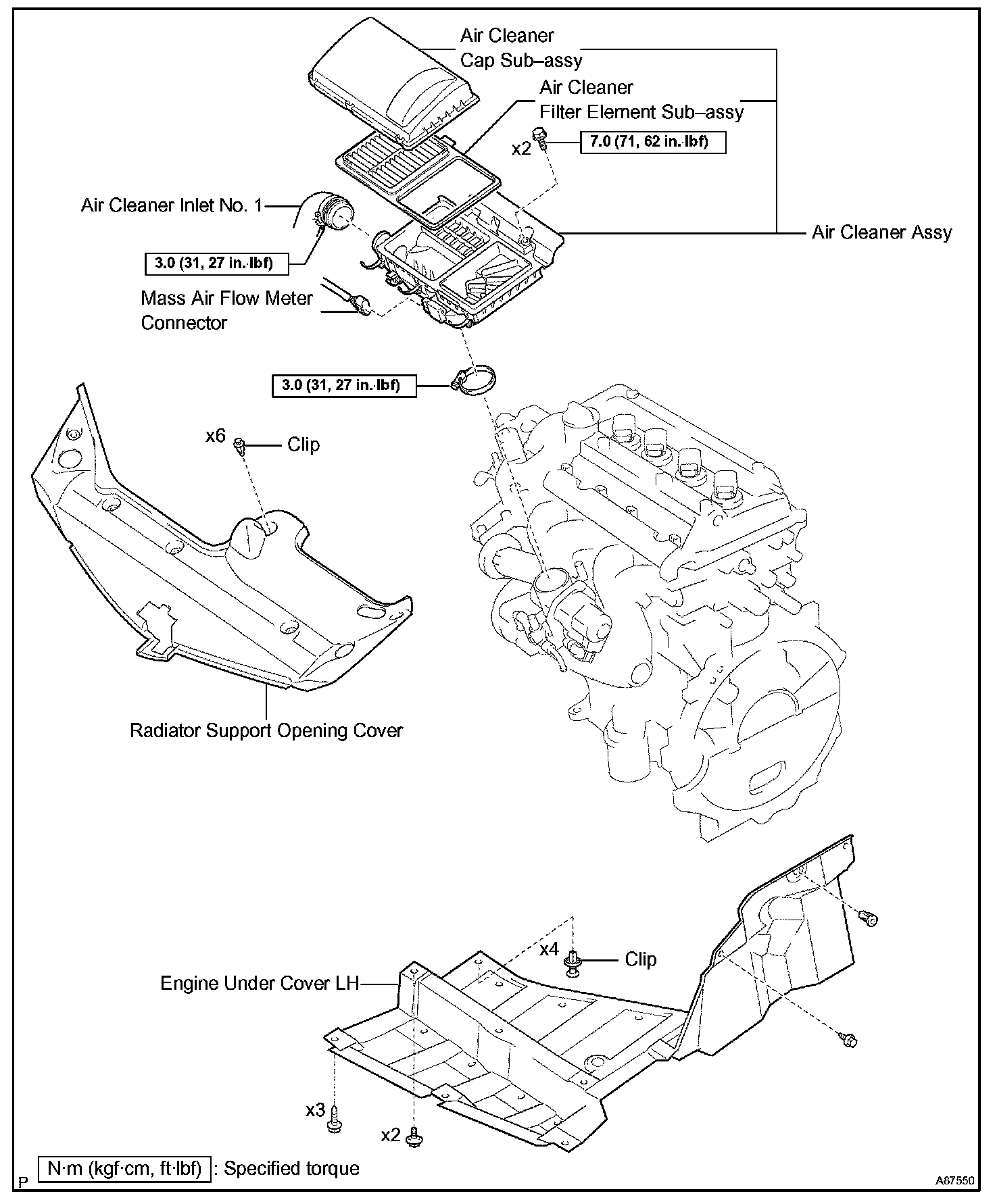

Engine Control System - Knock Sensor:
