Knock Sensor: Testing and Inspection

INSPECT KNOCK SENSOR




Inspect the resistance.

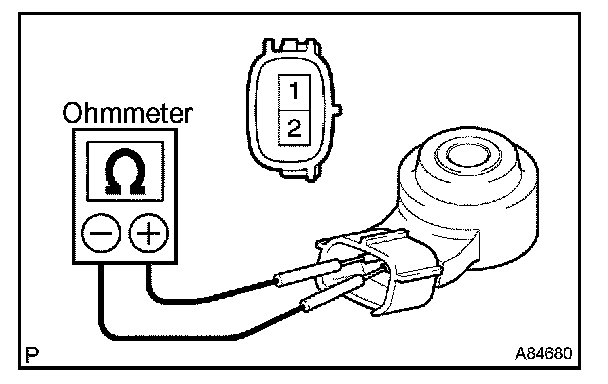

Using an ohmmeter, measure the resistance between the terminals.

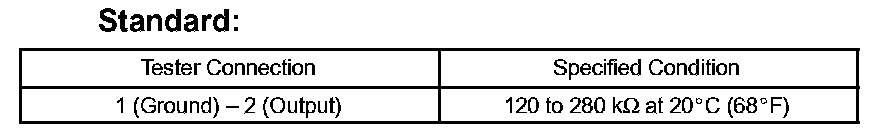

If the resistance is not as specified, replace the knock sensor.
