Engine Control Module
Engine Control Module

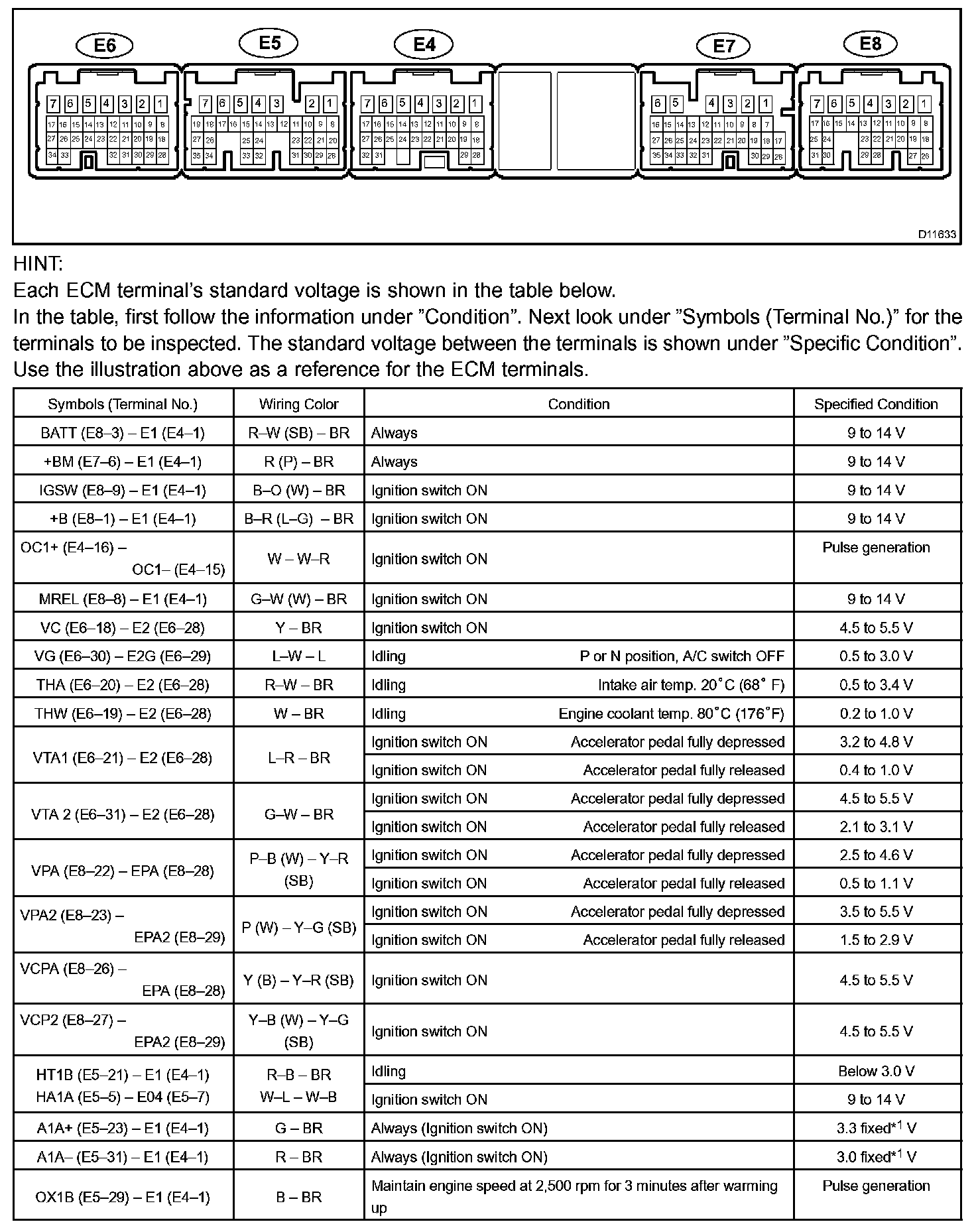

Terminals of ECM / Pinouts, Part 1:

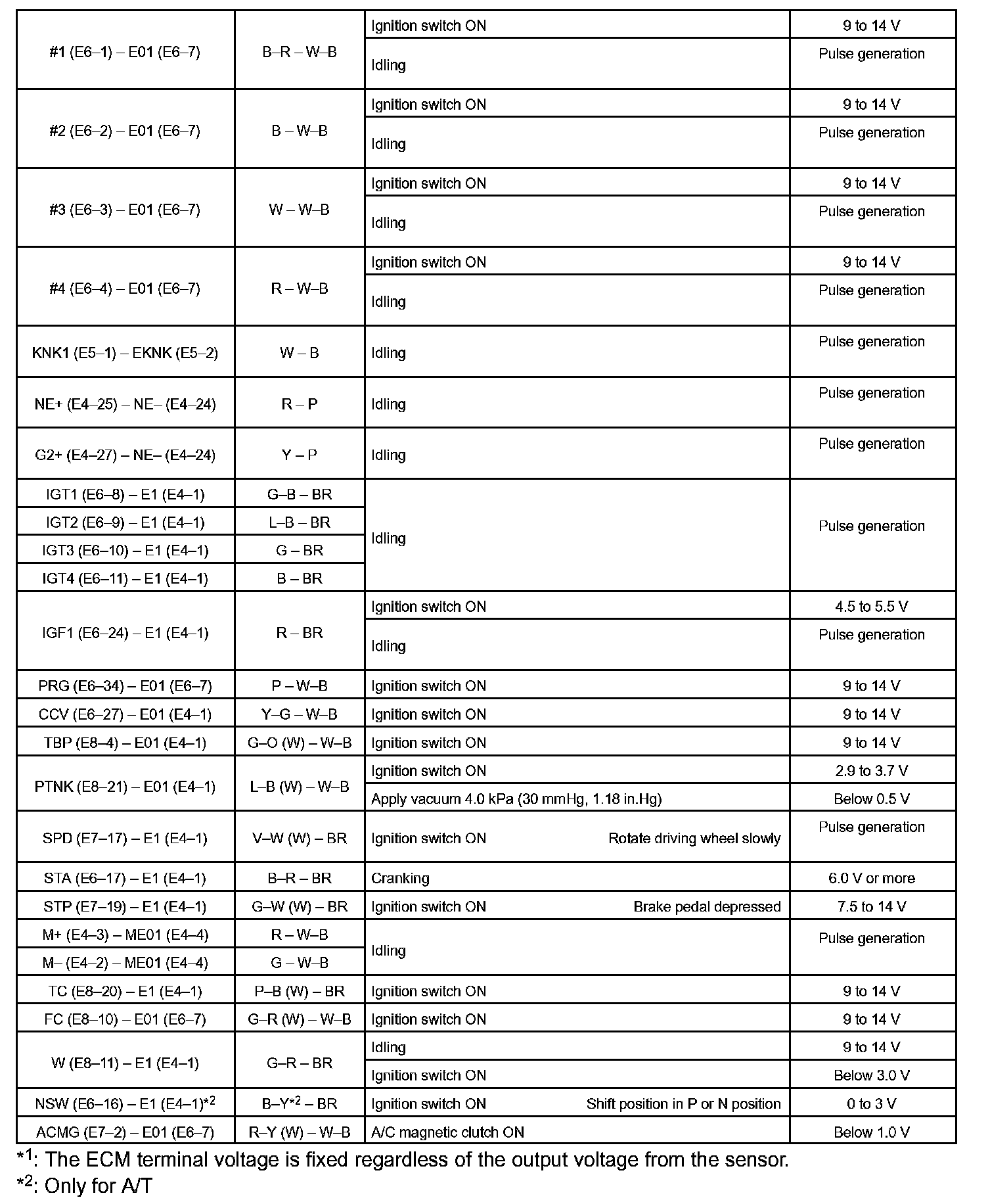

Terminals of ECM / Pinouts, Part 2:
