Brake Master Cylinder
Brake Master Cylinder

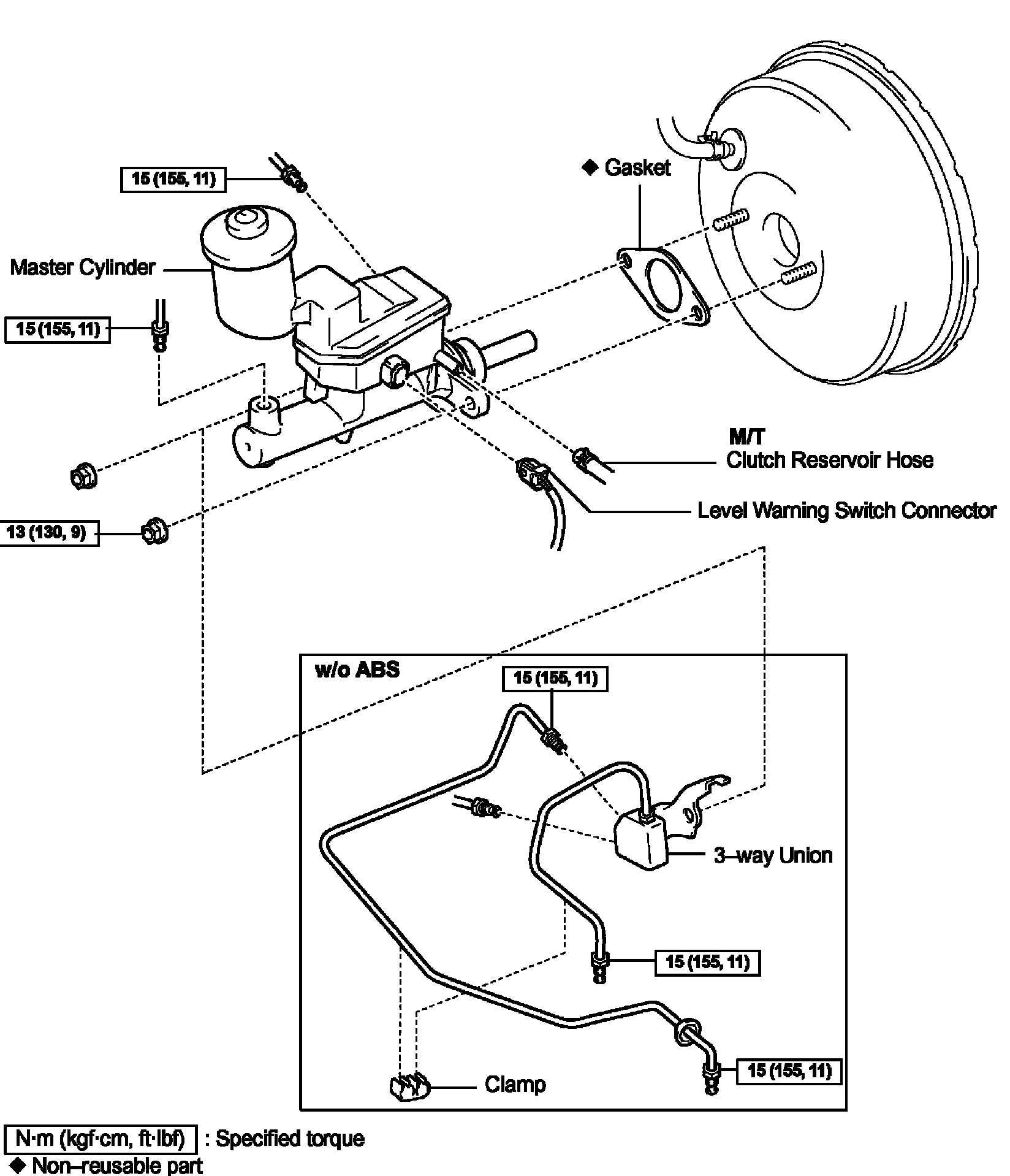

Brake Master Cylinder:
Brake Master Cylinder (w/ABS):

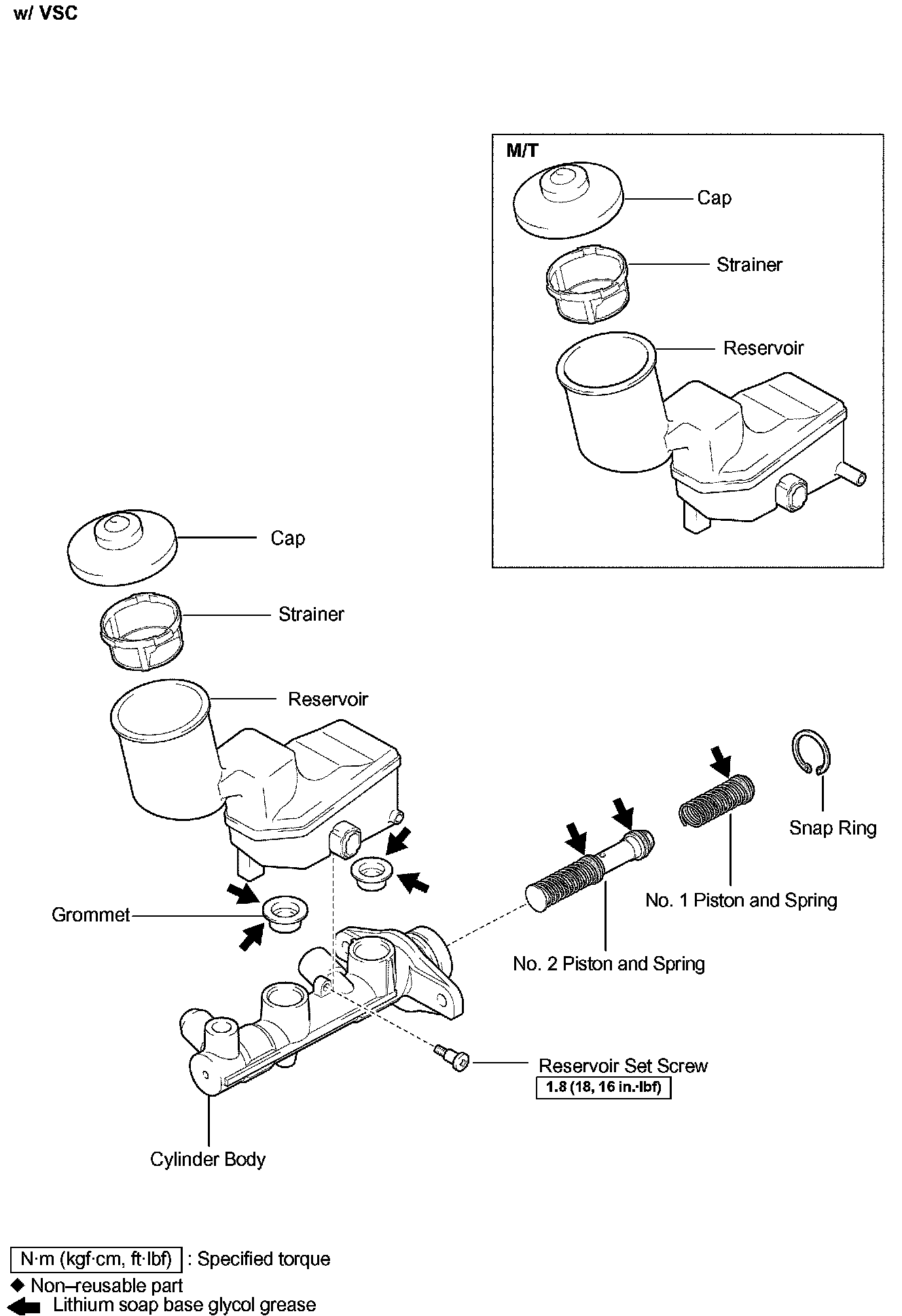

Brake Master Cylinder (w/VSC):
