System Diagram

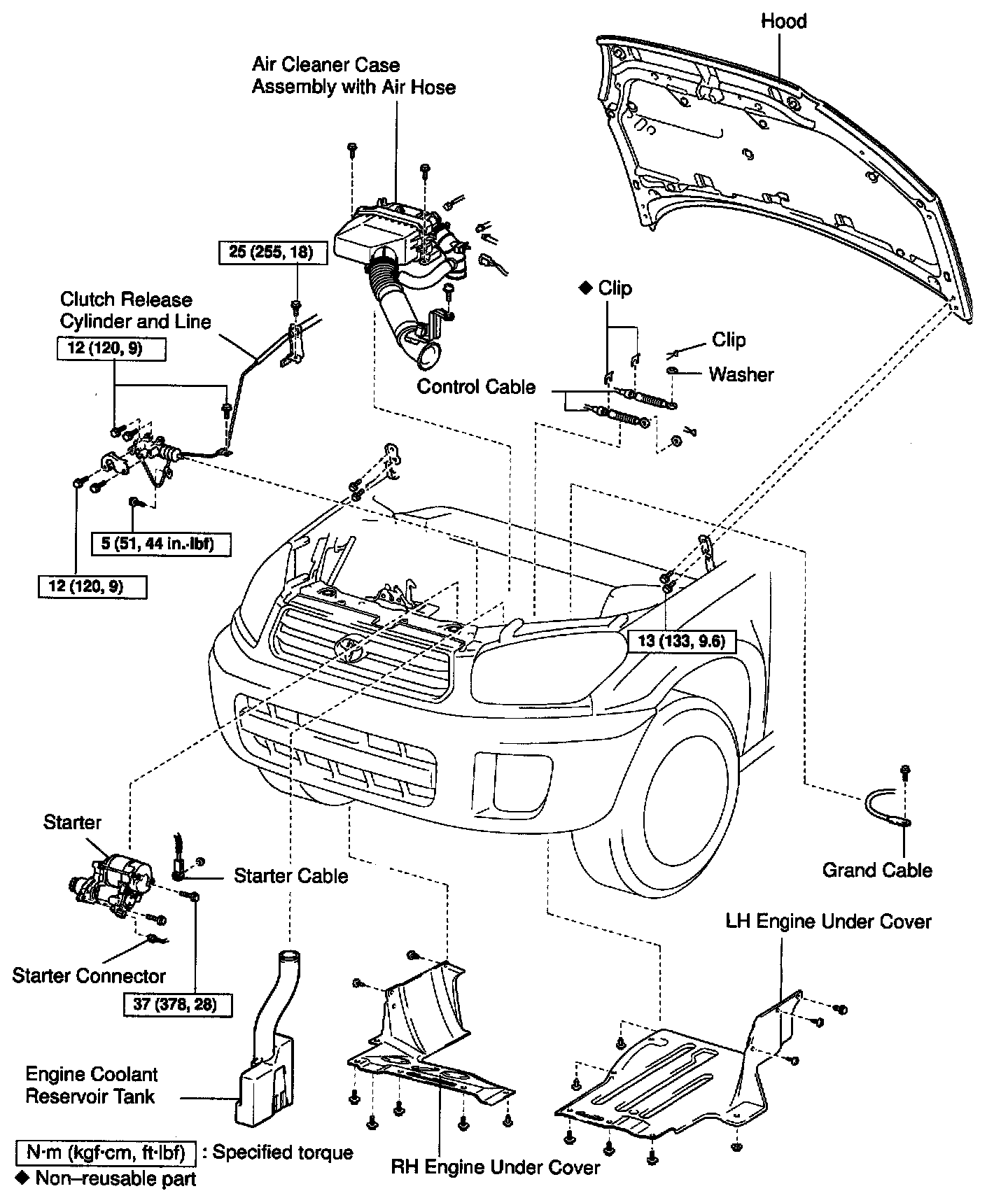

MANUAL TRANSAXLE:

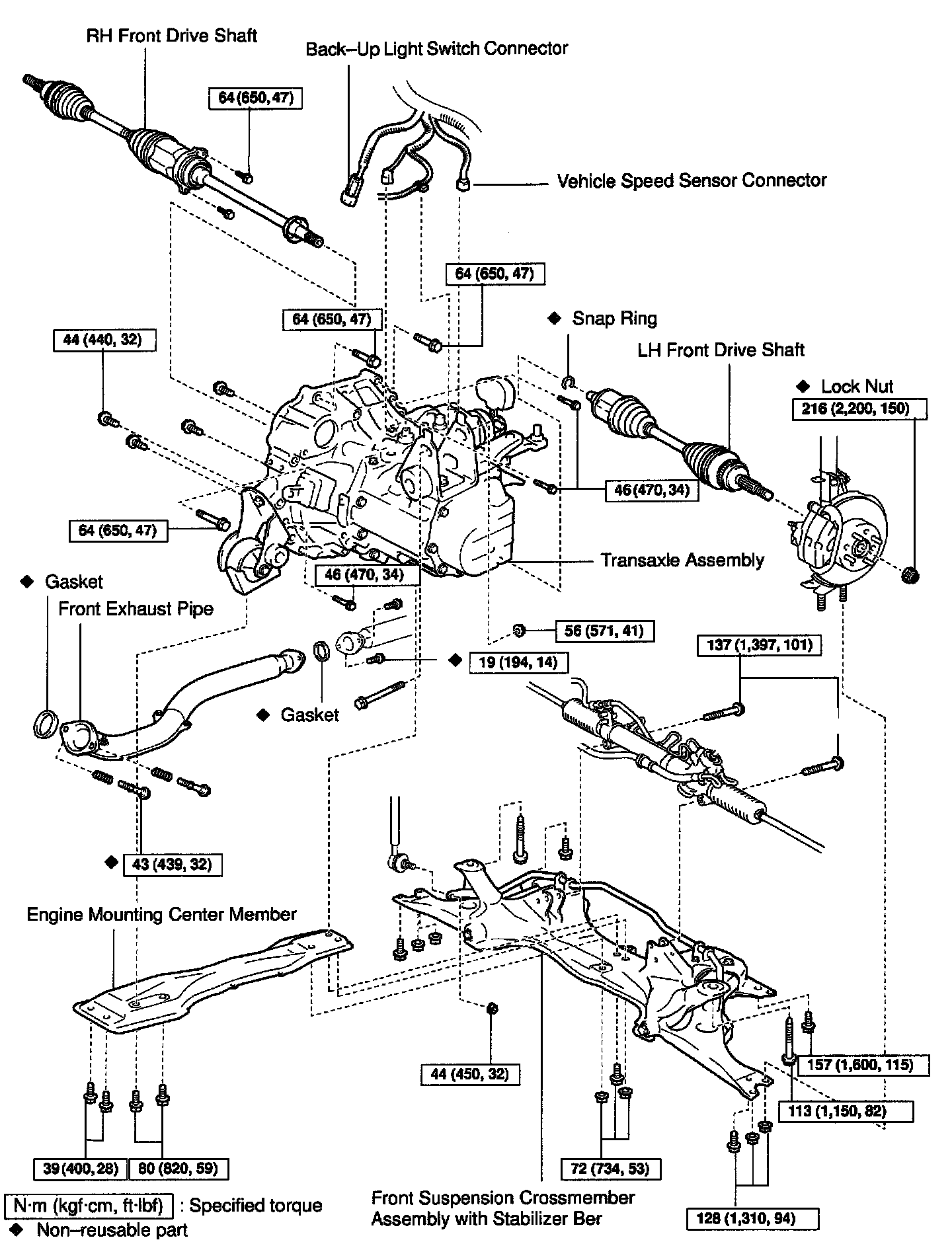

MANUAL TRANSAXLE:

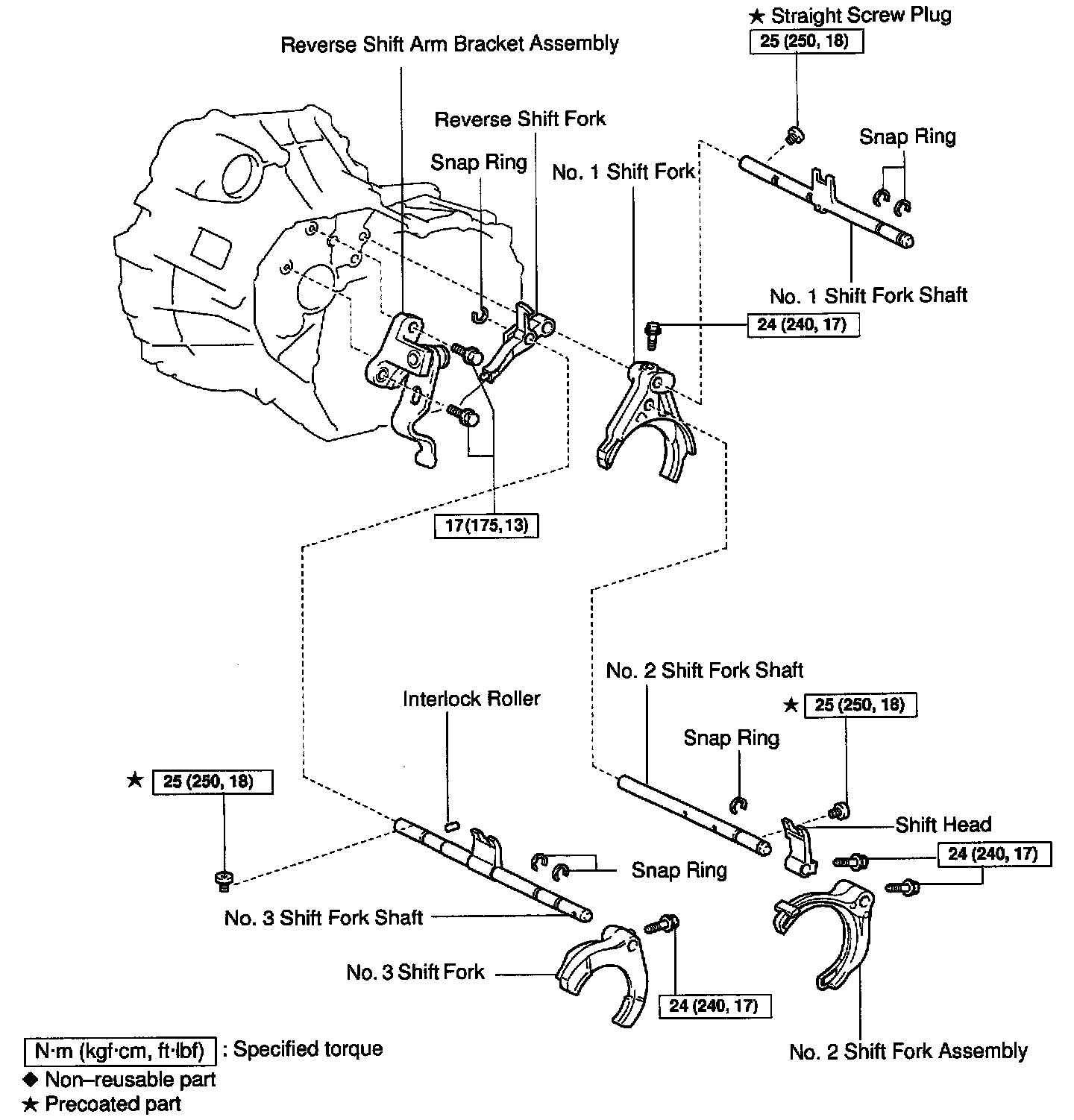

MANUAL TRANSAXLE DISASSEMBLY:

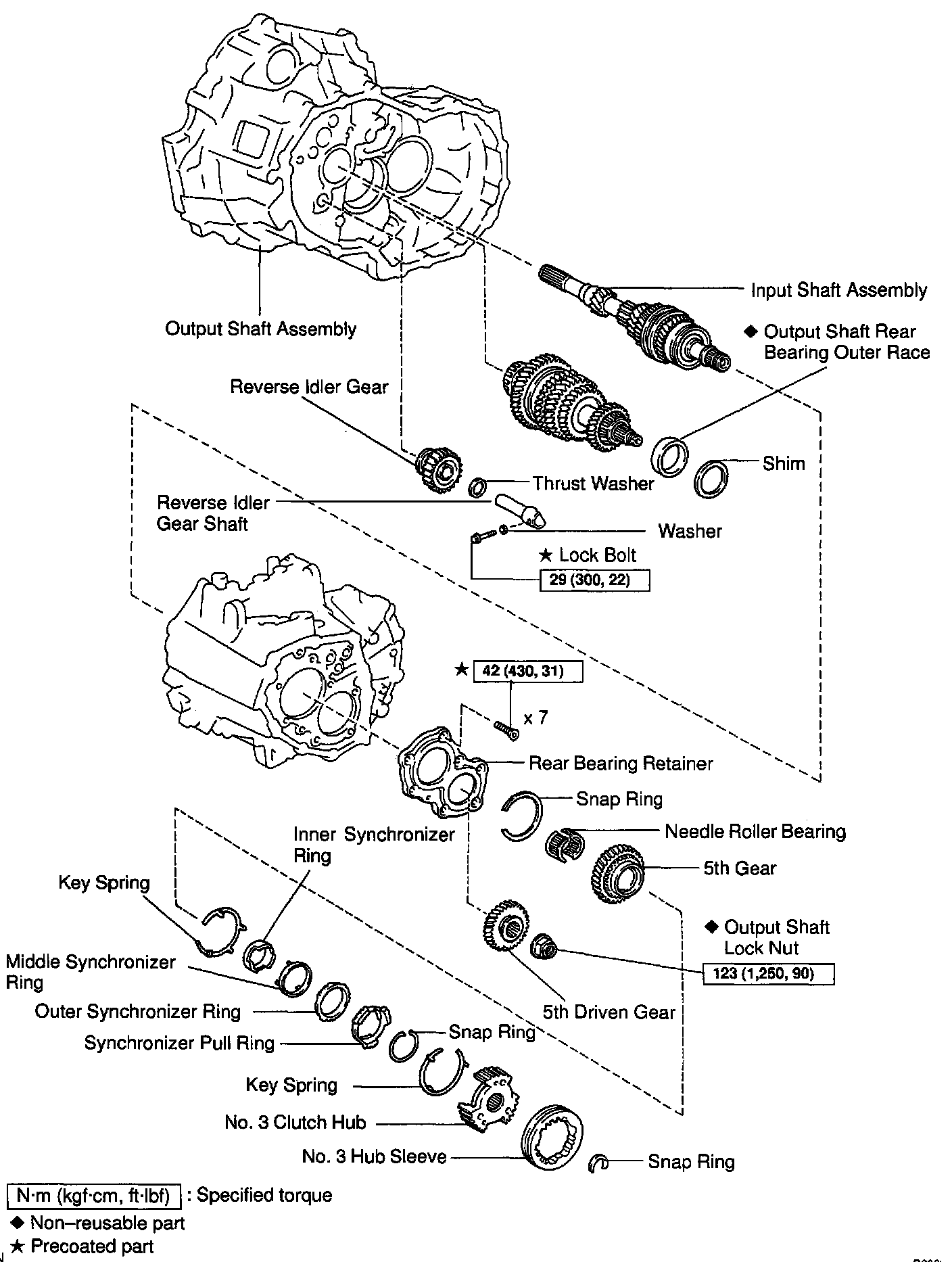

MANUAL TRANSAXLE DISASSEMBLY:

MANUAL TRANSAXLE DISASSEMBLY:

MANUAL TRANSAXLE DISASSEMBLY:

INPUT SHAFT:

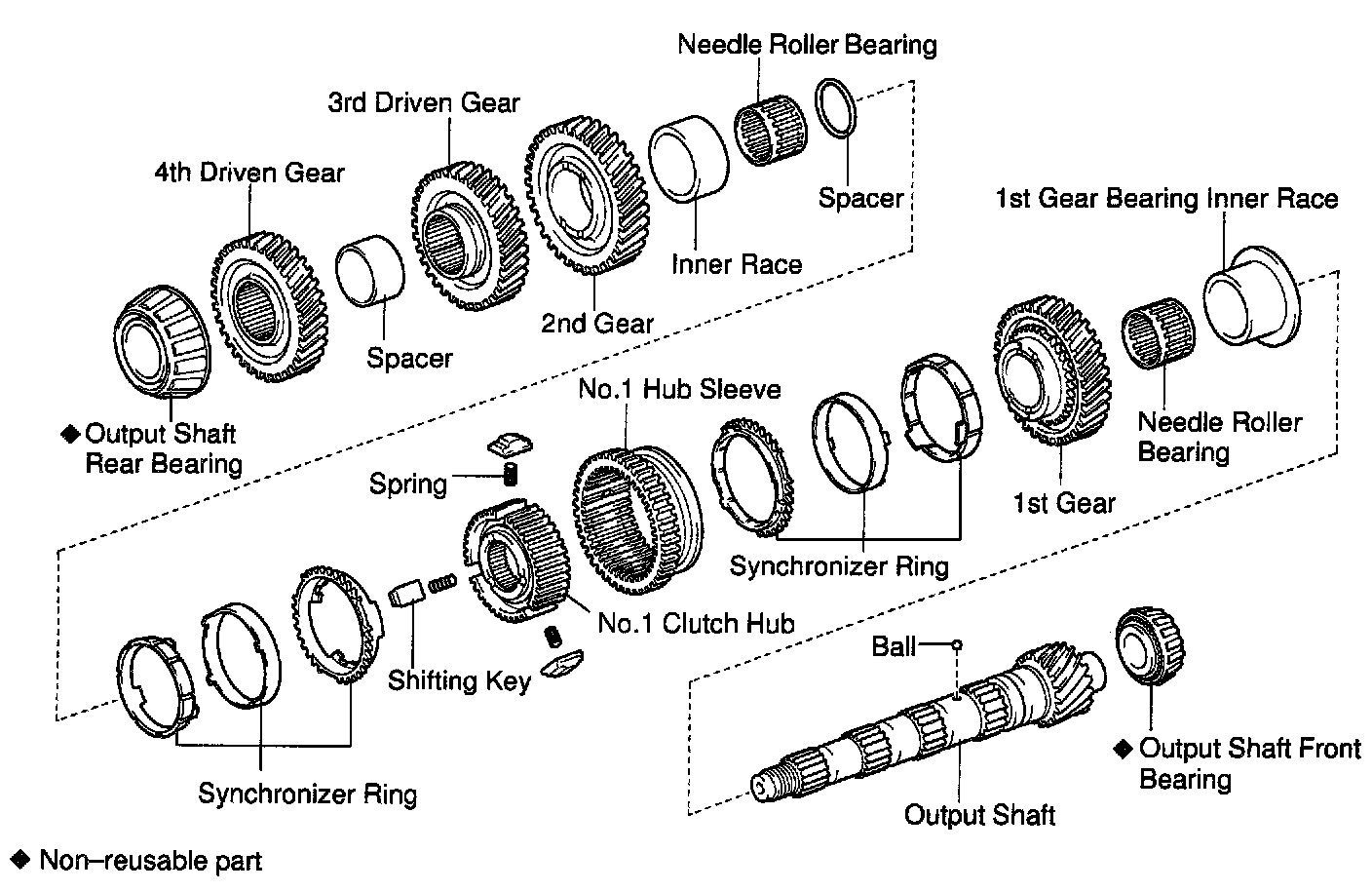

OUTPUT SHAFT:

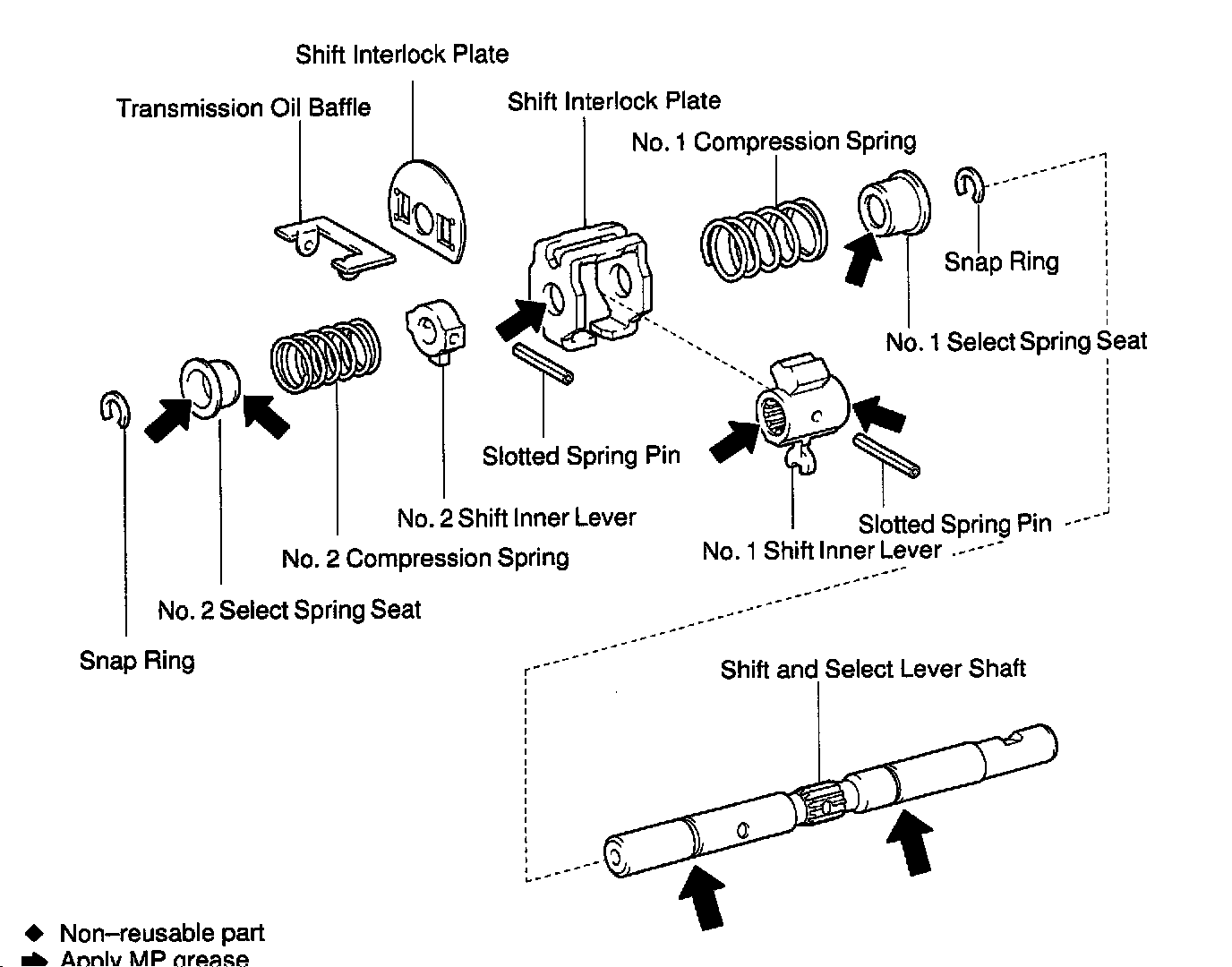

SHIFT AND SELECT LEVER SHAFT:

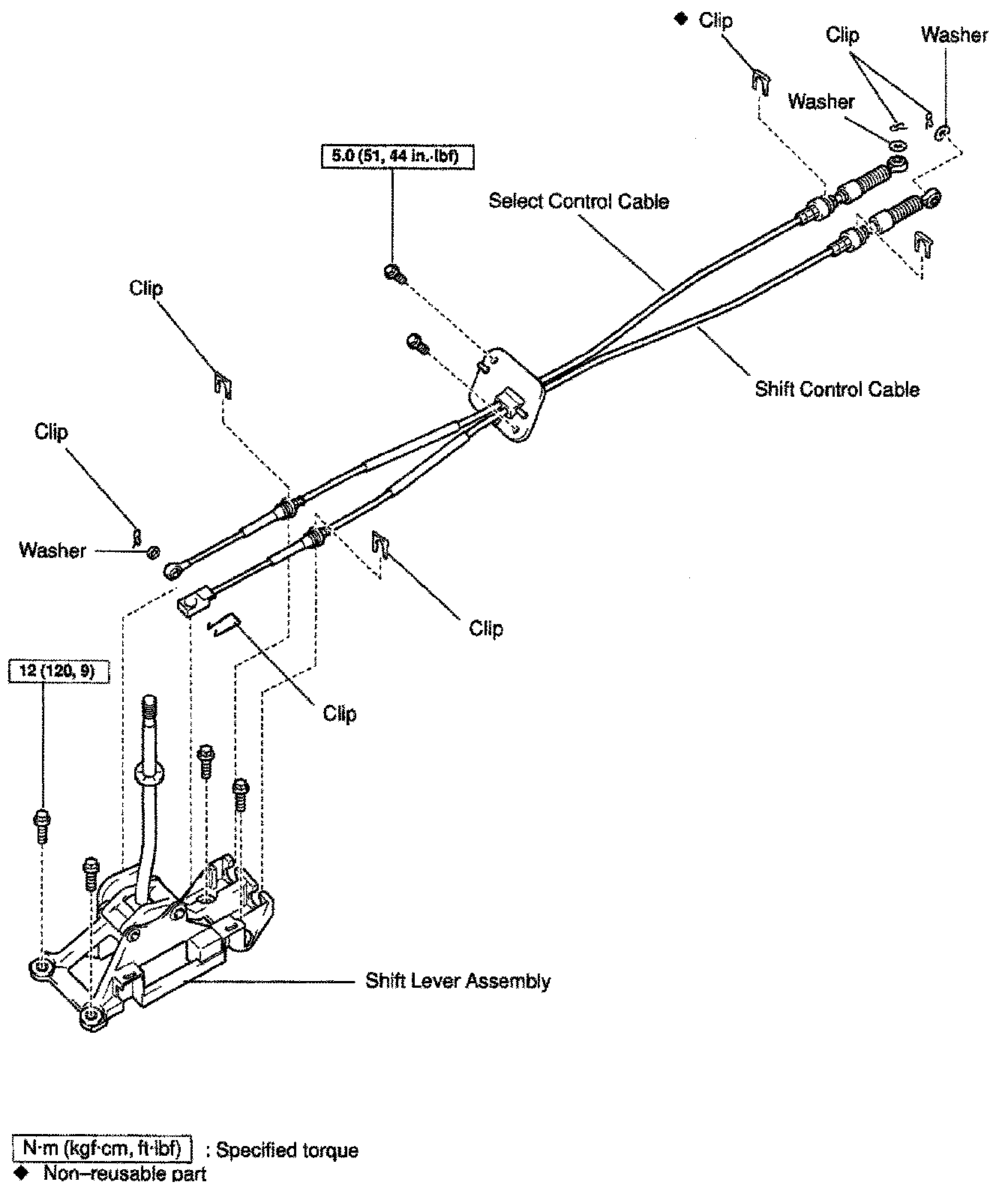

SHIFT LEVER AND CONTROL CABLE:

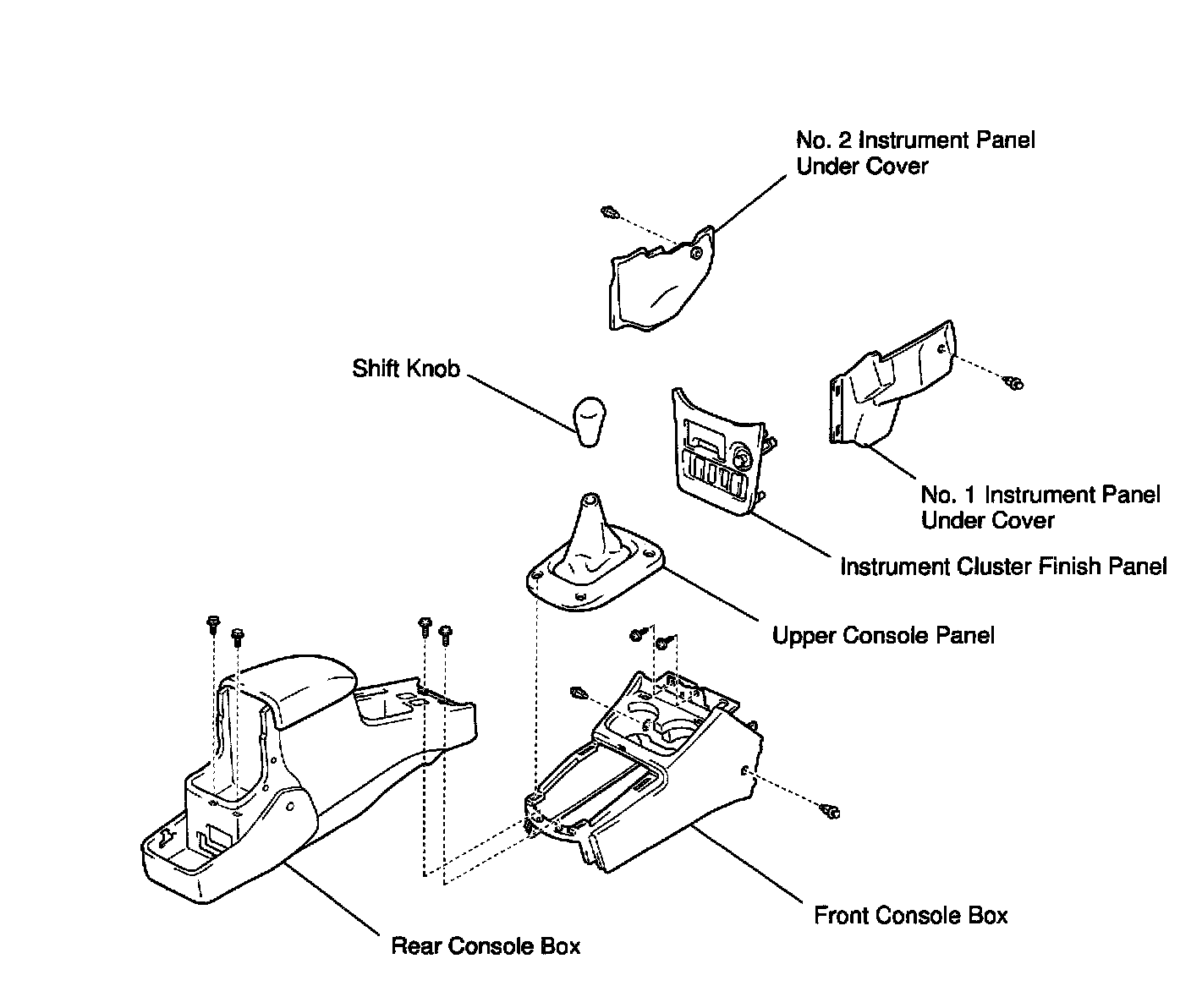

SHIFT LEVER AND CONTROL CABLE:

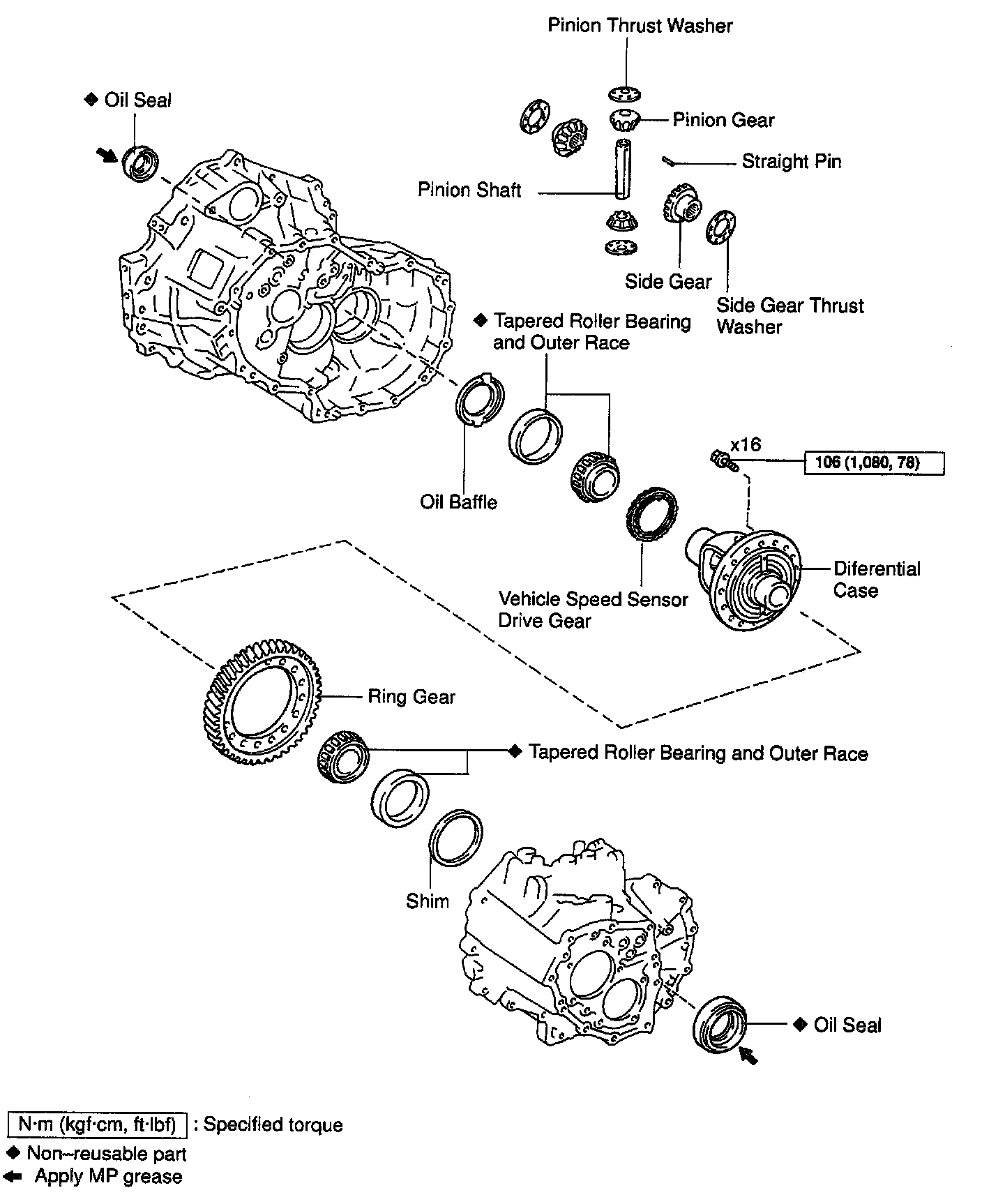

DIFFERENTIAL CASE:
