Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

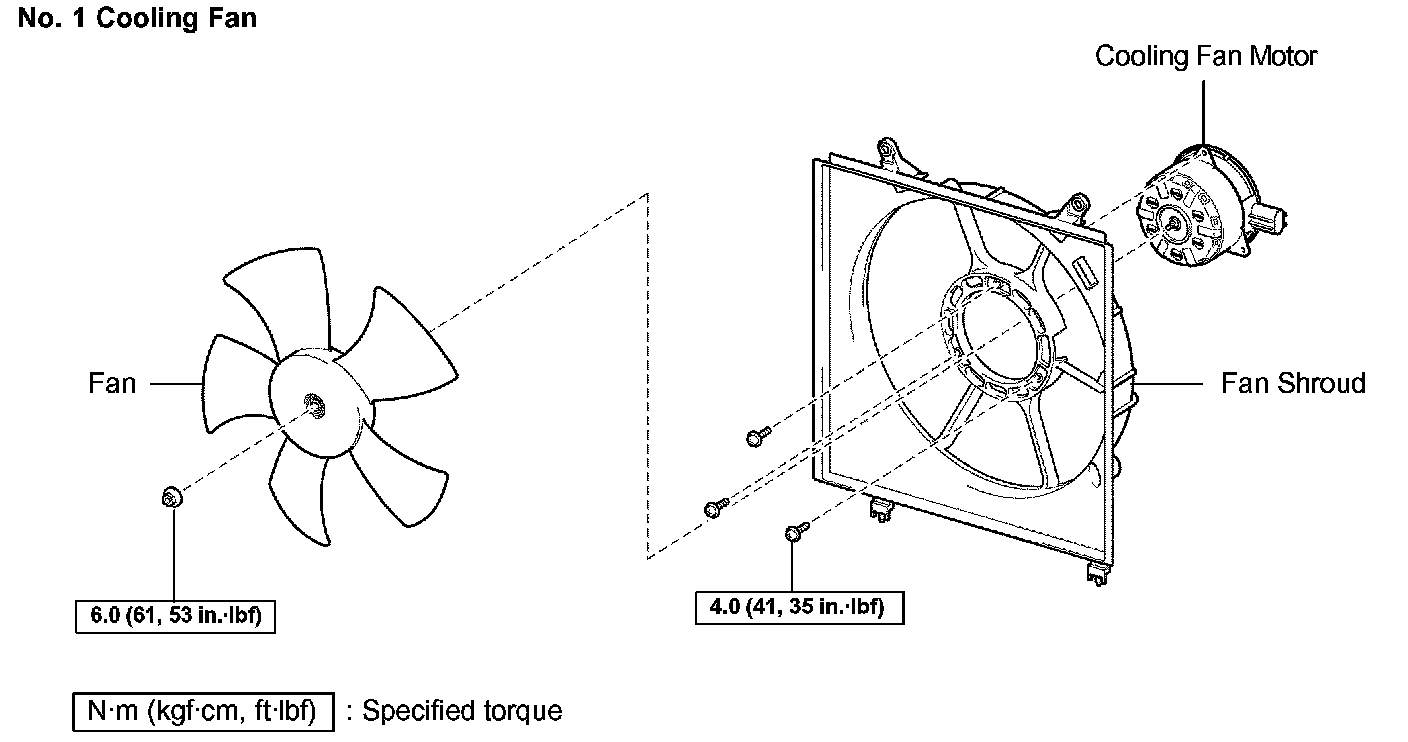

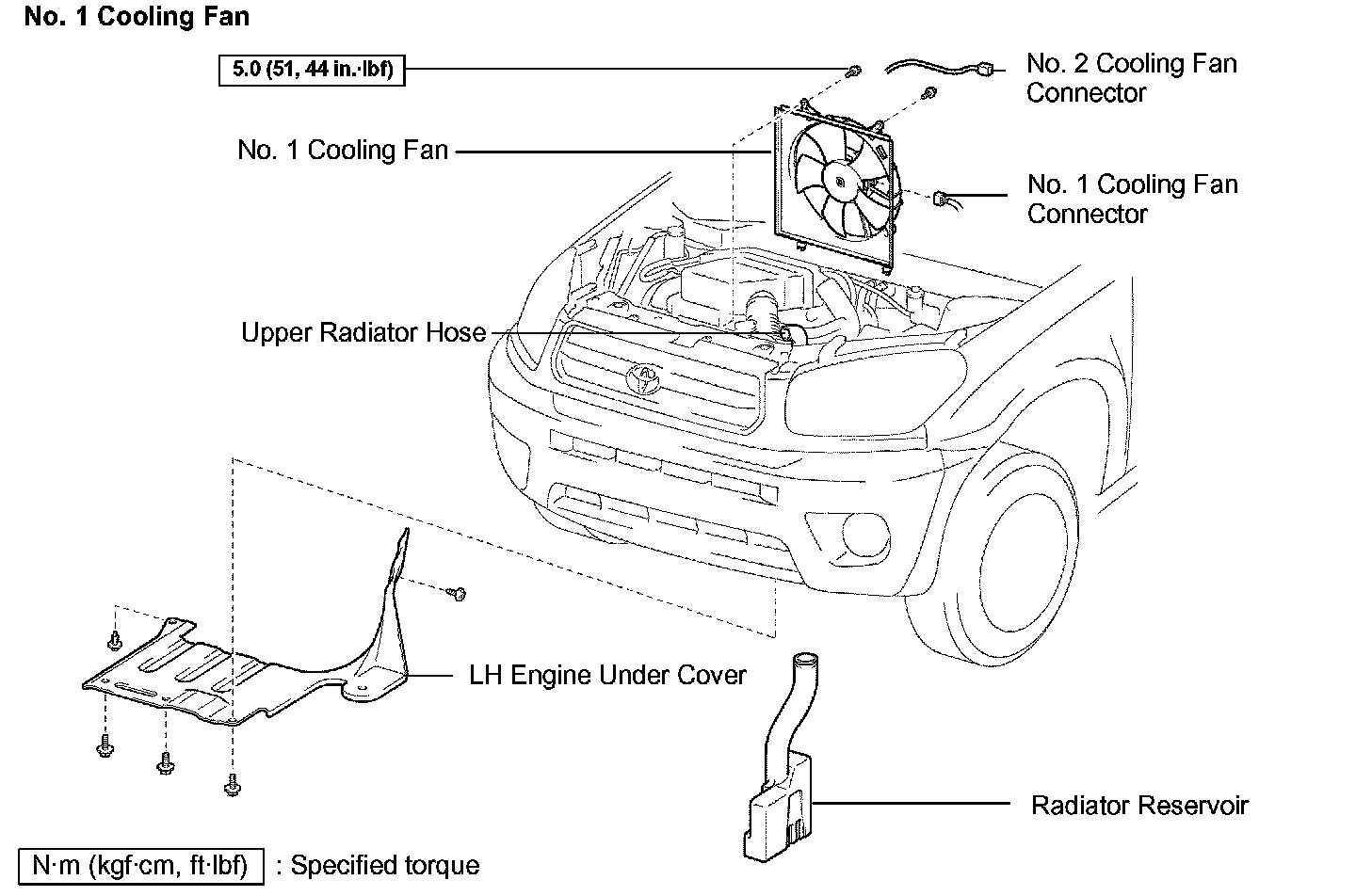

#1 Cooling Fan:
#1 Cooling Fan:

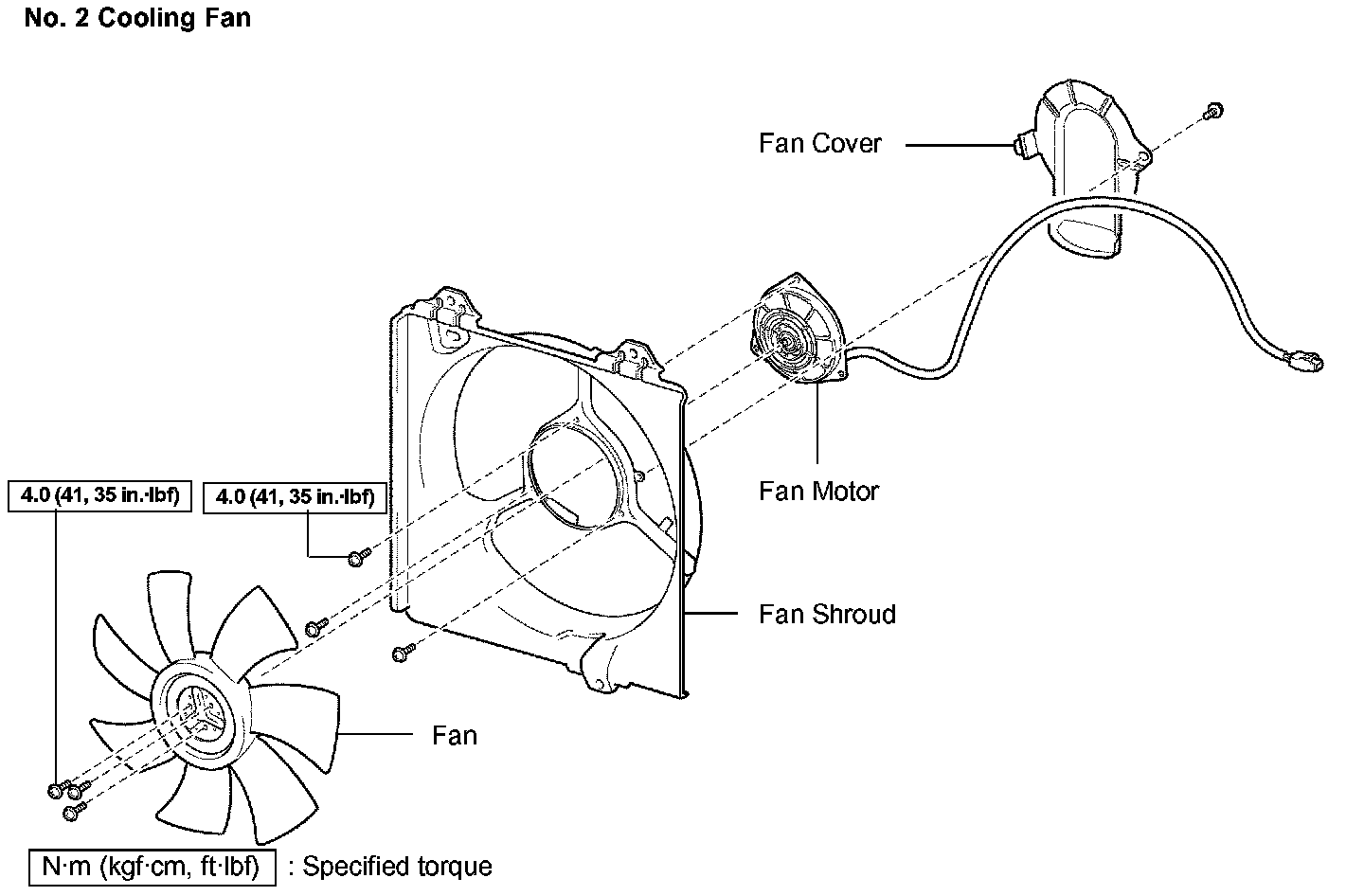

#2 Cooling Fan:
#2 Cooling Fan:
