Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2004
>>
RAV4 2WD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>

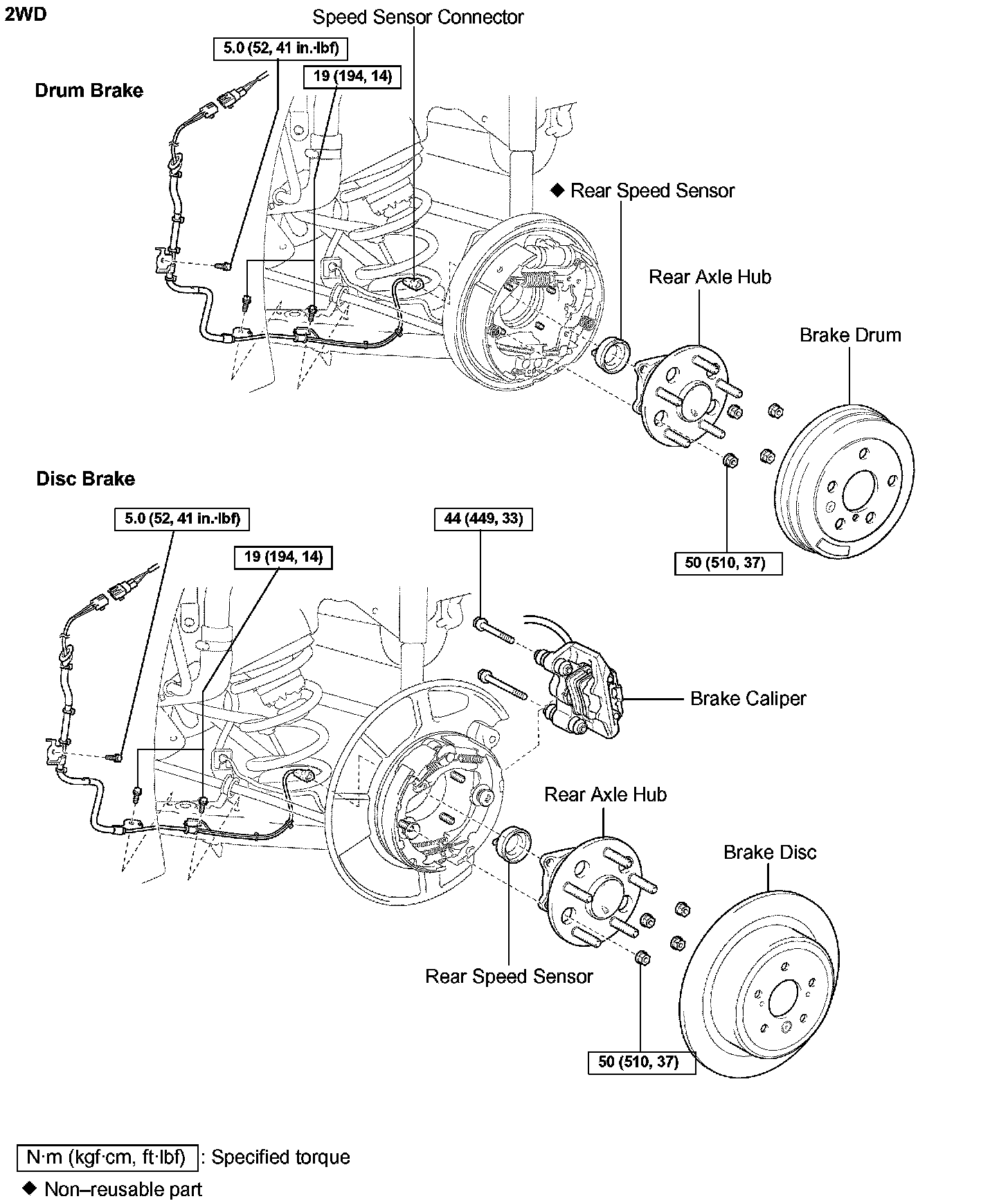

Wheel Speed Sensor
>>
Rear
Rear
2WD Model:
