Home >> Toyota >> 2004 >> RAV4 2WD L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Locations

Compressor HVAC: Locations

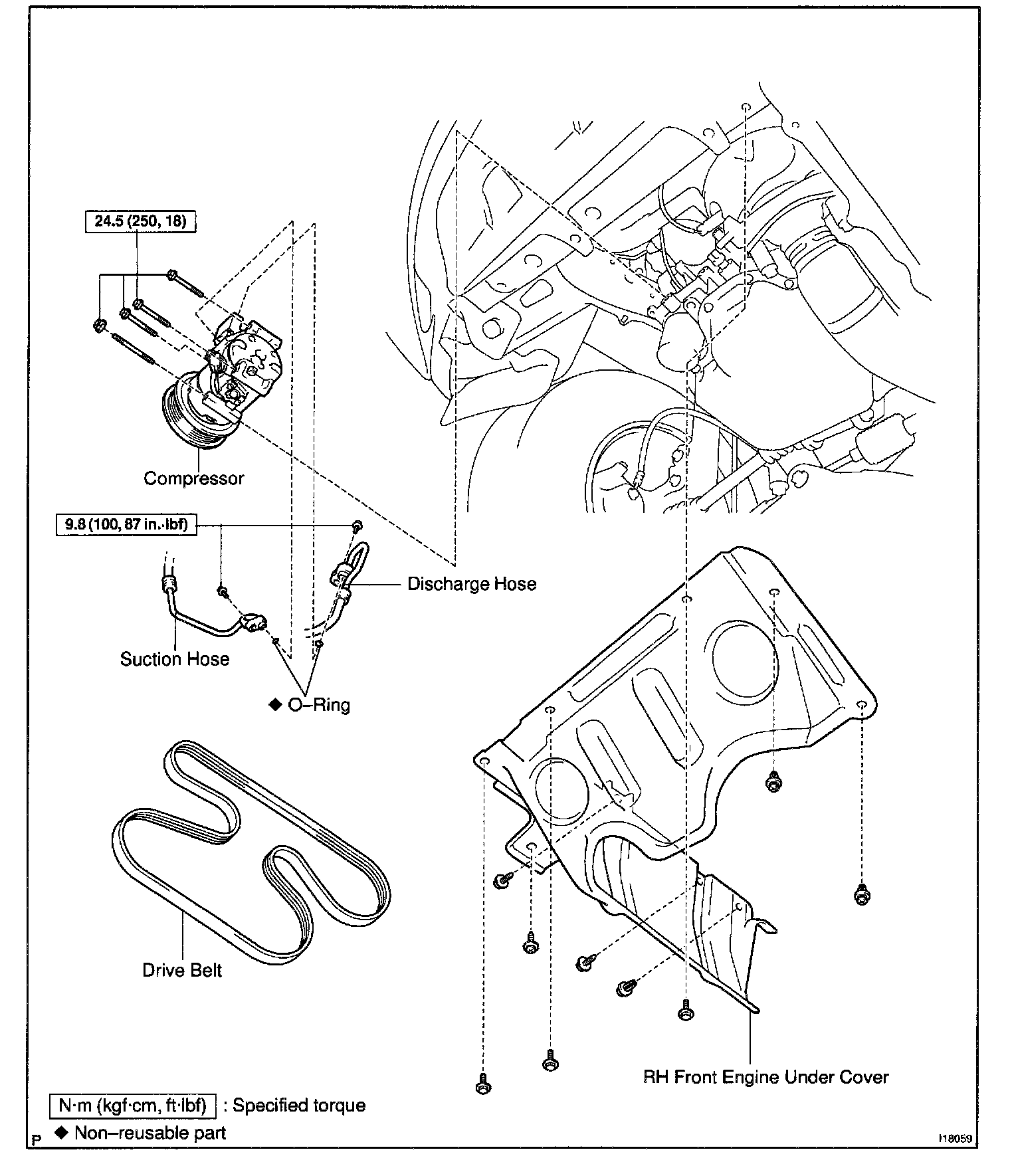

Compressor And Magnetic Clutch (Part 1):
