Locations
>>
Connector Locations
Connector Locations

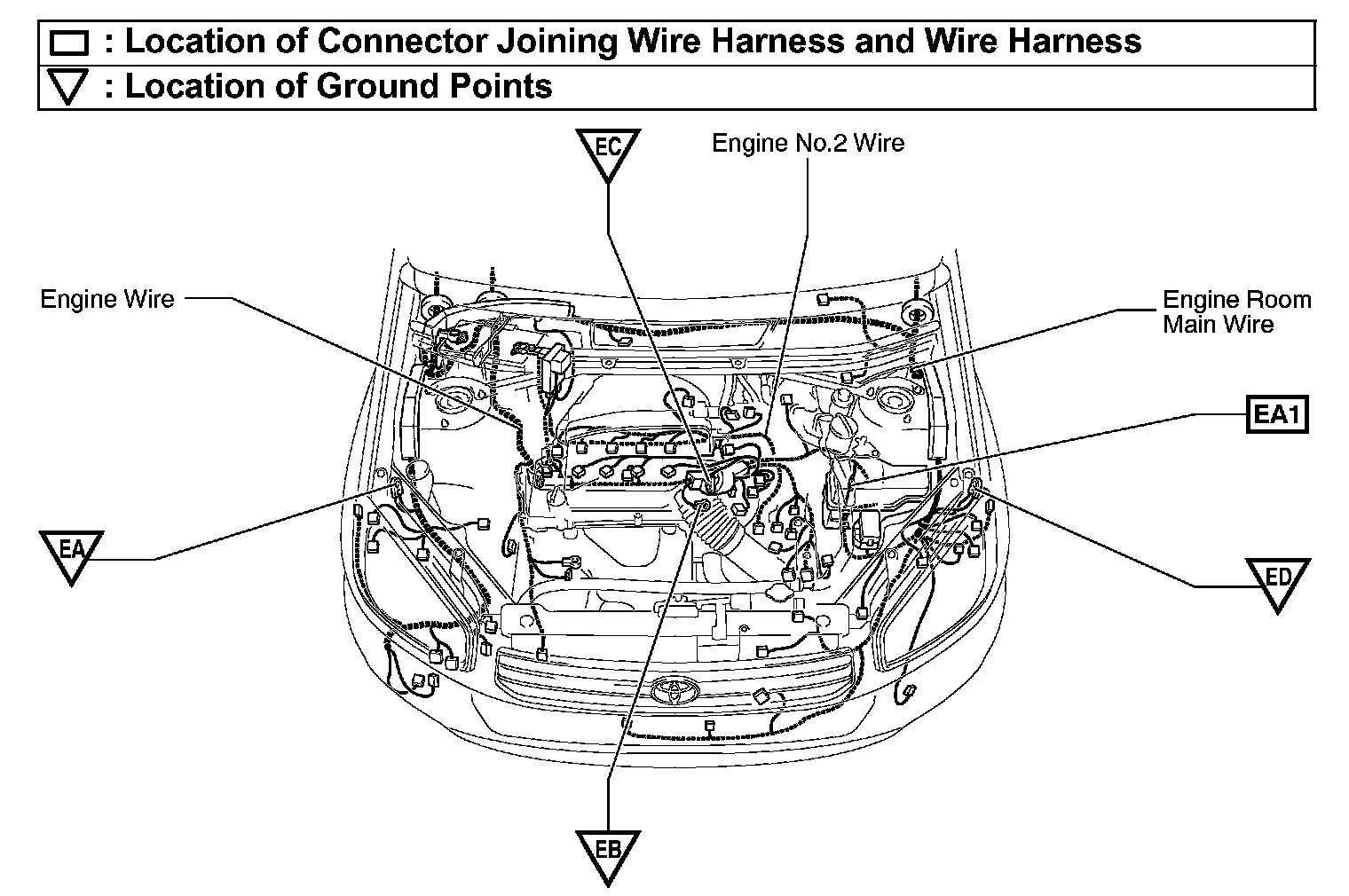

EA1, EA - ED:

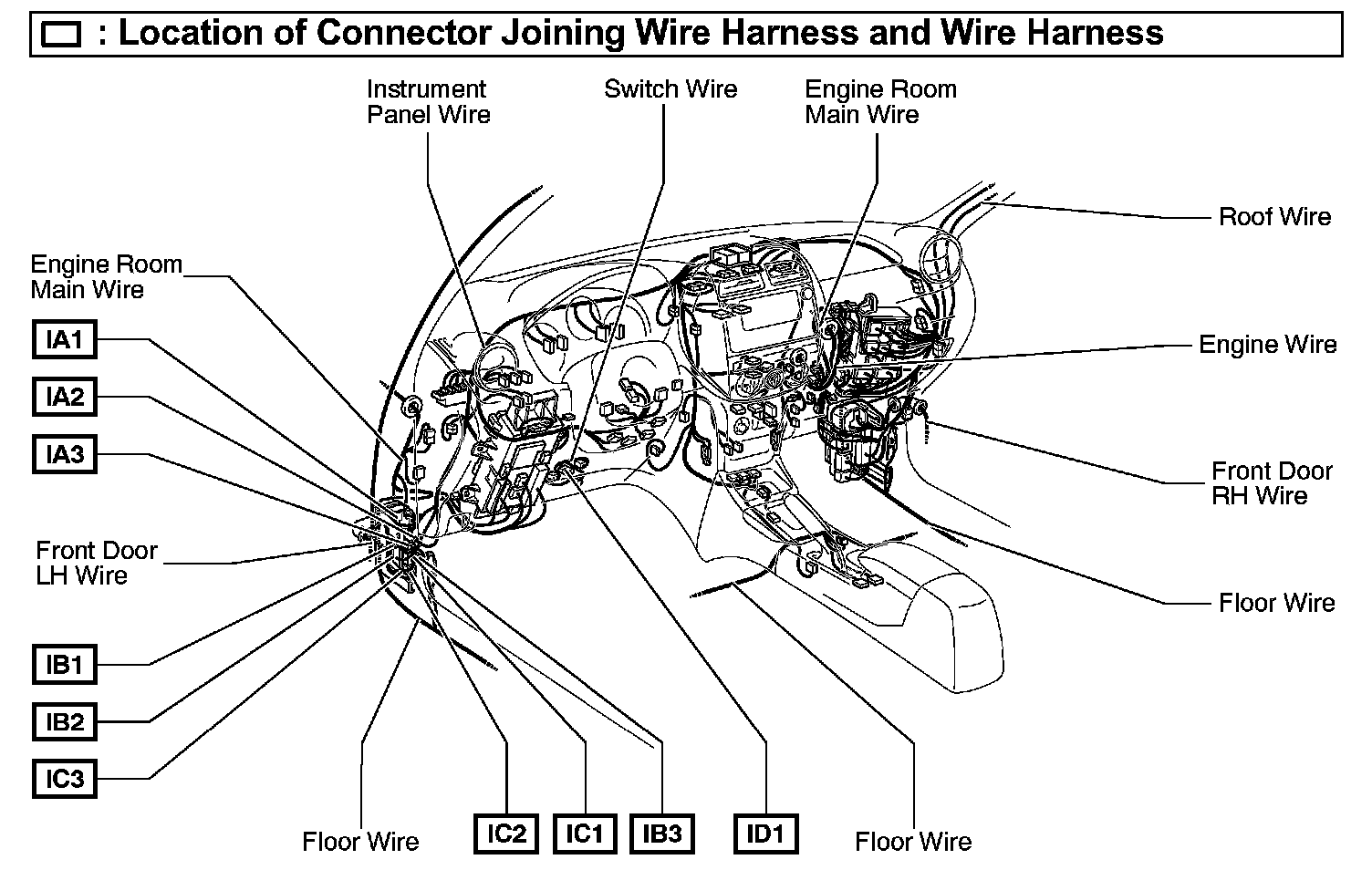

IA1 - ID1:

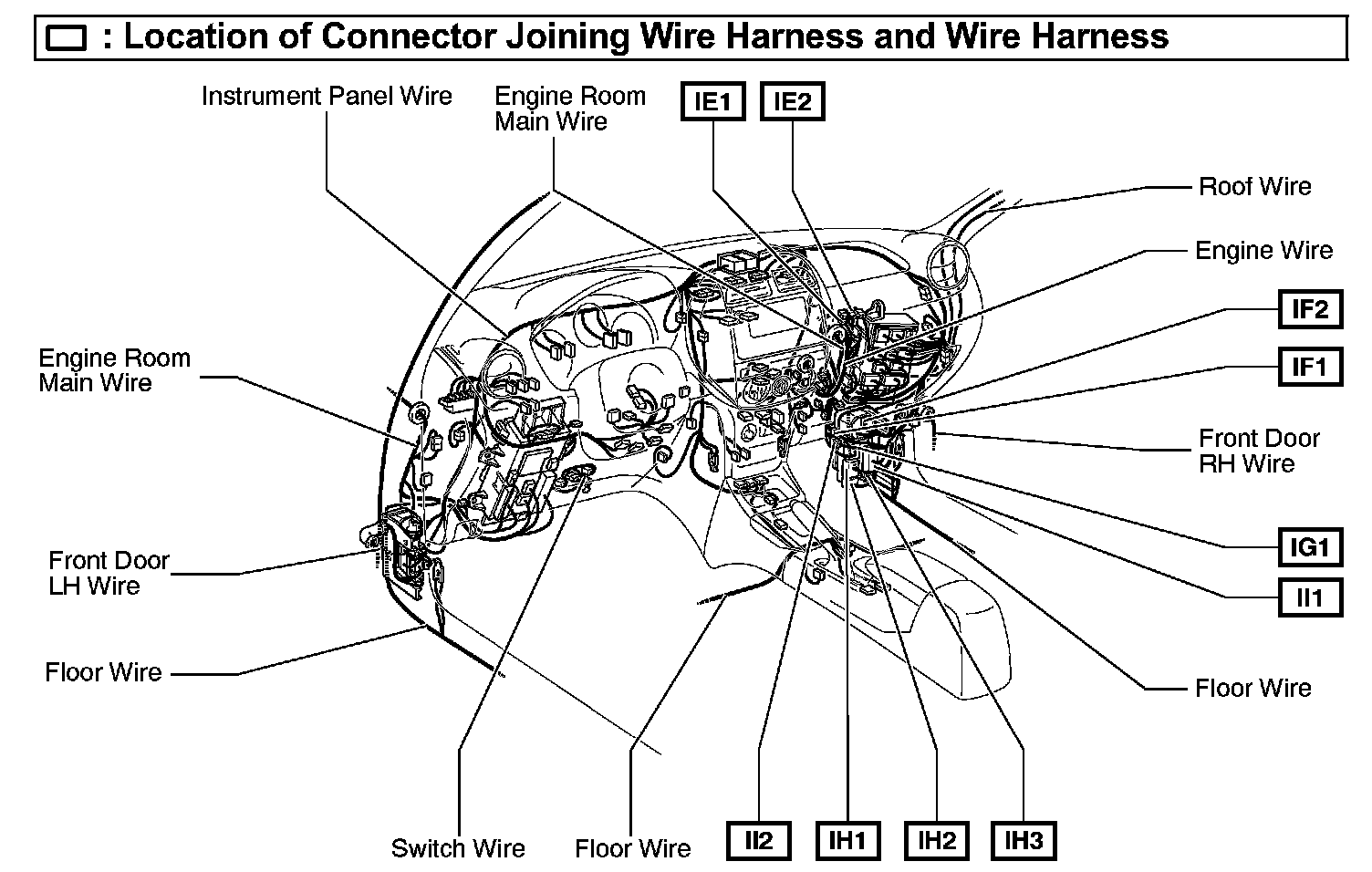

IE1 - II2:

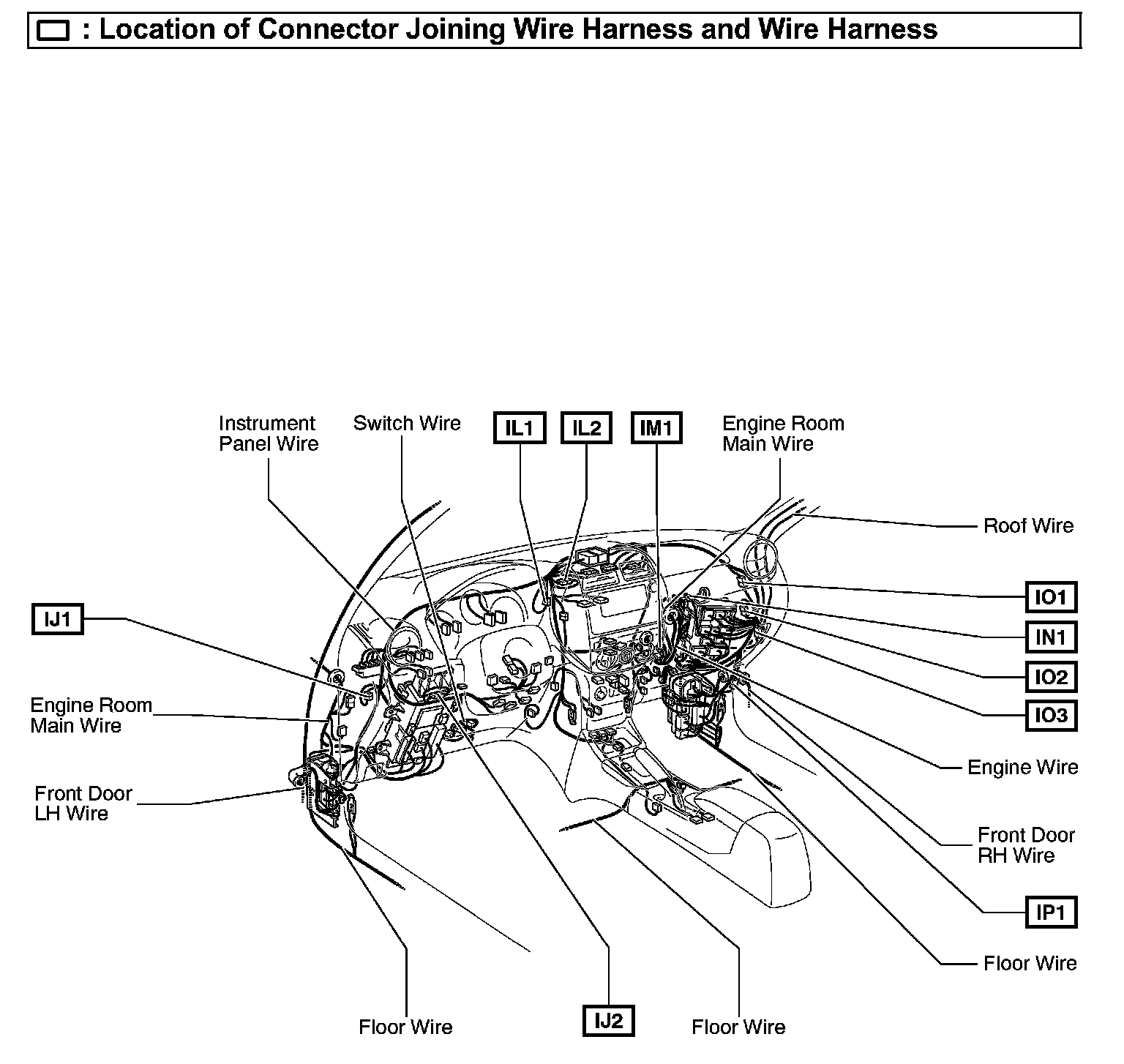

IJ1 - IP1:

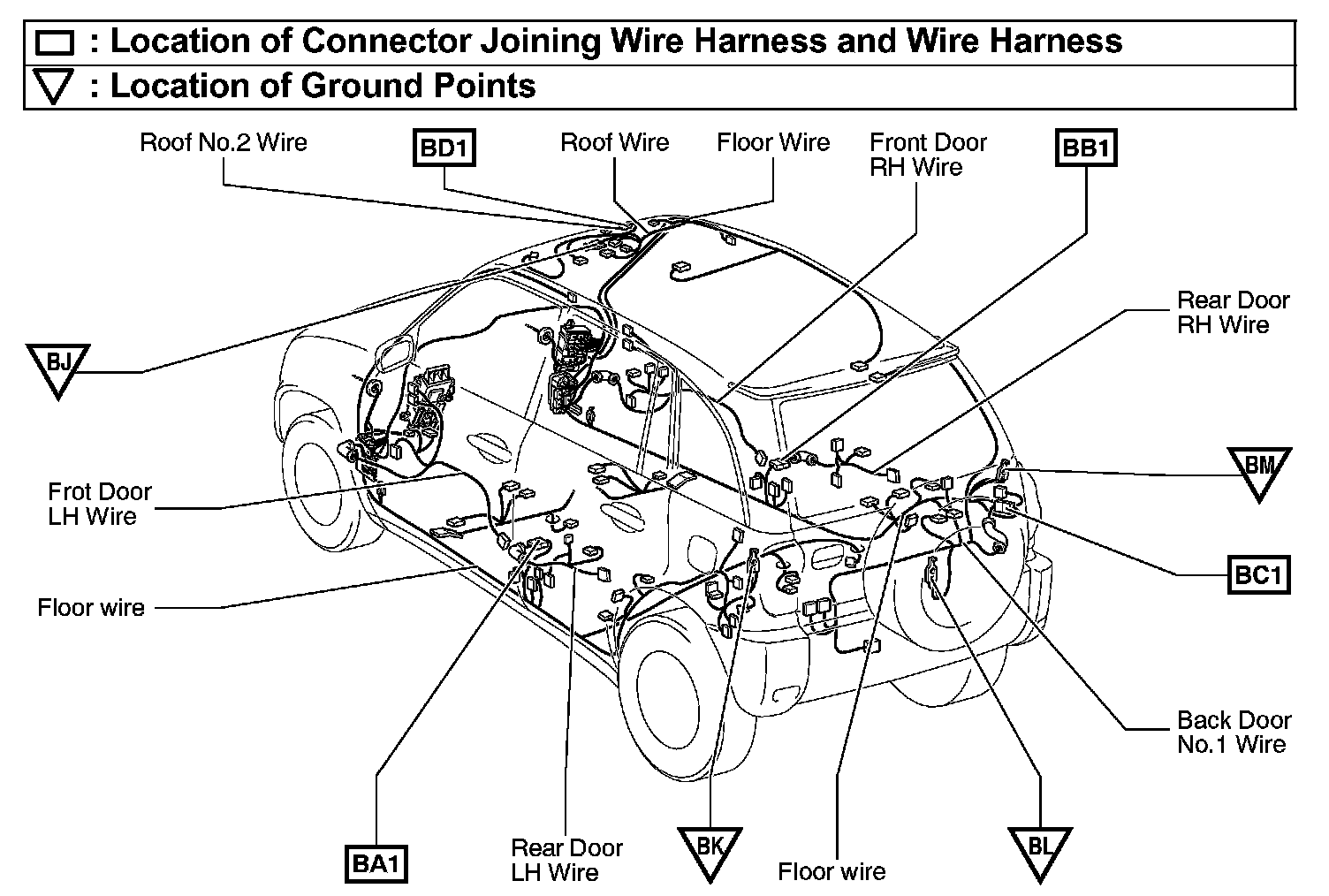

BA1 - BD1, BJ - BM:
