Fluid - M/T: Service and Repair

MANUAL TRANSAXLE UNIT (2WD)
ON-VEHICLE REPAIR - REPLACE TRANSAXLE OIL
A. Loosen the filler plug.
B. Remove the drain plug.

HINT: Use a container to catch the transaxle oil.

C. Remove the filler plug.







D. Reinstall the drain plug.

TORQUE:..................................49 Nm (500 kgf-cm, 36 ft. lbs.)

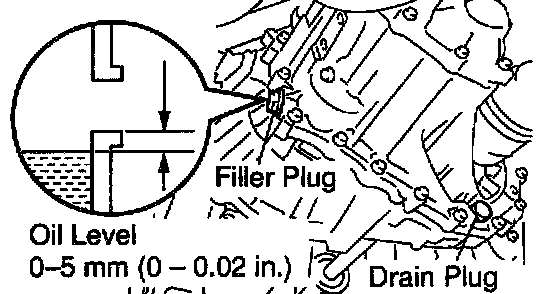

E. Refill new transaxle oil as shown in the illustration.

Oil grade:..........API GL-4 or GL-5
Viscosity:..........SAE 75W-90
Capacity:.........2.5 liters (2.6 US qts, 2.2 Imp.qts)

F. Reinstall the filler plug.

TORQUE:..................................49 Nm (500 kgf-cm, 36 ft. lbs.)
