Camshaft Position Sensor: Testing and Inspection
INSPECT CAMSHAFT POSITION SENSORa. Remove the sensor connector.

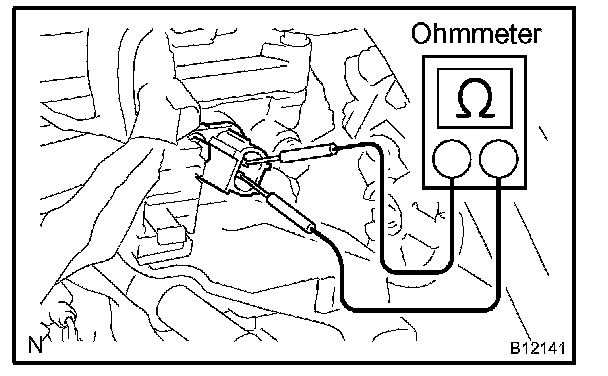

b. Using an ohmmeter, measure the resistance between terminals.

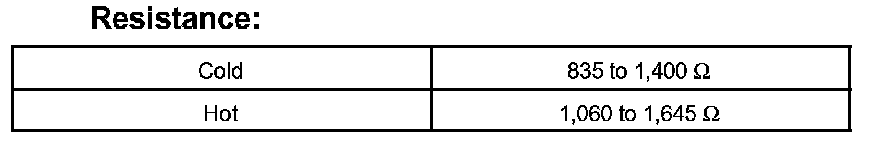

Resistance:
If the result is not as specified, replace the sensor.
c. Reconnect the sensor connector.
