Skid Control ECU Communication Stop Mode

Skid Control ECU Communication Stop Mode

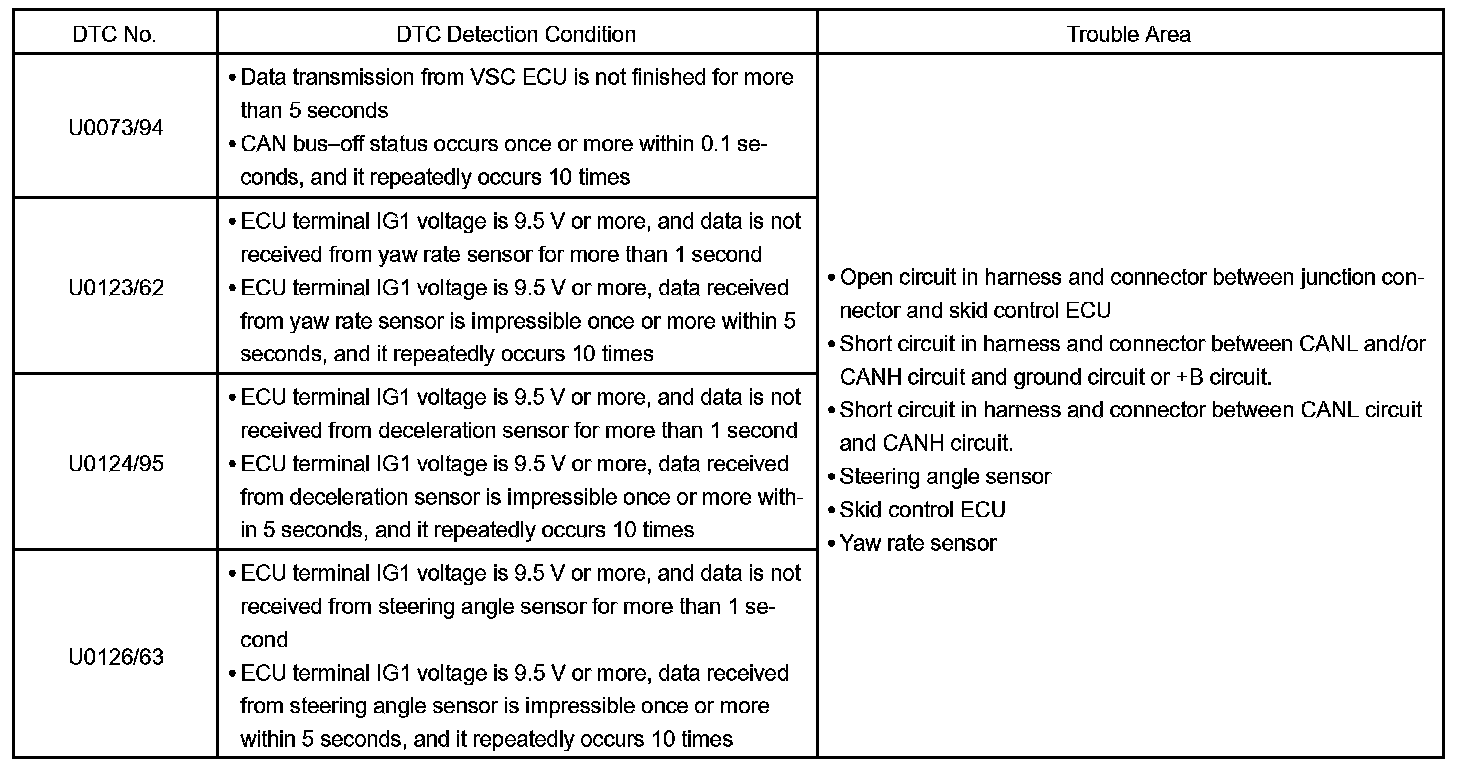

DTC Detection Condition:

CIRCUIT DESCRIPTION

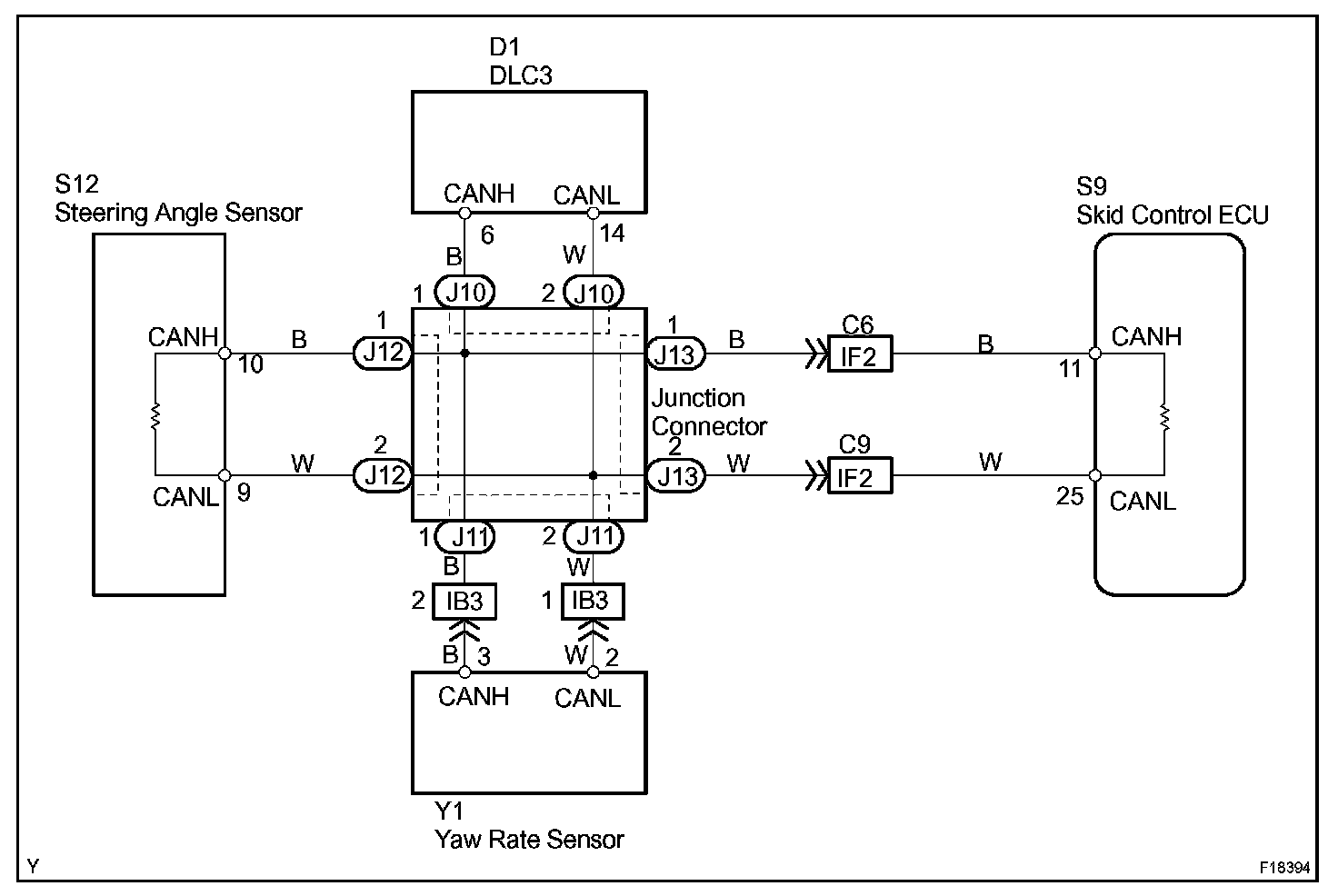

Wiring Diagram:

WIRING DIAGRAM

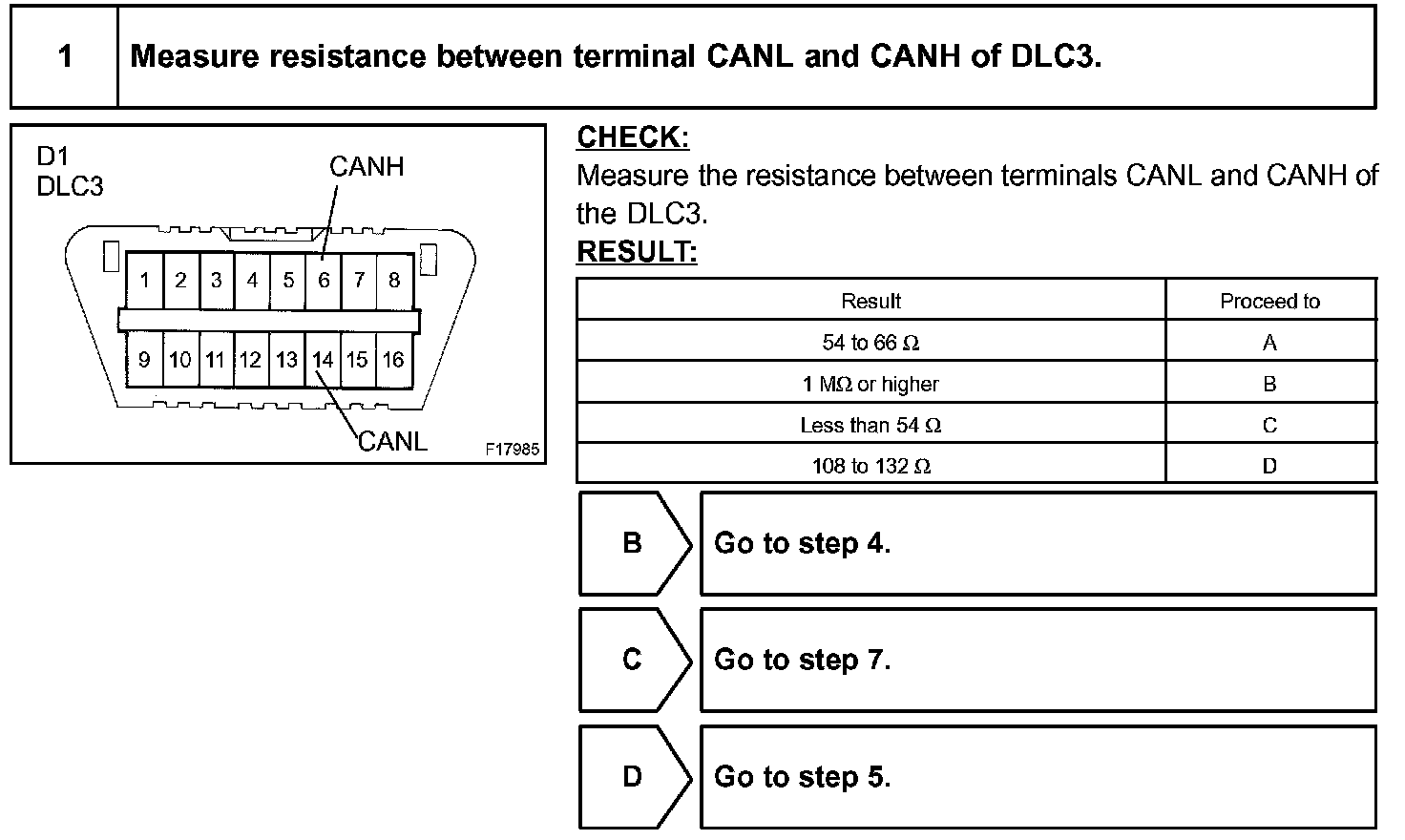

Step 1:

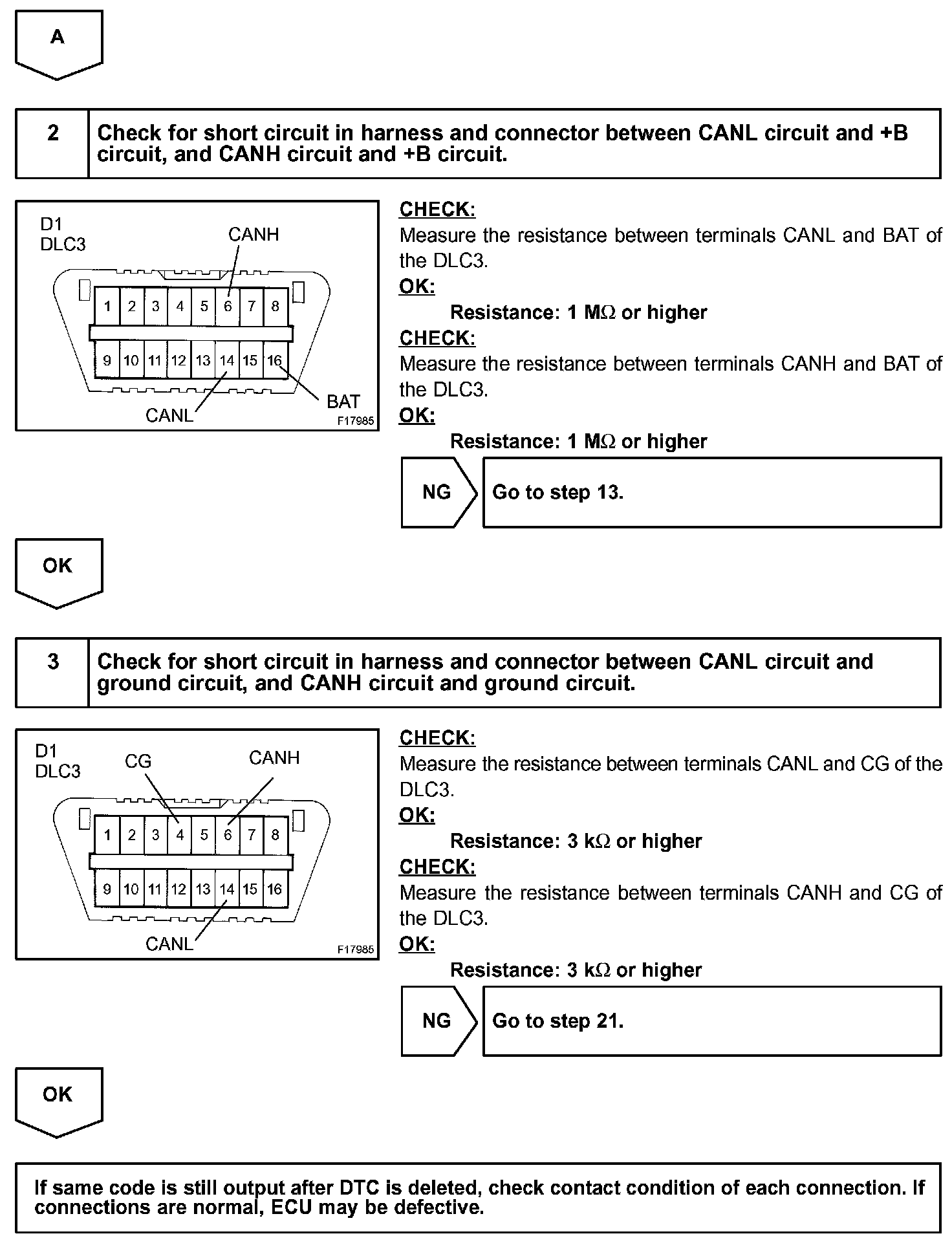

Step 1 (Continued) - 3:

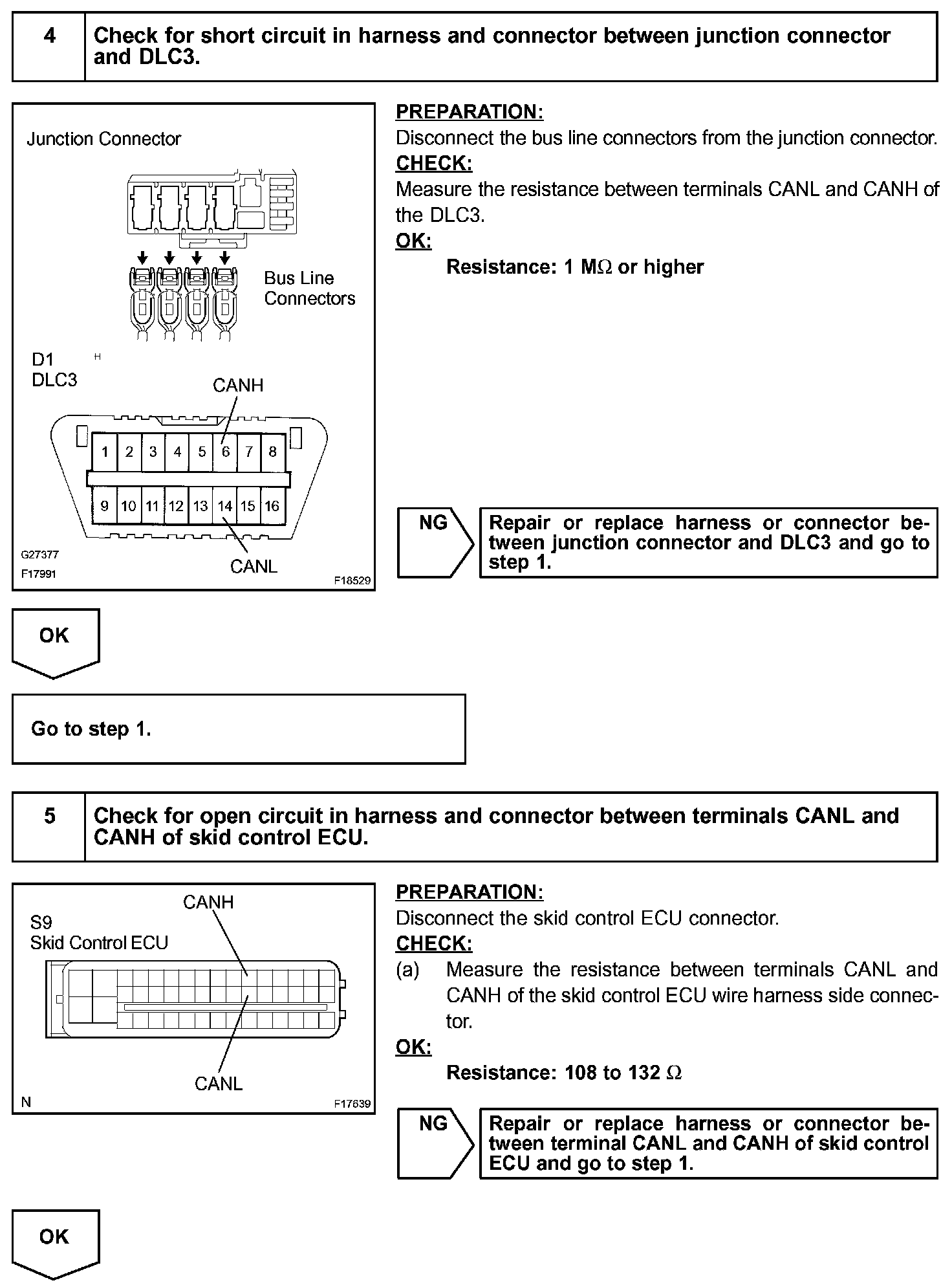

Step 4 - 5:

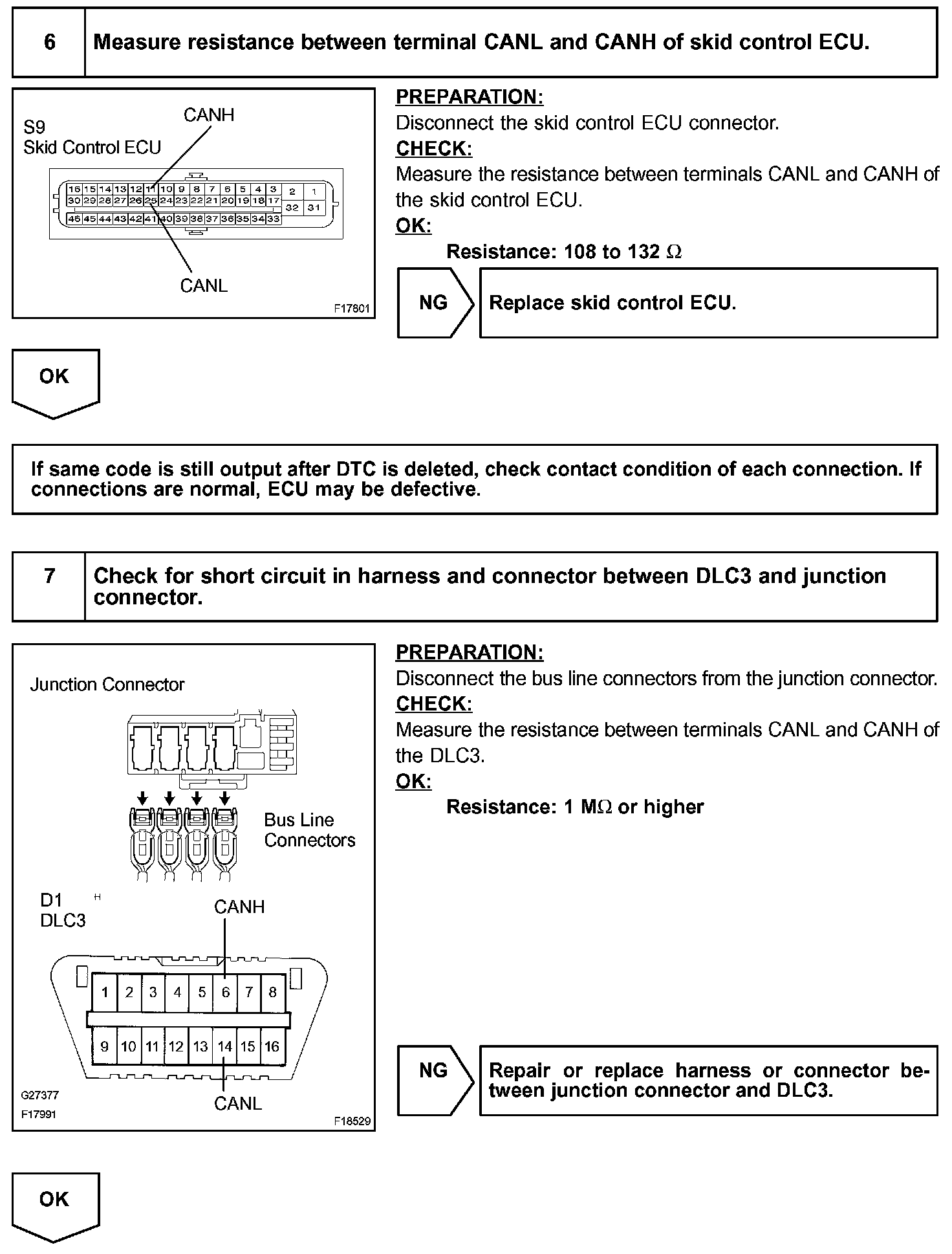

Step 6 - 7:

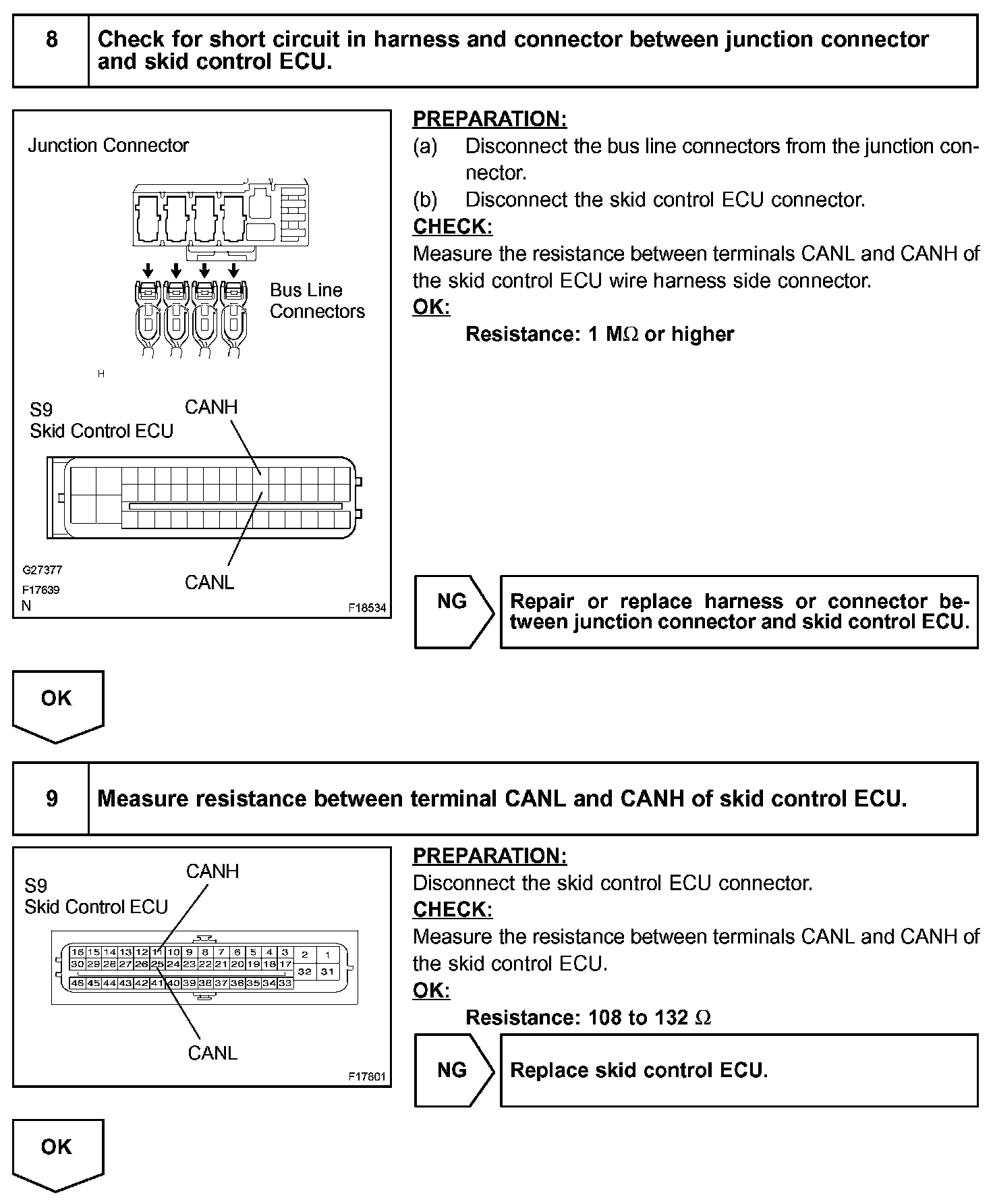

Step 8 - 9:

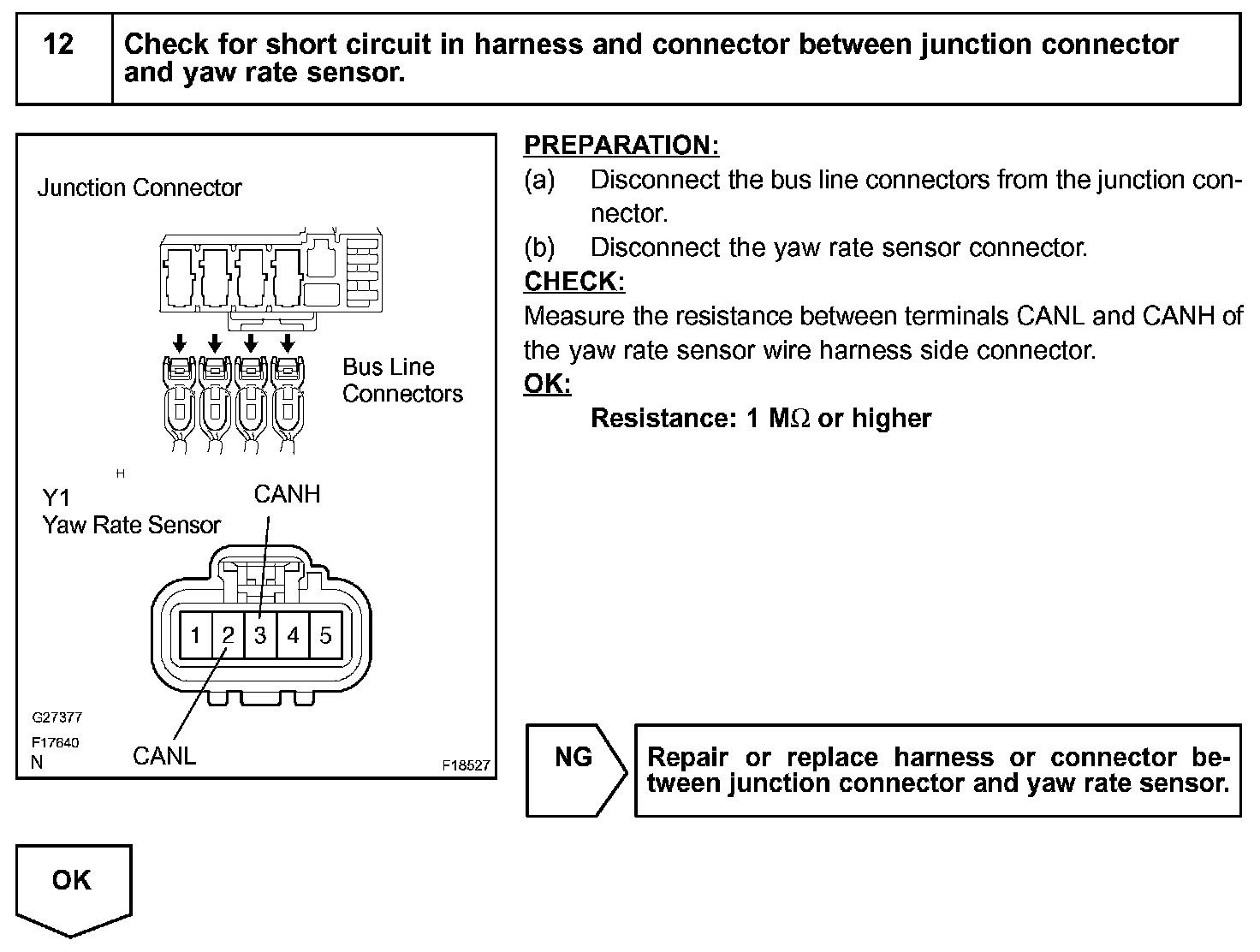

Step 10 - 11:

Step 12:

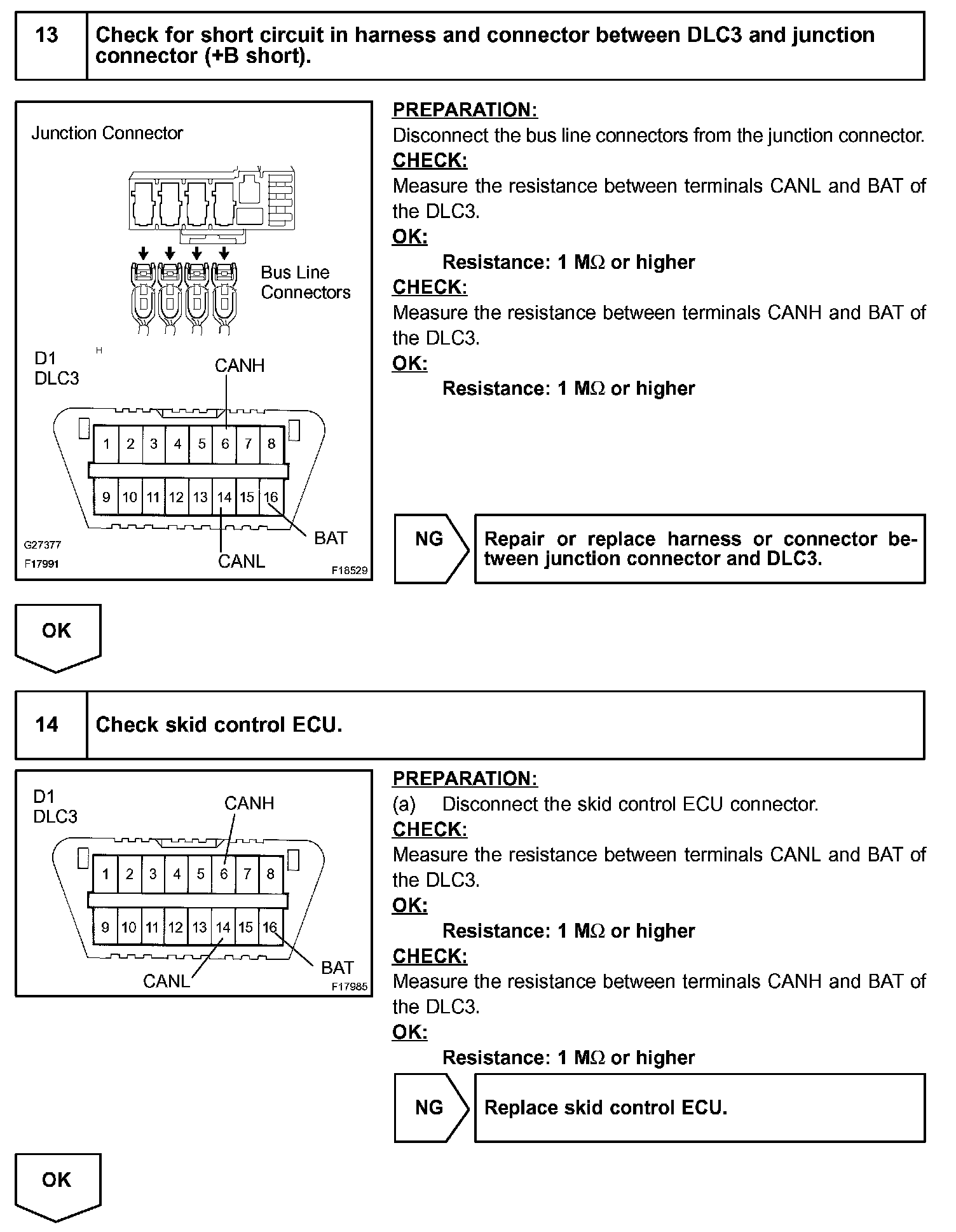

Step 13 - 14:

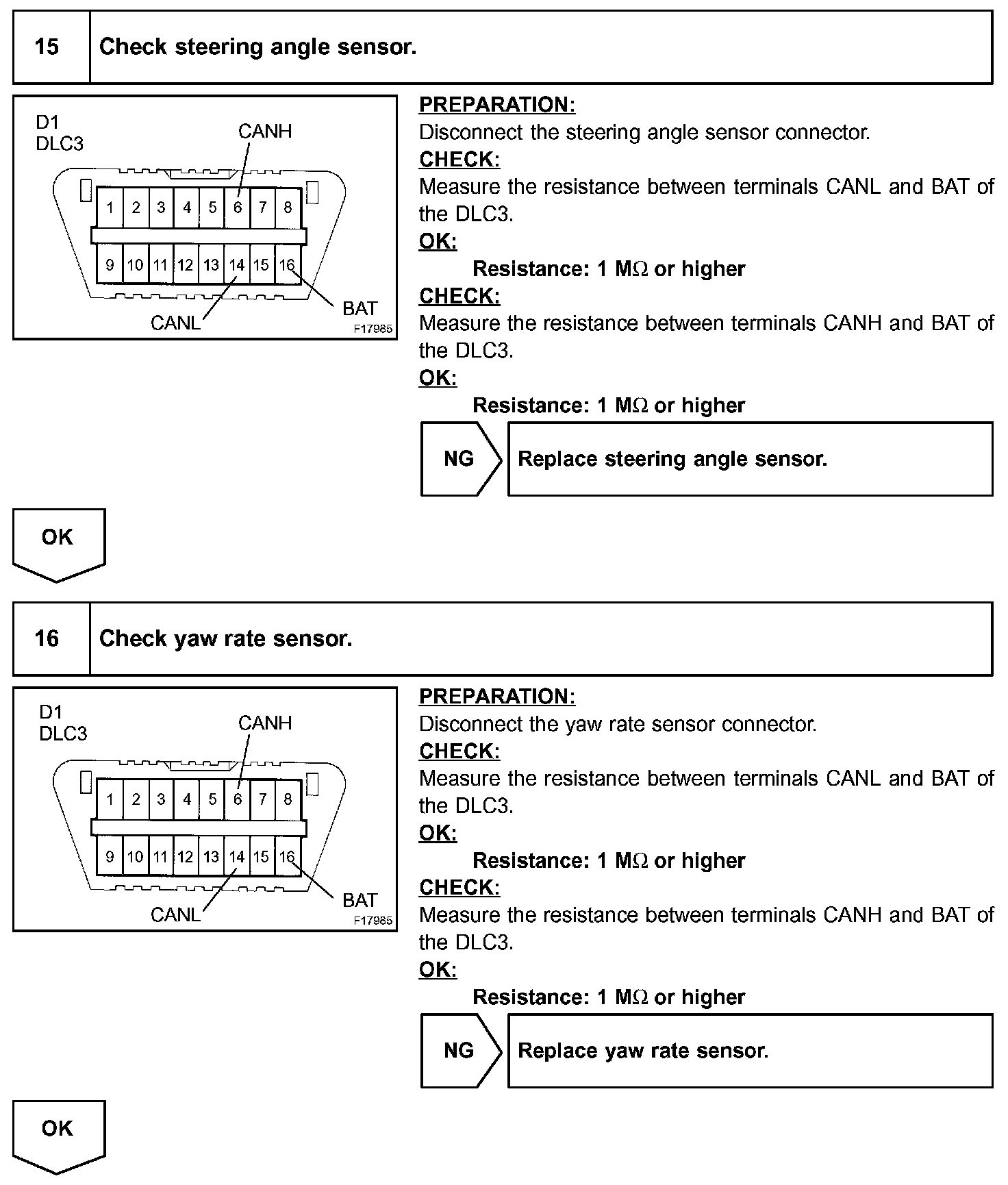

Step 15 - 16:

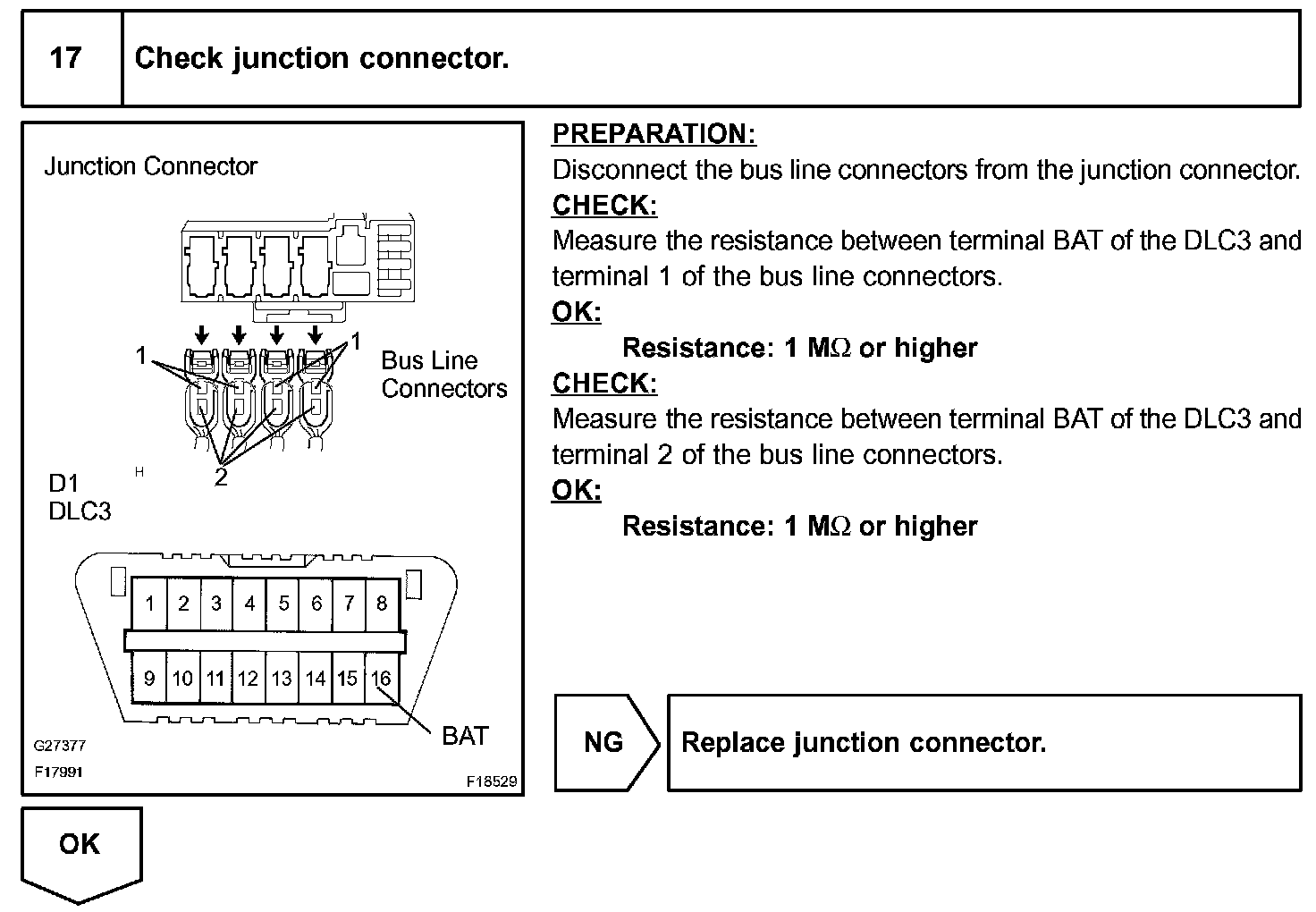

Step 17:

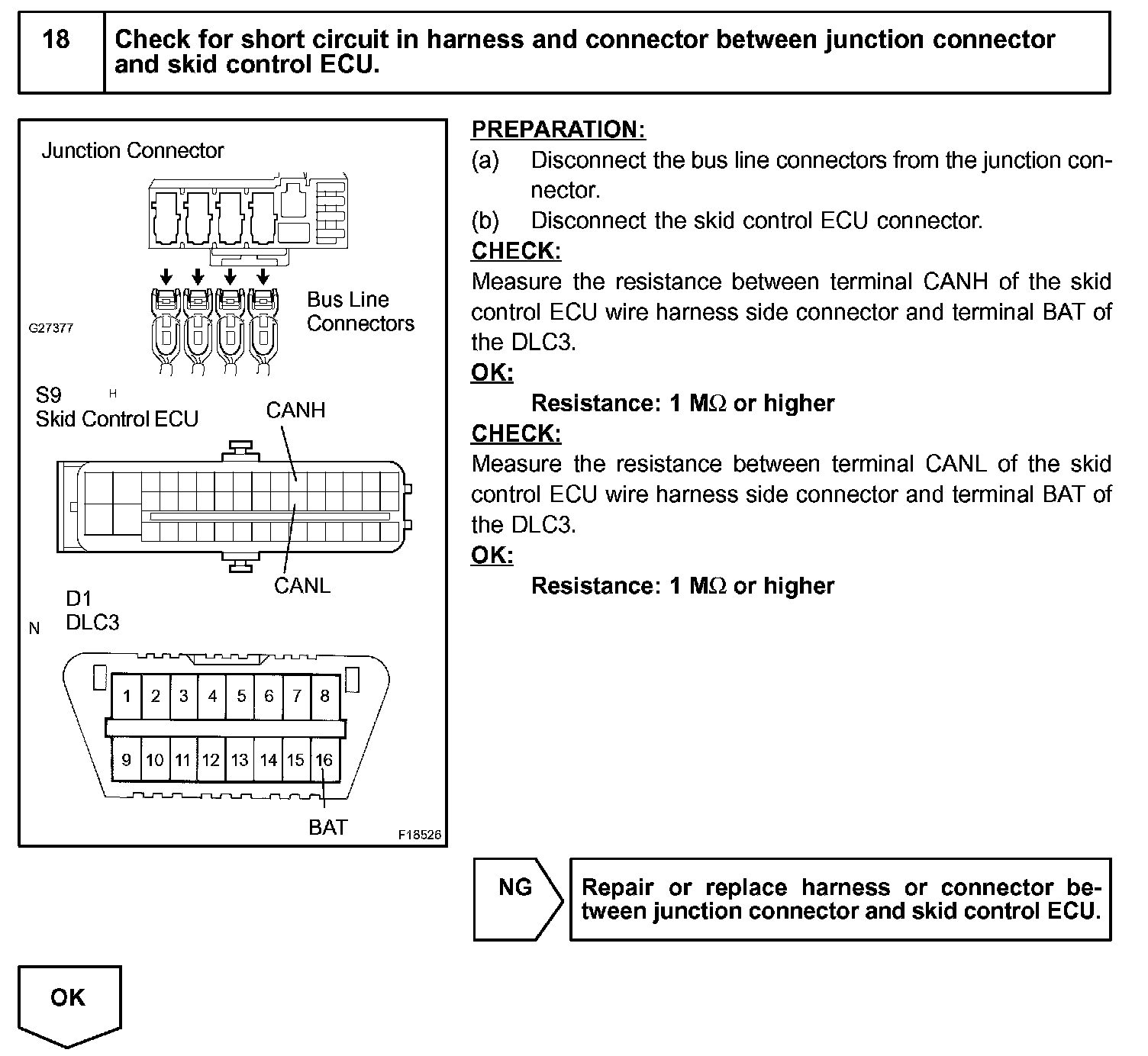

Step 18:

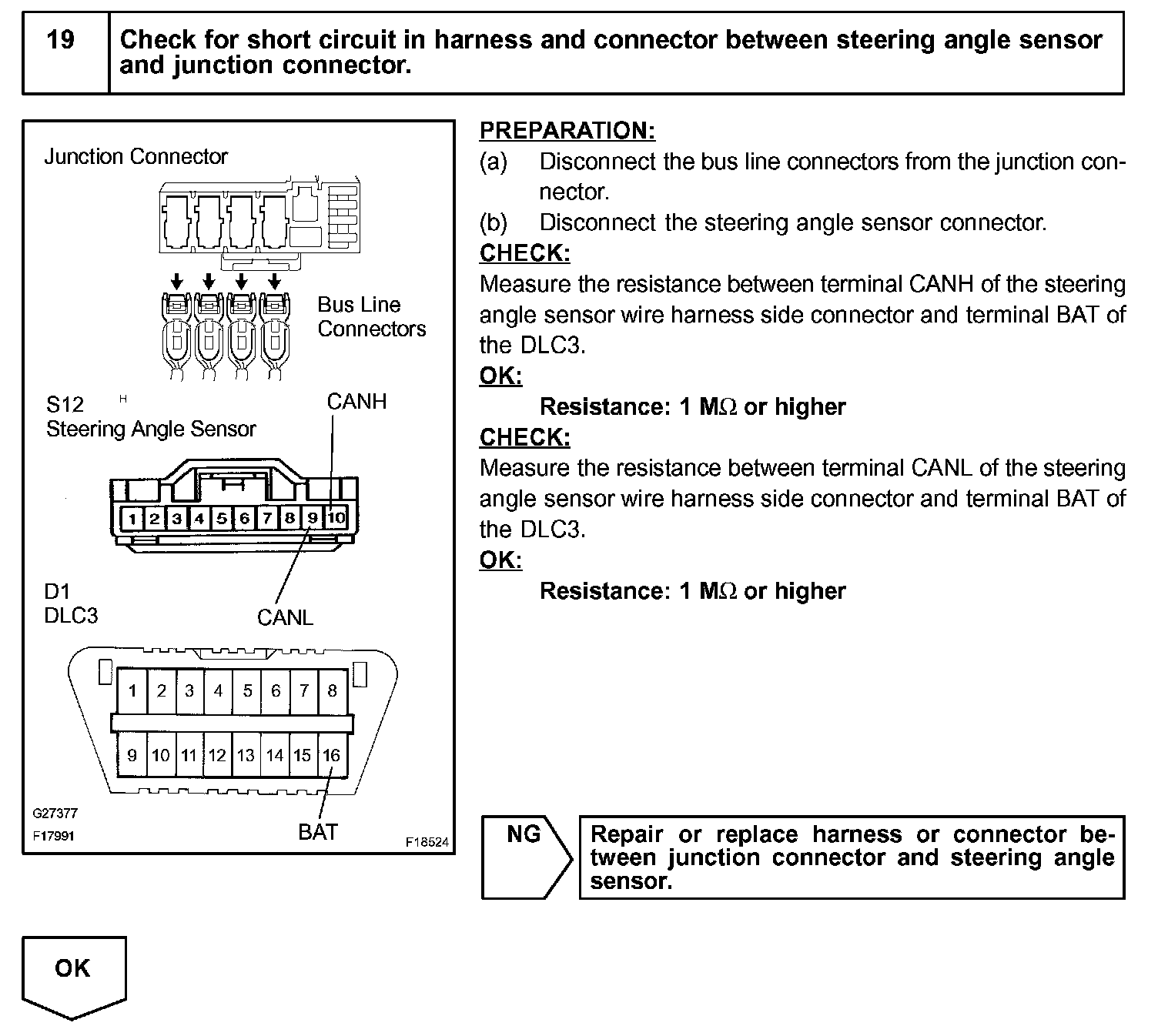

Step 19:

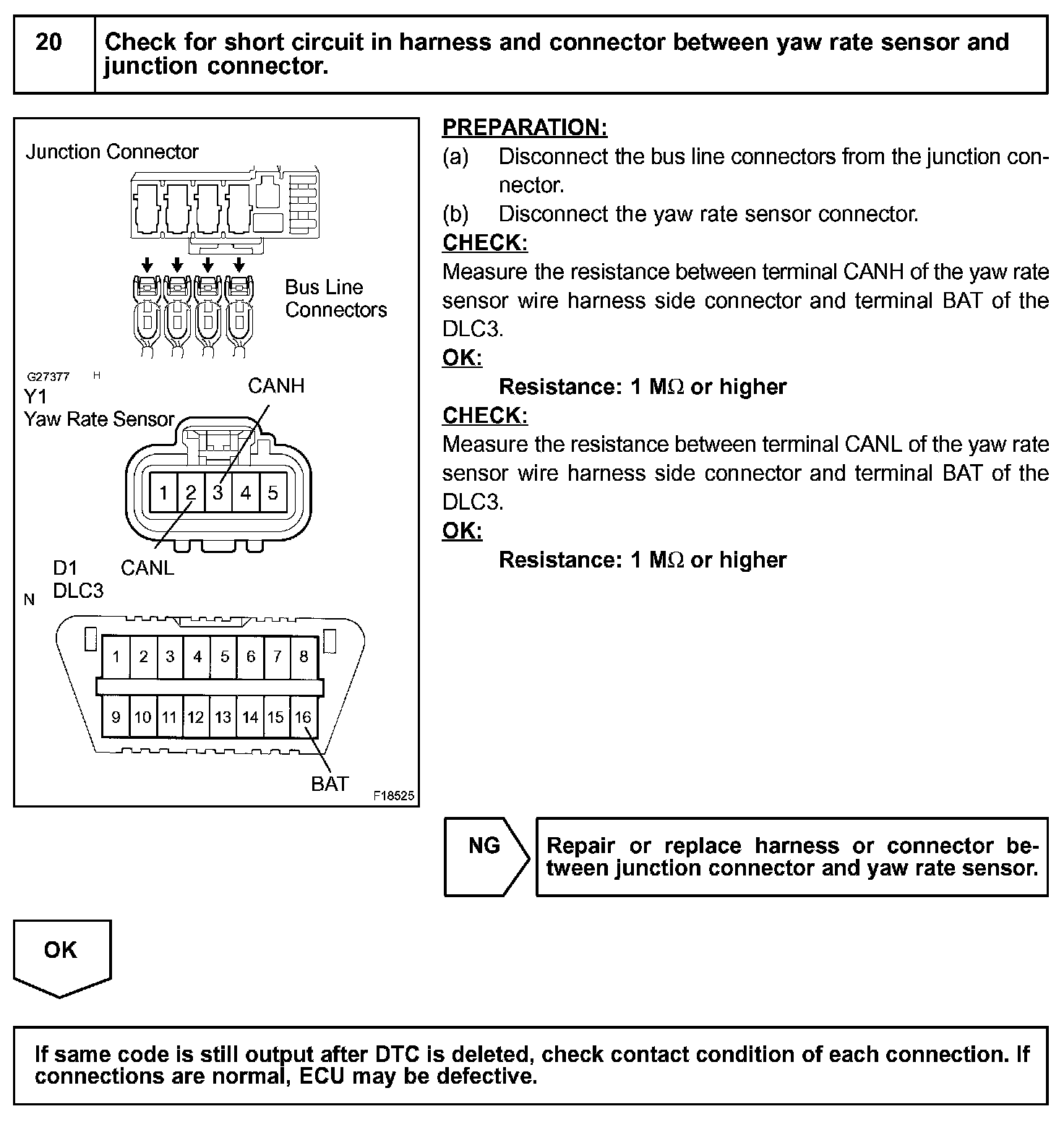

Step 20:

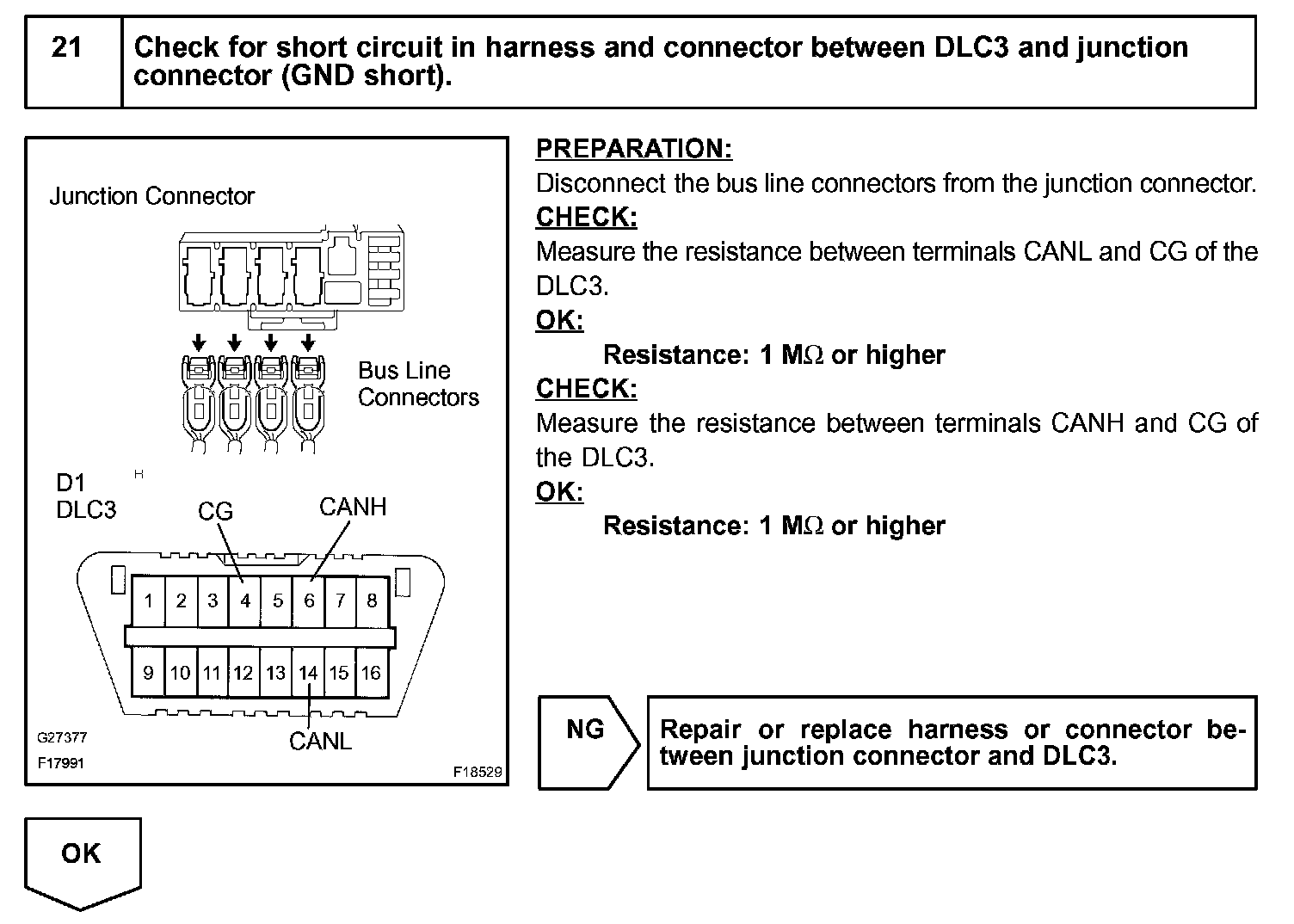

Step 21:

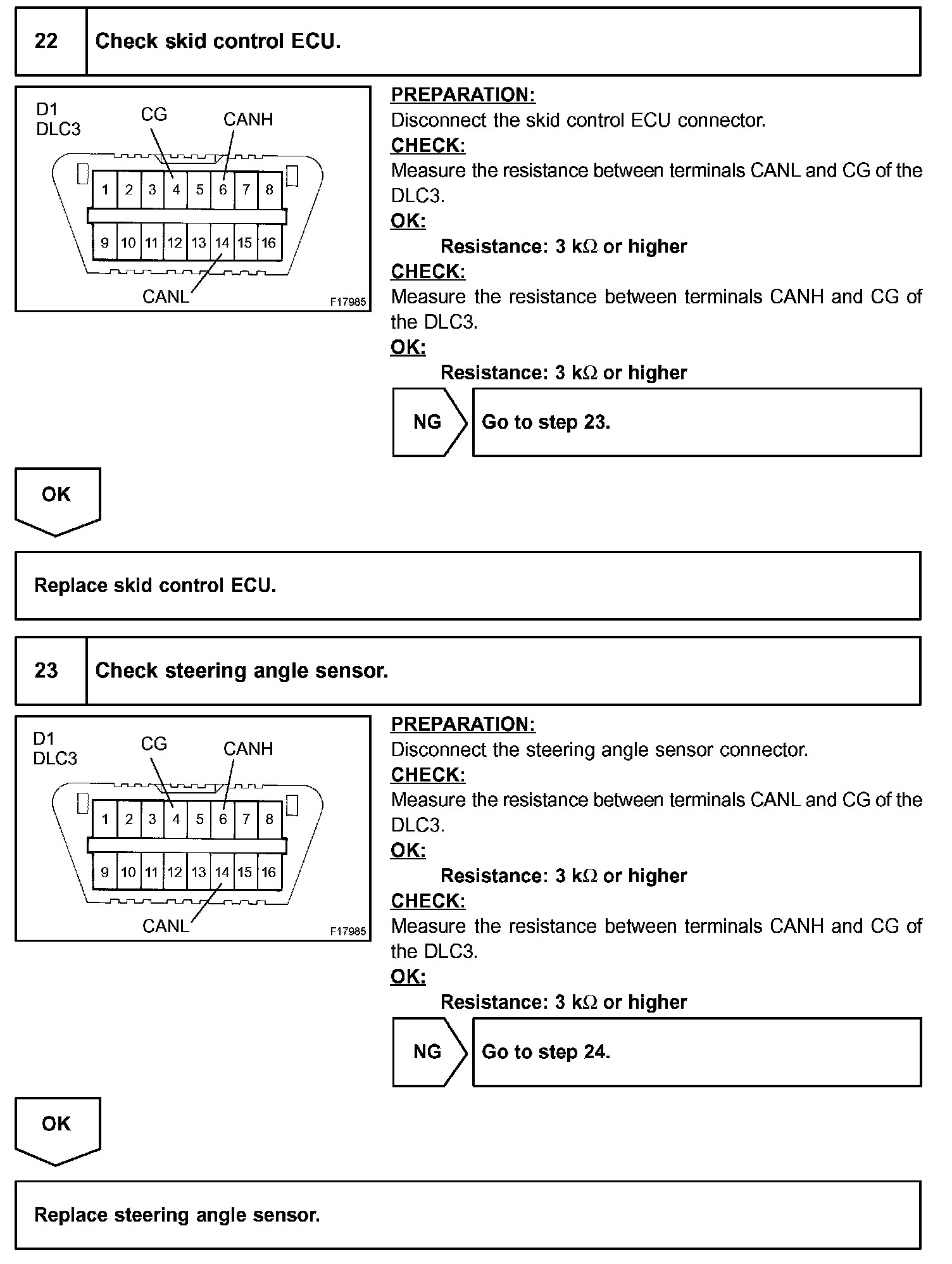

Step 22 - 23:

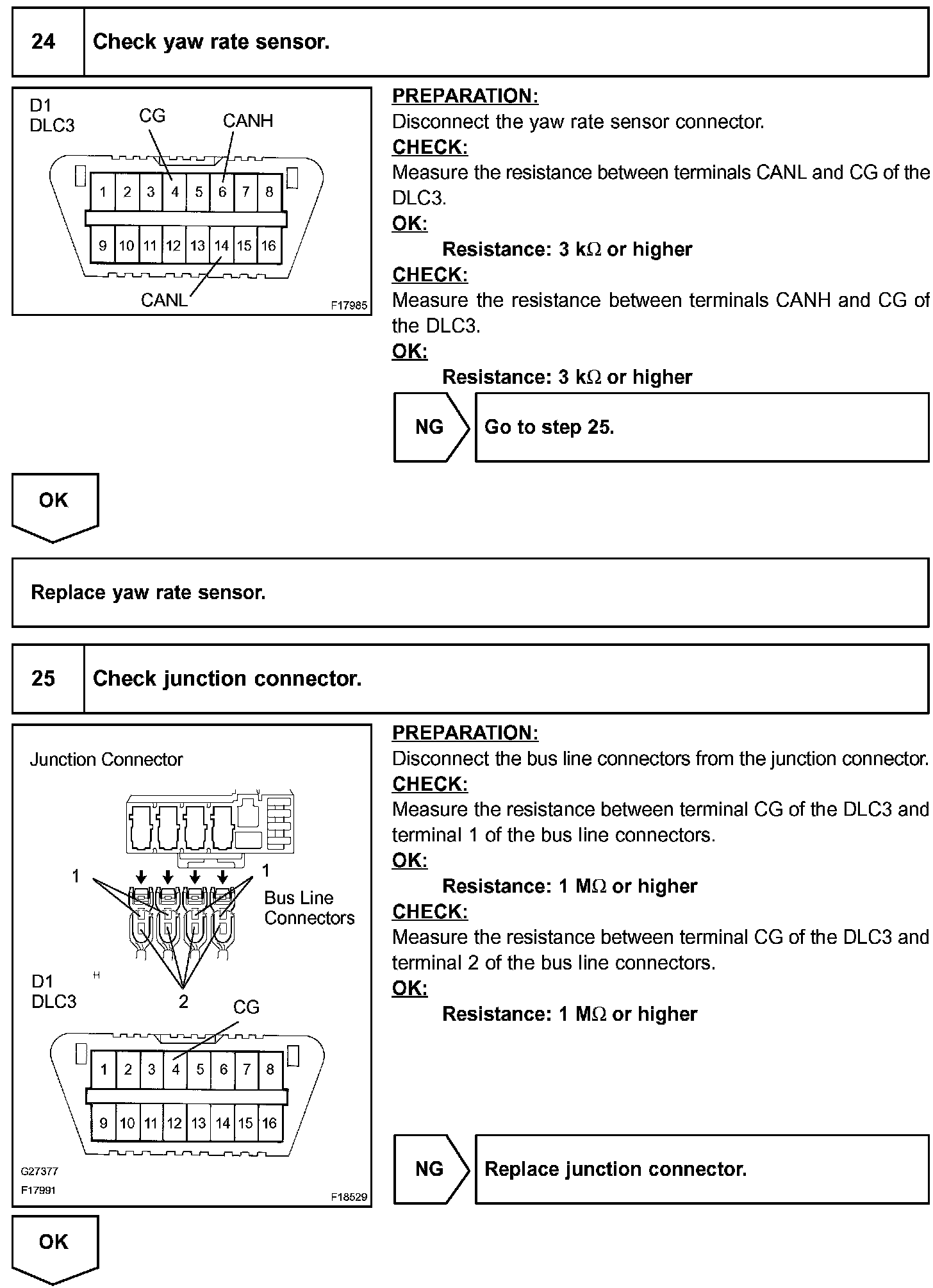

Step 24 - 25:

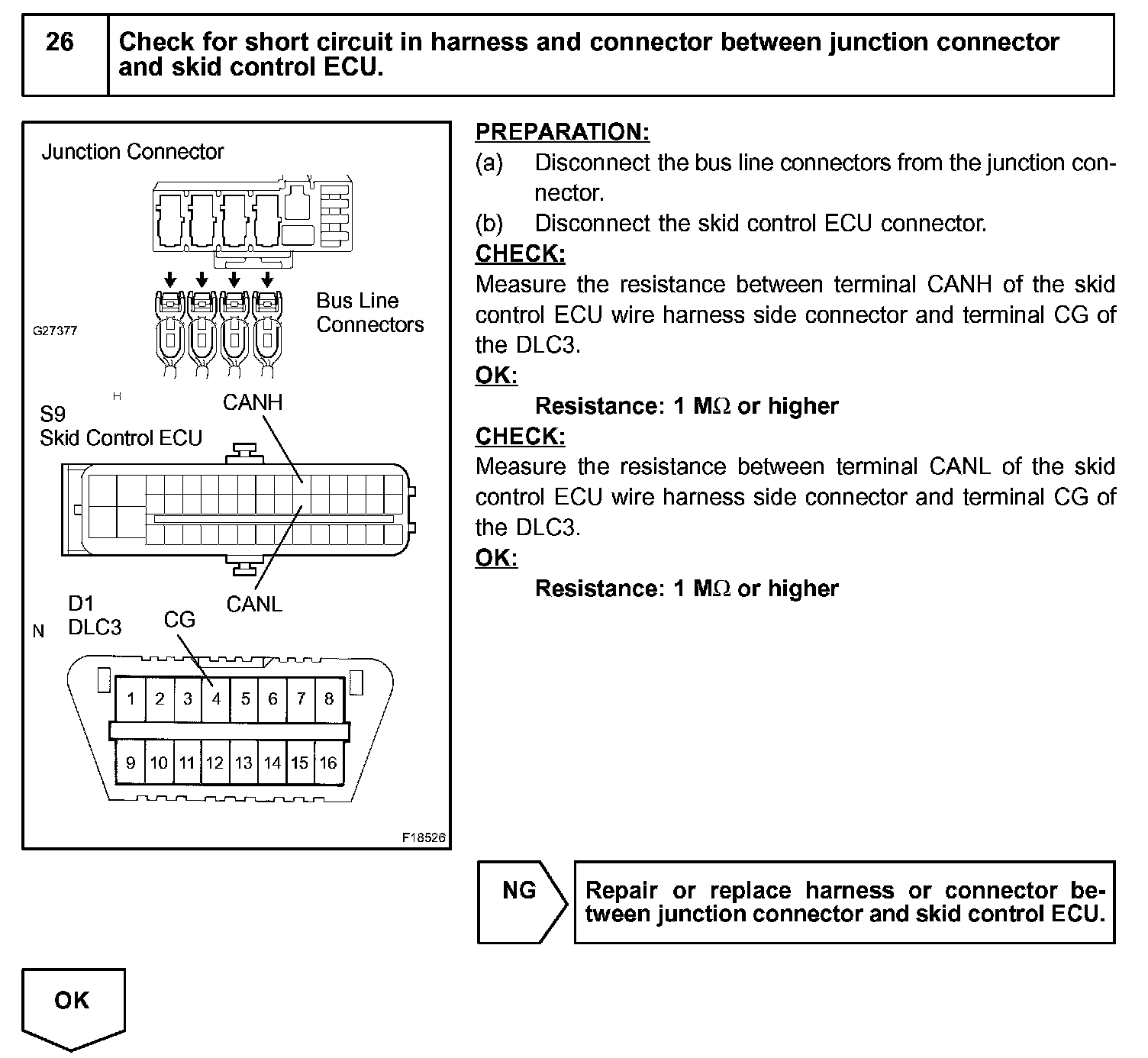

Step 26:

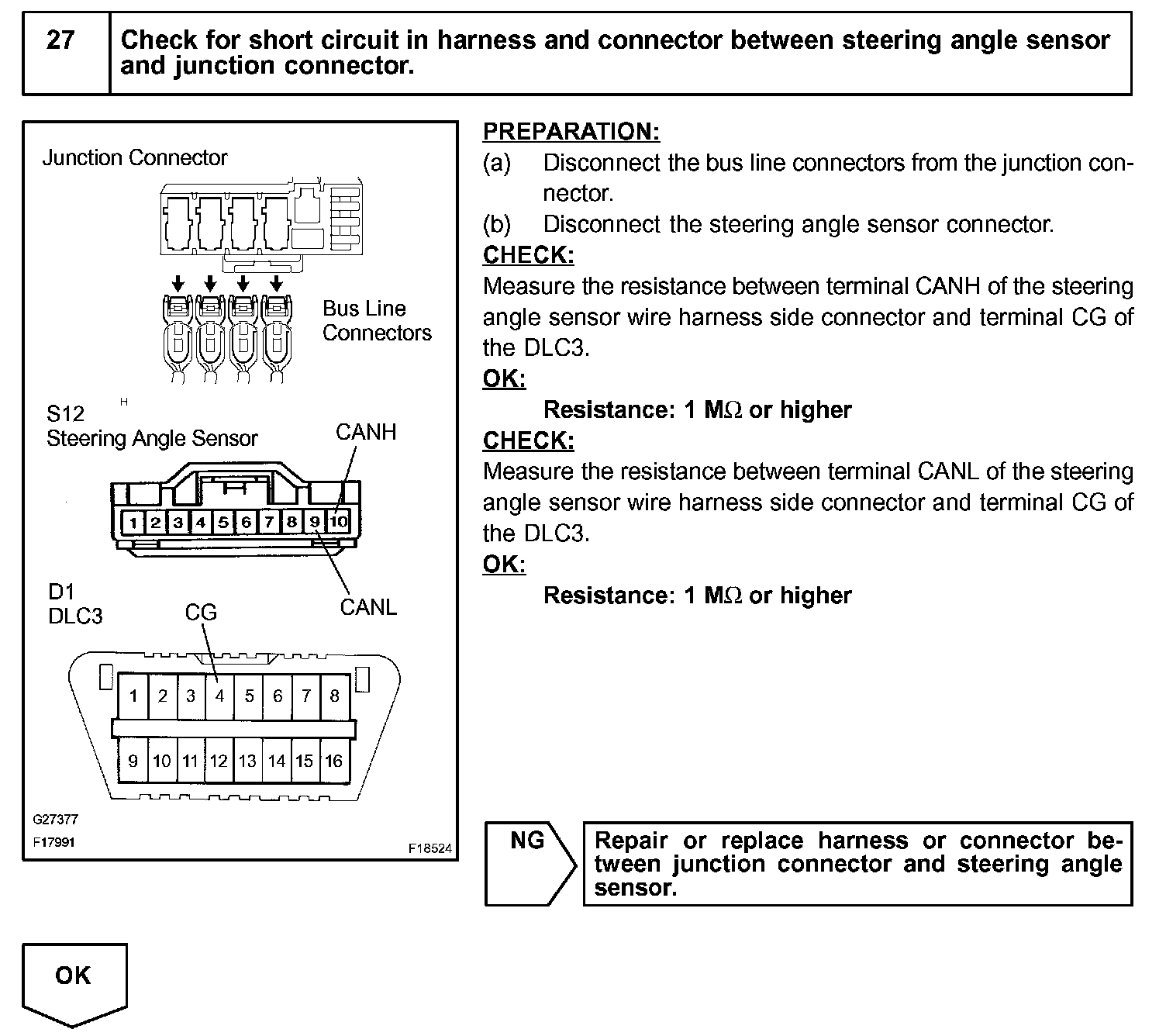

Step 27:

Step 28:

INSPECTION PROCEDURE
