Steering Angle Sensor Communication Stop Mode

Steering Angle Sensor Communication Stop Mode

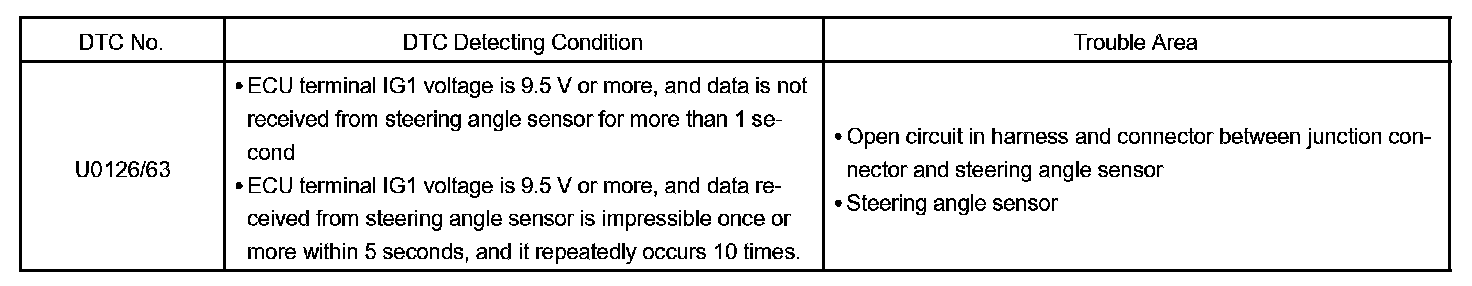

DTC Detection Condition:

CIRCUIT DESCRIPTION

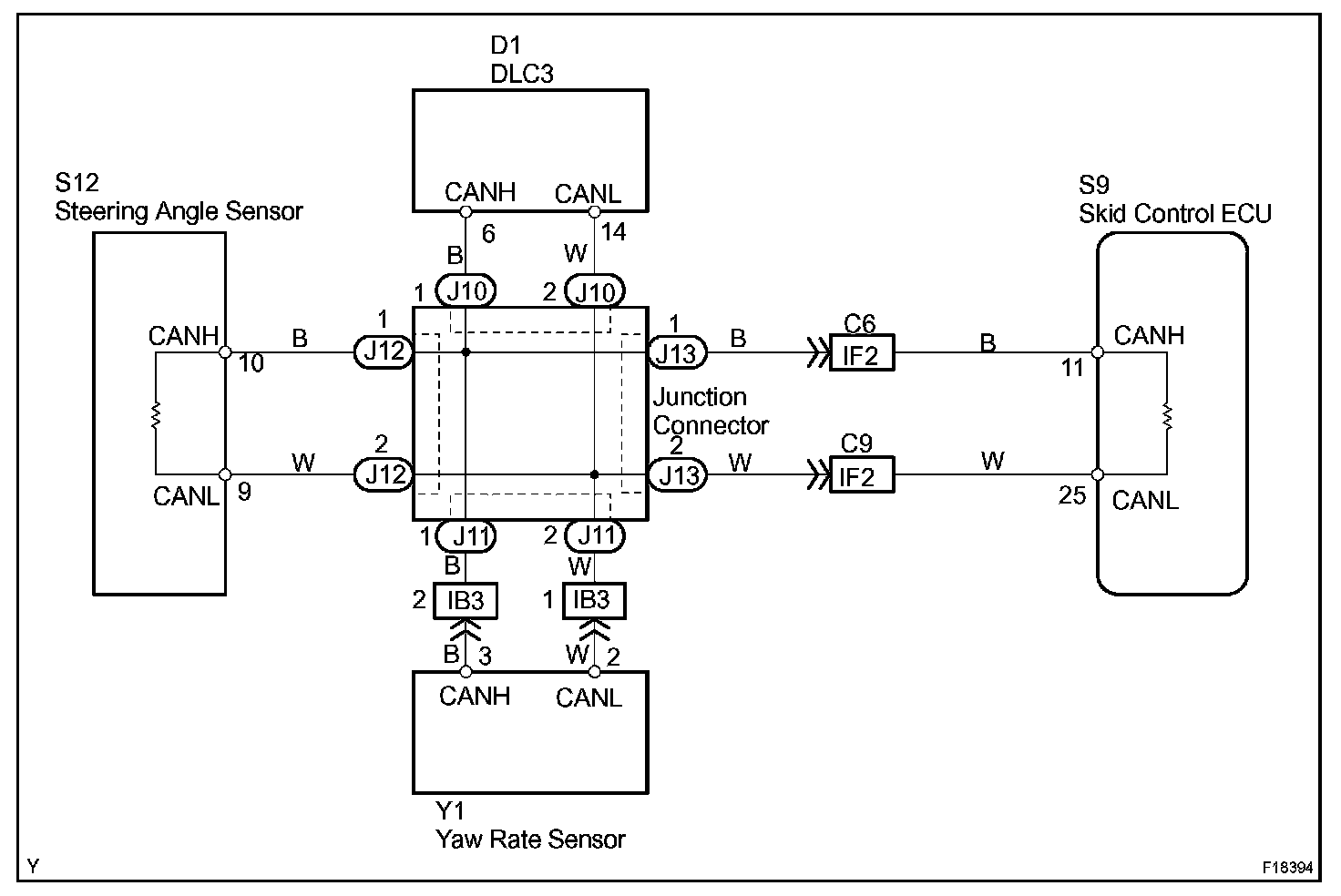

Wiring Diagram:

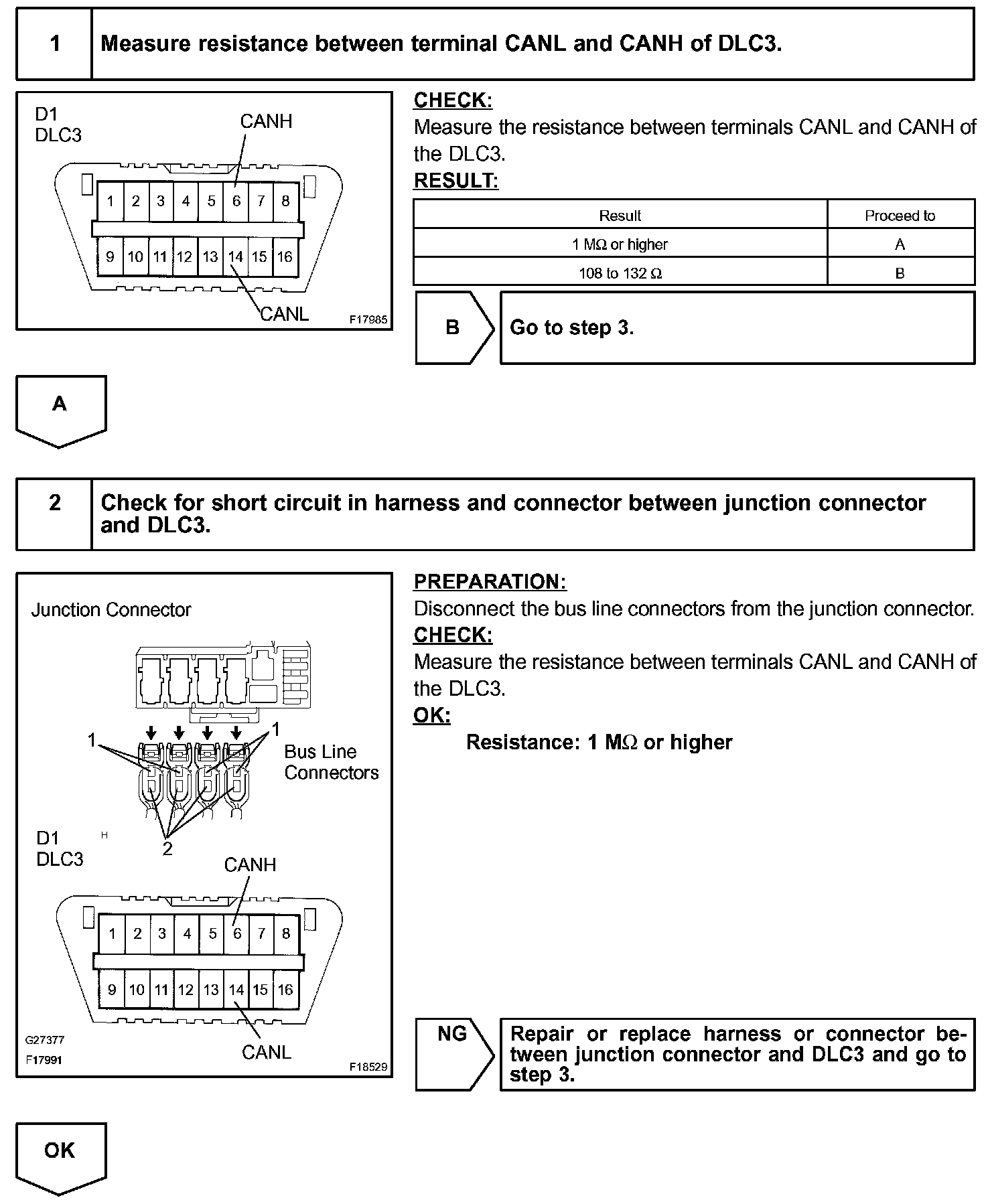

Step 1 - 2:

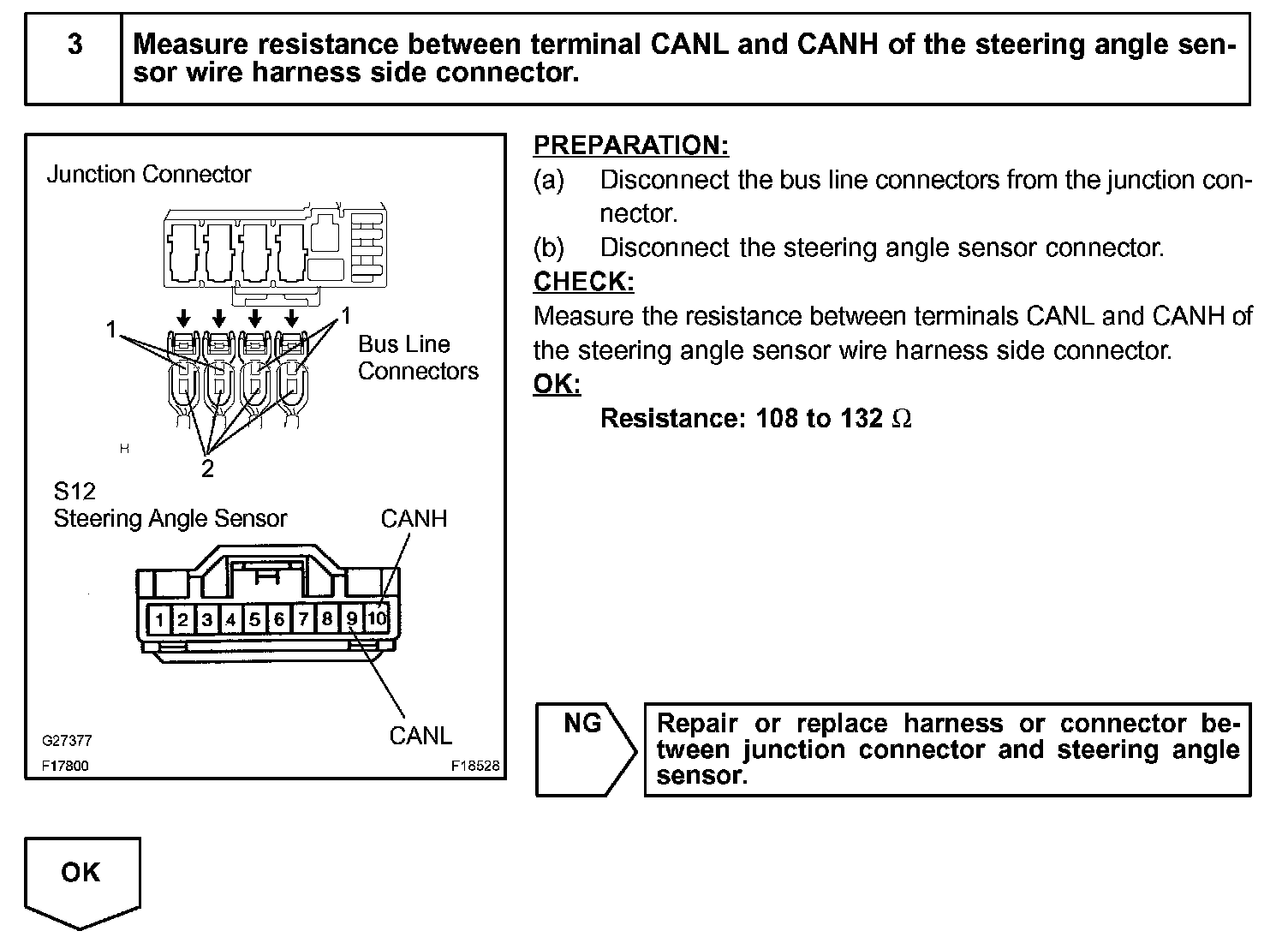

Step 3:

Step 4:

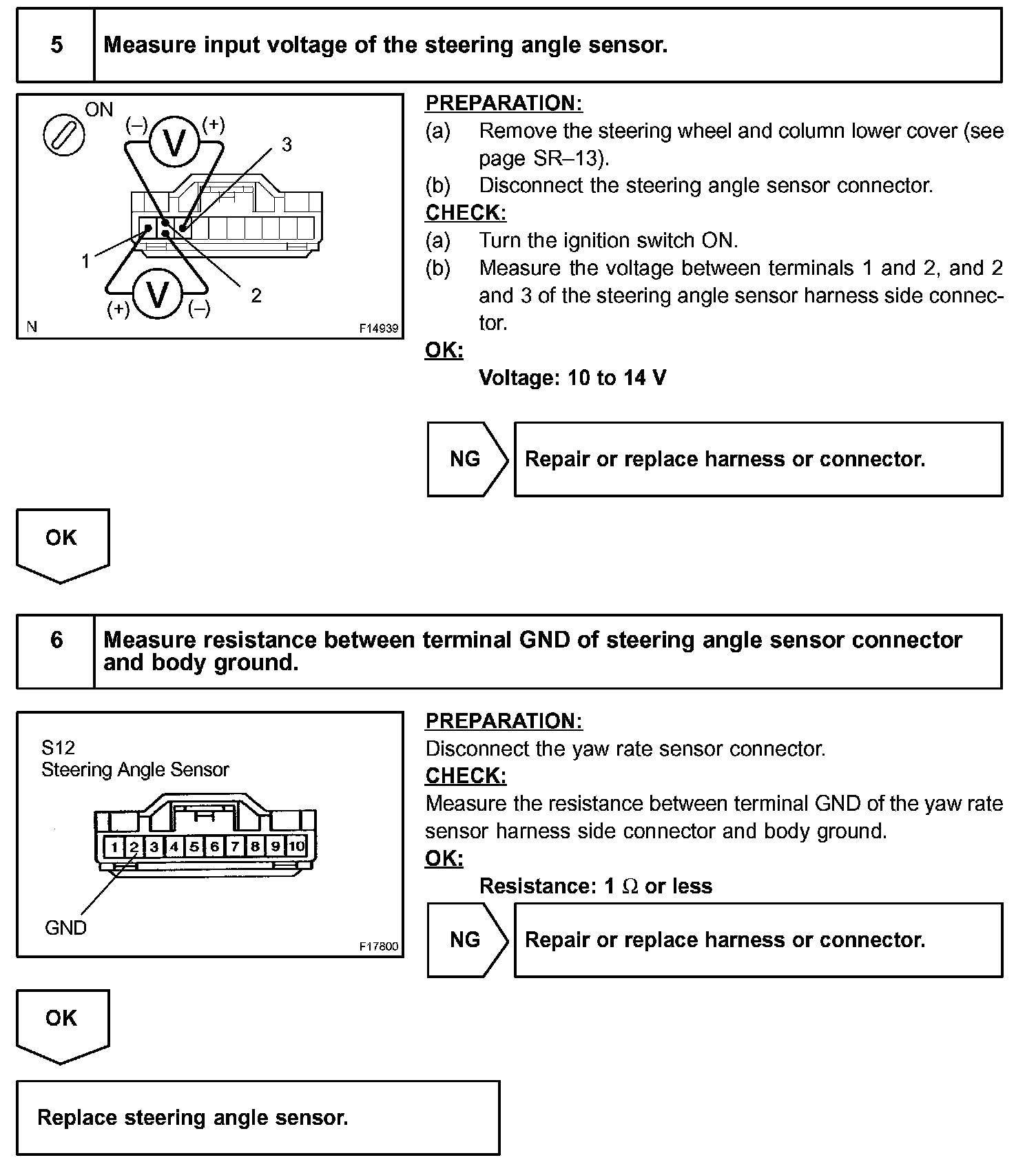

Step 5 - 6:

INSPECTION PROCEDURE
