Yaw Rate Sensor Communication Stop Mode
Yaw Rate Sensor Communication Stop Mode
Yaw Rate Sensor Communication Stop Mode

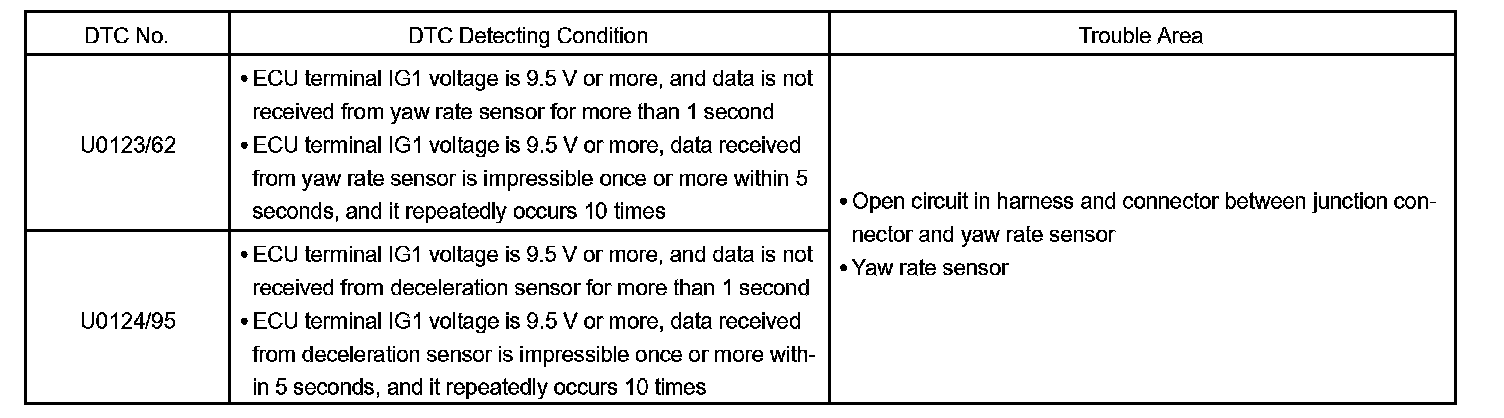

DTC Detection Condition:
CIRCUIT DESCRIPTION

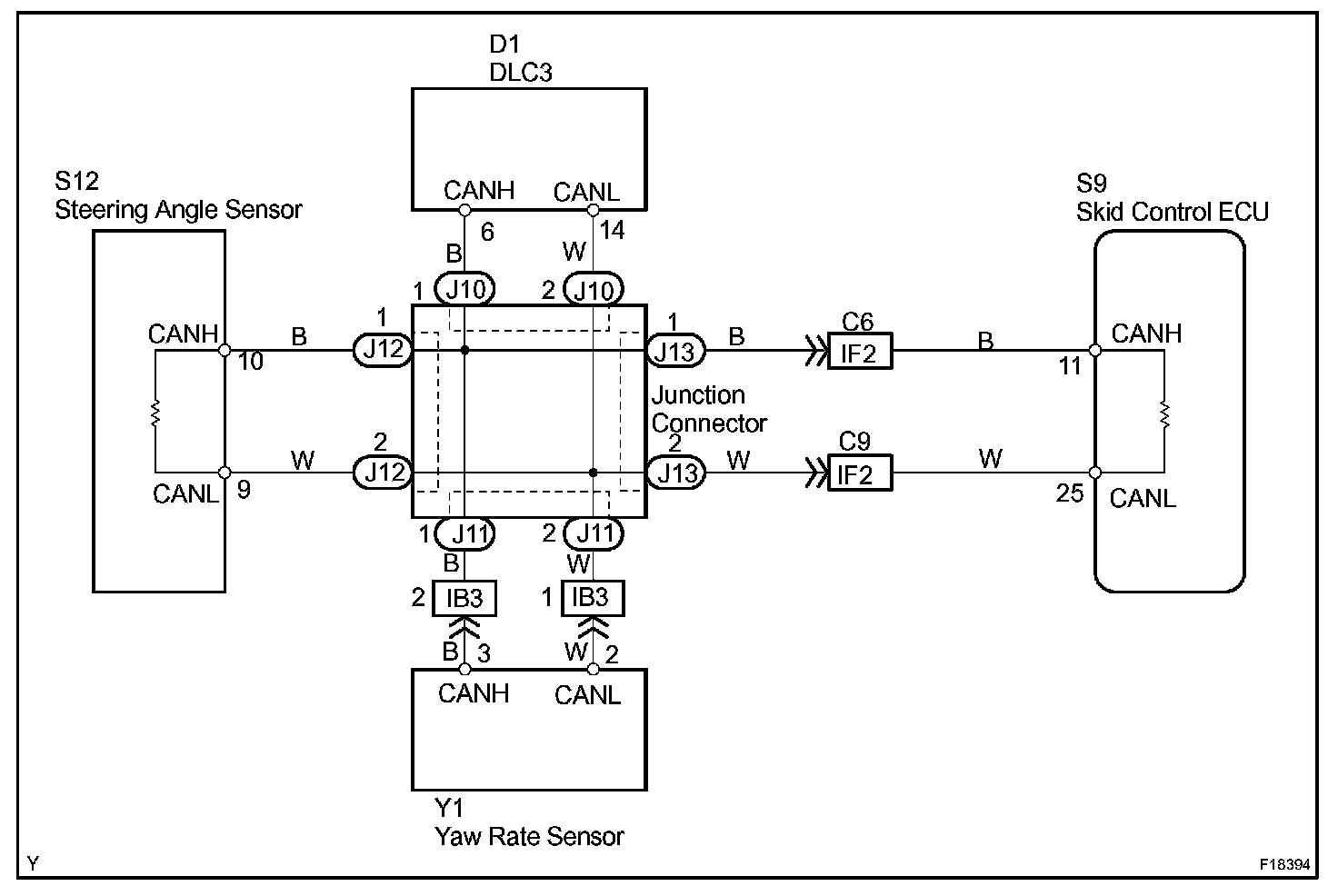

Wiring Diagram:

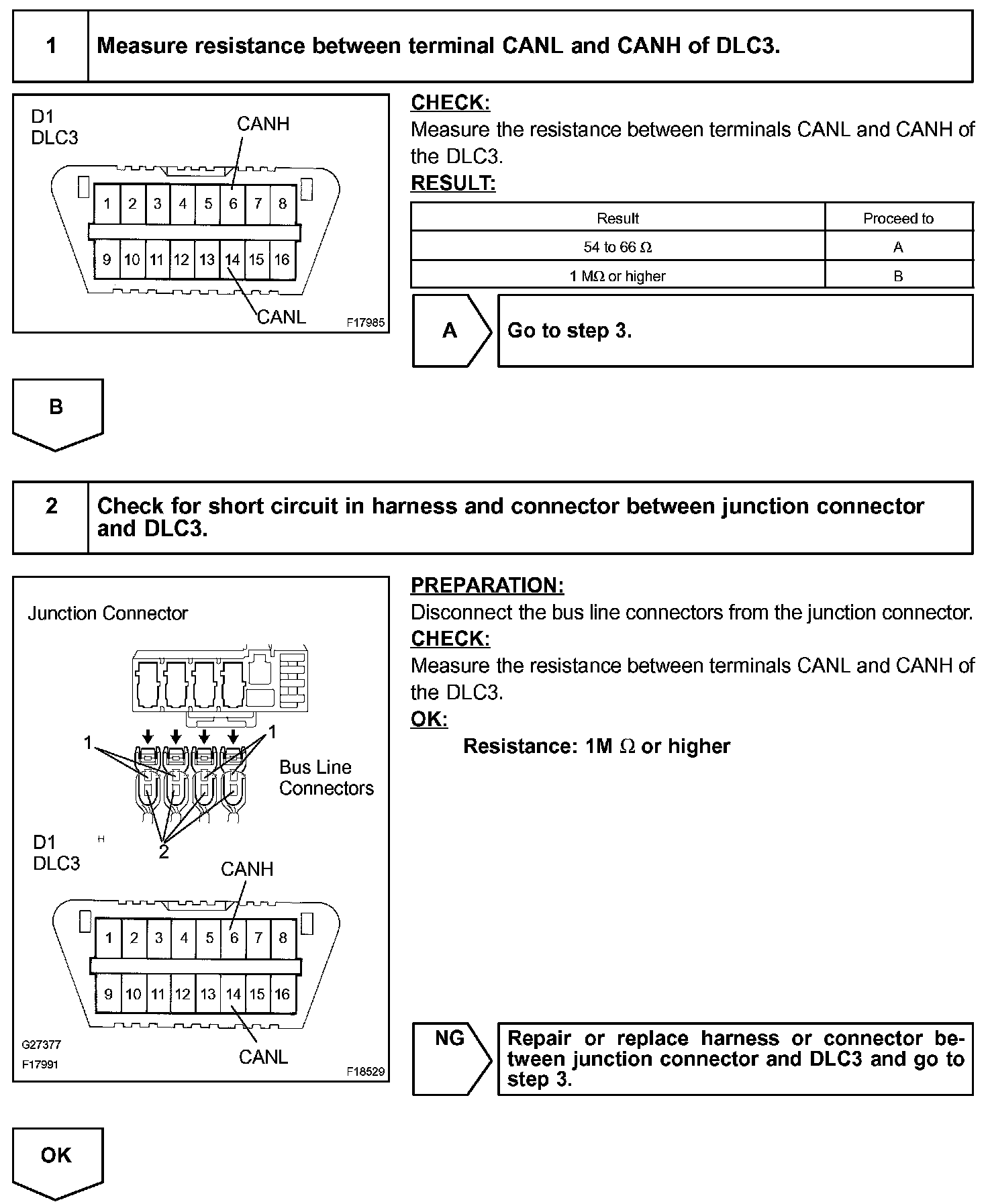

Step 1 - 2:

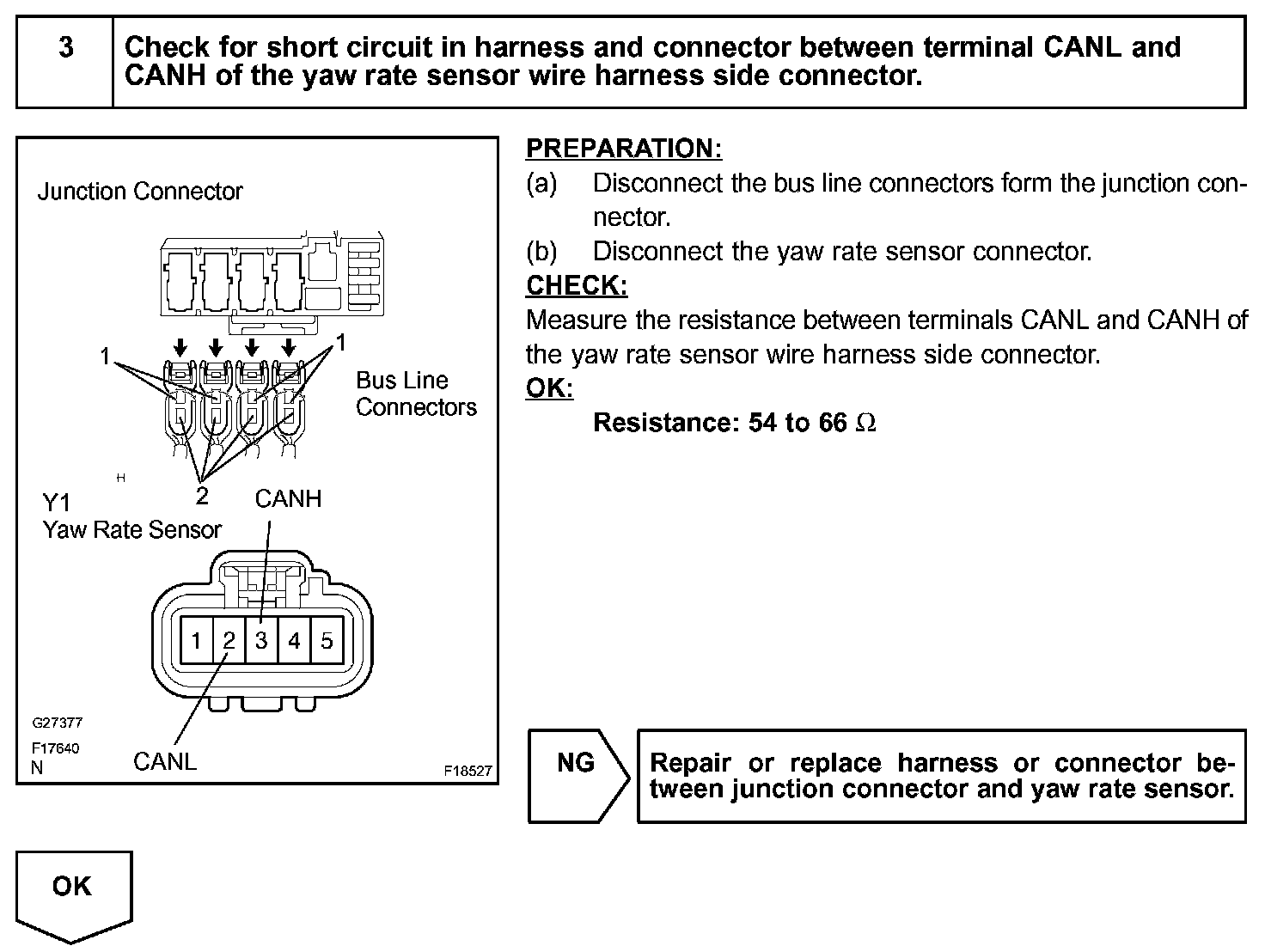

Step 3:

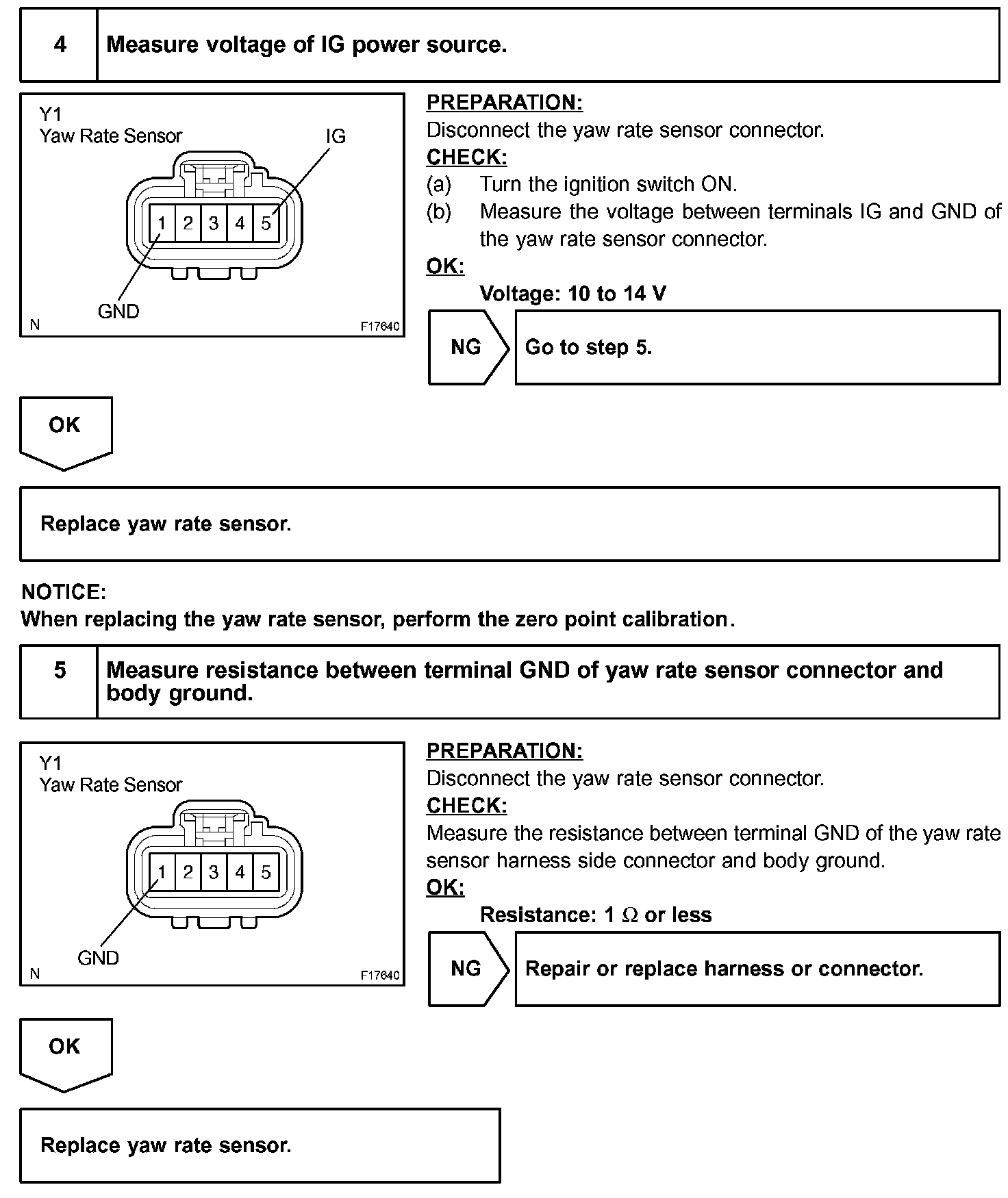

Step 4 - 5:
INSPECTION PROCEDURE
