Evaporative Emissions System: Service and Repair

REMOVE CHARCOAL CANISTER ASSEMBLY

a. Remove the bolt, 3 nuts and protector from the body.
b. Disconnect the VSV connector.
c. Disconnect the purge line hose, EVAP line hose and air inlet line hose from the charcoal canister.

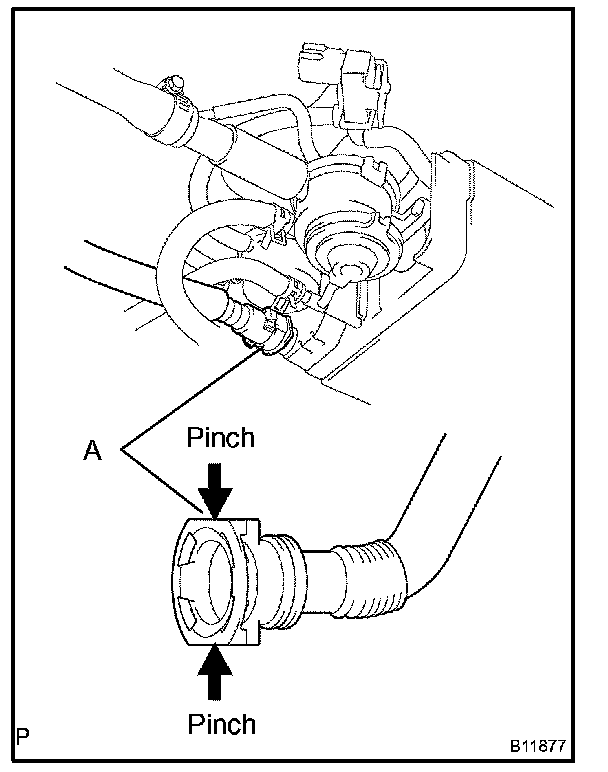

d. Disconnect the vent line hose from the charcoal canister.
1. Push the connector deeply.
2. Pinch portion A.
3. Pull out the connector.

e. Remove the 2 bolts and charcoal canister assembly.
