Ignition Relay: Testing and Inspection

IGNITION RELAY (No.2)

INSPECTION

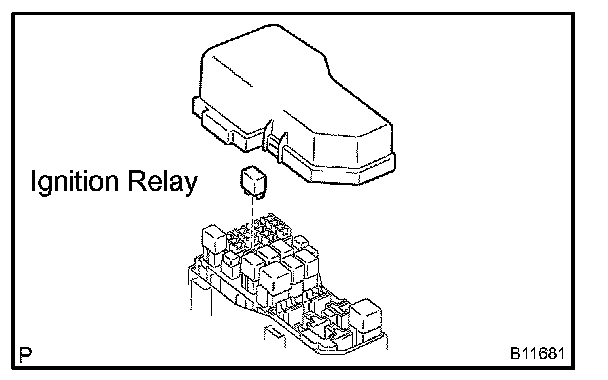

1. REMOVE IGNITION RELAY (Marking: IG2)
2. INSPECT IGNITION RELAY

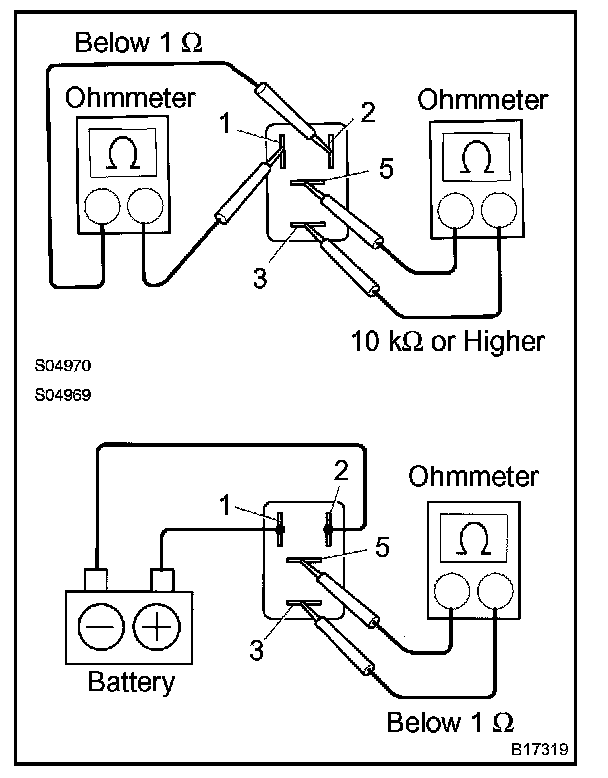

a. Check the resistance of the IG relay.

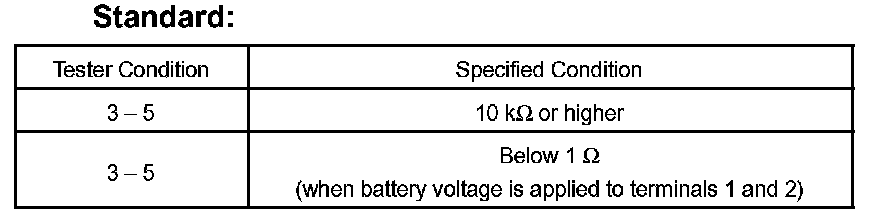

Standard:
If the result is not as specified, replace the relay.

3. REINSTALL IGNITION RELAY
