Manual Shifting Test

MANUAL SHIFTING TEST

HINT: With this test, whether the trouble occurs in the electrical circuit or is a mechanical problem in the transaxle can be determined.

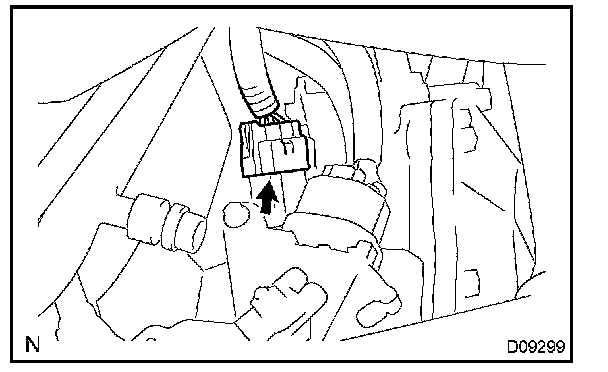

a. Disconnect the solenoid wire.
b. Inspect the manual driving operation.
Check that the shift and gear positions correspond with the table.
While driving the vehicle, move the shift lever through the L, 2 and D positions. Check that the gear change corresponds to the shift position.

HINT: If the L, 2 and D gear positions are difficult to distinguish, perform the following read test.

If any abnormalities are found in the above test, the problem is in the transaxle itself.

c. Connect the solenoid wire.
d. Clear the DTC.
