Electronic Brake Control Module: Locations

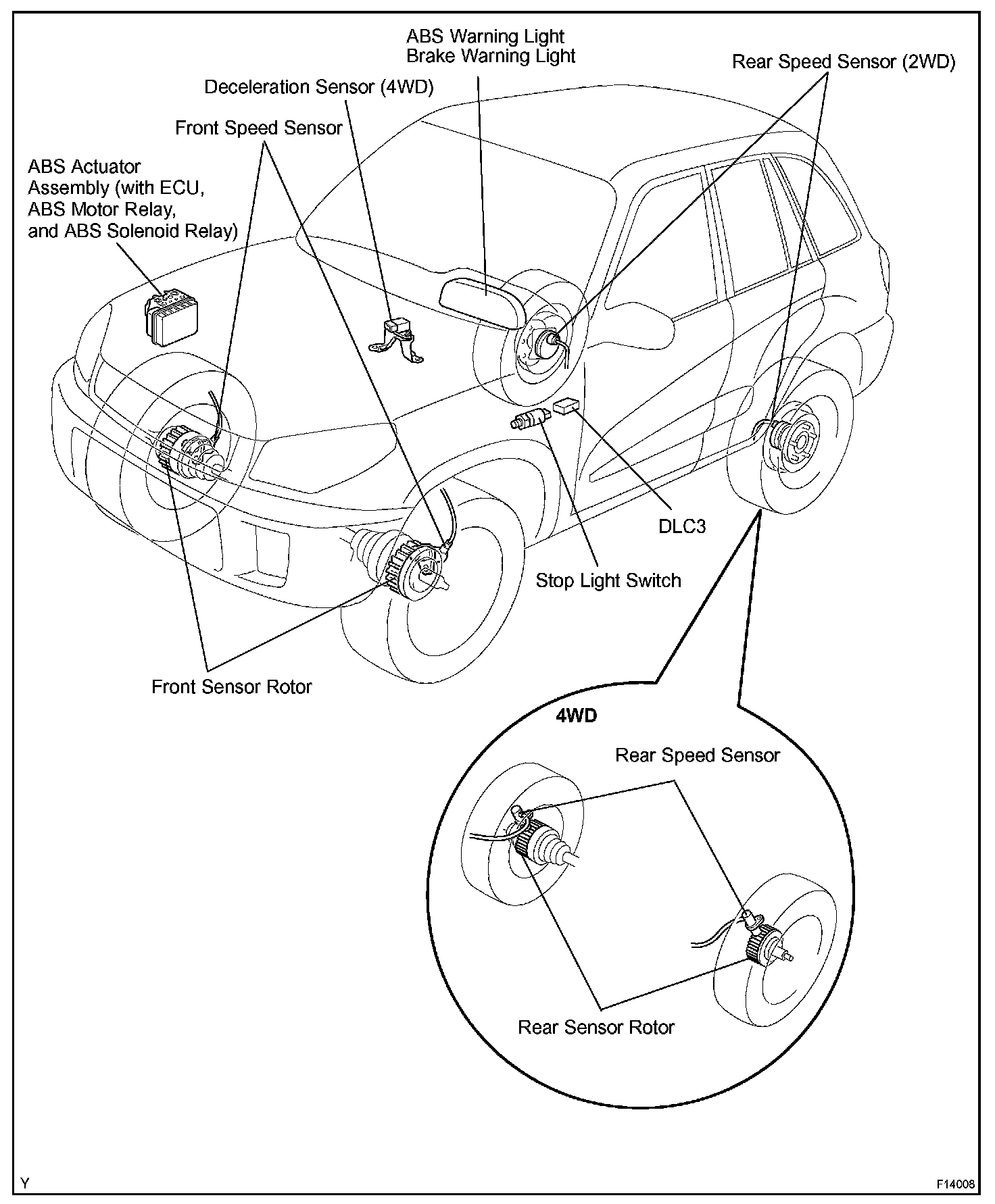

Antilock Brake System With Electronic Brake Force Distribution (EDB):

A/C - Ho:

AB - Mo:
