Ignition Timing

IGNITION TIMING

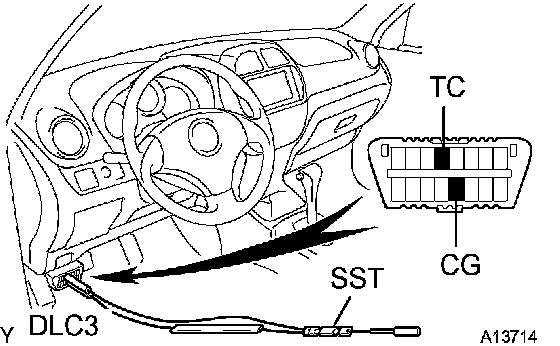

Using SST, connect terminals to TC and CG of the DLC3.
SST 09843-18040

HINT: After engine rpm is kept at 900 - 1,500 rpm for 5 seconds, check that it returns to idle speed.







Using a timing light, check the ignition timing.

Ignition timing: 8 to 12° BTDC @ idle


Remove the SST from the DLC3.


Ignition timing: 5 to 15° BTDC @ idle

HINT: The timing mark moves in a range between 5 and 15°.
