System Specifications

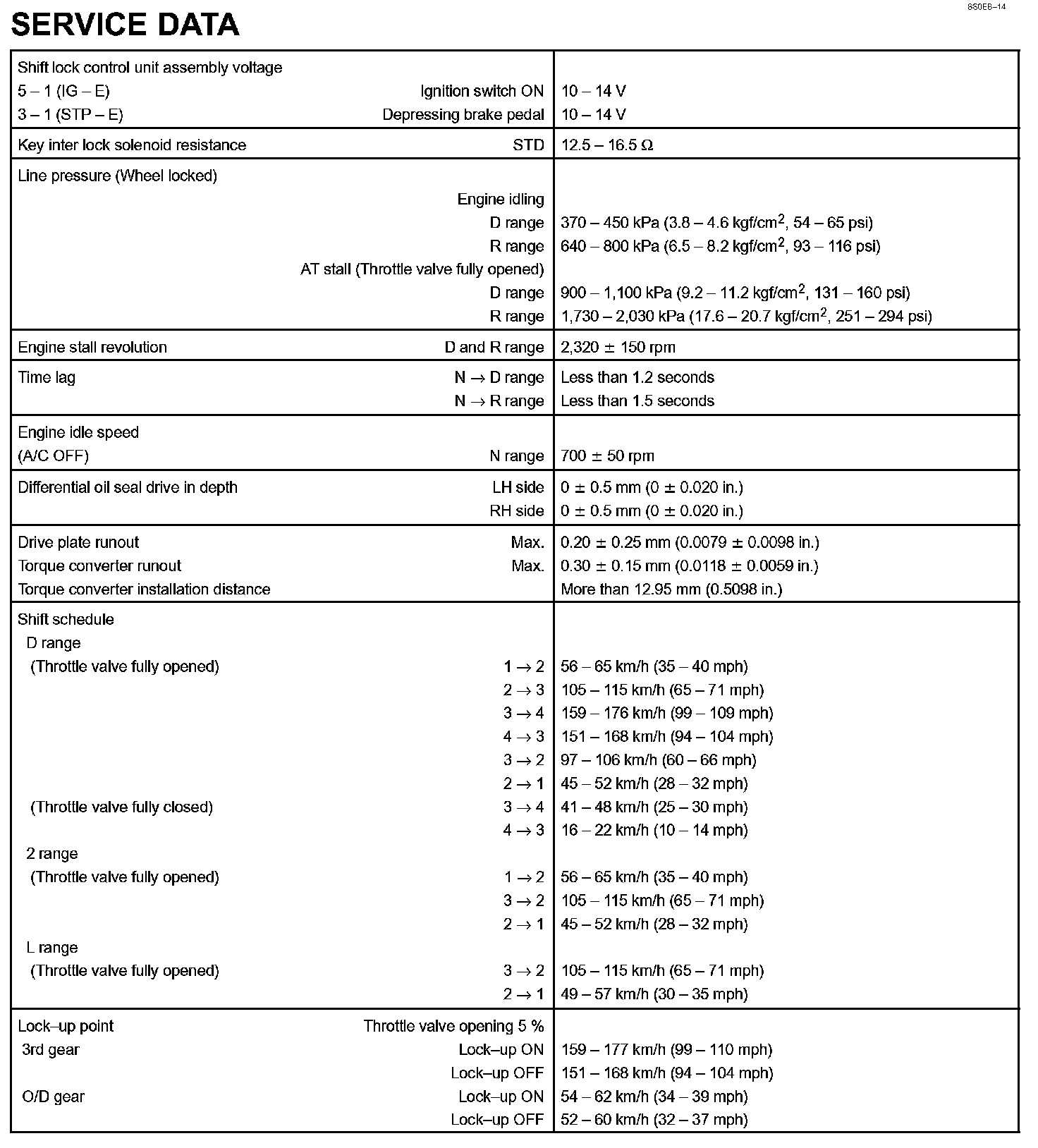

Automatic Transaxle (U241E) - Service Data:

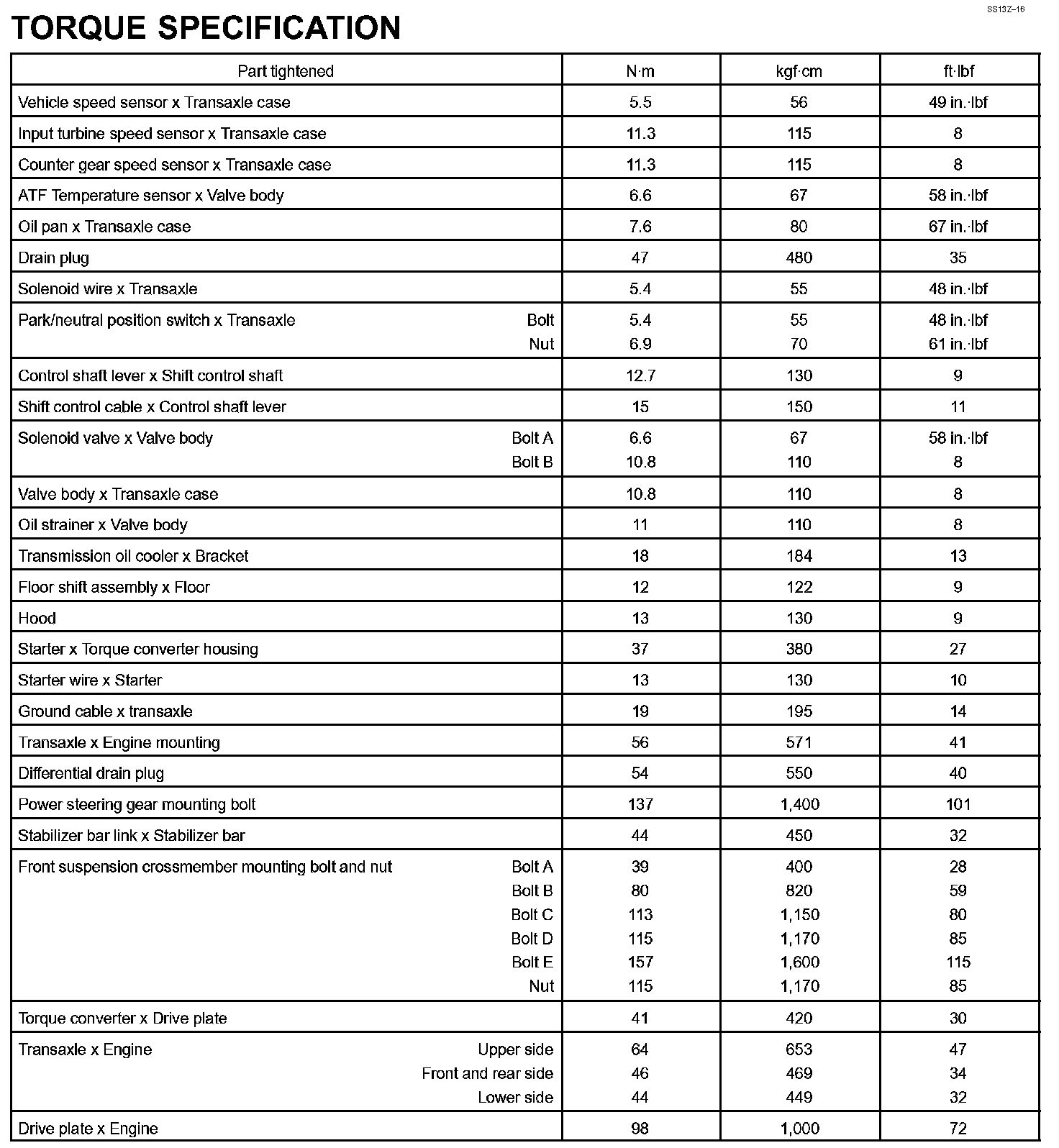

Automatic Transaxle (U241E) - Torque Specification:
