Piston, Engine




PISTONS

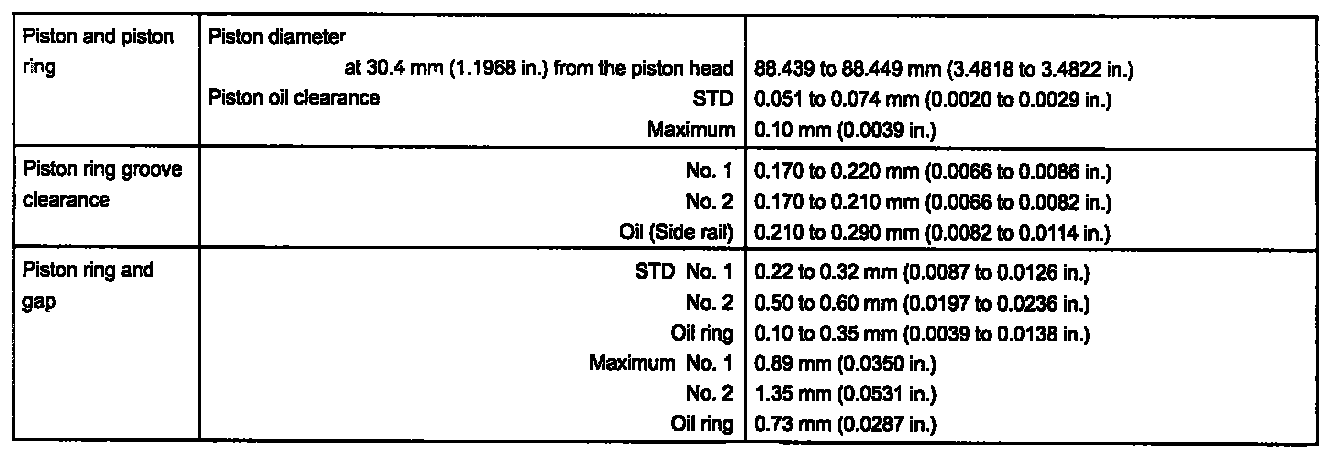

Piston And Piston Ring:

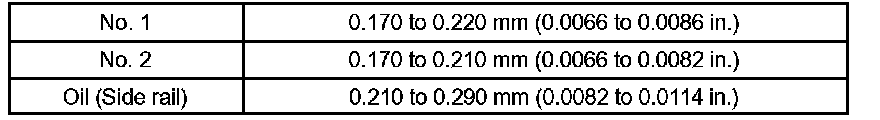

Ring Groove Clearance:

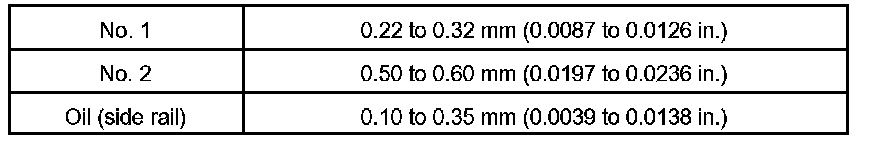

Standard End Gap:

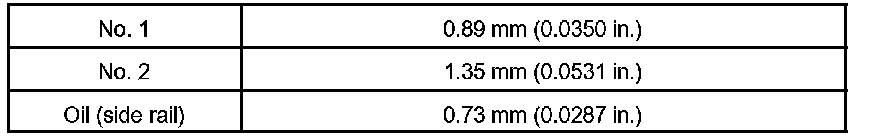

Maximum End Gap:
