System Specifications

CRANKSHAFT PULLEY
Crankshaft Pulley x Crankshaft 180 N.m (1,836 kgf.cm, 132 ft.lbf)
Crankshaft Pulley Bolt 41 Nm (418 kgf-cm, 30 ft. lbs.)







FLYWHEEL (M/T)
Flywheel x Crankshaft 130 N.m (1,326 kgf.cm, 96 ft.lbf)

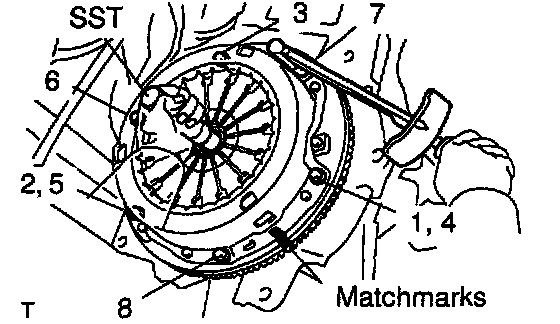

Clutch Cover x Flywheel 19 N.m (194 kgf.cm, 14 ft.lbf)







DRIVE PLATE (A/T)

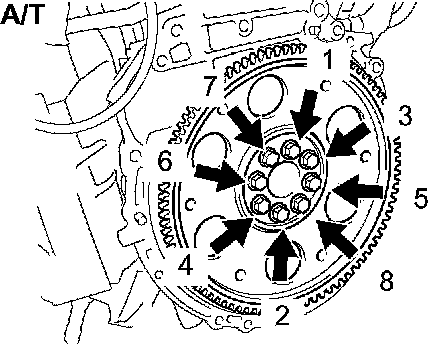

Drive Plate x Crankshaft 98 N.m (1,000 kgf.cm, 72 ft.lbf)
Drive Plate x Torque Converter 41 N.m (418 kgf.cm, 30 ft.lbf)

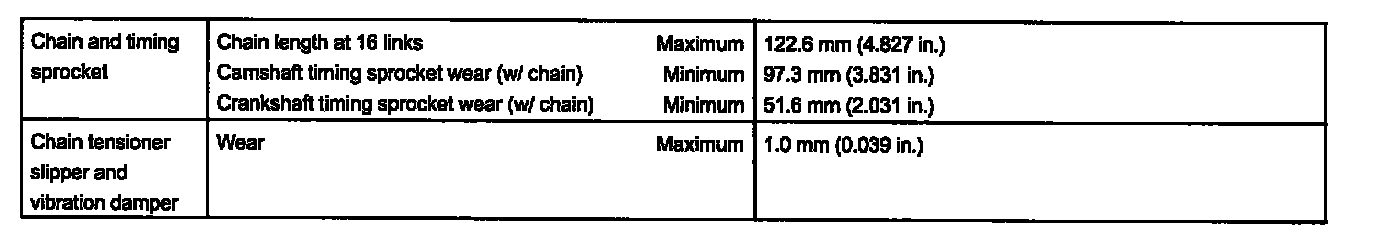

Timing Chain, Sprocket, Tensioner, Slipper, And Vibration Damper:

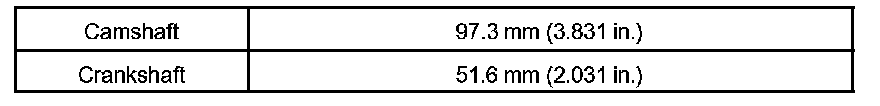

Minimum Sprocket Diameter (w/ Chain):

TIMING CHAIN:

TIMING CHAIN:

TIMING CHAIN & RELATED COMPONENTS


Timing Chain Replacement Interval: refer to Inspection Testing and Inspection

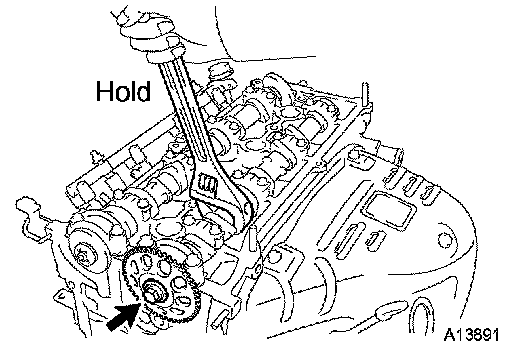

Timing Sprocket Set Bolt: 54 Nm (551 kgf-cm, 40 ft. lbs.)

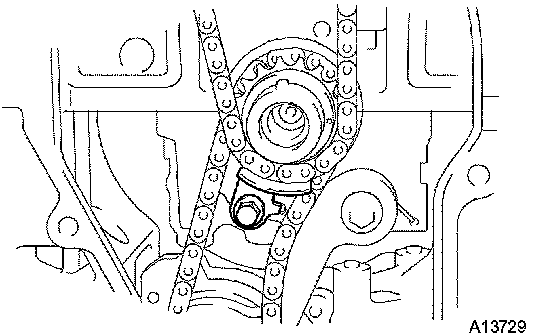

Vibration Damper: 9.0 Nm (92 kgf-cm, 80 inch lbs.)

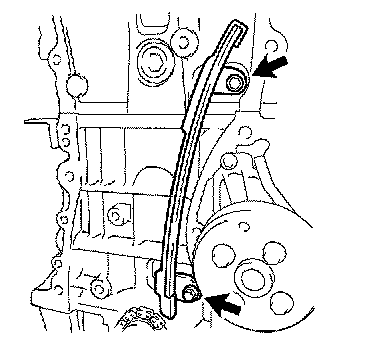

Timing Chain Guide Bolt: 9.0 Nm (92 kgf-cm, 80 inch lbs.)

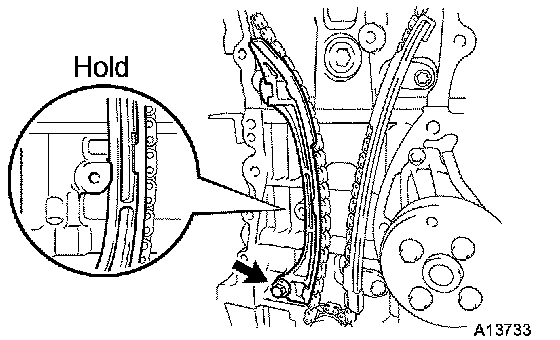

Timing Chain Tensioner Slipper 19 Nm (194 kgf-cm, 14 ft. lbs.)

Bolt Length:

Timing Chain Cover
14 bolts and 2 nuts
Uniformly tighten the bolts and nuts in several passes.
A : 9.0 Nm (92 kgf-cm, 80 inch lbs.)
B : 21 Nm (214 kgf-cm, 15 ft. lbs)
C : 43 Nm (439 kgf-cm, 32 ft. lbs)
D : 43 Nm (439 kgf-cm, 32 ft. lbs)
Nut: 9.0 Nm (92 kgf-cm, 80 ft. lbs.)

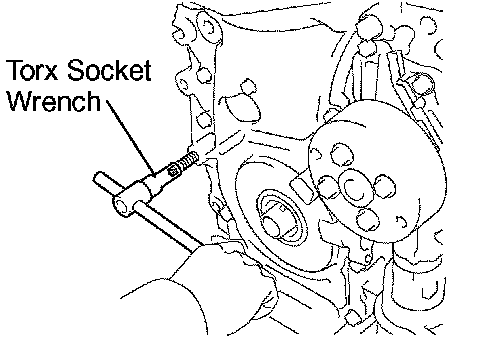

Stud Bolt for the Drive Belt Tensioner: 21.5 Nm (219 kgf-cm, 15.8 inch lbs.)

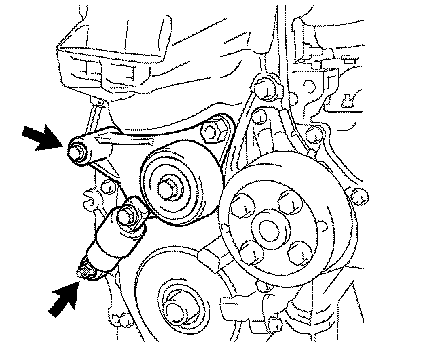

Drive Belt Tensioner: 59.5 Nm (607 kgf-cm, 44 ft. lbs.)

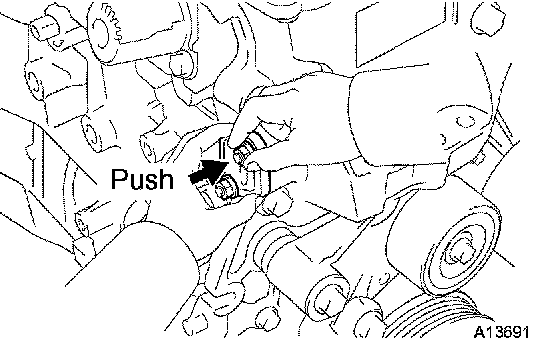

Timing Chain Tensioner: 9.0 Nm (92 kgf-cm, 80 inch lbs.)
