Timing Cover

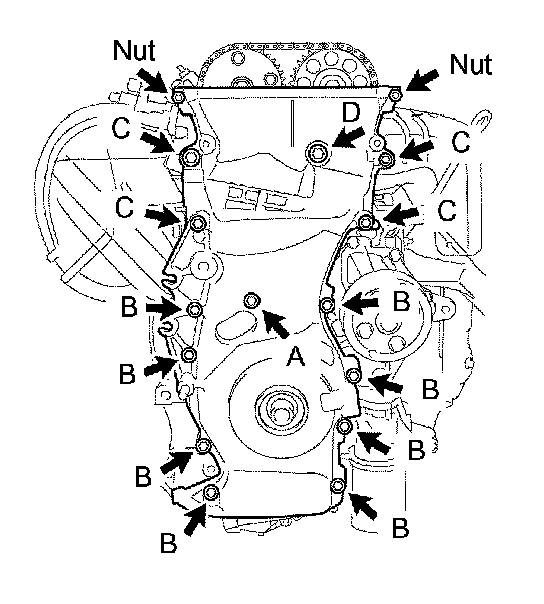

TIMING CHAIN COVER

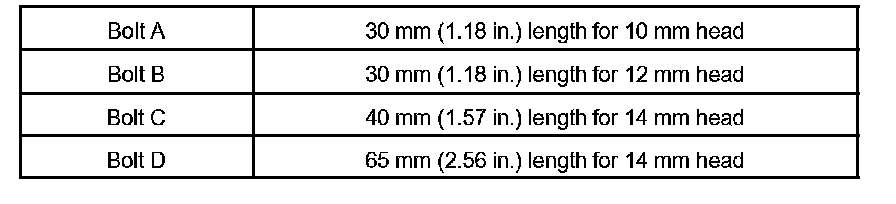

Bolt Length:

14 bolts and 2 nuts
Uniformly tighten the bolts and nuts in several passes.
A : 9.0 Nm (92 kgf-cm, 80 inch lbs.)
B : 21 Nm (214 kgf-cm, 15 ft. lbs)
C : 43 Nm (439 kgf-cm, 32 ft. lbs)
D : 43 Nm (439 kgf-cm, 32 ft. lbs)
Nut: 9.0 Nm (92 kgf-cm, 80 ft. lbs.)
