System Specifications

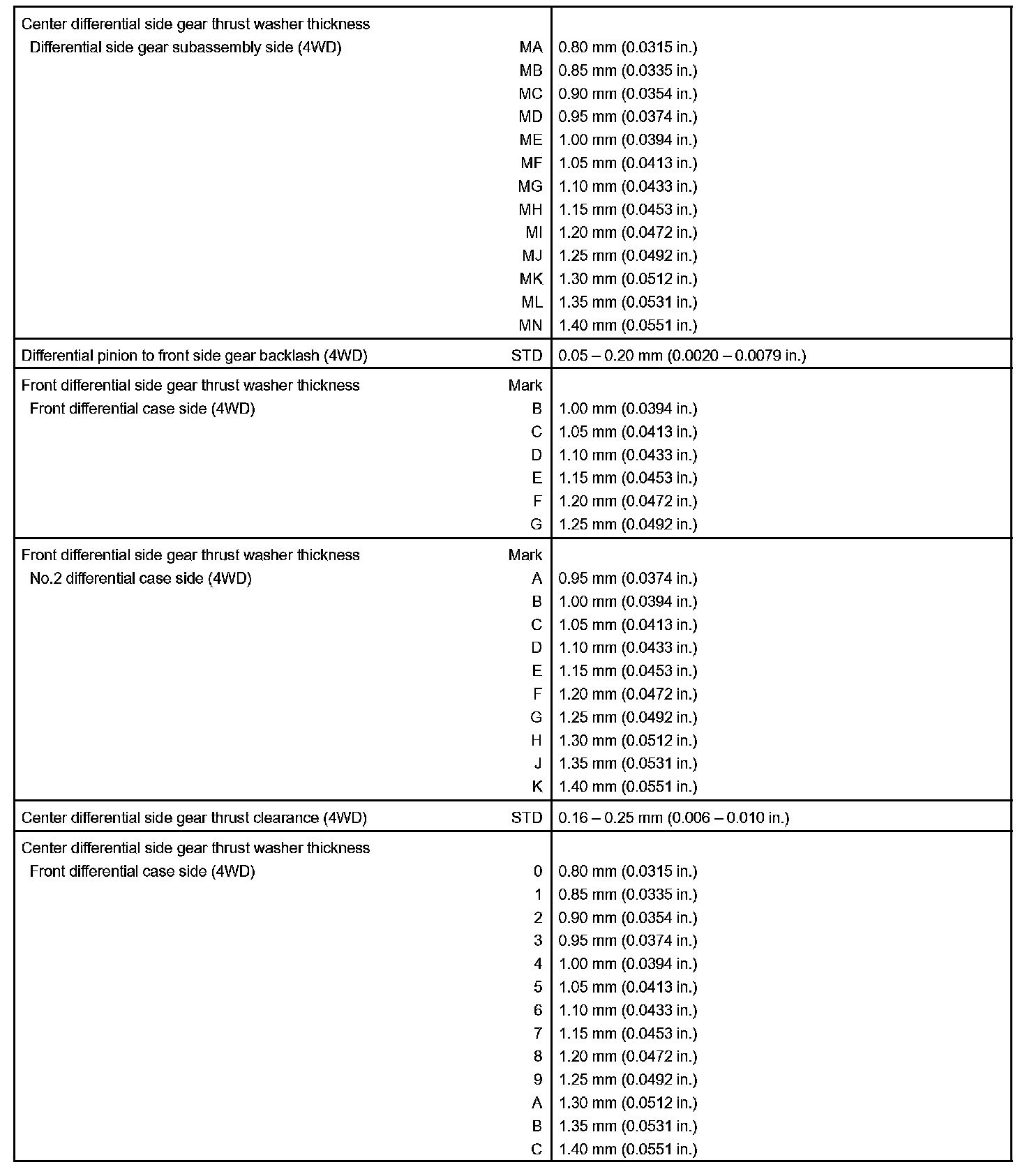

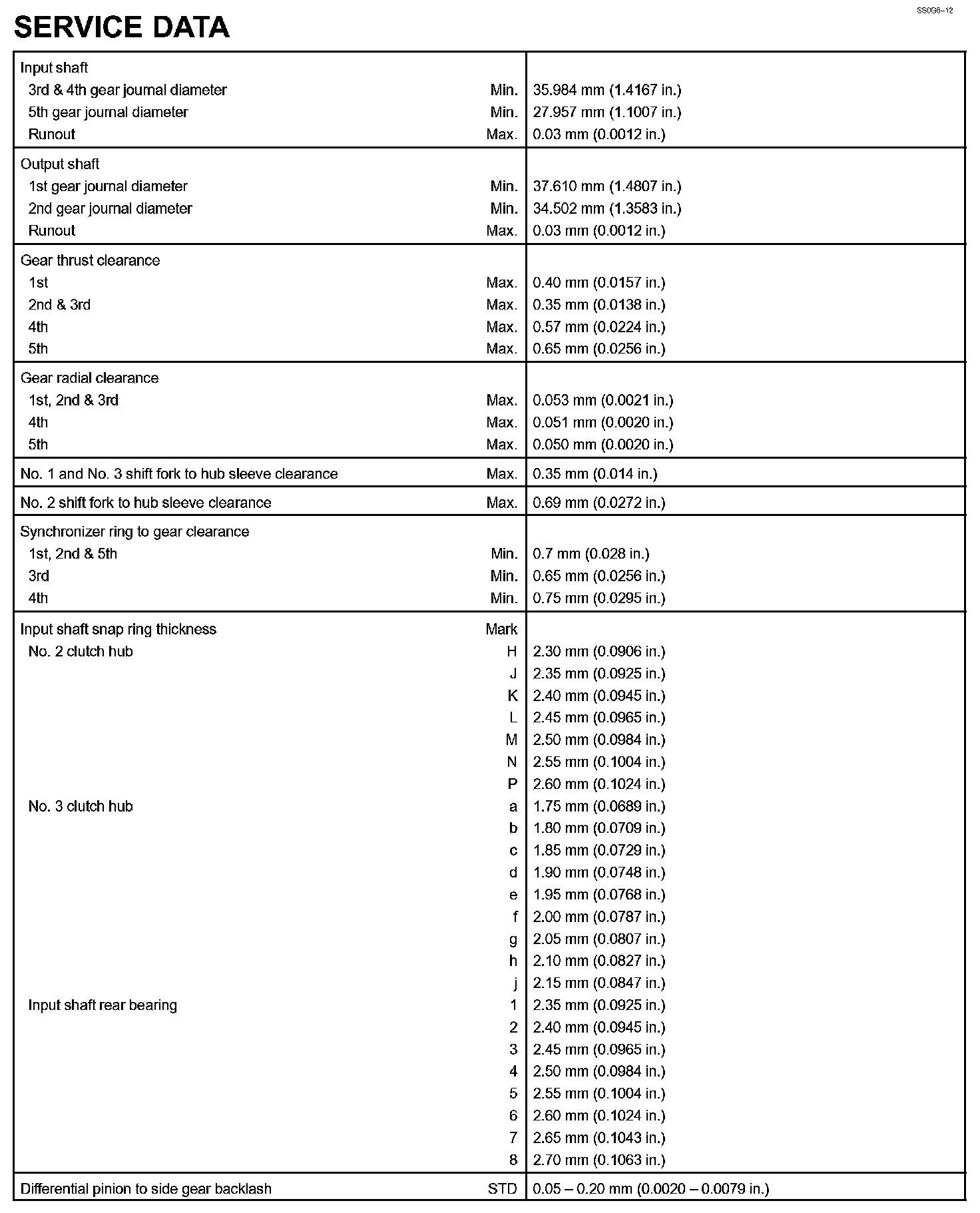

Manual Transaxle - Service Data Part 1:

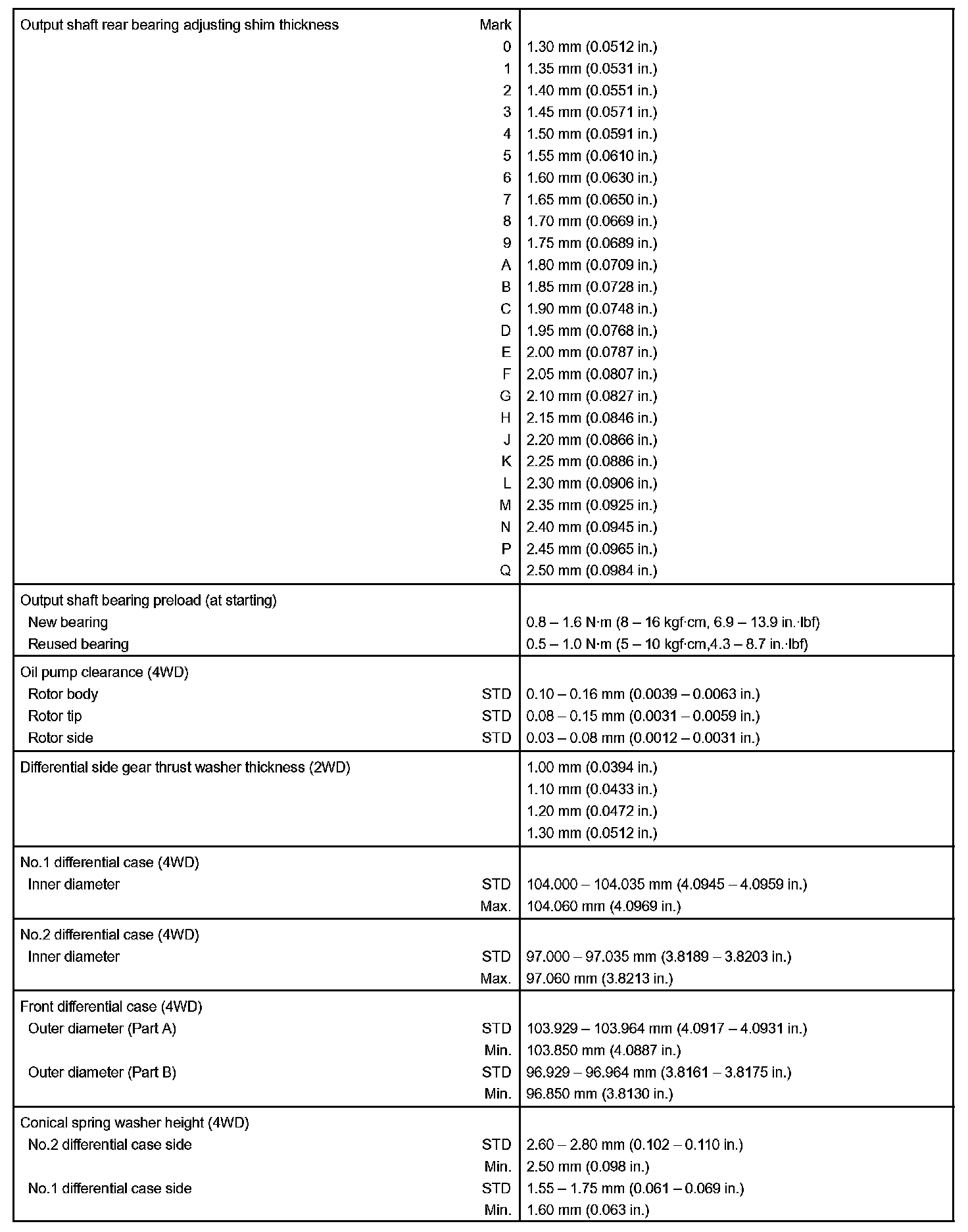

Manual Transaxle - Service Data Part 2:

Manual Transaxle - Service Data Part 3:

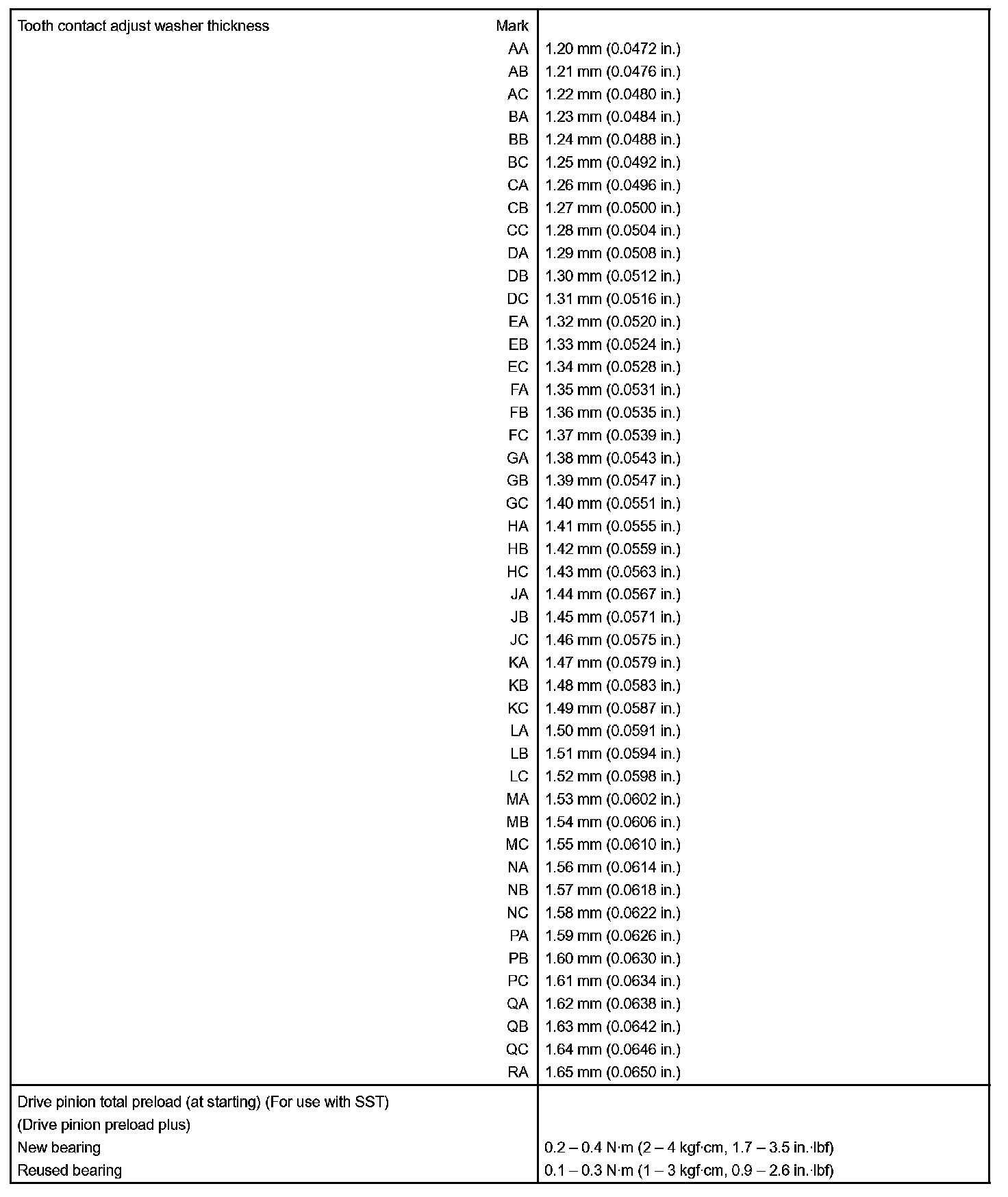

Manual Transaxle - Service Data Part 4:

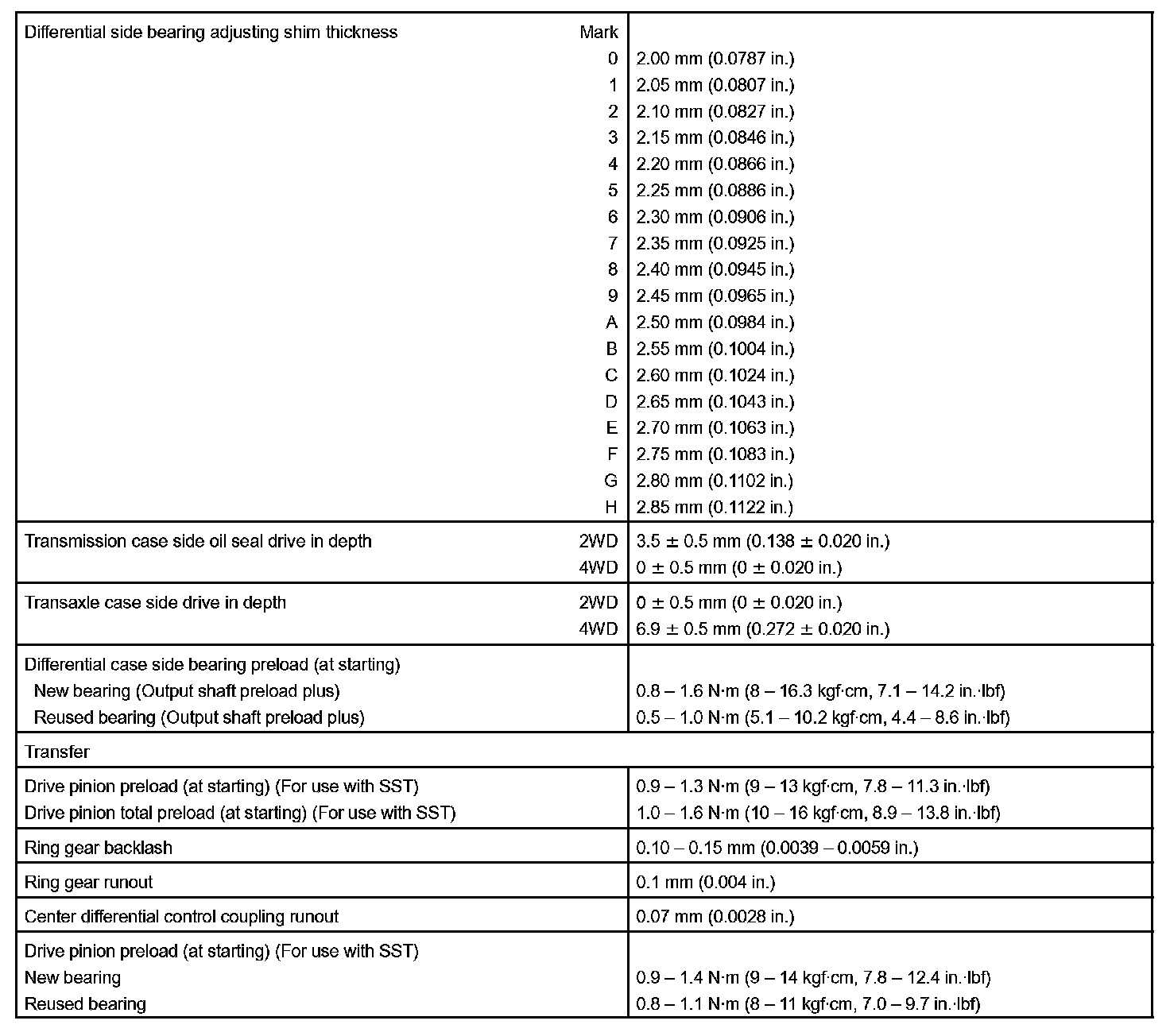

Manual Transaxle - Service Data Part 5:

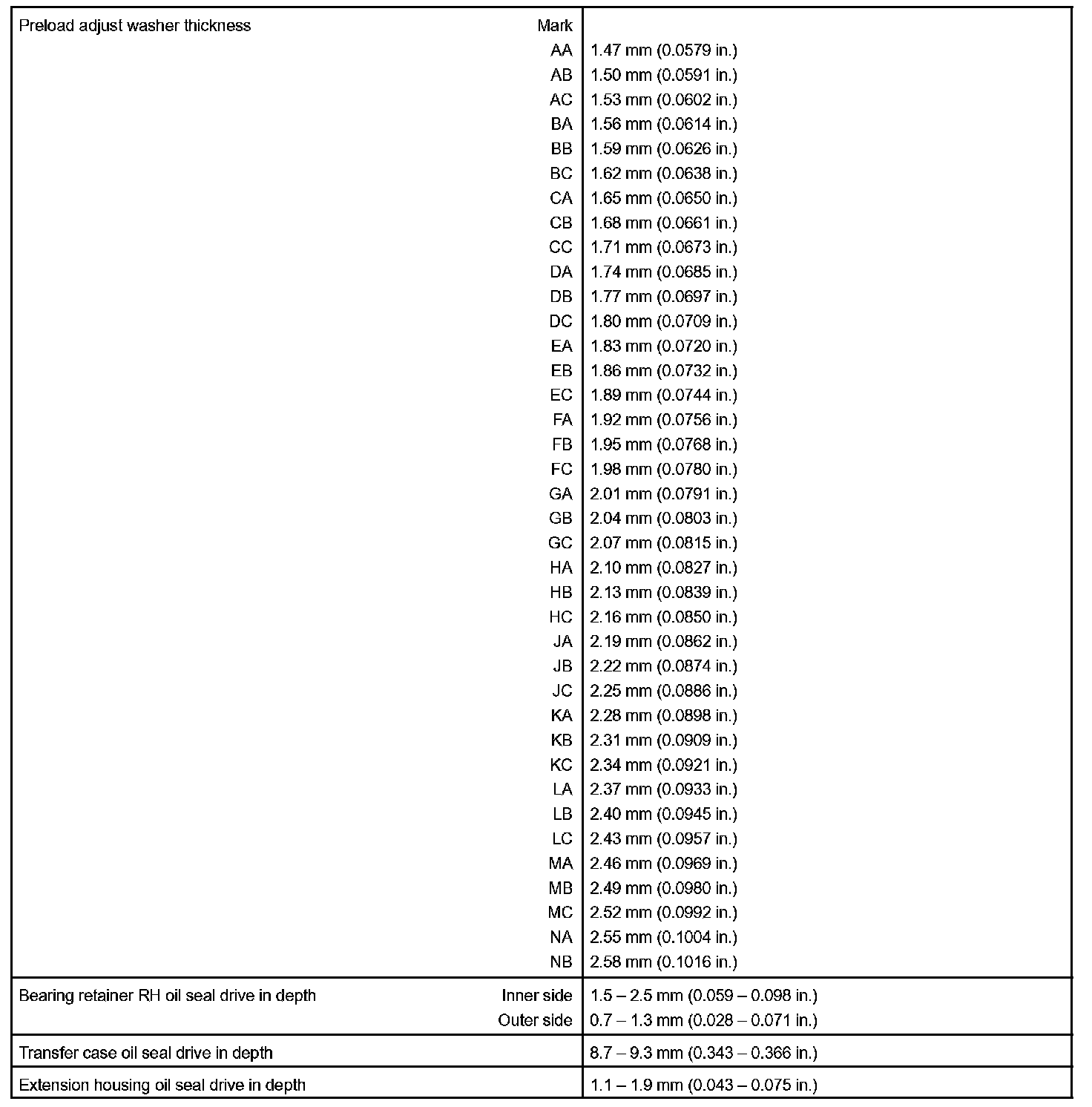

Manual Transaxle - Service Data Part 6:

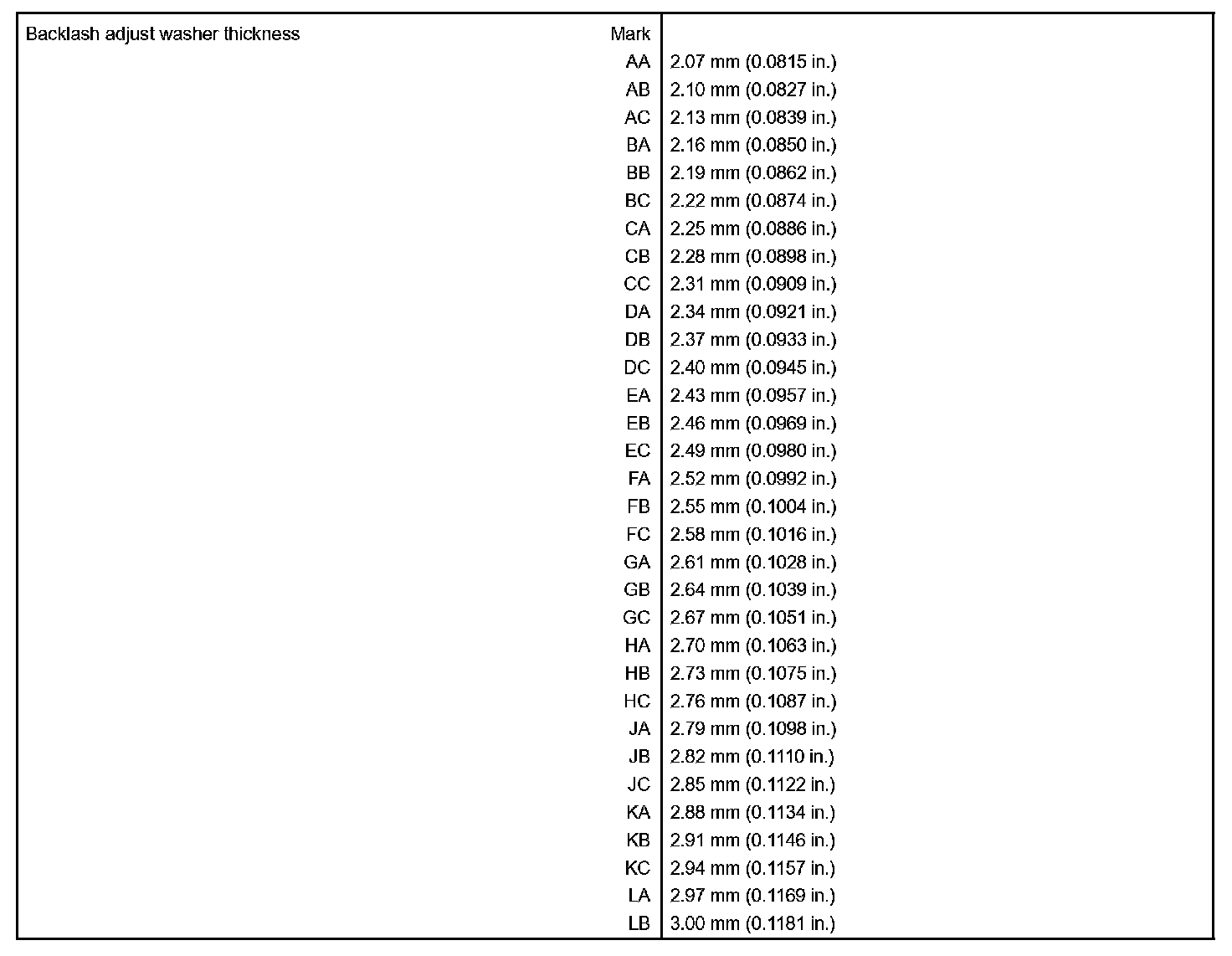

Manual Transaxle - Service Data Part 7:

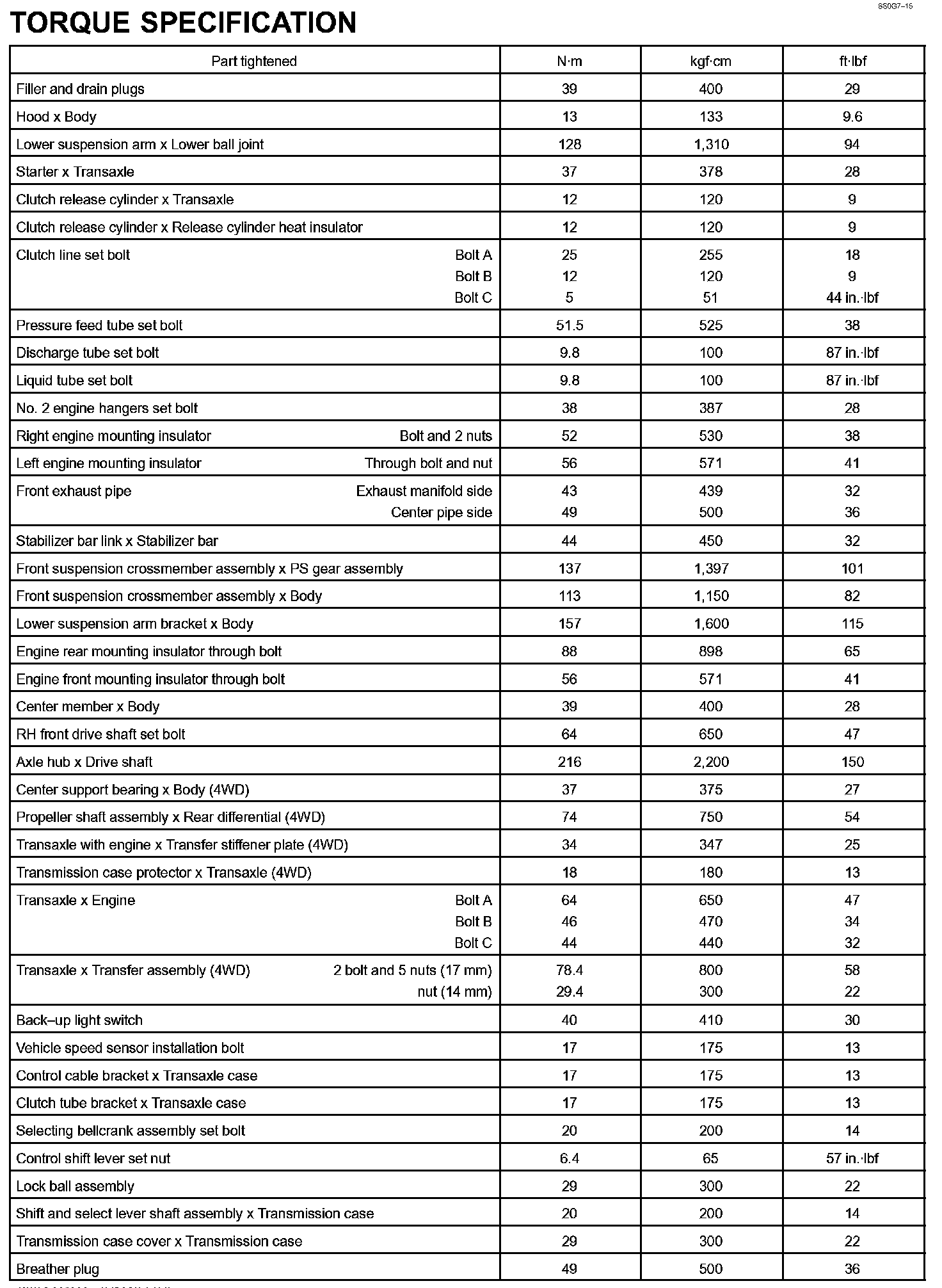

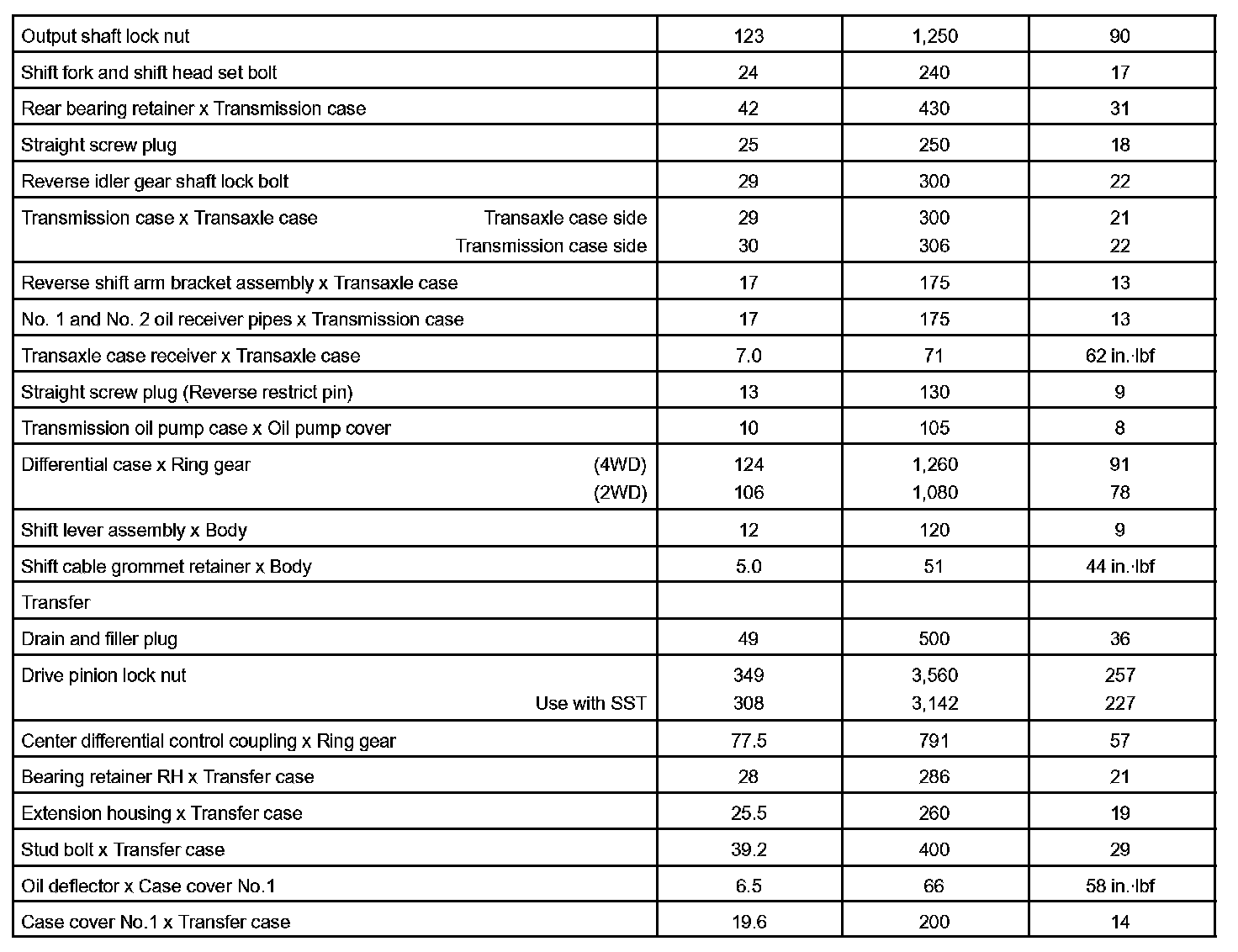

Manual Transaxle - Torque Specification Part 1:

Manual Transaxle - Torque Specification Part 2:
