Starter Relay: Testing and Inspection

INSPECTION

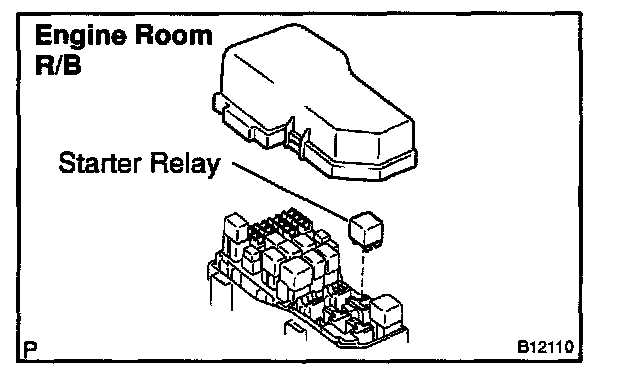

1. REMOVE STARTER RELAY (Marking: ST)

2. INSPECT STARTER RELAY

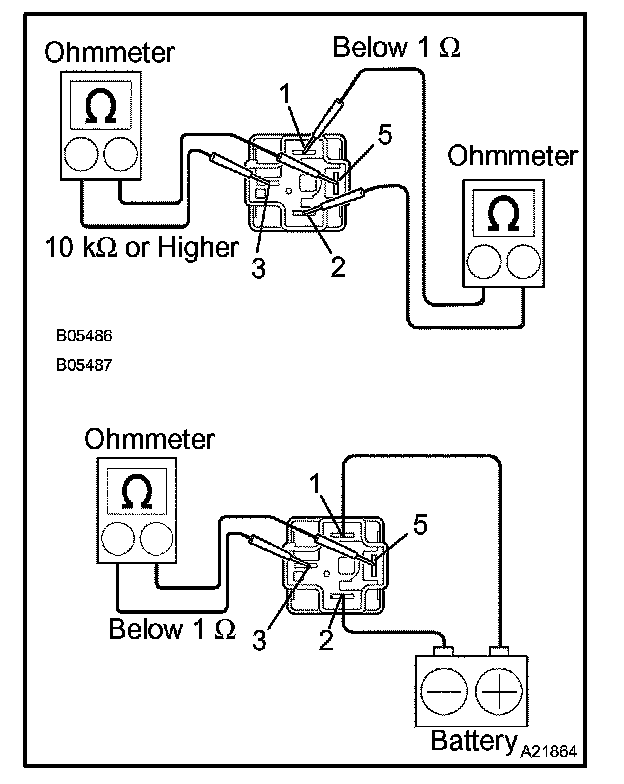

a. Check the resistance of the ST relay.
If the result is not as specified, replace the relay.

3. REINSTALL STARTER RELAY
