Multiple Junction Connector
Multiple Junction Connector

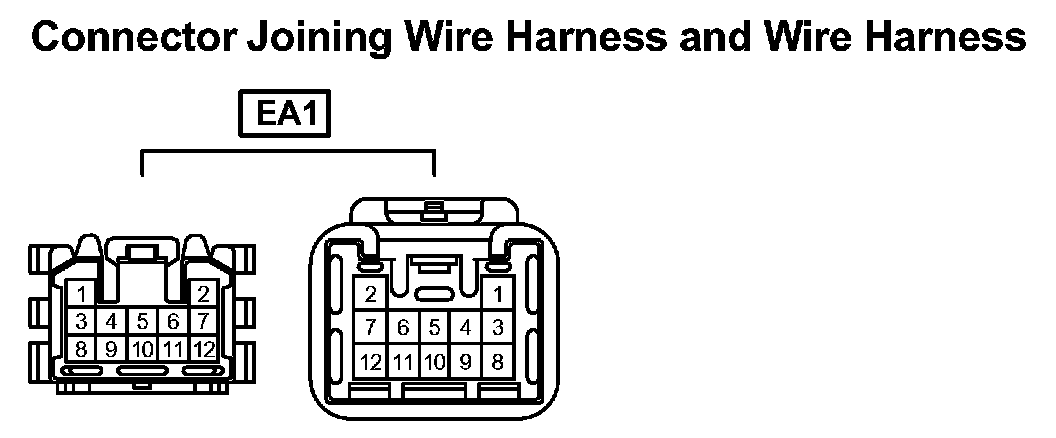

EA1:

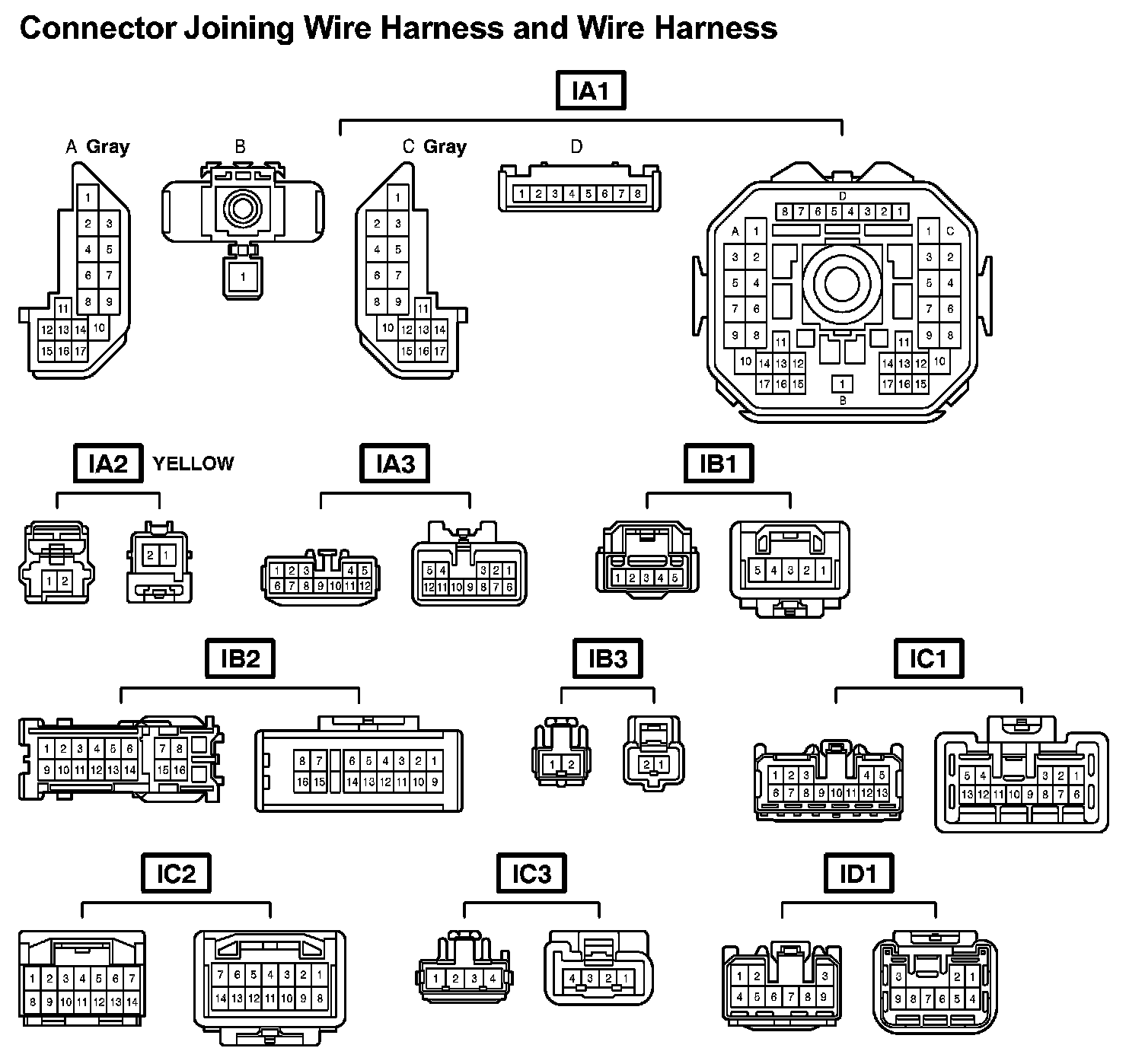

IA1 - ID1:
IE1 - II2:

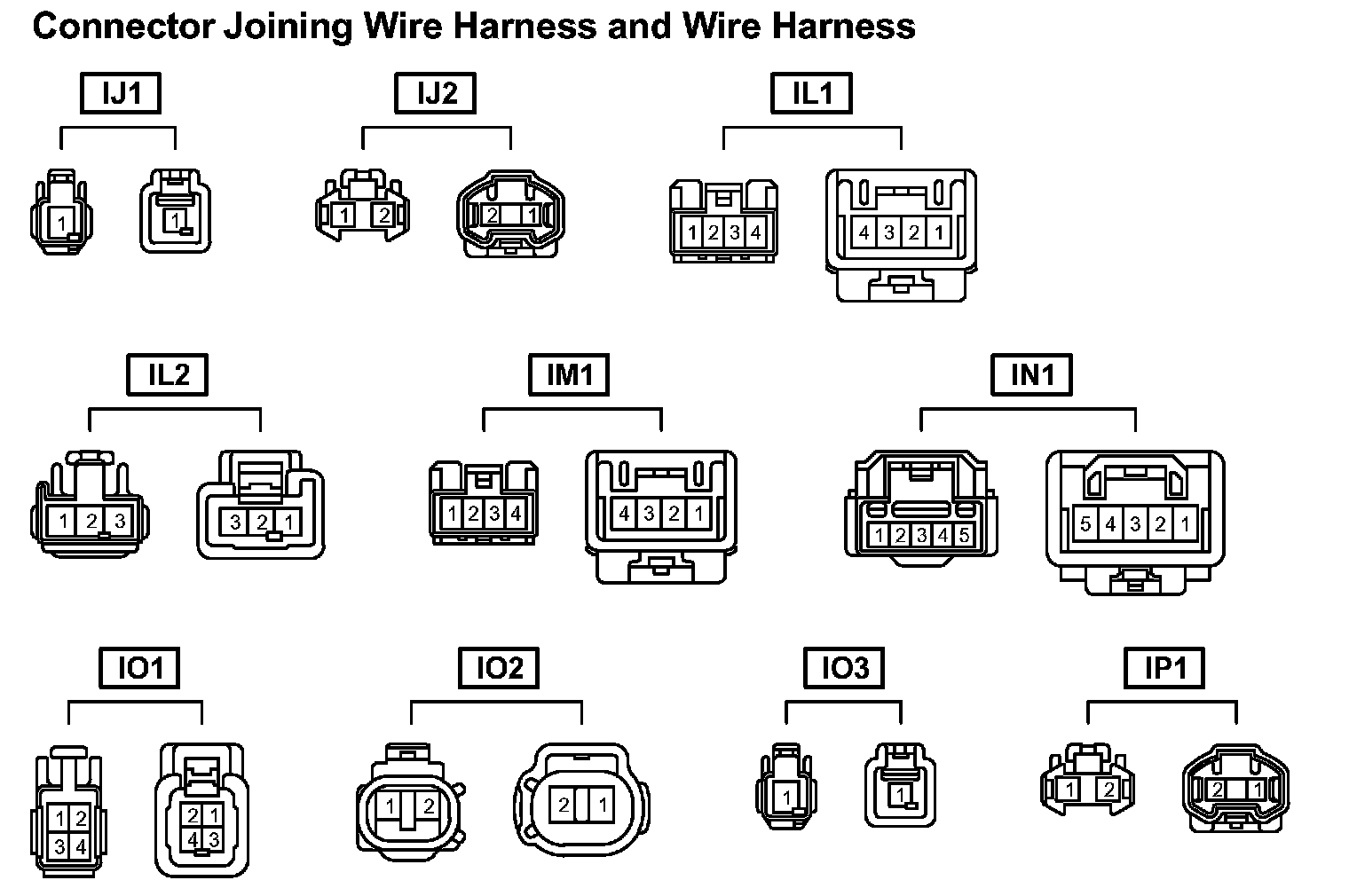

IJ1 - IP1:

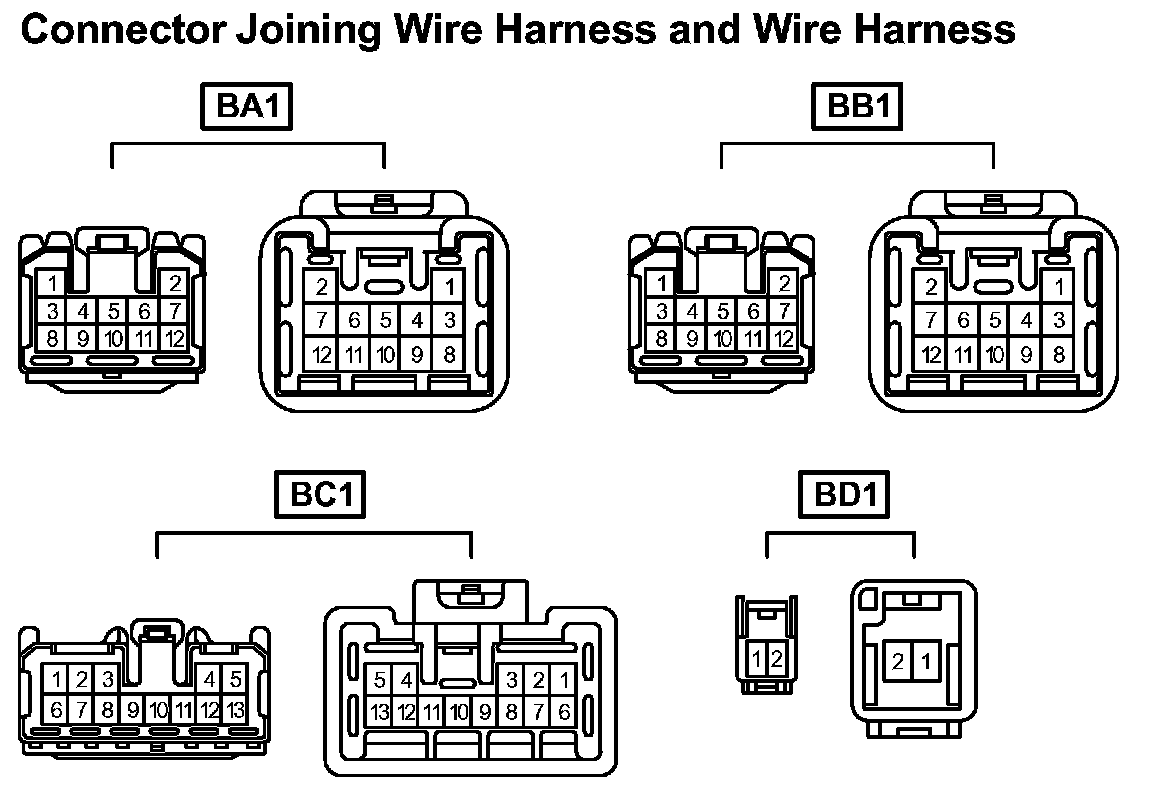

BA1 - BD1:
