Disassembly and Reassembly

DISASSEMBLY

1. REMOVE HEATER CONTROL CABLES




a. Pull out the outer cables.
b. Remove the inner cables.




2. REMOVE HEATER CONTROL NAME PLATE
a. Remove the 3 knobs.

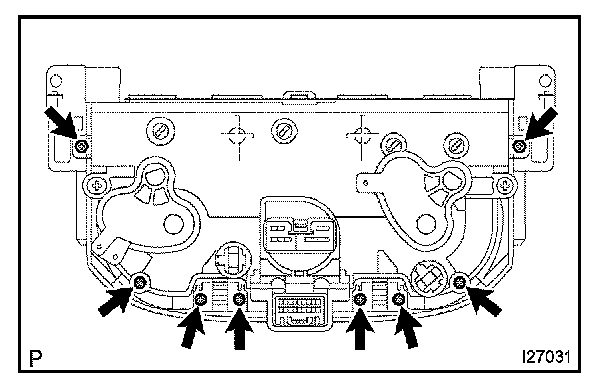

b. Remove the 8 screws.
c. Remove the 3 switches.
d. Remove the heater control cover.

3. REMOVE PRINTED WIRE INTEGRATION BOARD




a. Remove the 2 screws and heater control switch cover

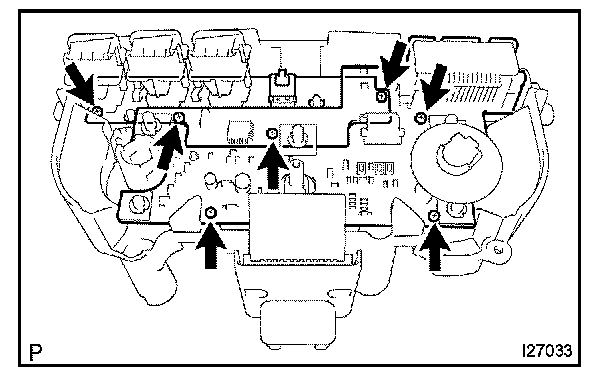

b. Remove the 7 screws and integration board.

REASSEMBLY

The reassembly procedures are the disassembly procedures in reverse order.
