Home >> Toyota >> 2004 >> Sequoia 2WD V8-4.7L (2UZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Testing and Inspection >> Pinout Values and Diagnostic Parameters

Pinout Values and Diagnostic Parameters

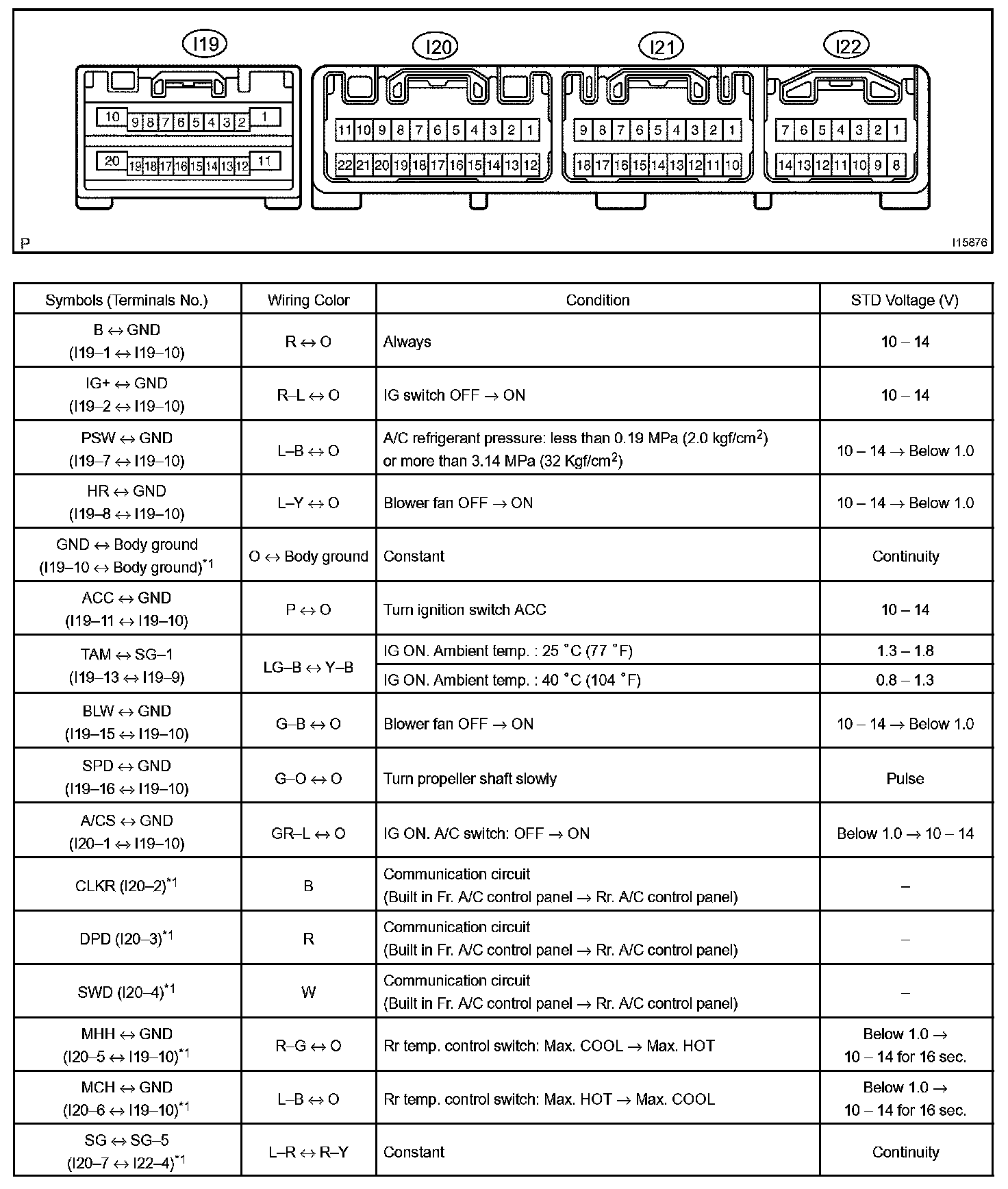

Terminals of ECU/Pinouts - Integration Control and Panel Part 1:

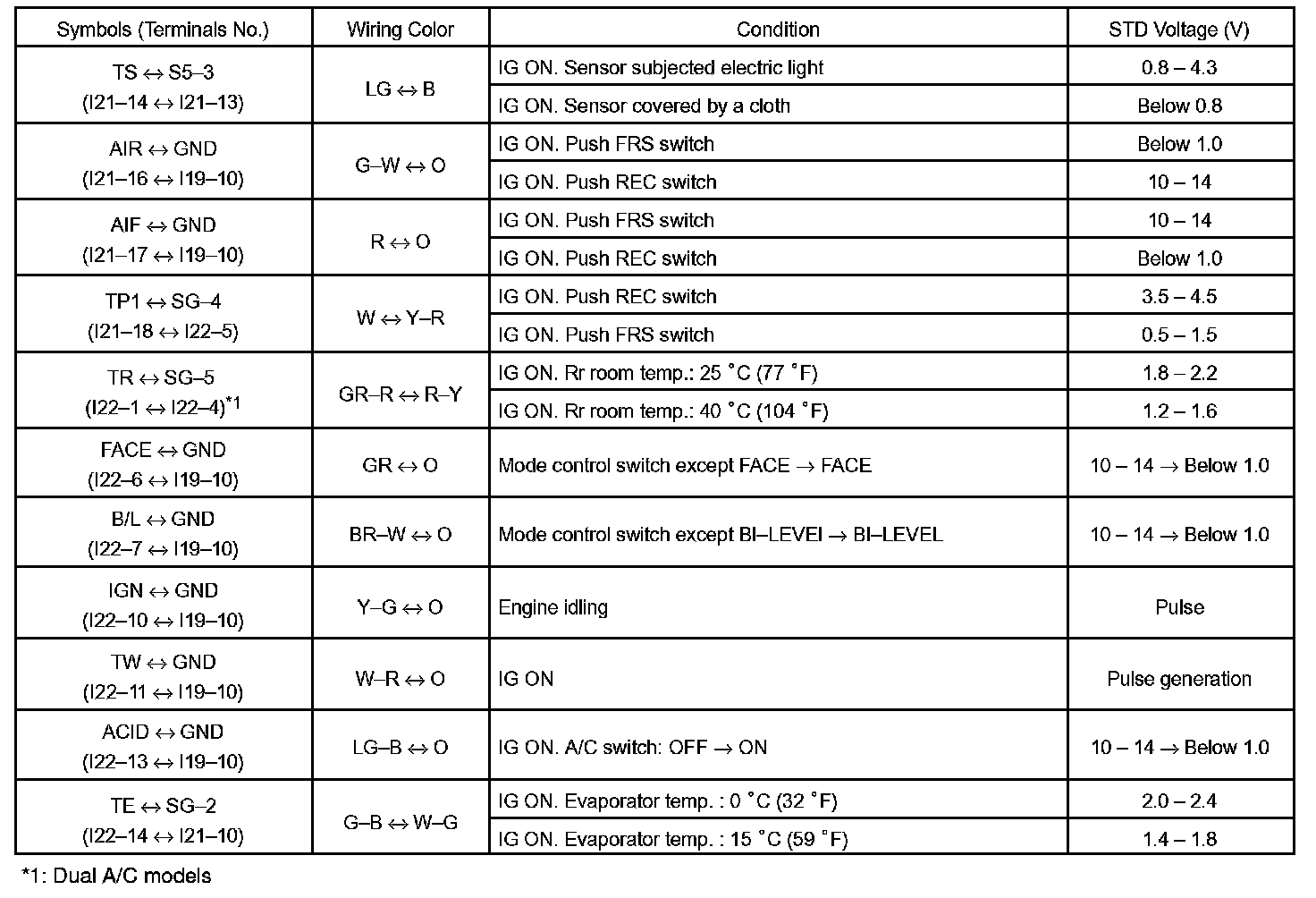

Terminals of ECU/Pinouts - Integration Control and Panel Part 2:

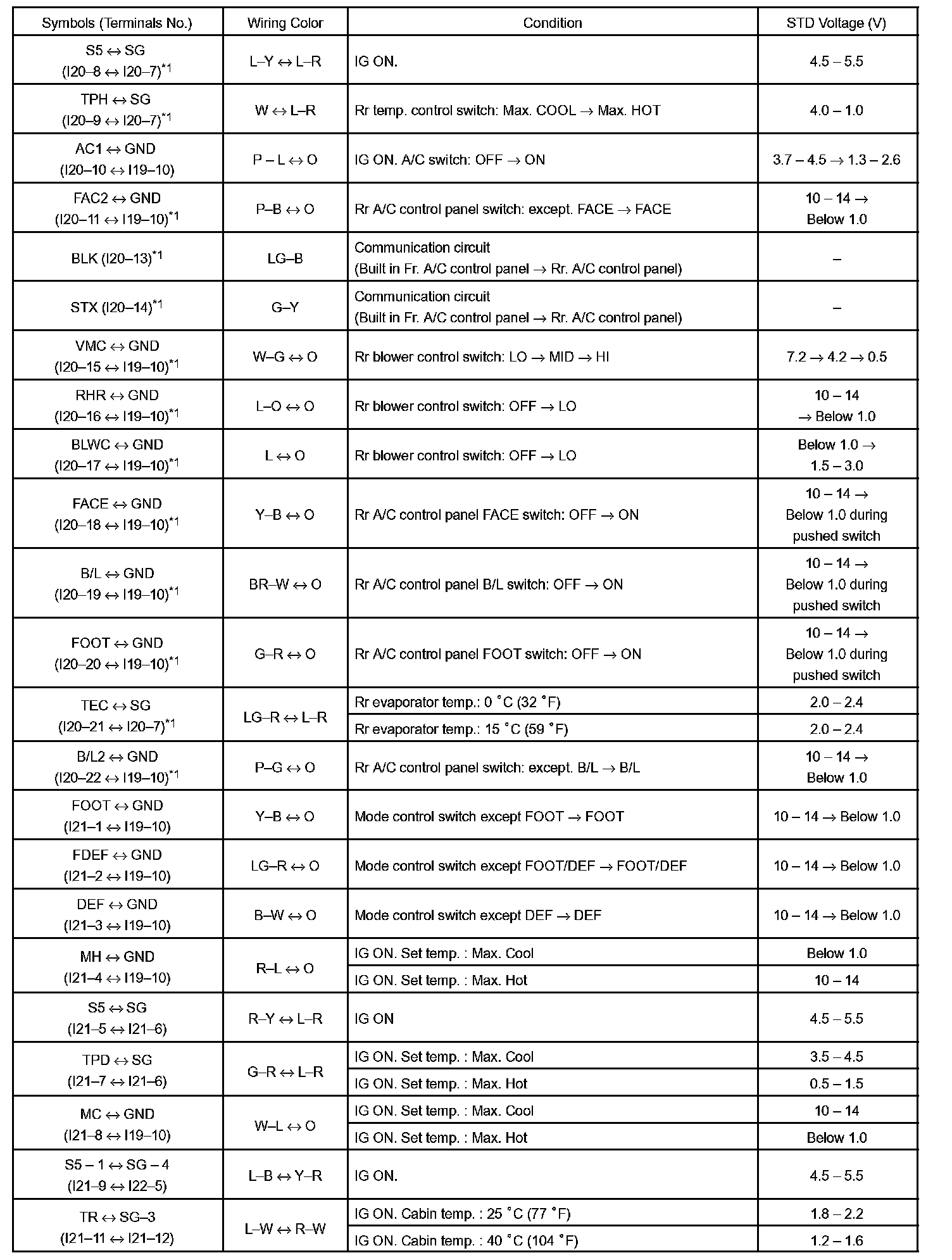

Terminals of ECU/Pinouts - Integration Control and Panel Part 3:



Terminals of ECU/Pinouts - ECM:
