Multiple Junction Connector
Multiple Junction Connector
EA1:

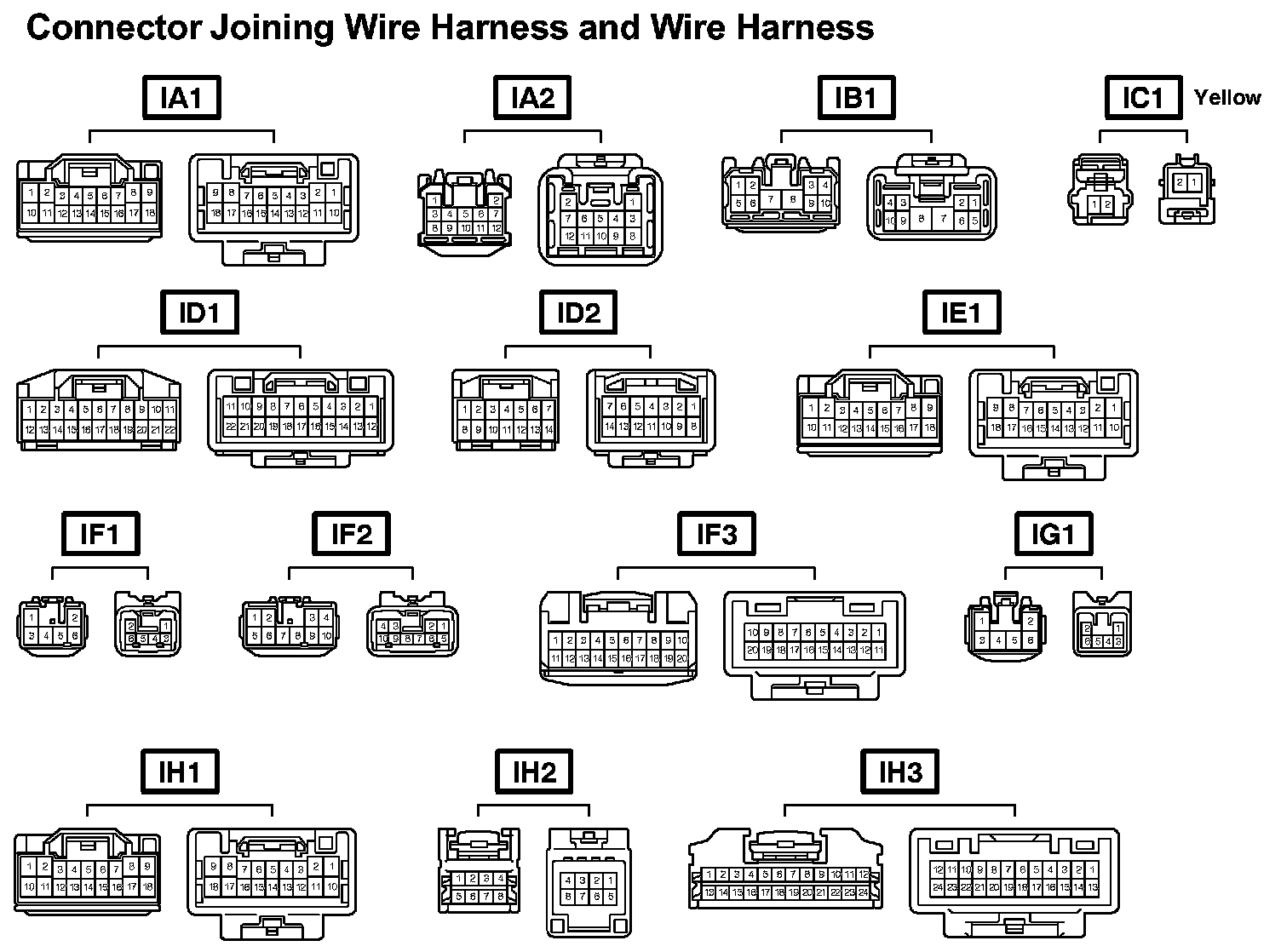

IA1 - IH3:

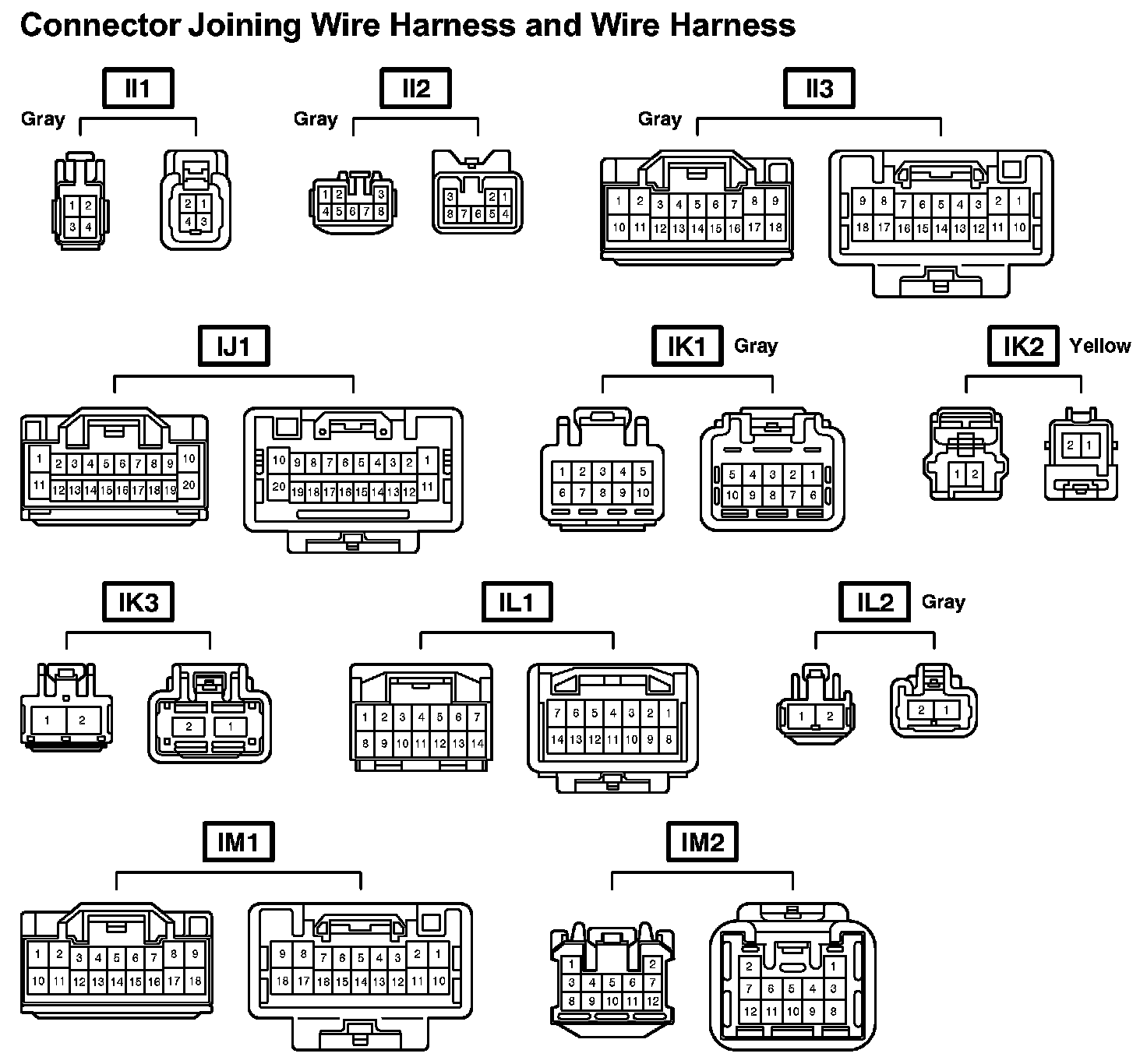

II1 - IM2:

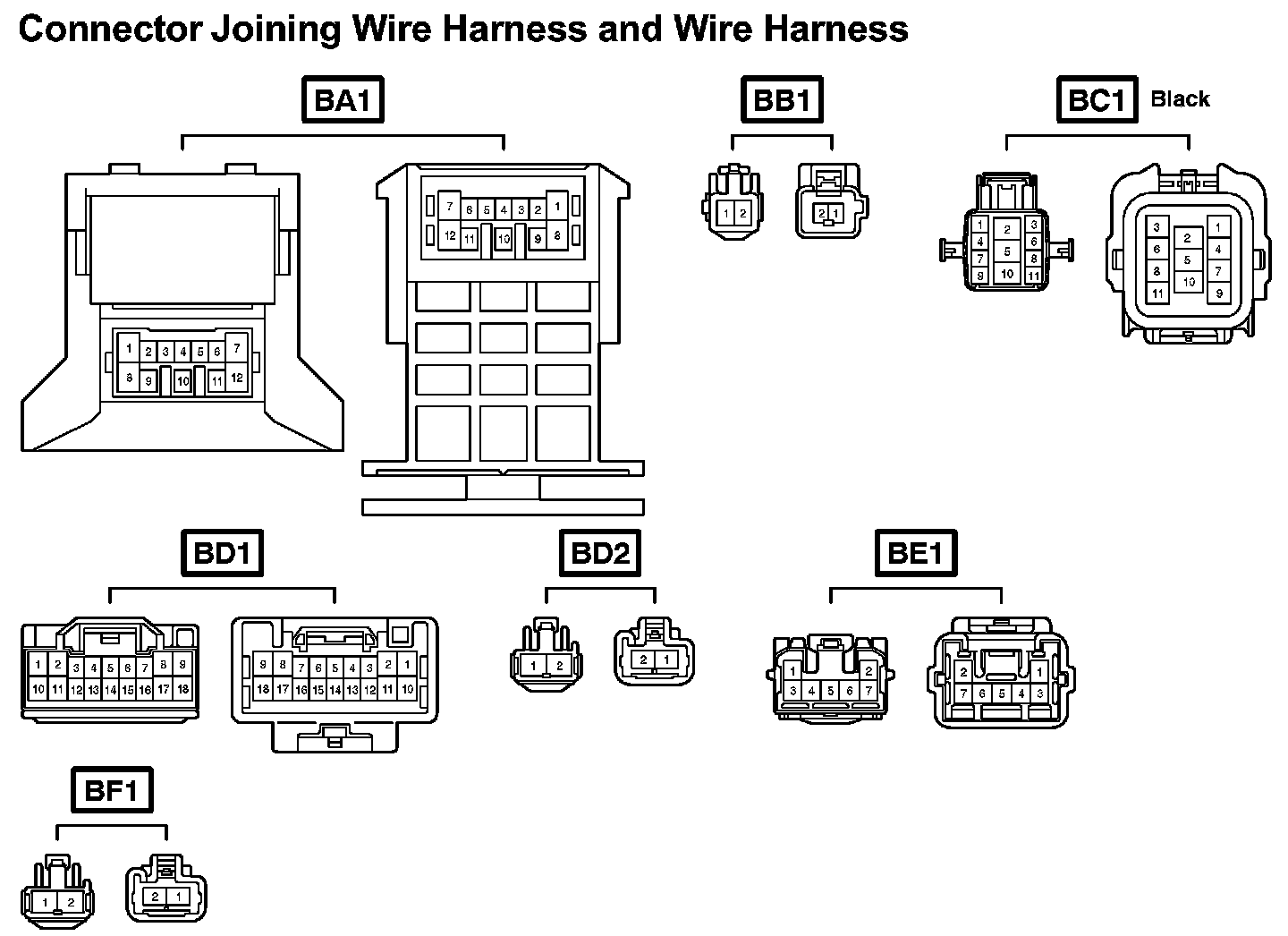

BA1 - BF1:
BG1 - BK2:

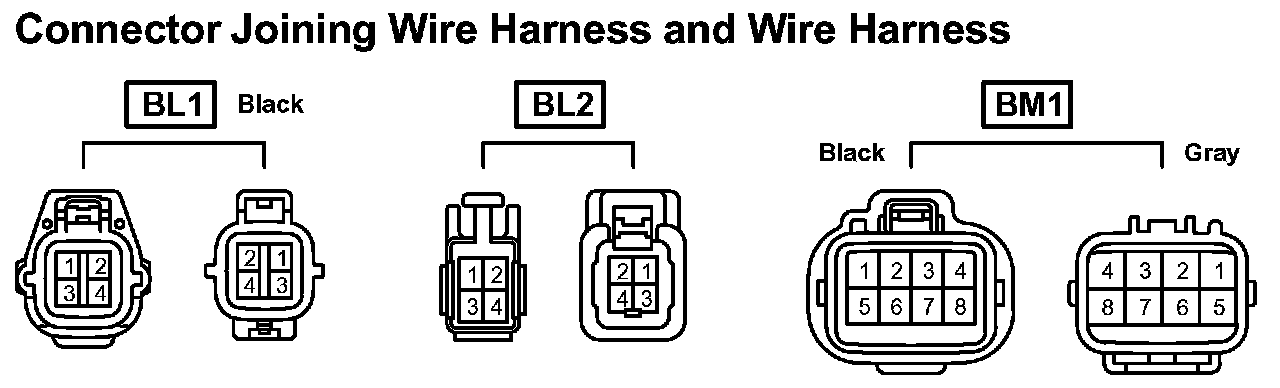

BL1 - BM1:
