Home >> Toyota >> 2004 >> Sienna AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Headlamp

Headlamp

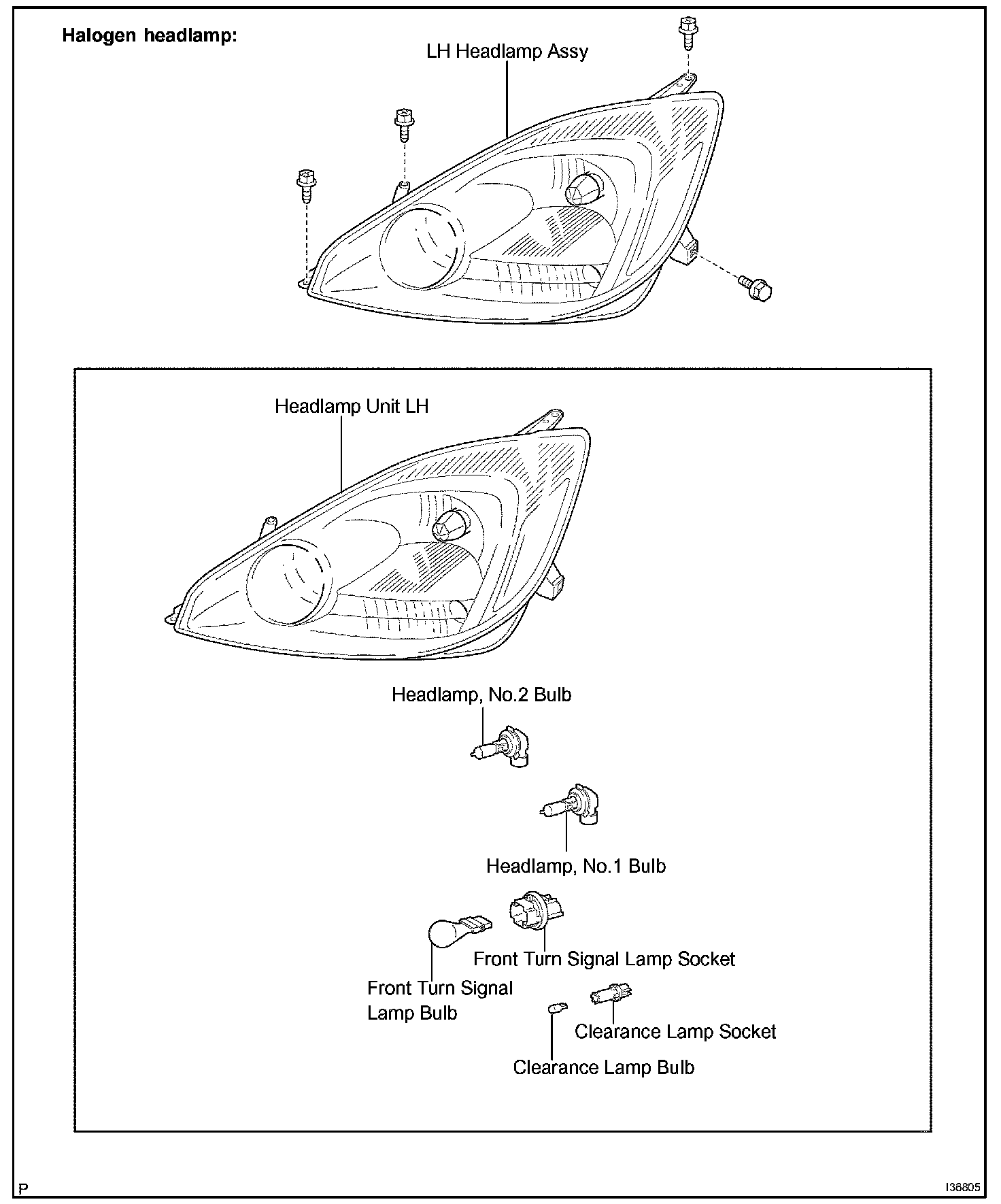

LH Headlamp Assy - Part 1:

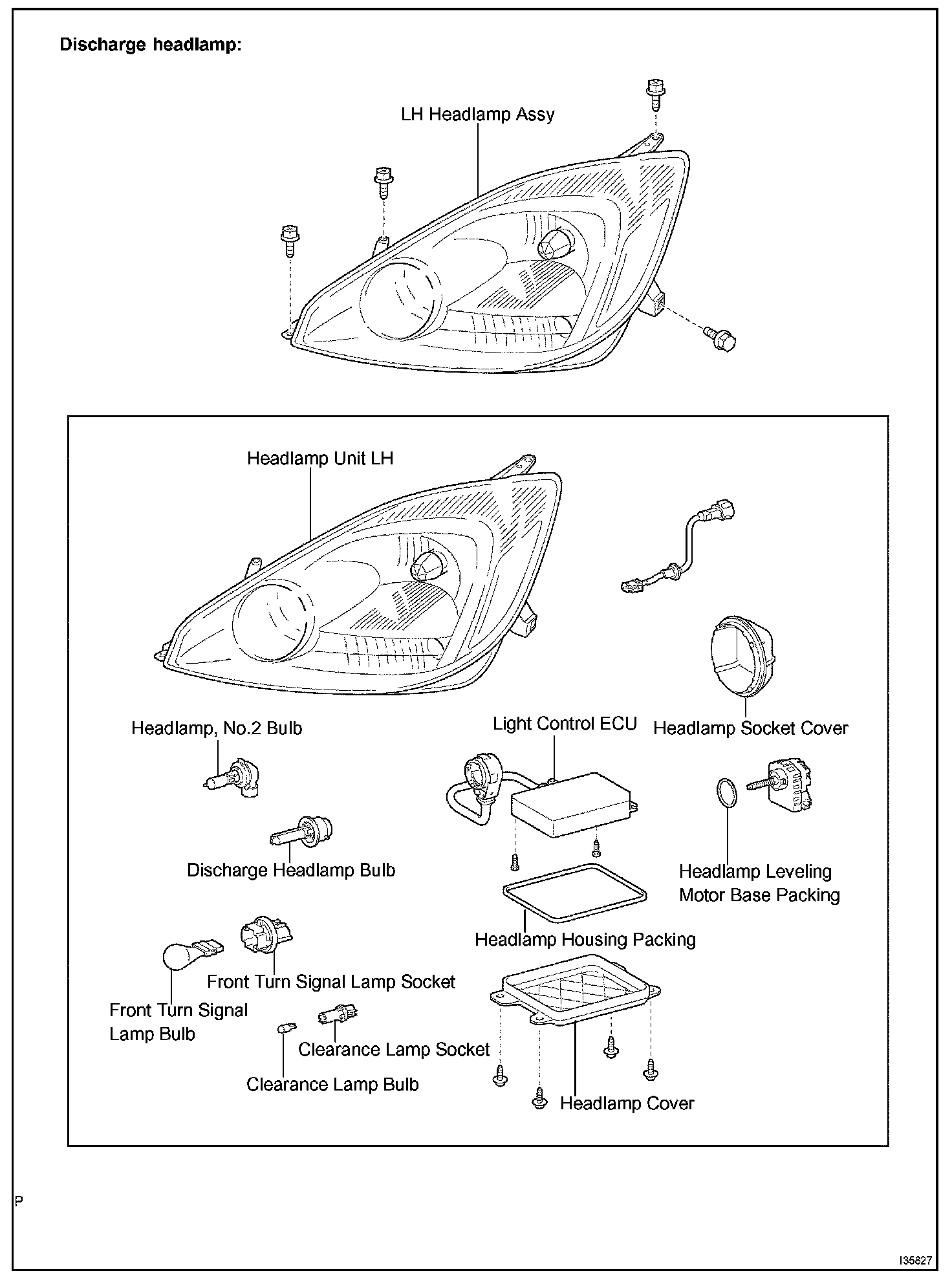

LH Headlamp Assy - Part 2:
