Home
>>
Toyota
>>
2004
>>
Sienna AWD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Blower Motor
Blower Motor

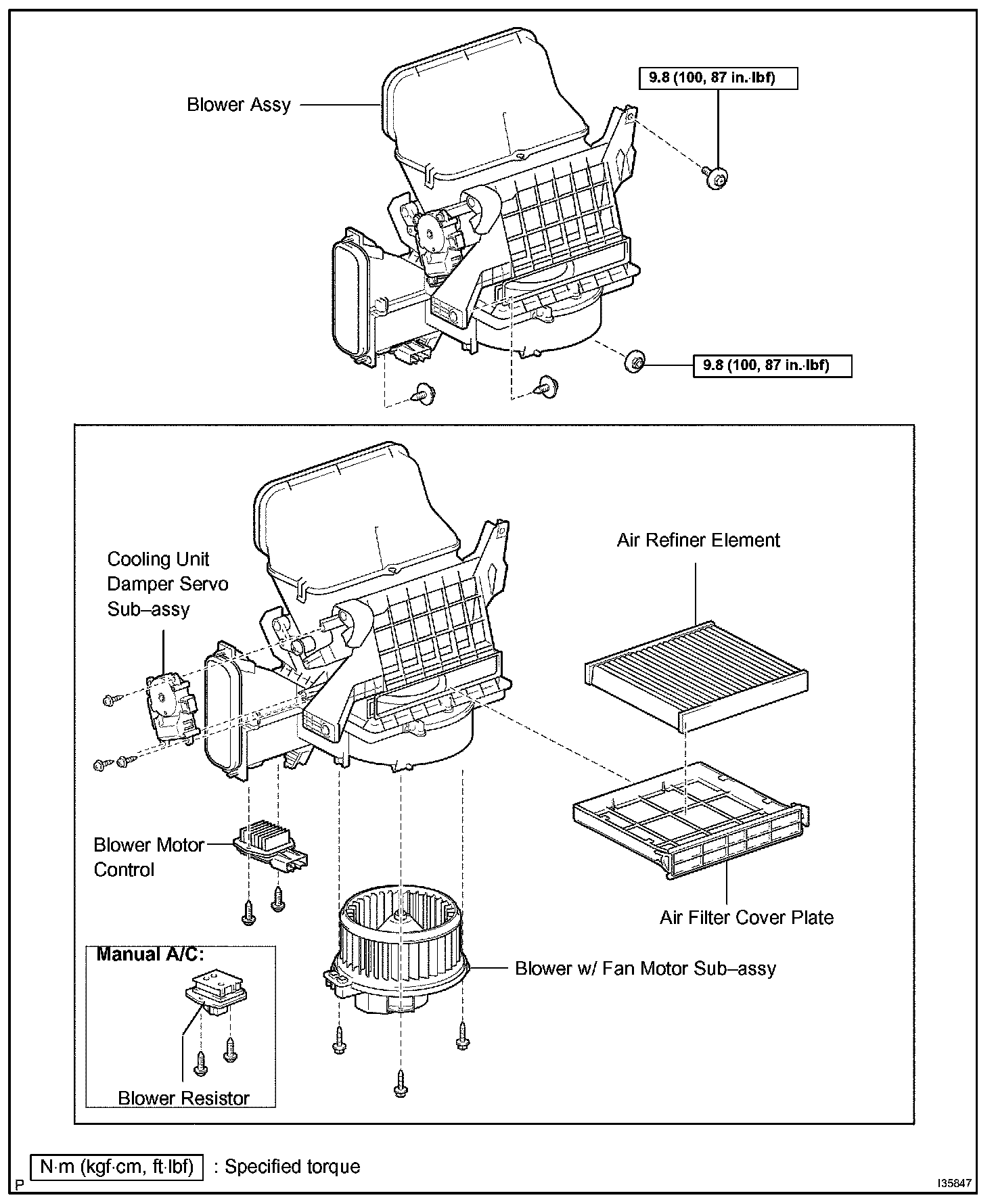

Air Conditioning Blower Assy:
Blower Assy:
