Air Conditioning No.2 Control ASSY

AIR CONDITIONING NO.2 CONTROL ASSY

OVERHAUL




1. REMOVE AIR CONDITIONING NO.2 CONTROL ASSY

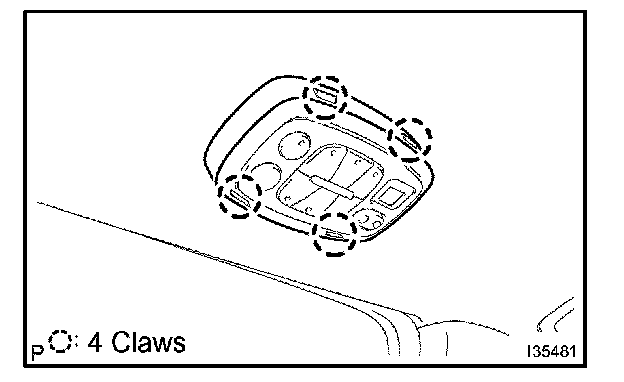

a. Release the 4 claw fittings and release the air conditioning No.2 control assy.
b. Disconnect the connectors and remove the air conditioning No.2 control assy.




2. REMOVE CONTROL KNOB SUB-ASSY (MANUAL AIR CONDITIONING)
a. Remove the control knob sub-assy.

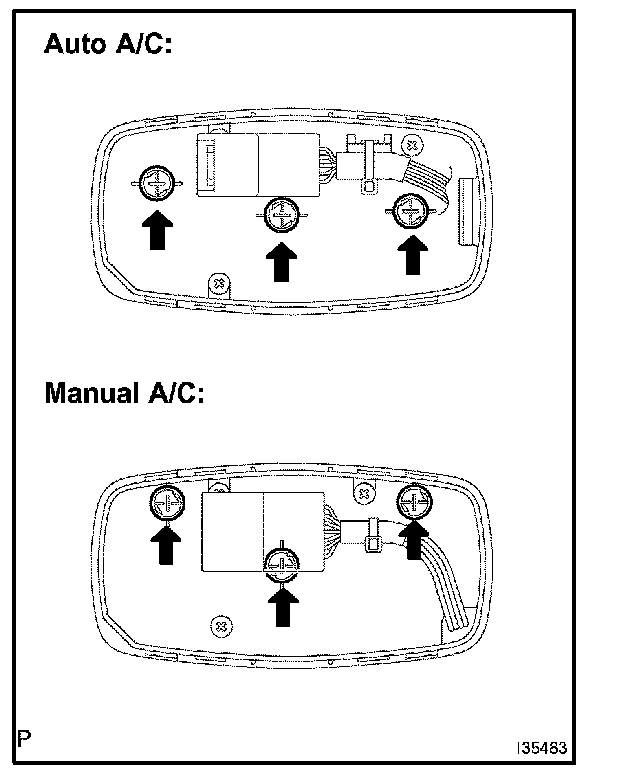

3. REMOVE AIR CONDITIONING CONTROL BULB
a. Remove the air conditioning control bulb.
