Home >> Toyota >> 2004 >> Sienna AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations

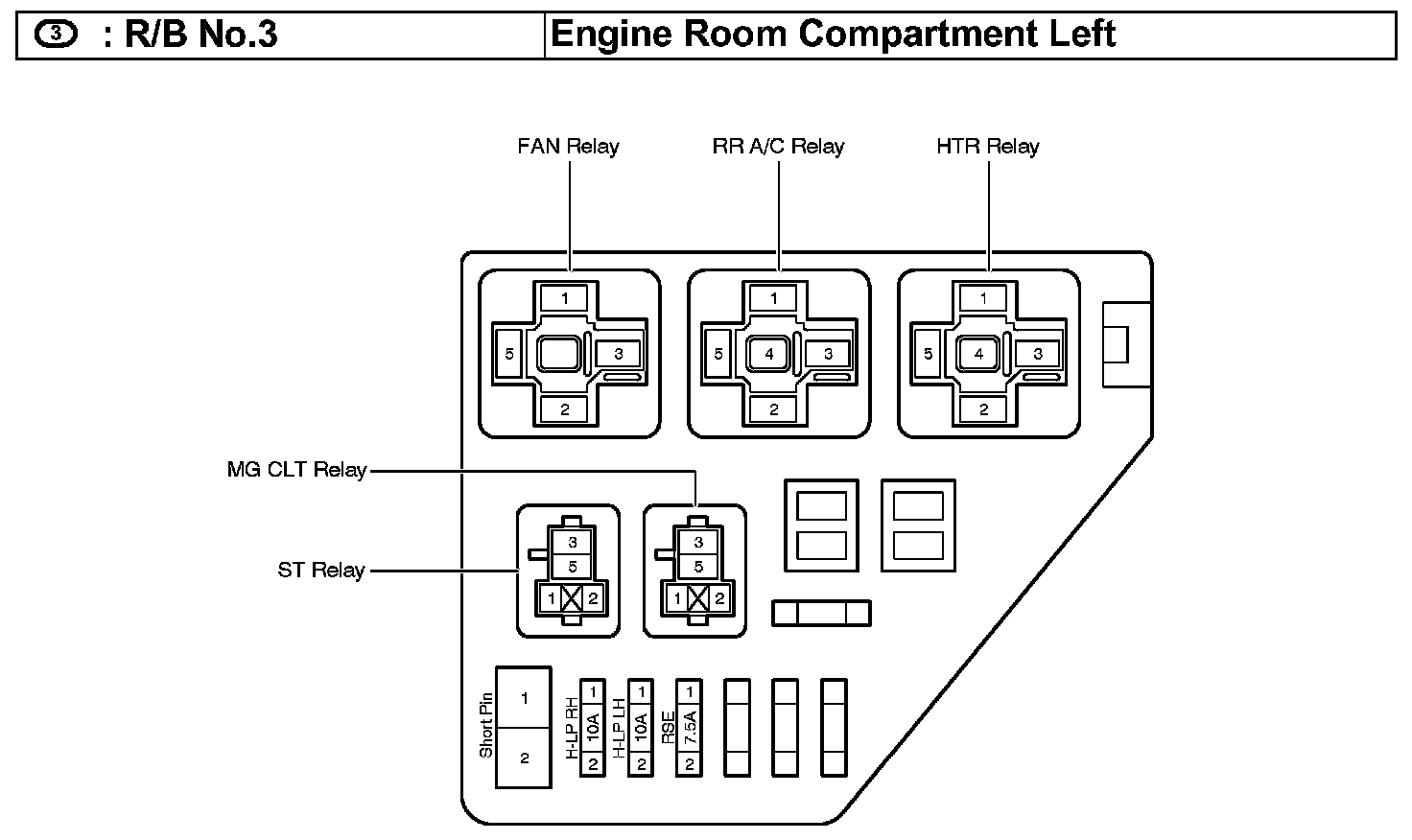

R/B No.3 - Engine Room Compartment Left:
