Locations
>>
Connector Locations
Connector Locations

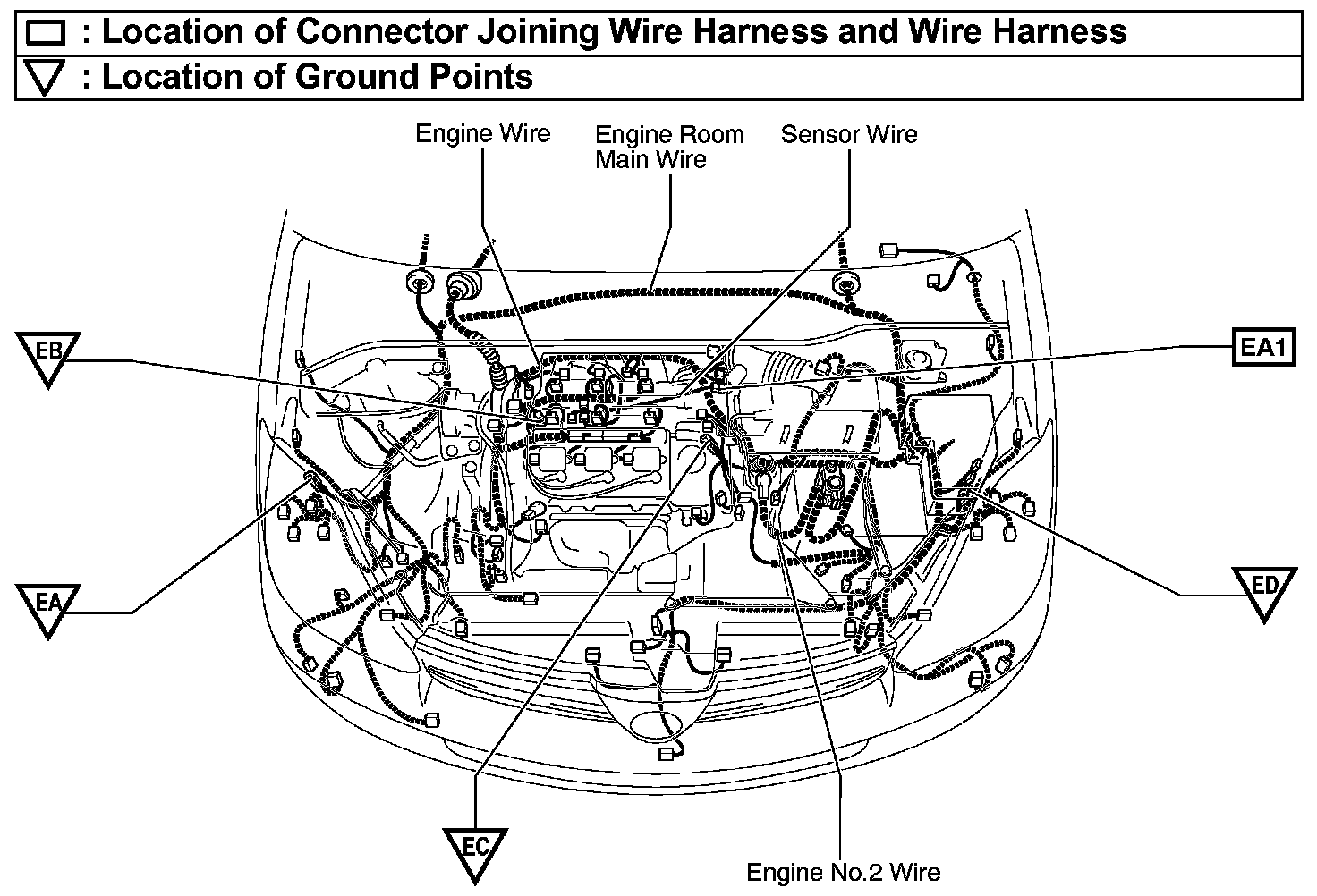

EA1, EA - ED:

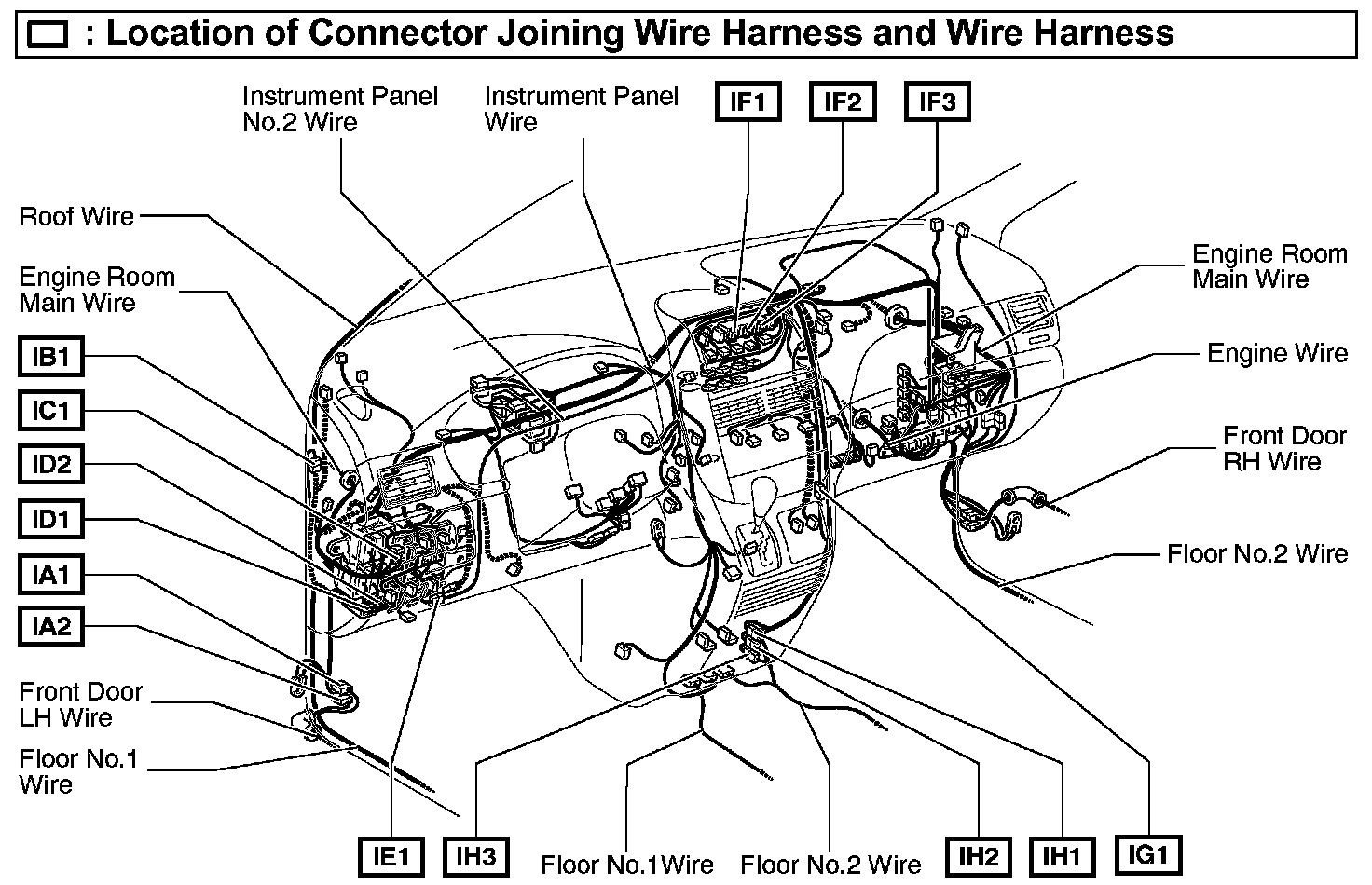

IA1 - IH3:

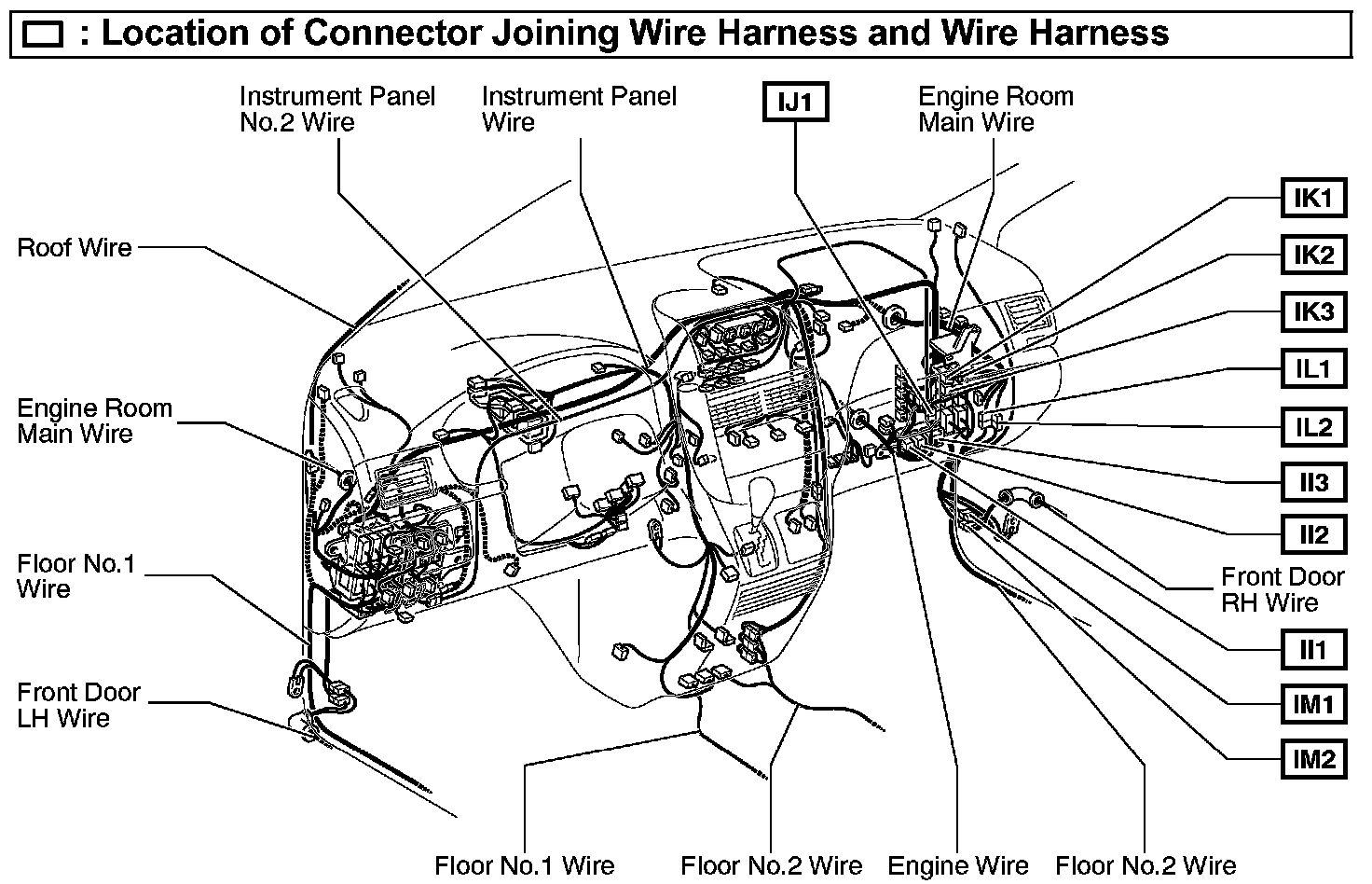

II1 - IM2:

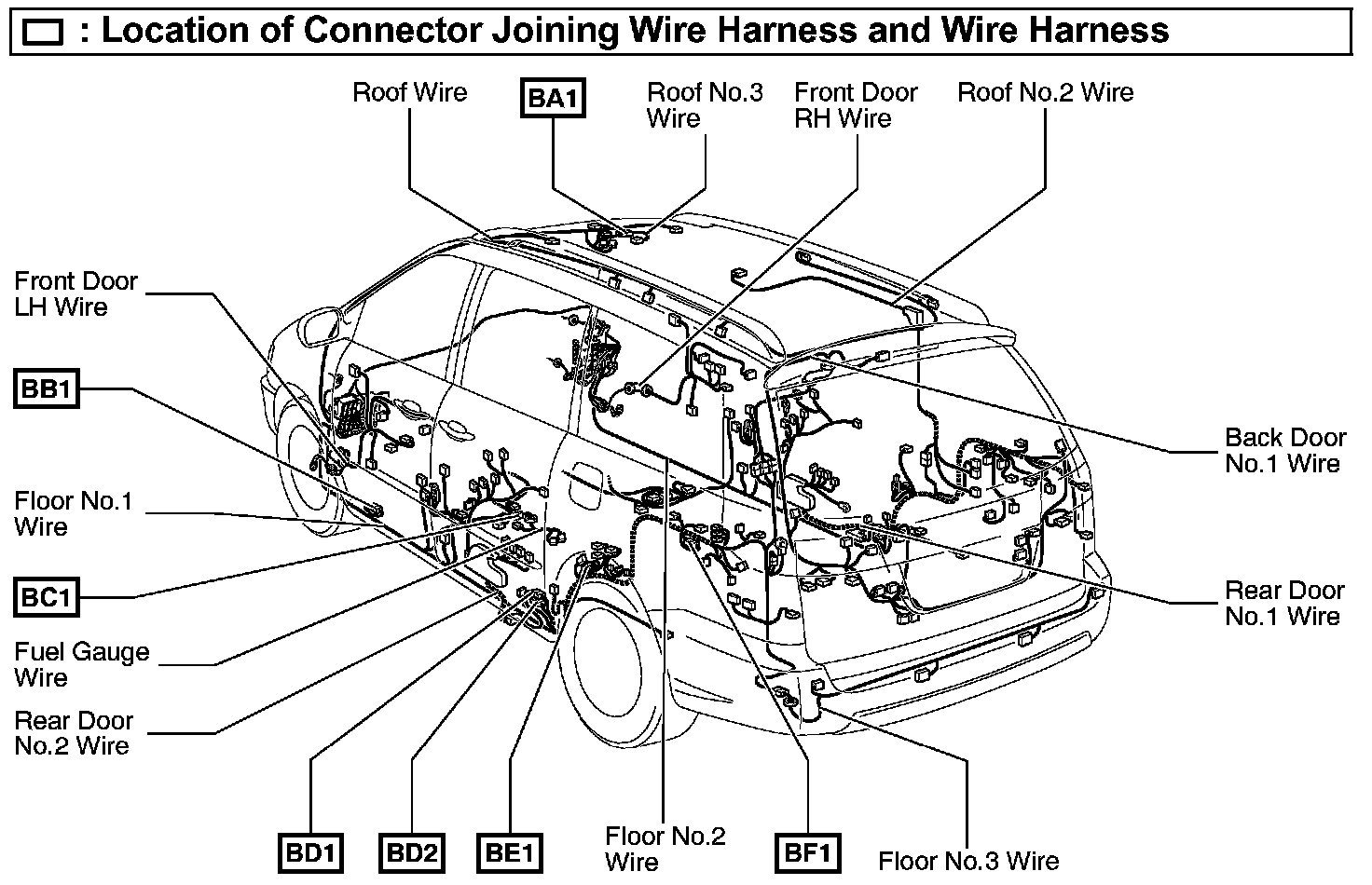

BA1 - BF1:

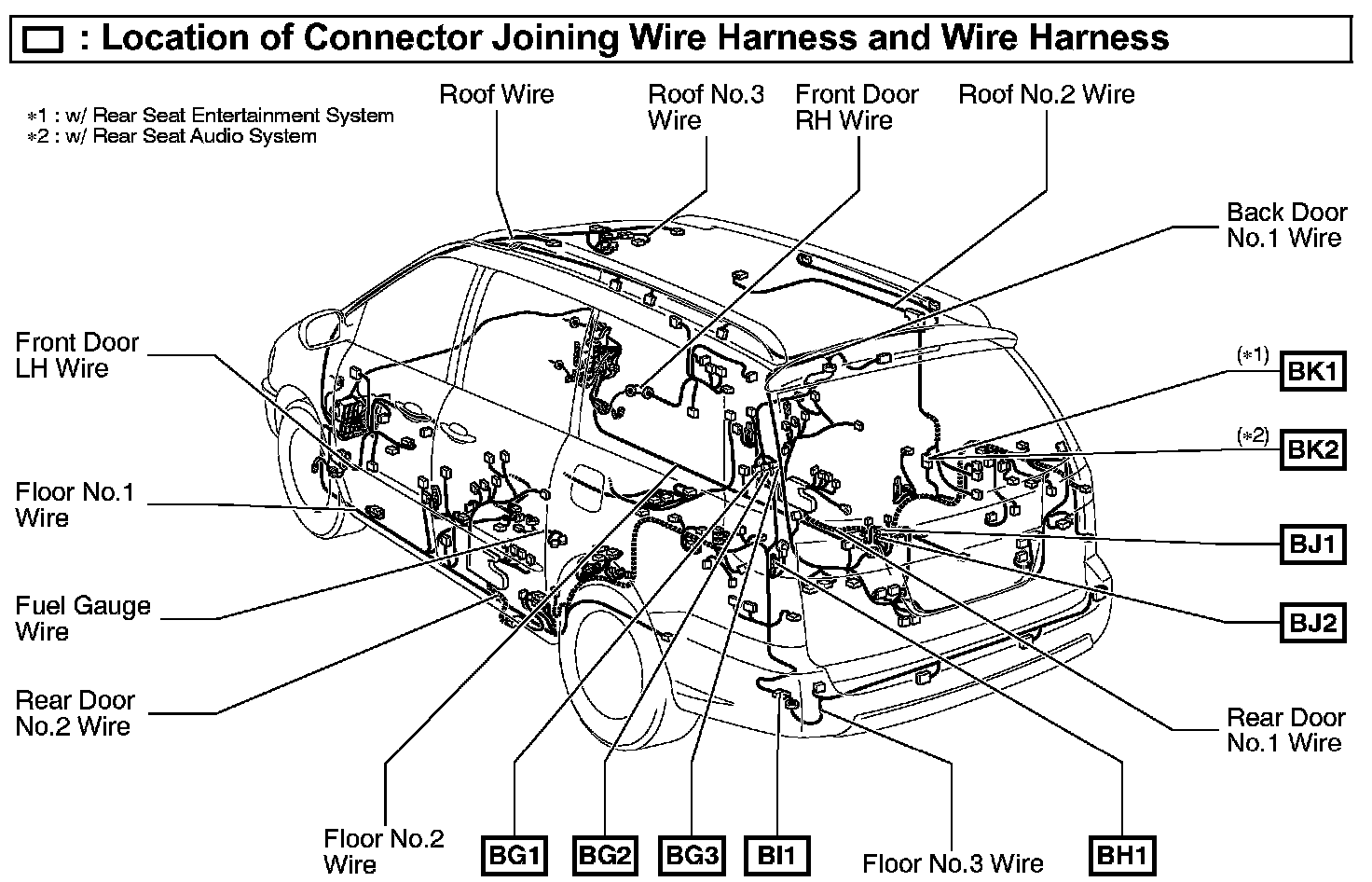

BG1 - BK2:

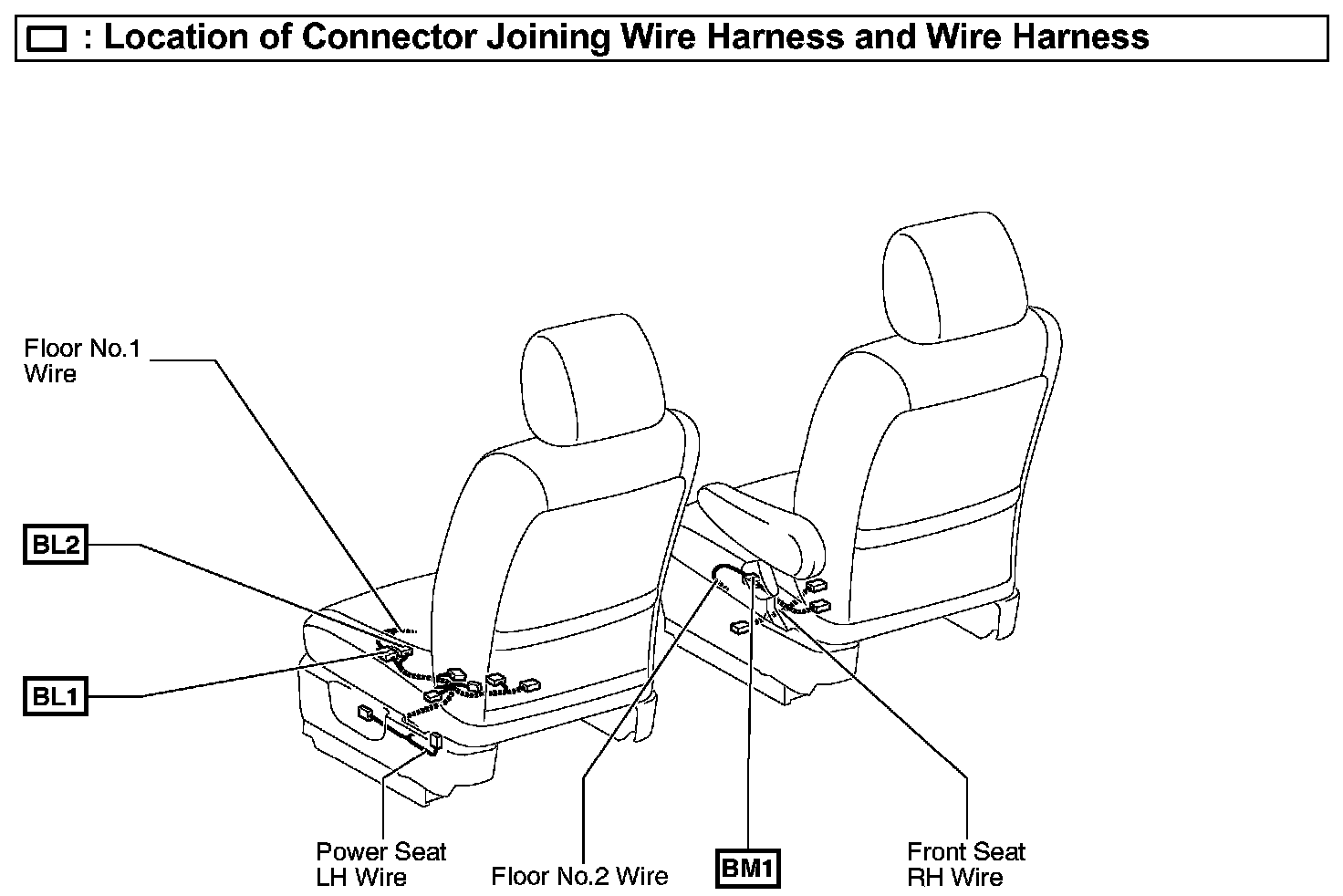

BL1 - BM1:
