Fuse Block: Locations

Engine Room J/B - Engine Room Compartment Left:

R/B No.3 - Engine Room Compartment Left:

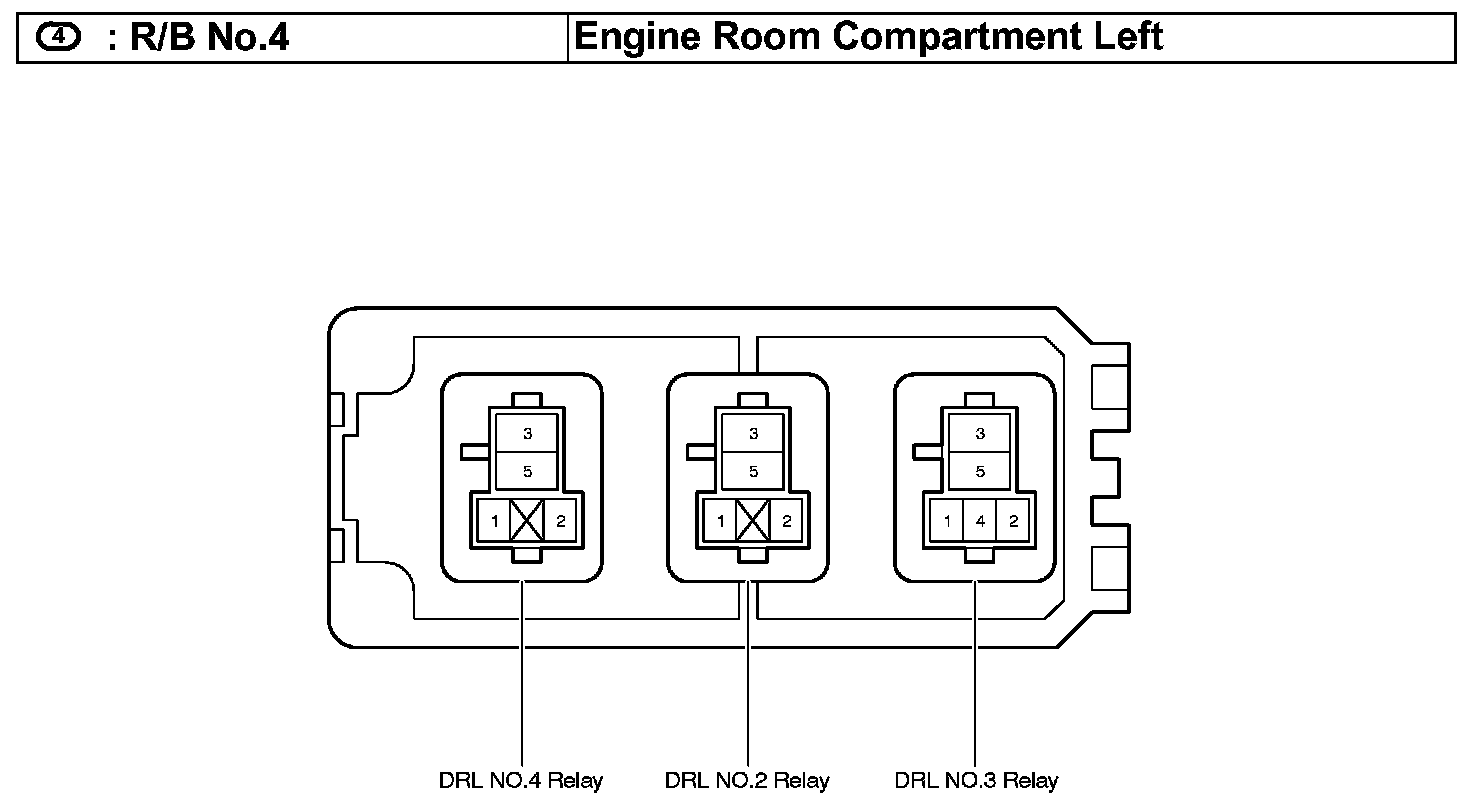

R/B No.4 - Engine Room Compartment Left:

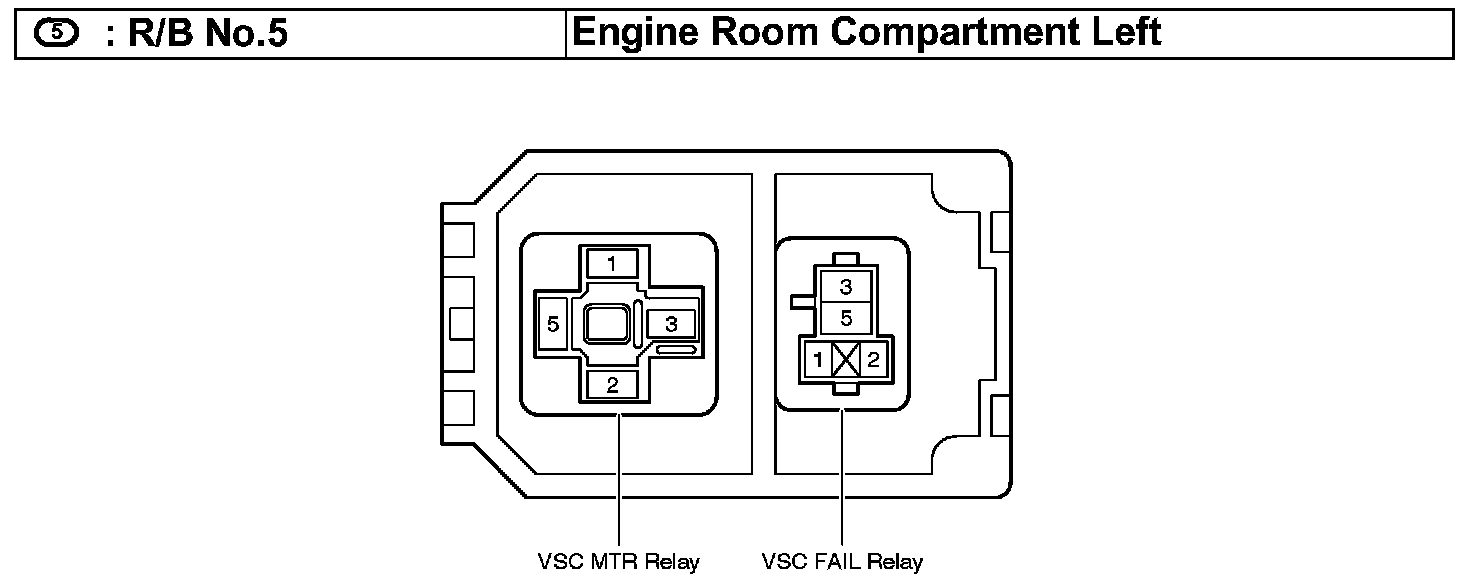

R/B No.5 - Engine Room Compartment Left:

R/B No.6 - Engine Room Compartment Left:

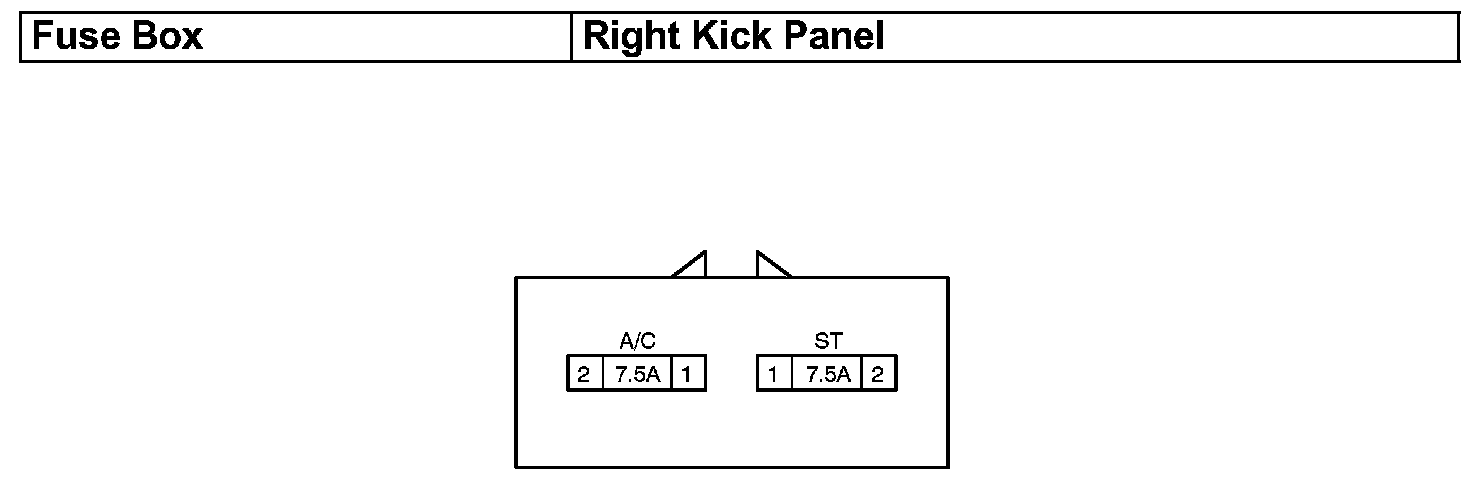

Fuse Box - Right Kick Panel:

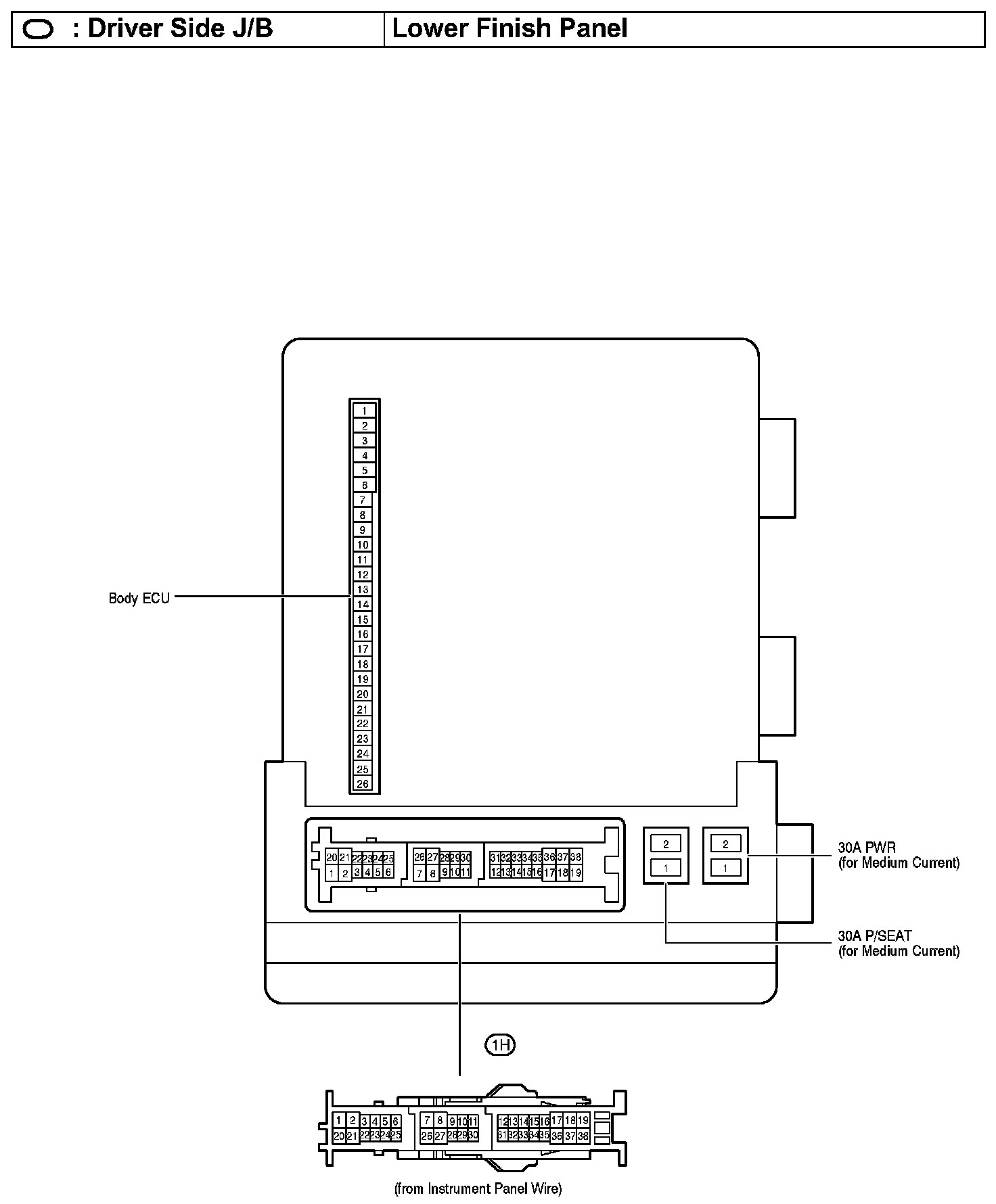

Driver Side J/B - Lower Finish Panel:

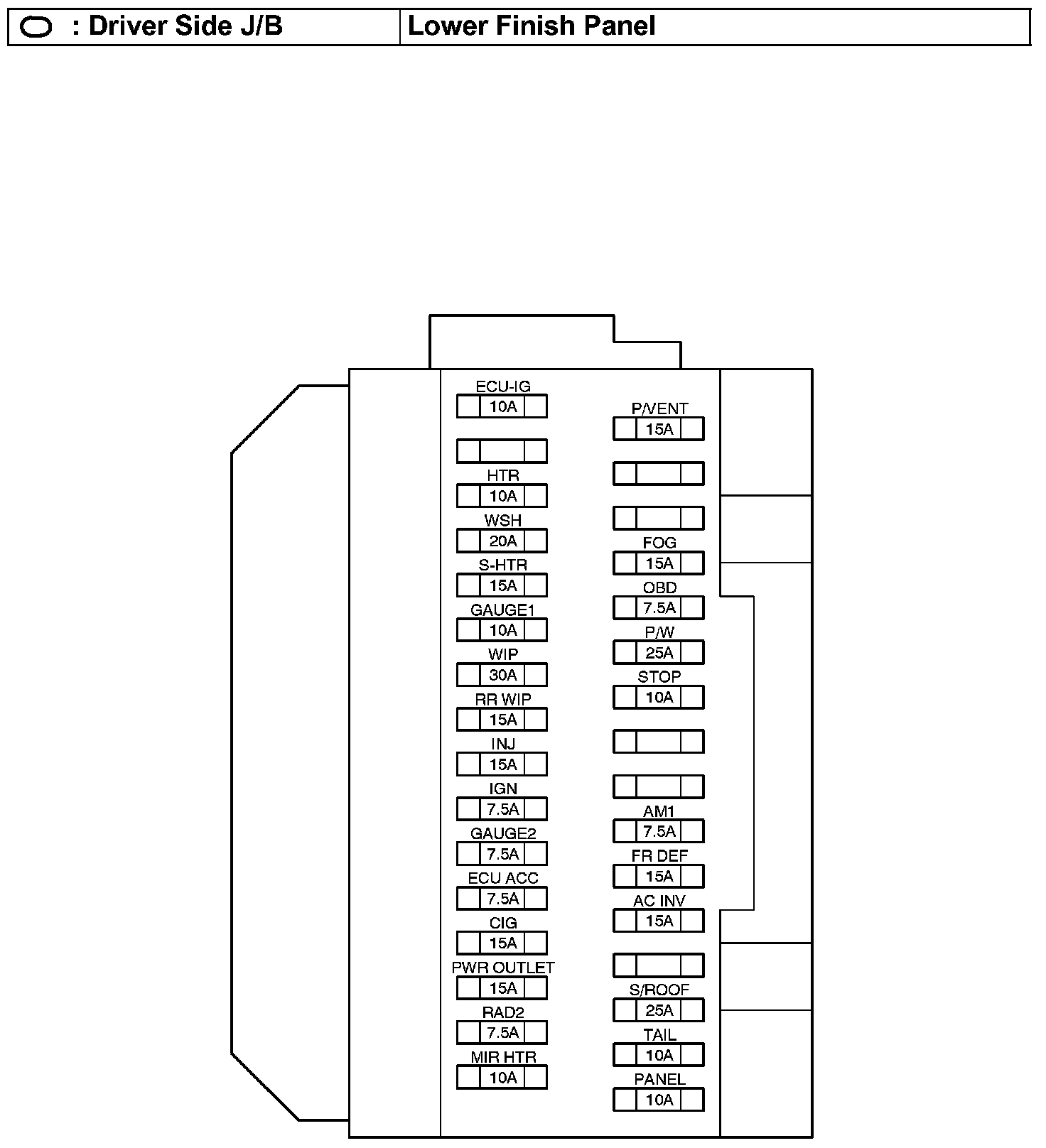

Driver Side J/B - Lower Finish Panel:

Driver Side J/B - Lower Finish Panel:

Engine Compartment:

Instrument Panel:

Body:
