Home >> Toyota >> 2004 >> Sienna AWD V6-3.3L (3MZ-FE) >> Repair and Diagnosis >> Power and Ground Distribution >> Locations

Power and Ground Distribution: Locations

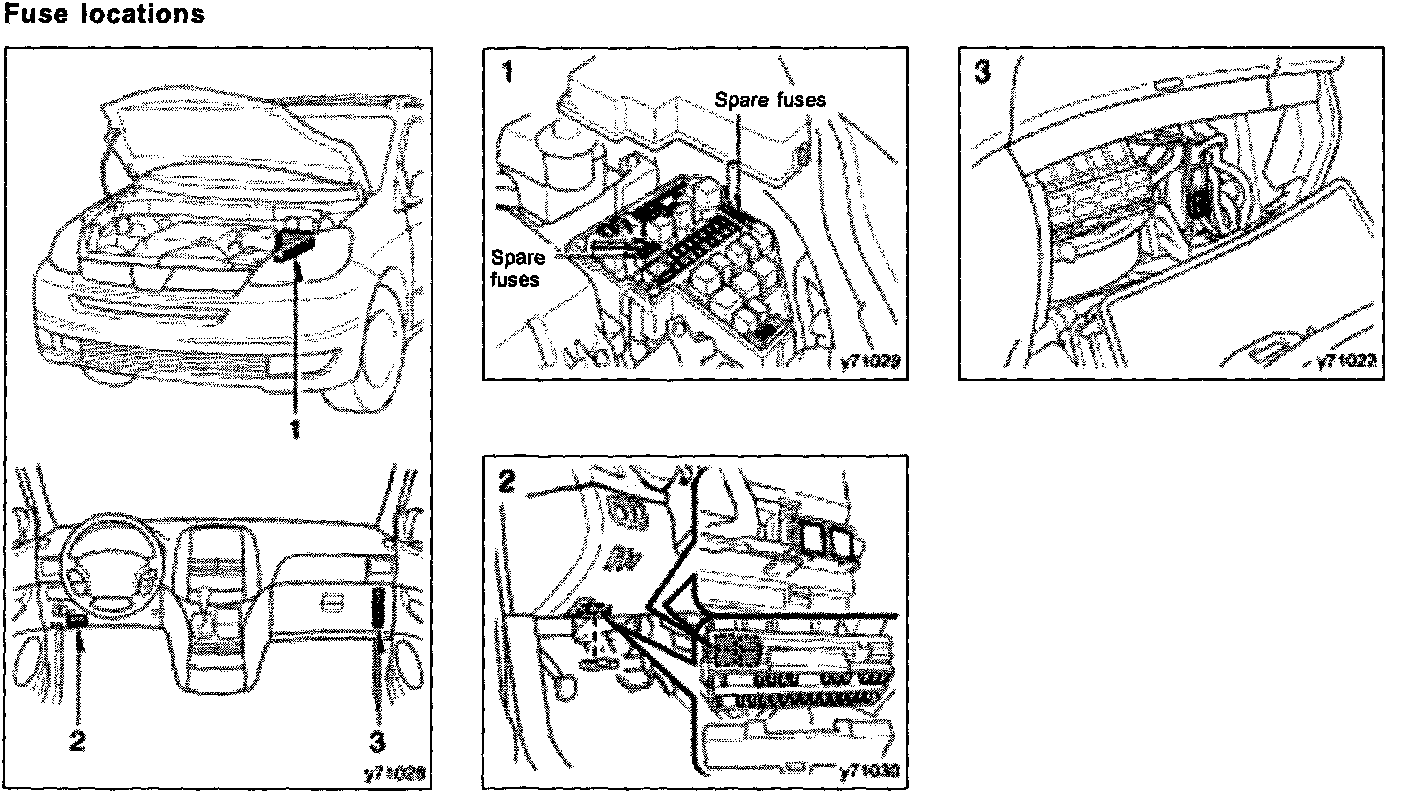

FUSE LOCATIONS

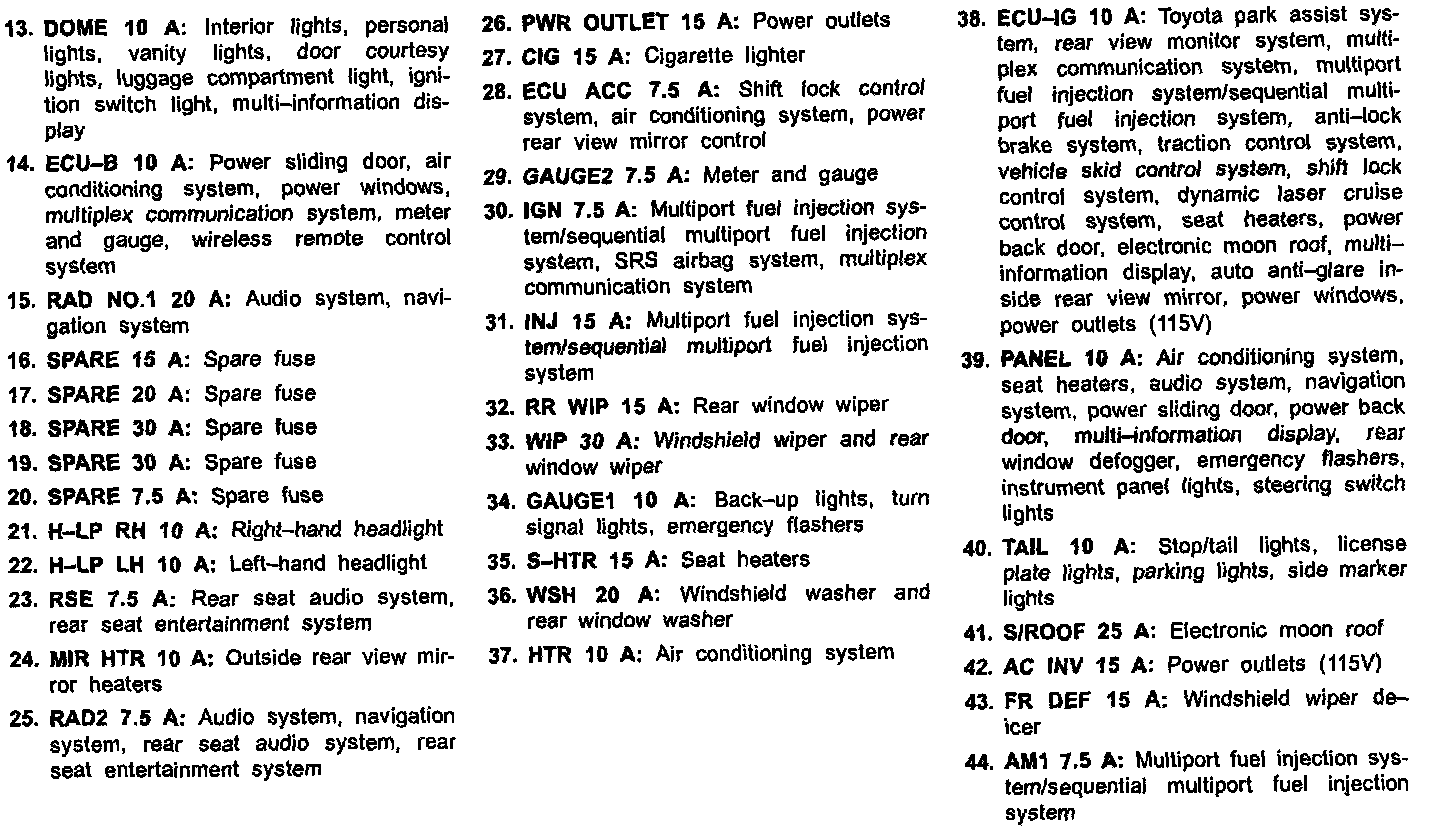

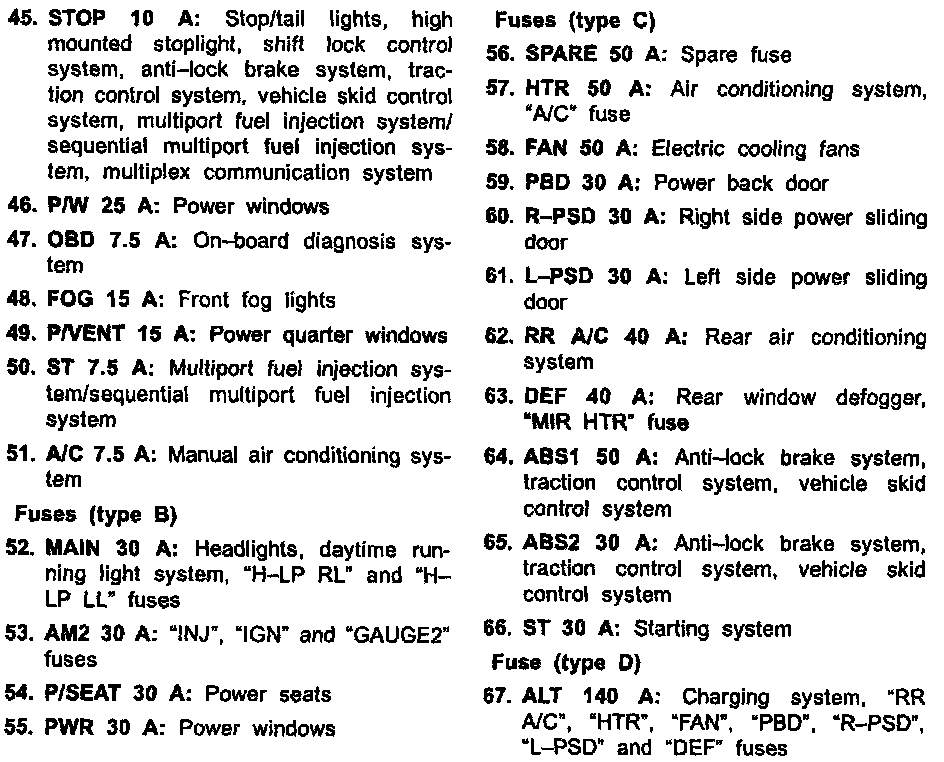

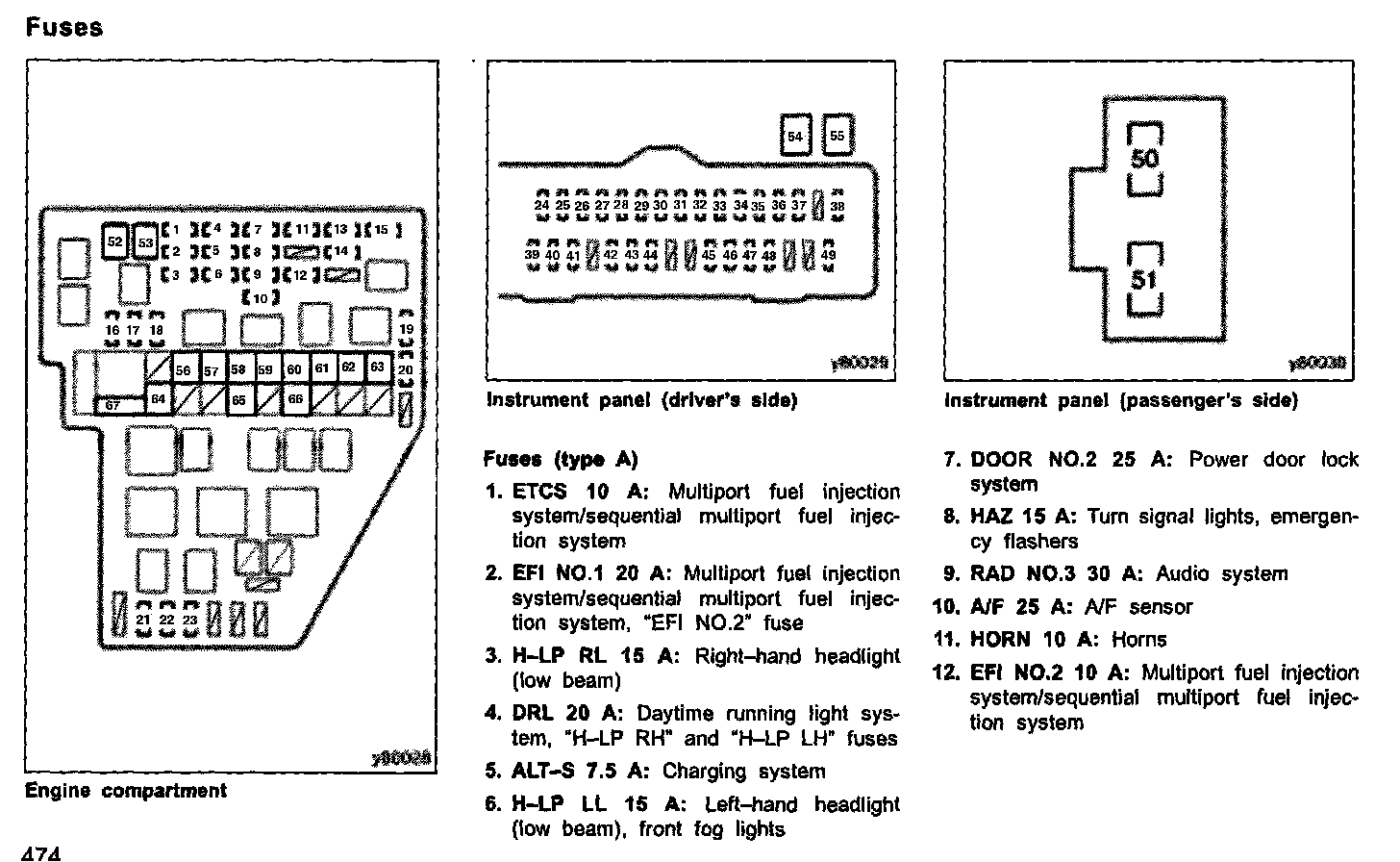

FUSES
