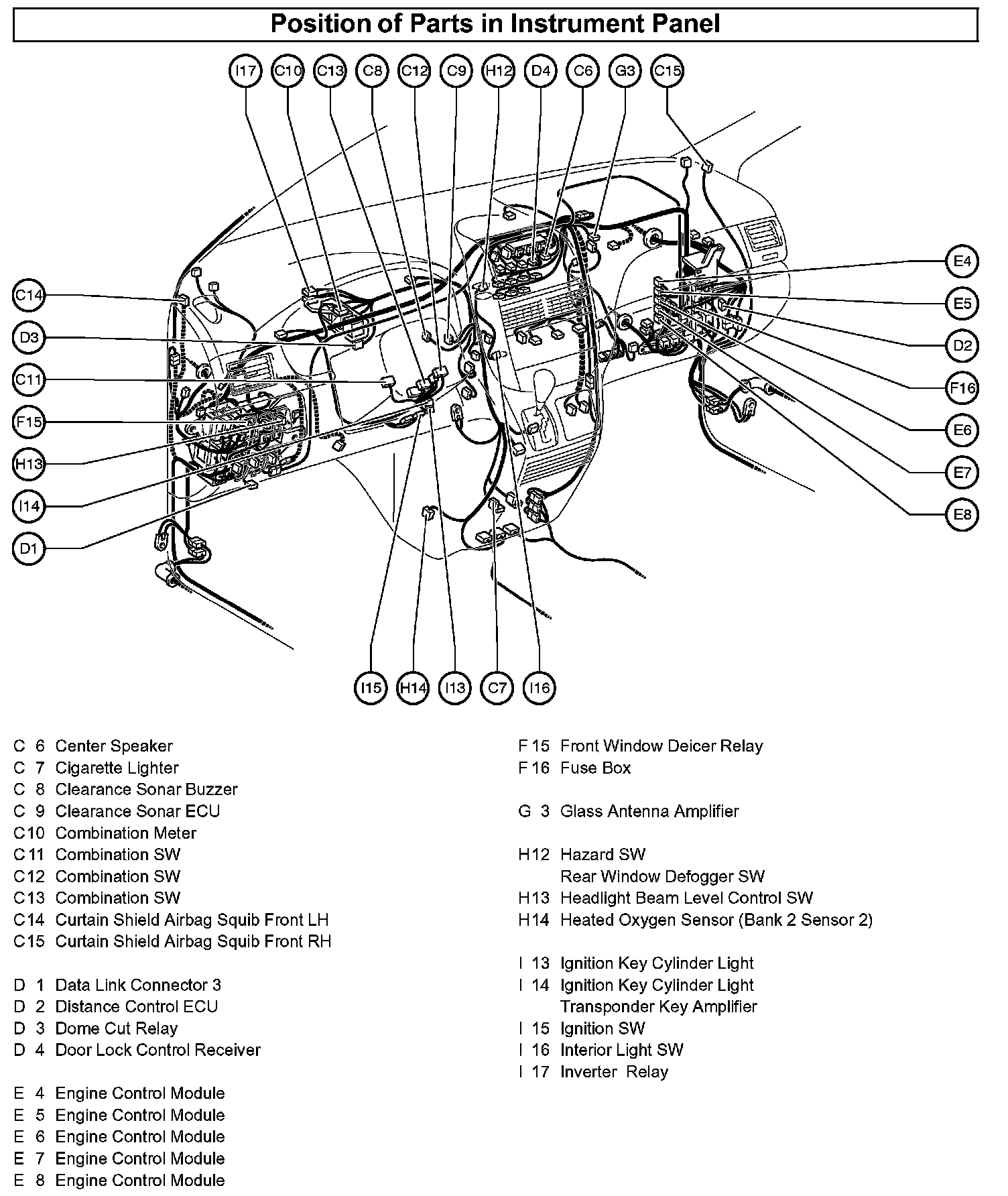

Data Link Connector: Locations

Ce - In:

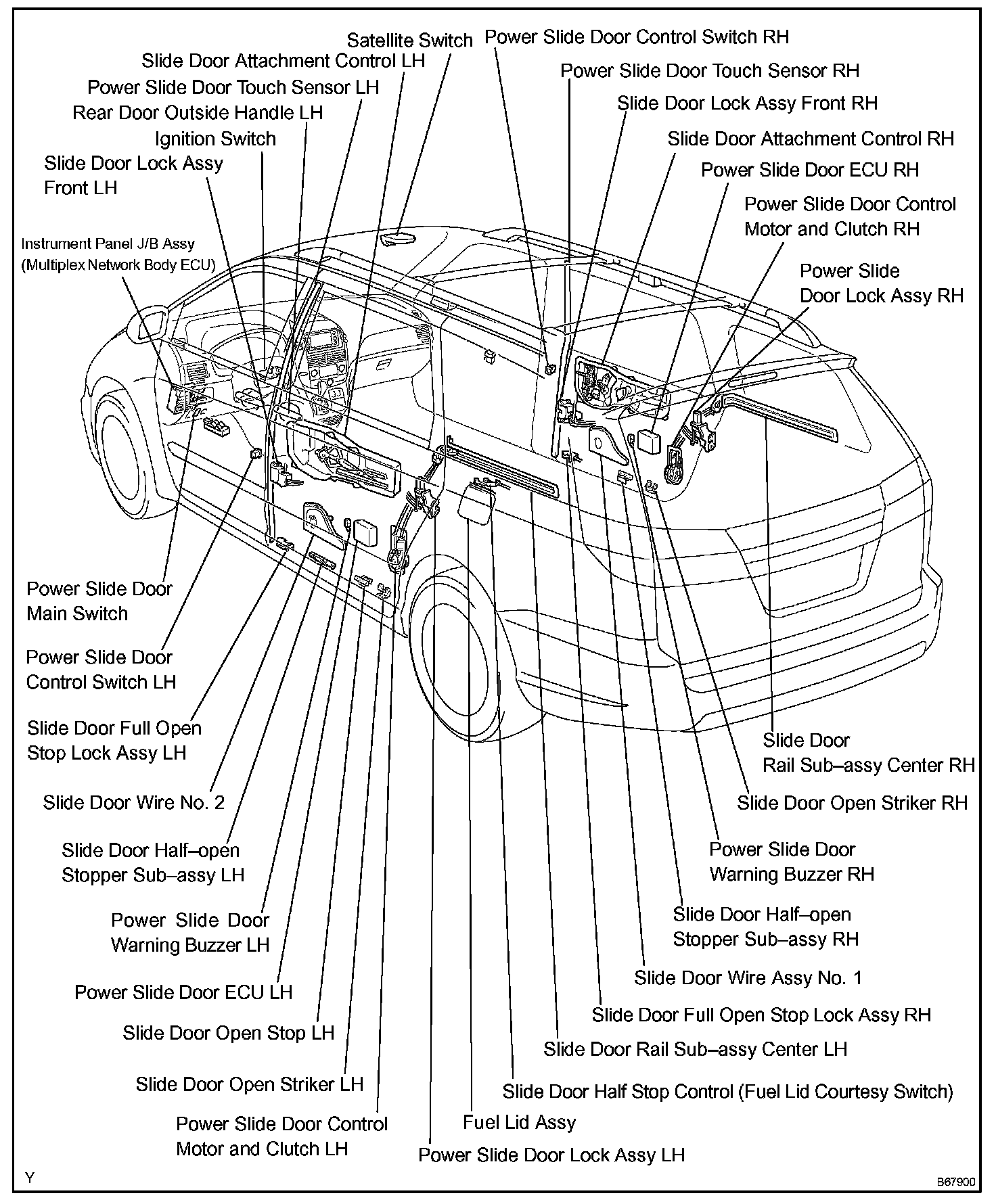

Power Slide Door System:

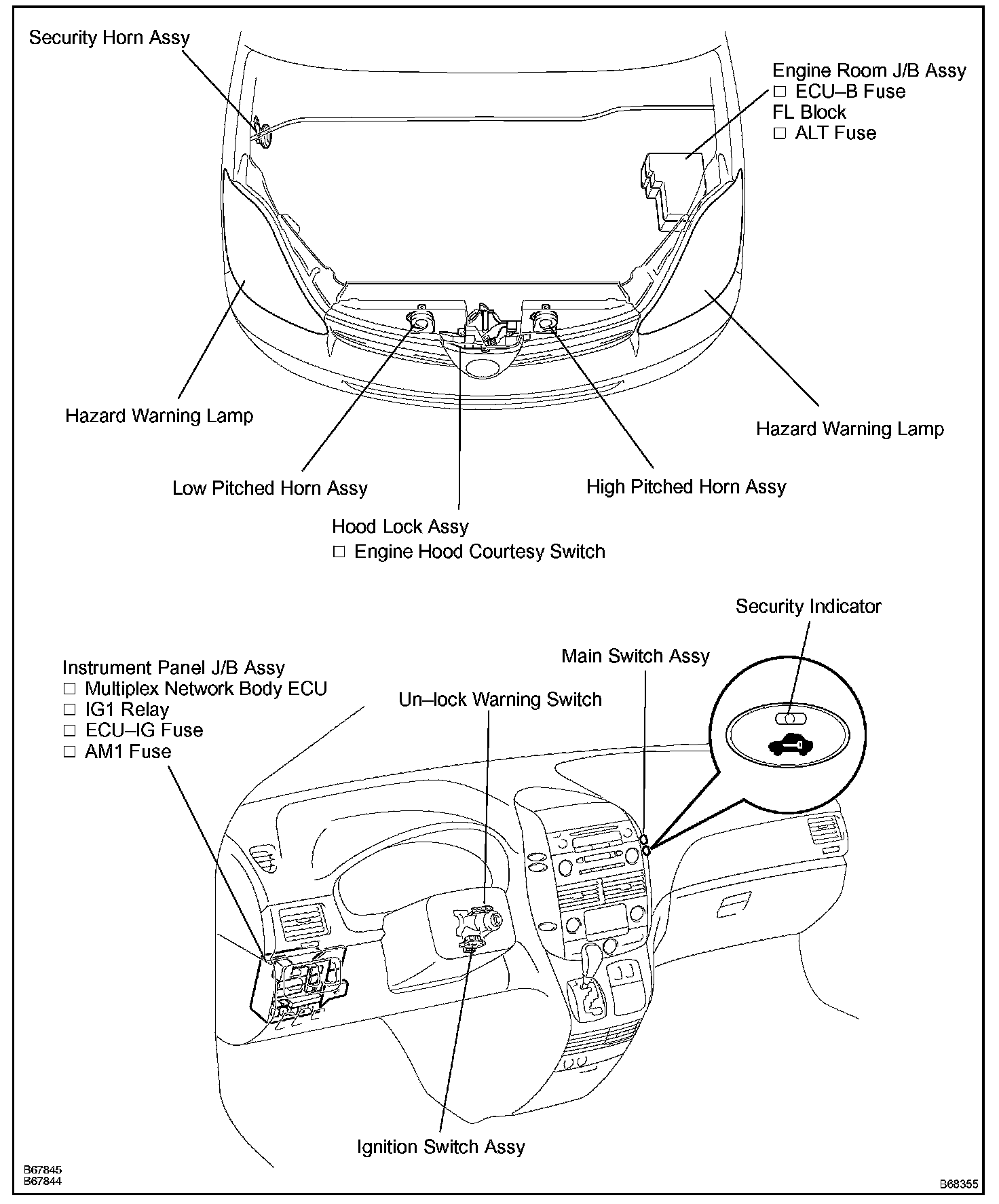

Theft Deterrent System:

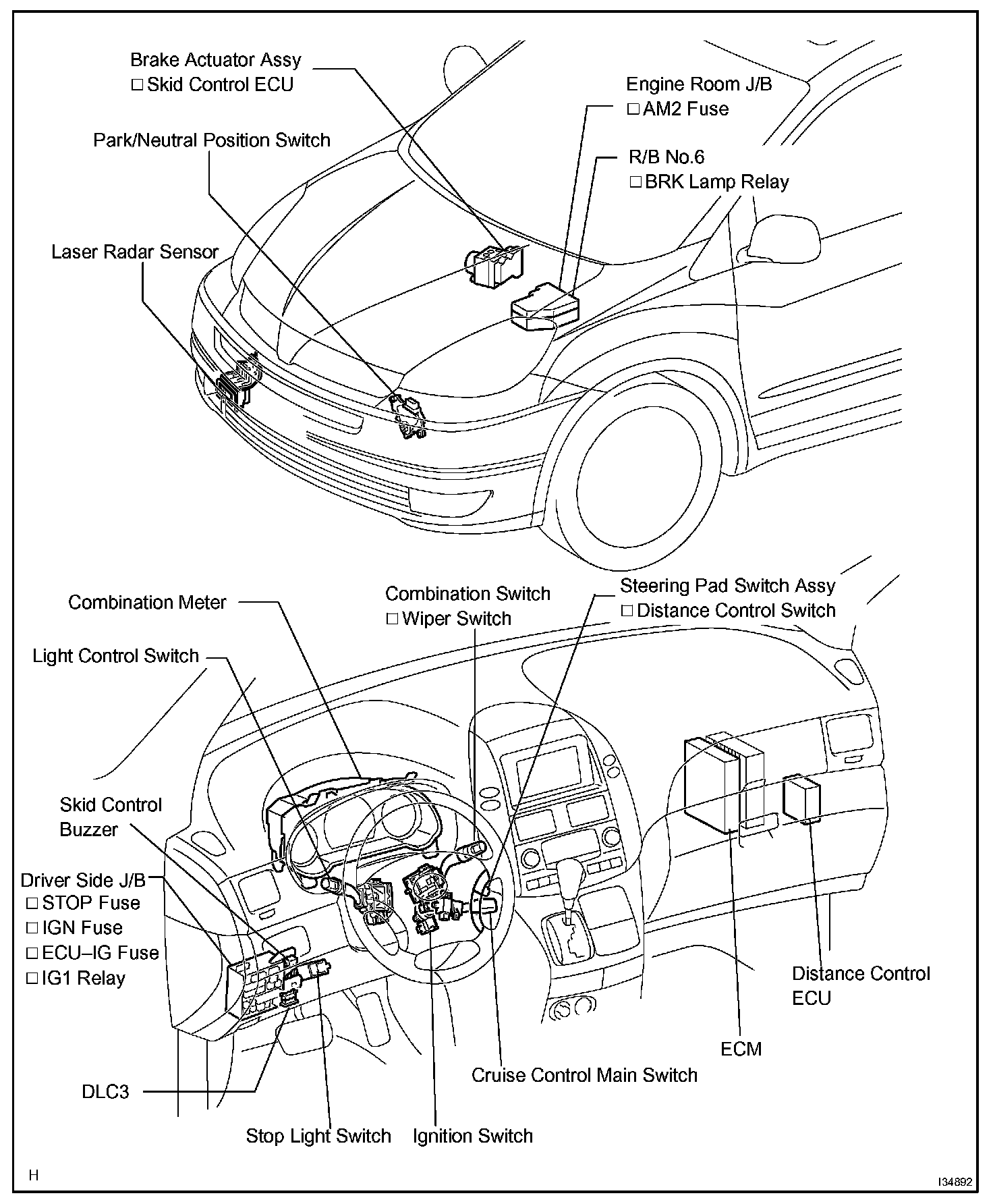

Dynamic Laser Cruise Control System:

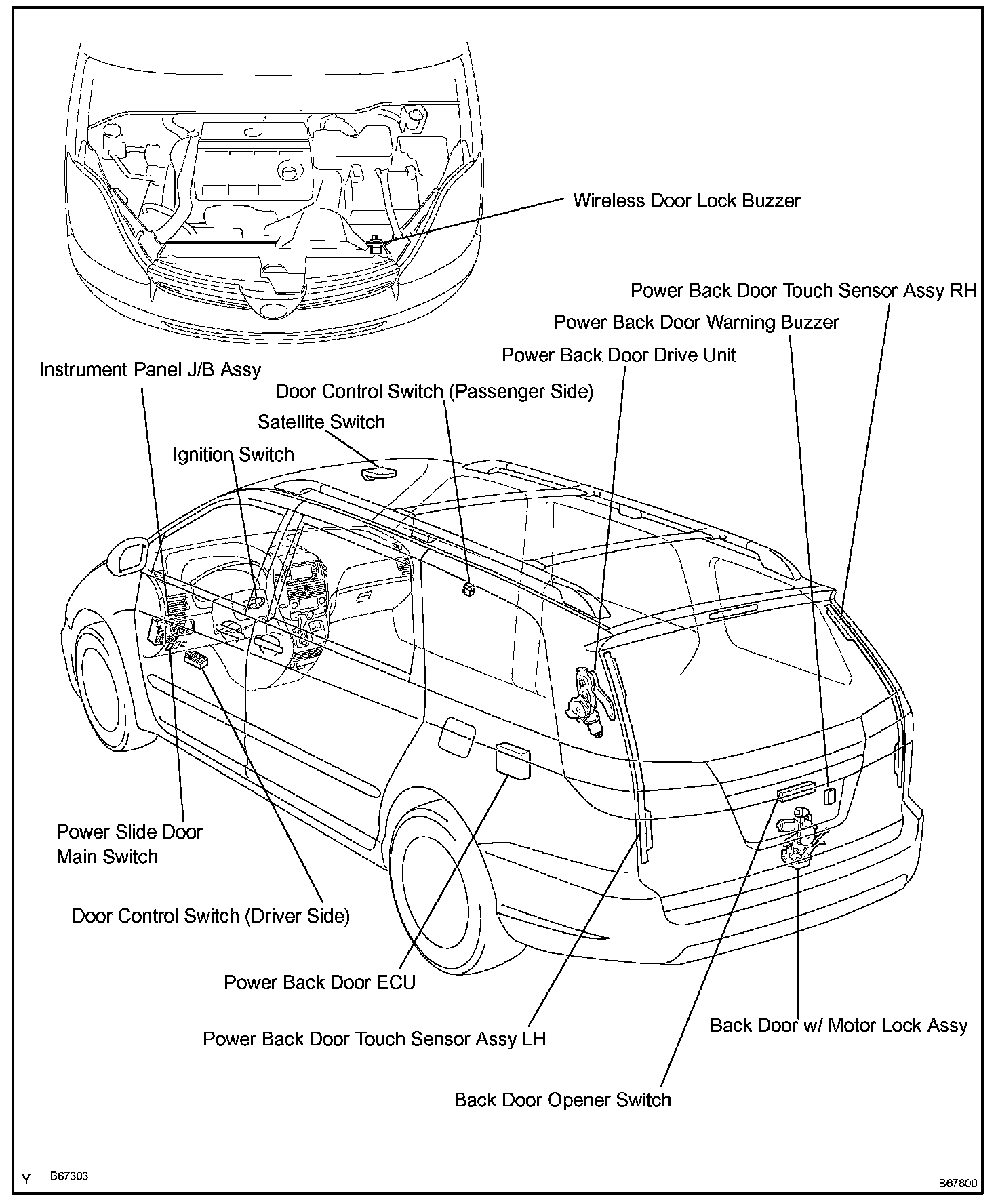

Power Back Door System:
