Canada - Engine, A/T Controls - MIL ON/Multiple DTC's Set

Bulletin
2022

Issue Date
June 23, 2004

Market
Canada

Title:
M.I.L. DTC P0748, P0798, P0985 OR P0986

Model
'04 SIENNA

Some 2004 model year Sienna vehicles may exhibit a M.I.L. "ON" condition with one of the following DTCs:
- P0748 (Pressure Control Solenoid "A" Electrical--SL1 Solenoid)
- P0798 (Pressure Control Solenoid "C" Electrical -- SL3 Solenoid)
- P0985 (Shift Solenoid "E" Control Circuit Low-- SR Solenoid)
- P0986 (Shift Solenoid "E" Control Circuit High -- SR Solenoid)

One of these codes may be stored as a result of Engine Control Module or ECM (SAE Term: Powertrain Control Module/PCM) manufacturing issues. Replacement of ECM will correct this condition.

APPLICABLE VEHICLES:
- 2004 model year Sienna vehicles produced BEFORE the Production Change Effective VINs shown.

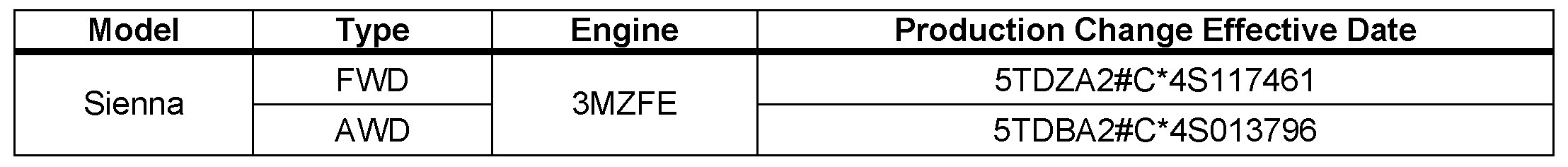

PRODUCTION CHANGE INFORMATION:

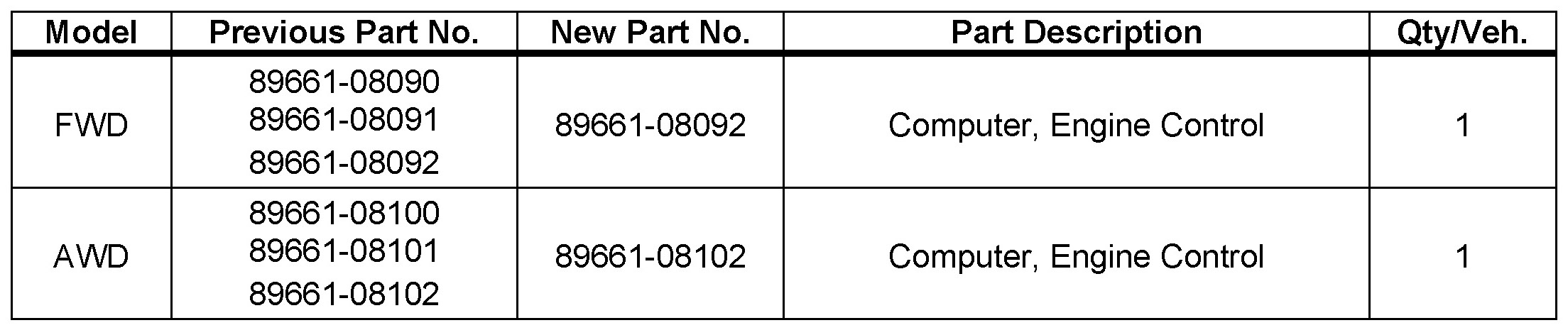

PARTS INFORMATION:

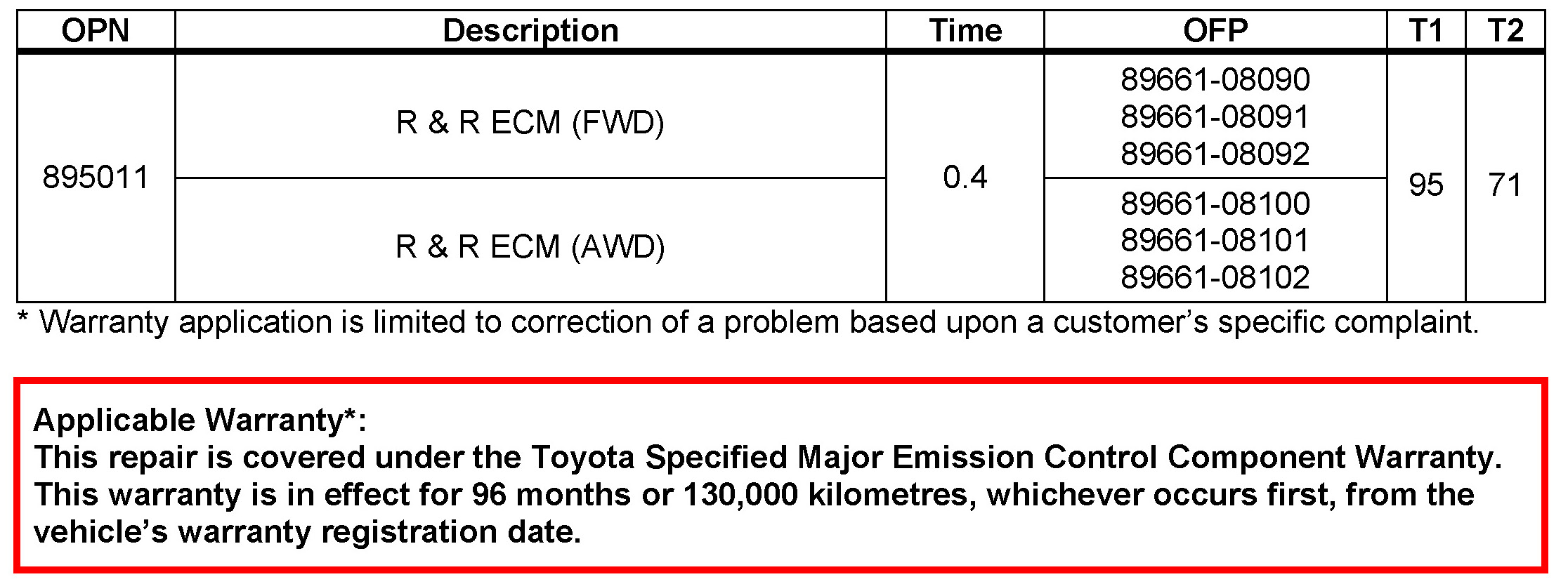

WARRANTY INFORMATION:

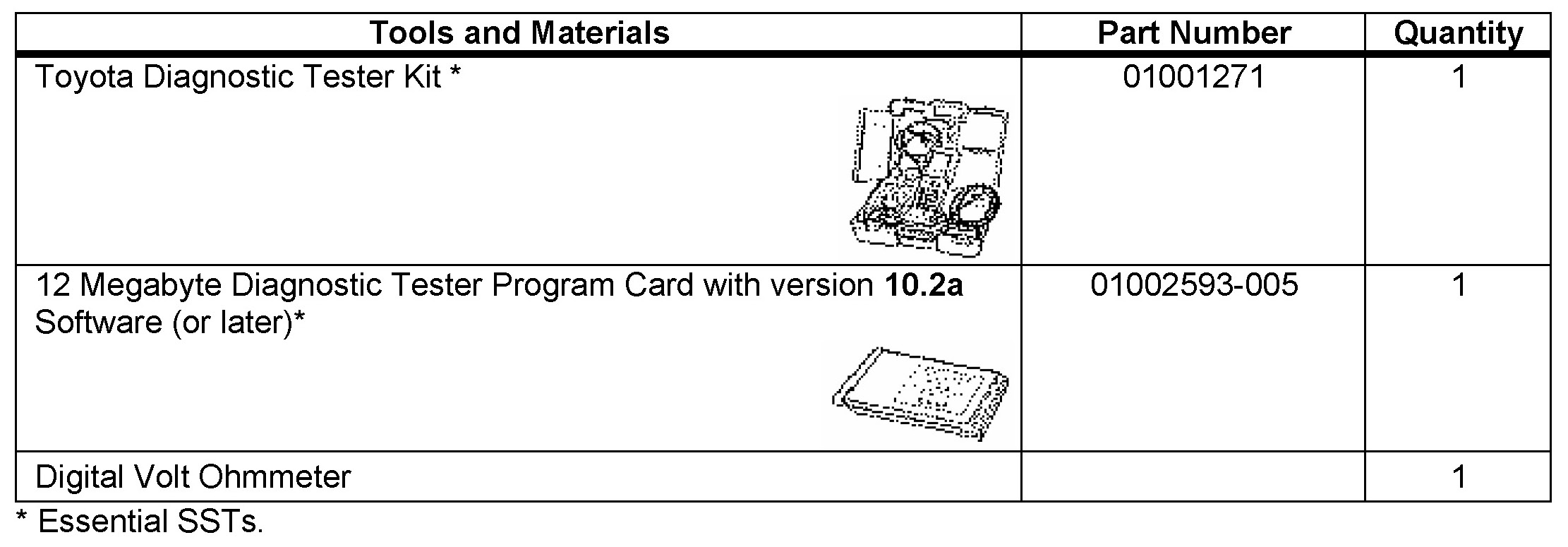

REQUIRED SSTs:

REPAIR PROCEDURE:
1. Follow repair manual diagnostics for applicable DTC (P0748, P0798, P0985 or P0986) Refer to ETAS, 2004 model year Sienna Repair Manual:
Section: Diagnostics;
Subsection: SFI system; P0748 or P0798 or P0985 or P0986

2. If circuit tests OK per repair manual -- replace ECM.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
